N Position

The PCM controls the shift solenoid valves. The conditions of the shift solenoid valves and positions of the shift valves are as follows:

• Shift solenoid valve A: OFF, and shift valve A remains on the right side
• Shift solenoid valve B: ON, and shift valve B moves to the left side
• Shift solenoid valve C: ON, and shift valve C moves to the left side
• Shift solenoid valve D: OFF, and shift valve D remains on the left side
• Shift solenoid valve E: OFF, and shift valve E remains on the left side

Line pressure (1) flows to the shift solenoid valves and A/T clutch pressure control solenoid valve A. Under this condition, hydraulic pressure is not applied to the clutches.

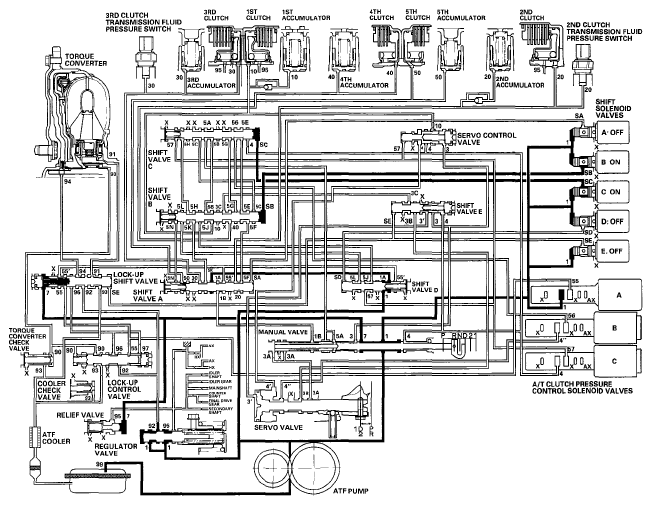

Fig 1: Automatic Transmission Flow Diagram - N Position

Courtesy of AMERICAN HONDA MOTOR CO., INC.
