Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Modulator/Control Unit | Below master cylinder. |
| Convertible Top Control Unit | Under right side of dash. See Figure. |
| Cruise Control Unit | Under left side of dash. See Figure. |
| DRL Control Unit | Under left side of dash. See Figure. |
| DRL Sub-Control Unit | Under left side of dash. See Figure. |

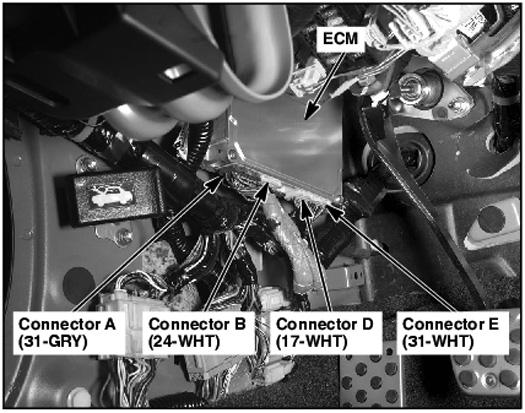

| ECM | Behind left kick panel. See Figure. |
| ELD Unit | In main under-hood fuse/relay box. See Figure. |

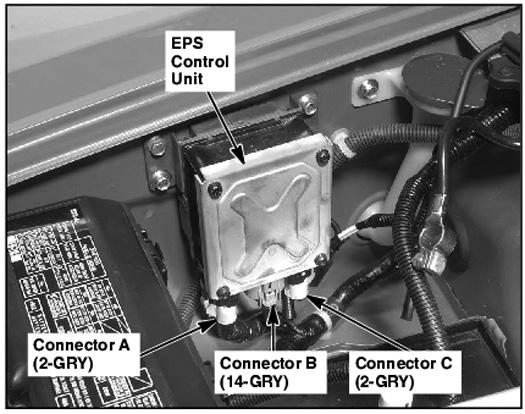

| EPS Control Unit | Right of battery. See Figure. |
| Fuel Tank Unit | On top of fuel tank, below rear tray. See Figure. |
| Immobilizer Control Unit-Receiver | On right side of steering column. See Figure. |

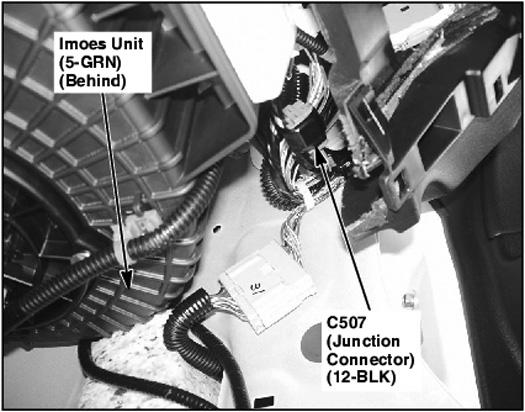

| Imoes Unit | Under right side of dash. See Figure. |
| Keyless Door Lock Control Unit | Under left side of dash. See Figure. |
| SRS Unit | Behind center of dash, below radio. See Figure. |
| Throttle Actuator Control Module | Under right side of dash. See Figure. |

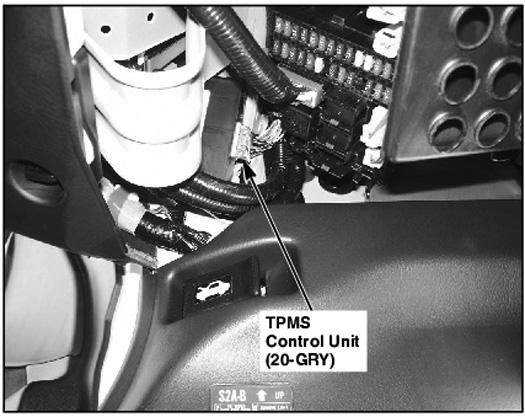

| TPMS Control Unit | Under left side of dash. See Figure. |
| VSA Modulator-Control Unit | At left rear of engine compartment. See Figure. |
