EVAP Canister Vent Shut Valve Replacement

Remove the EVAP canister (see EVAP CANISTER REPLACEMENT ).
Pry the lock tabs (A) outward, and remove the EVAP canister vent shut valve (B).
NOTE: Be careful not to damage the lock tabs.

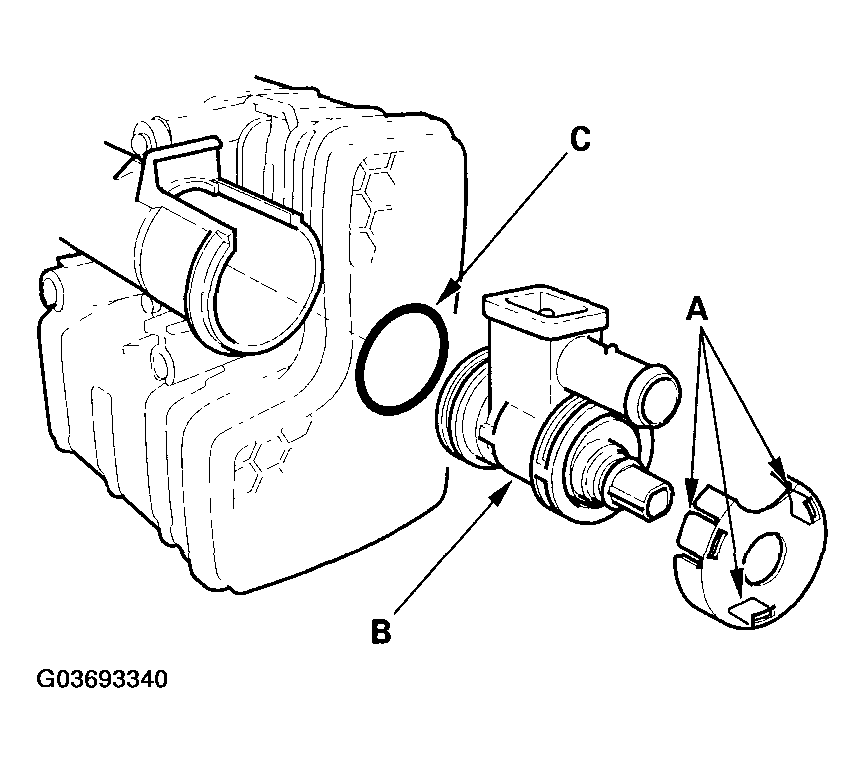

Fig 1: Identifying EVAP Canister Vent Shut Valve
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the valve in the reverse order of removal with a new O-ring (C).
NOTE: Do not coat the O-ring with oil, etc.
