Accelerator Pedal Replacement

  1. Remove the throttle cable (A) from the accelerator pedal (B).

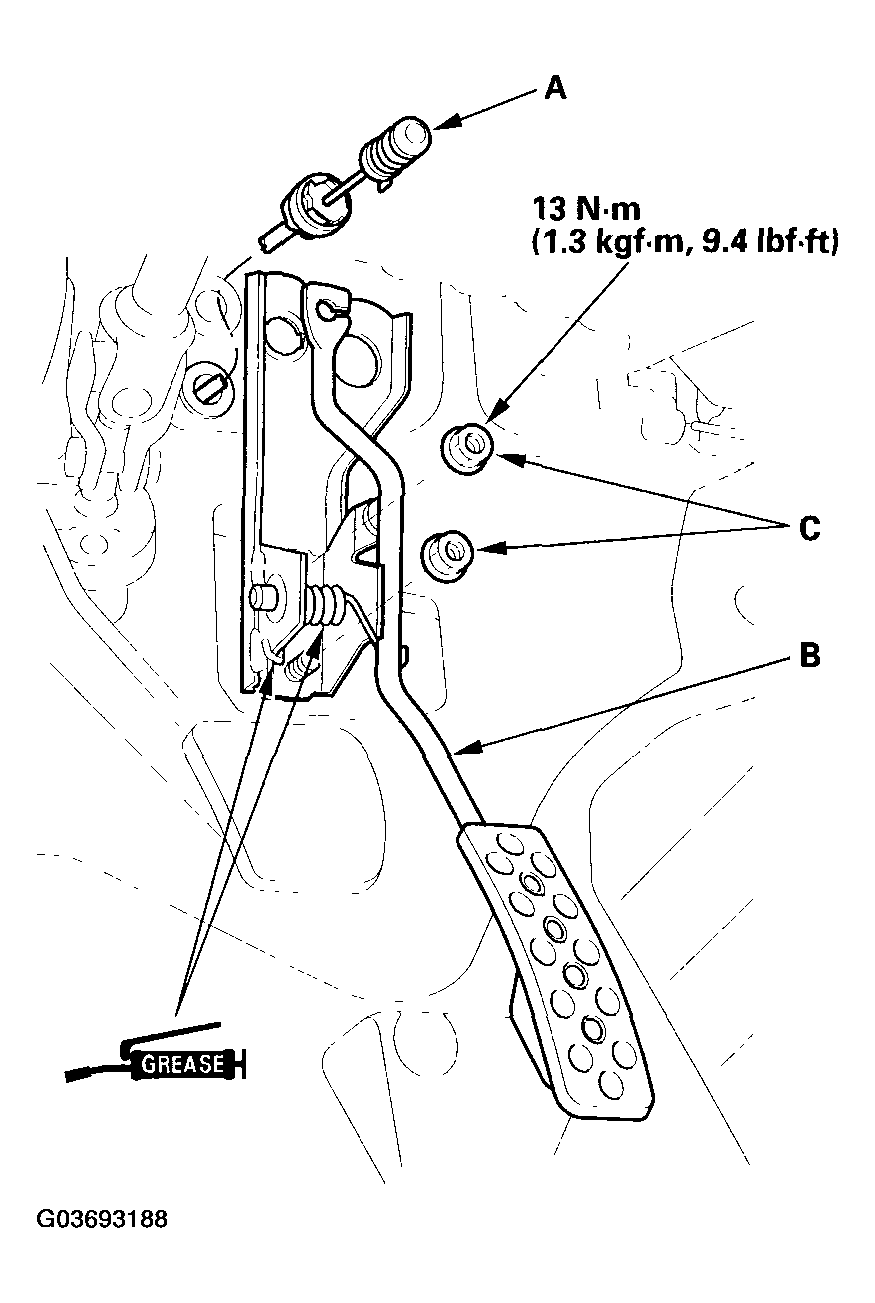

    Fig 1: Removing Throttle Cable From Accelerator Pedal With Torque Specifications
    G03693188Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the nuts (C) and the accelerator pedal.
  3. Install the pedal in the reverse order of removal.
