CMP Sensor Replacement

NOTE: The CMP sensor is on the exhaust side of the cylinder head.
  1. Disconnect the CMP sensor 3P connector (A).

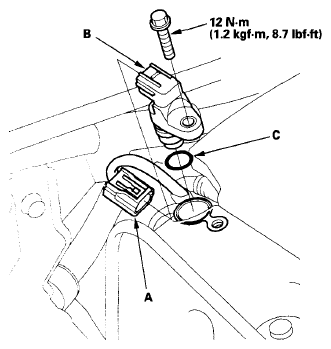

    Fig 1: CMP Sensor 3P Connector With Torque Specifications
    G06231778Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the CMP sensor (B) from the exhaust camshaft side of the cylinder head.
  3. Install the parts in the reverse order of removal with a new O-ring (C).
