Under-dash Fuse/Relay Box

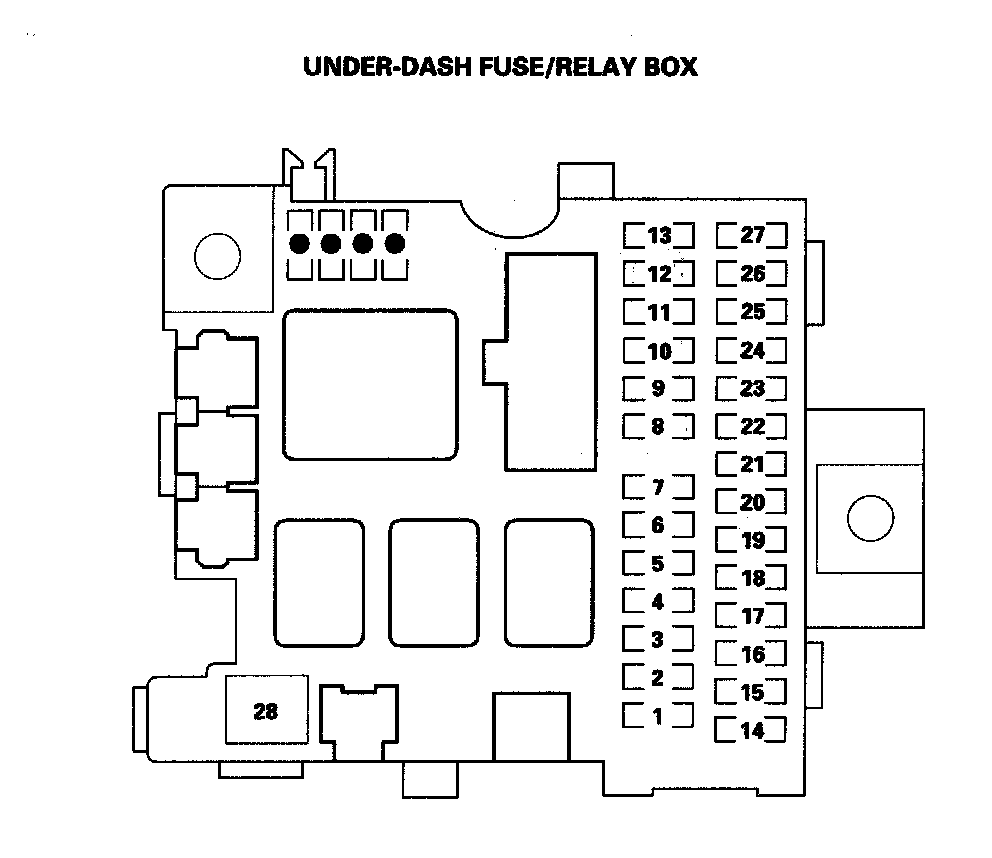

Under-dash Fuse/Relay Box (Part 1):

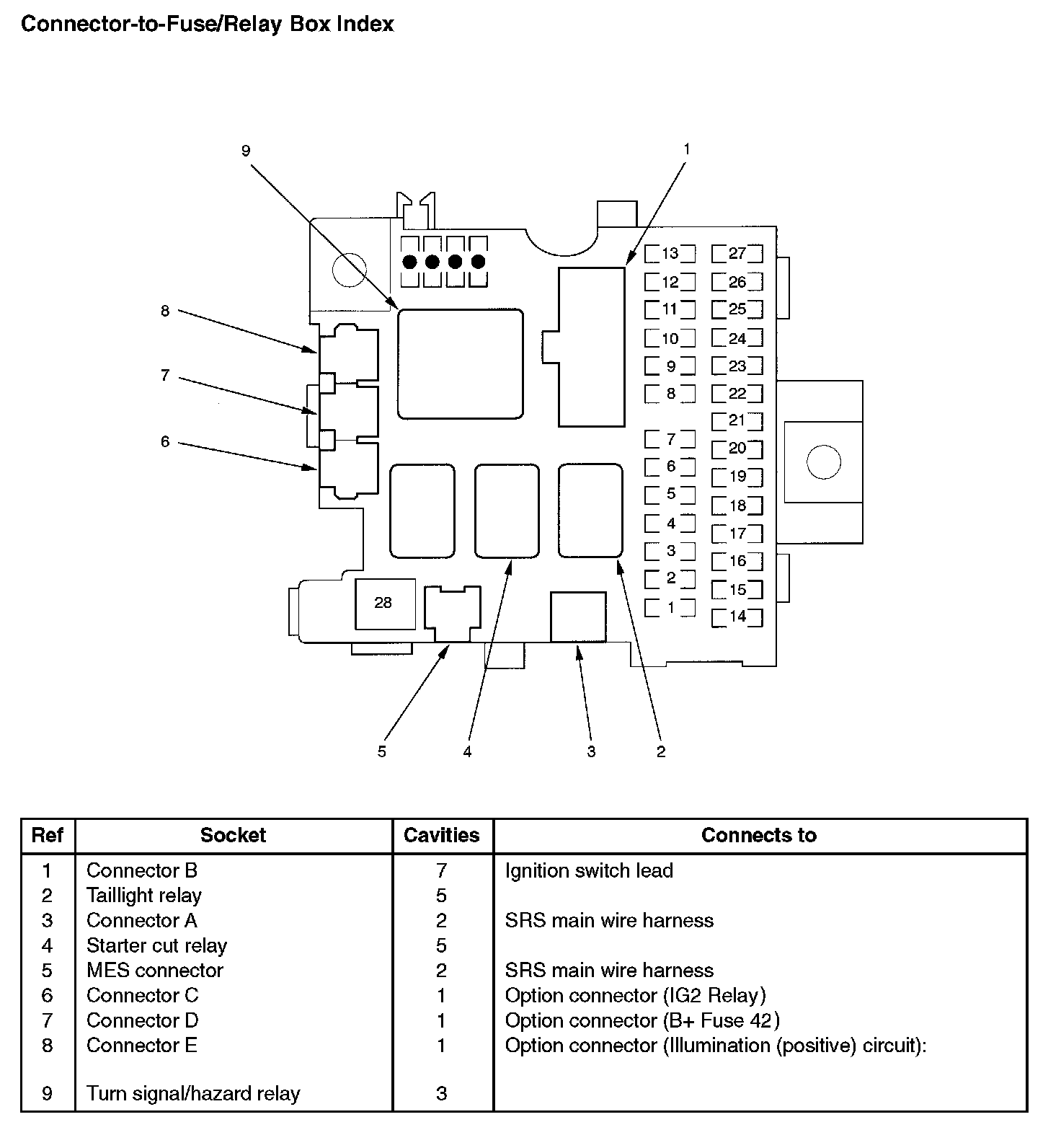

Under-dash Fuse/Relay Box (Part 2):

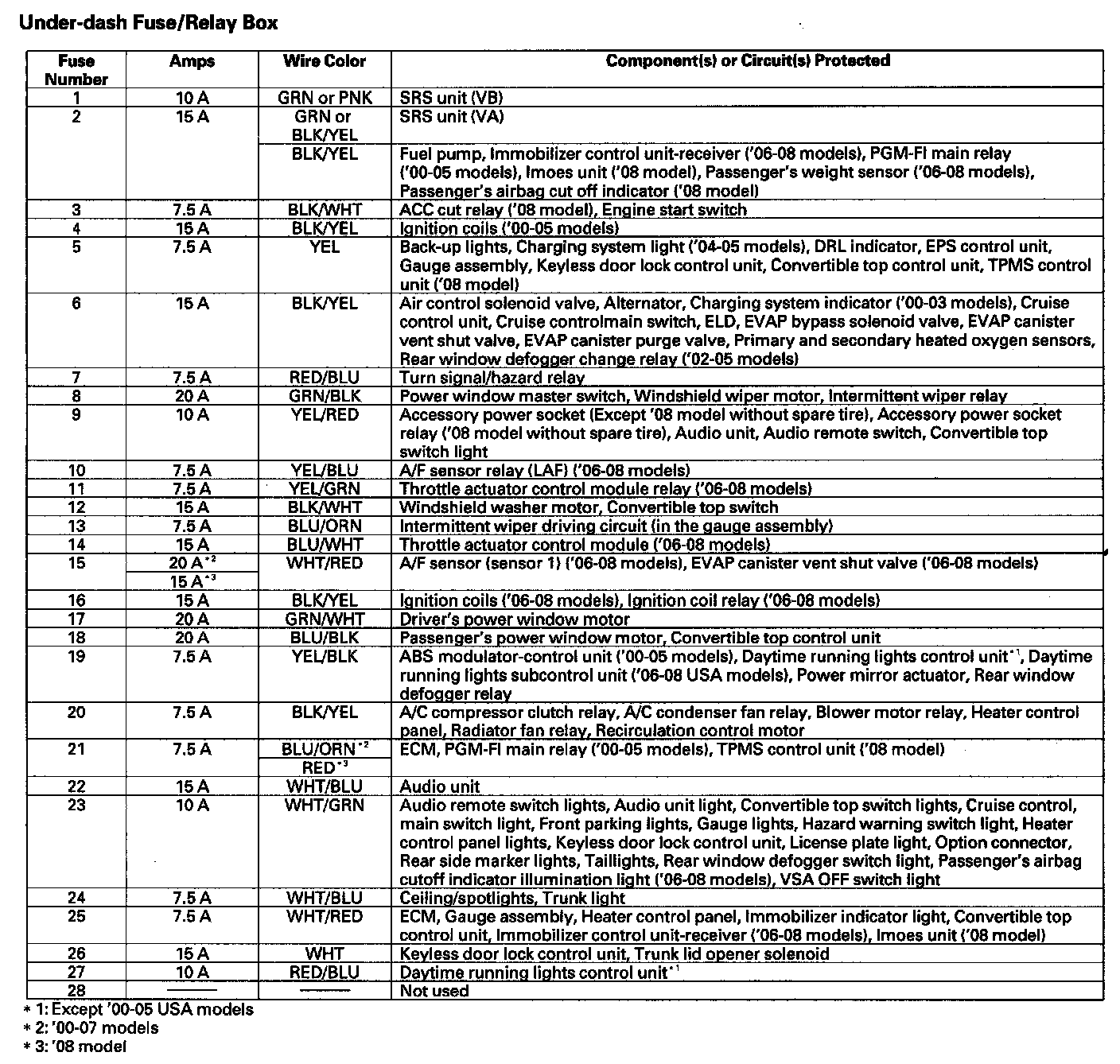

Under-dash Fuse/Relay Box:
