Accelerator Pedal Position Sensor: Locations

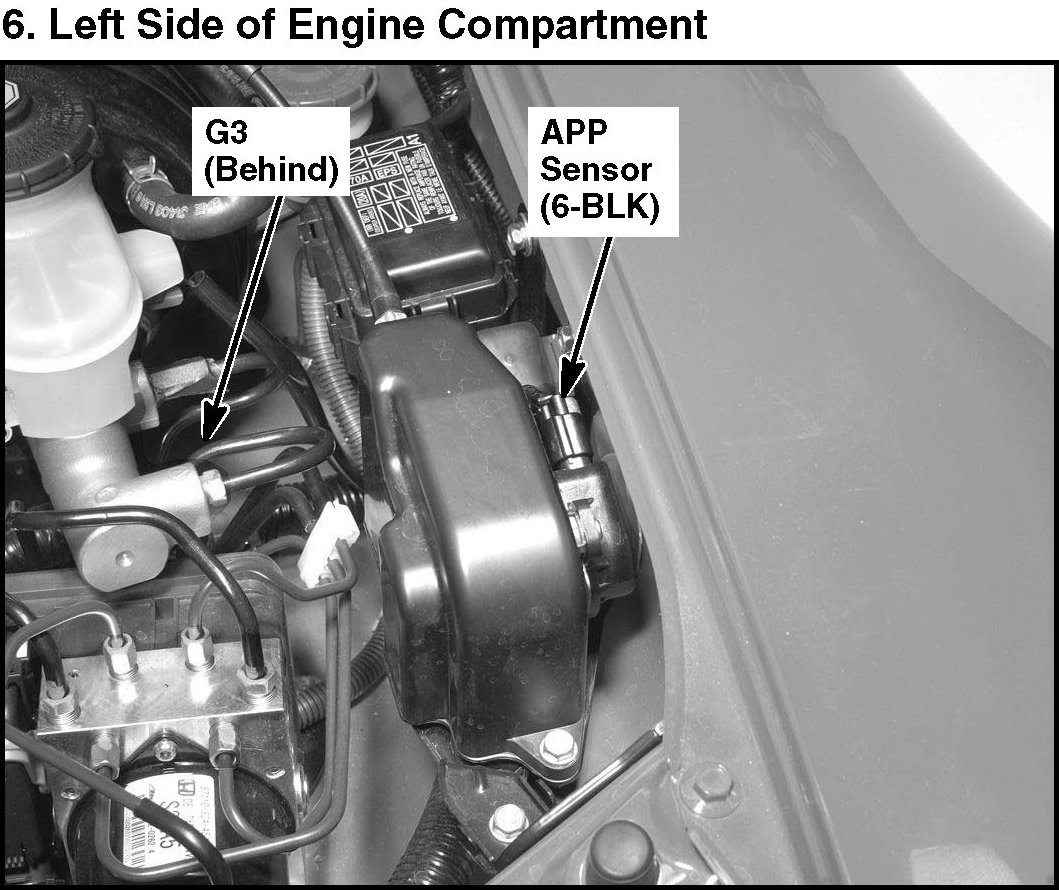

6. Left Side Of Engine Compartment:

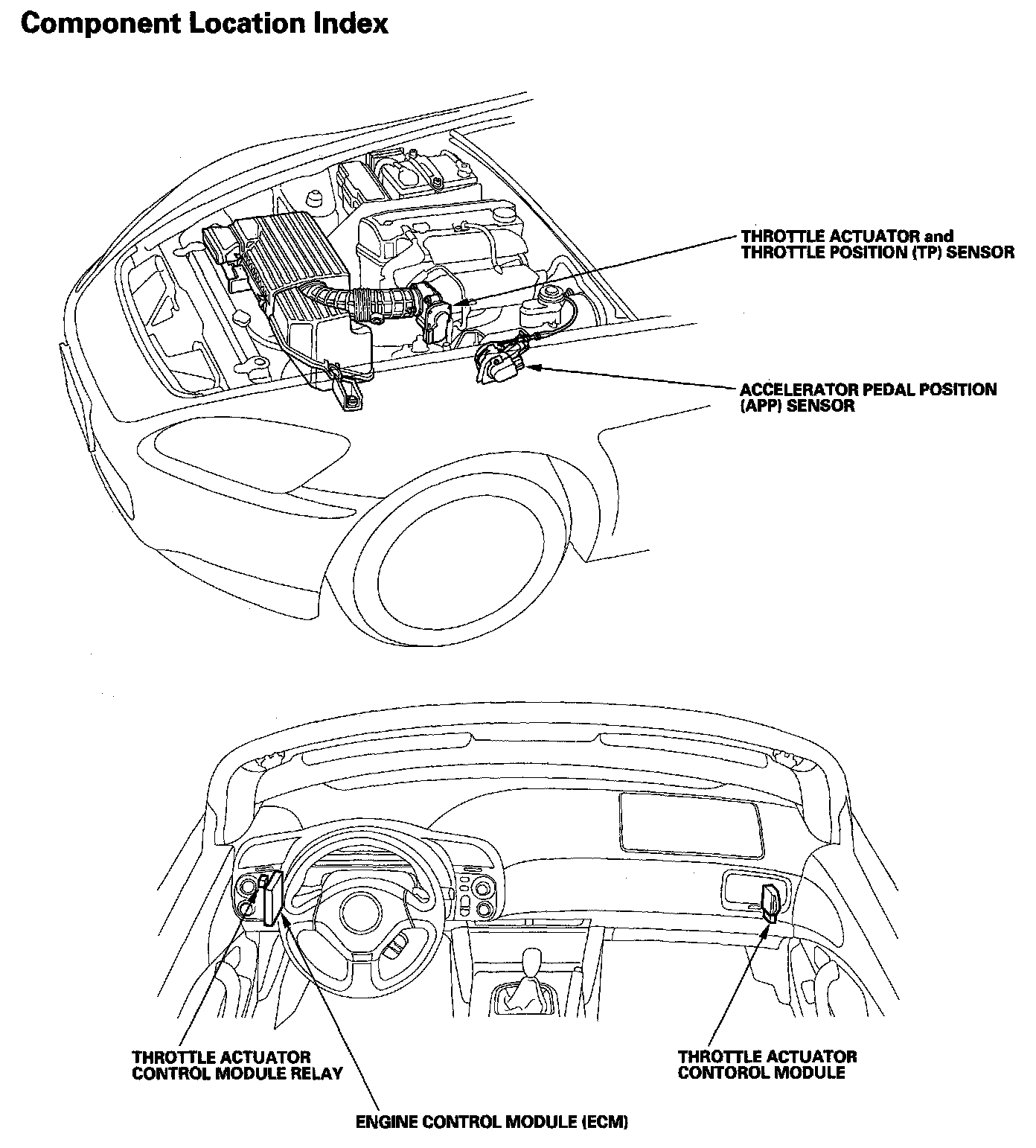

Electronic Throttle Control System Component Location Index:
