ECT Sensor 1

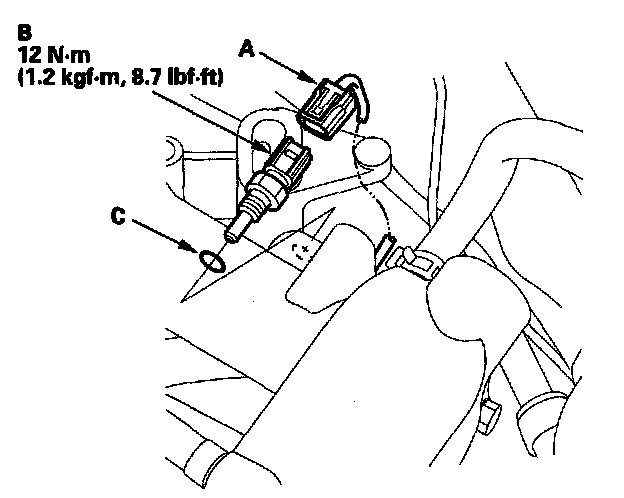

ECT Sensor 1 Replacement

1. Drain the engine coolant.




2. Disconnect the ECT sensor 1 2P connector (A).
3. Remove ECT sensor 1 (B).
4. Install the parts in the reverse order of removal with a new O-ring (C).
5. Refill the radiator with engine coolant.
