Service Specifications

Flywheel

Torque the flywheel mounting bolts in a crisscross pattern in several steps.

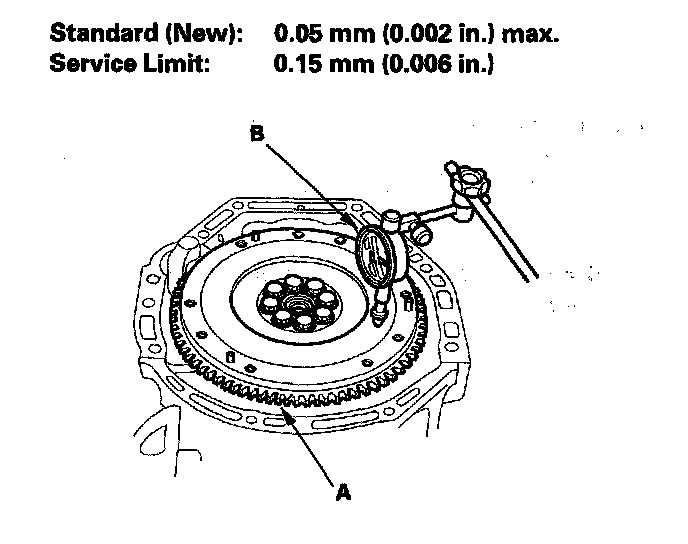

Flywheel Runout





Pressure Plate

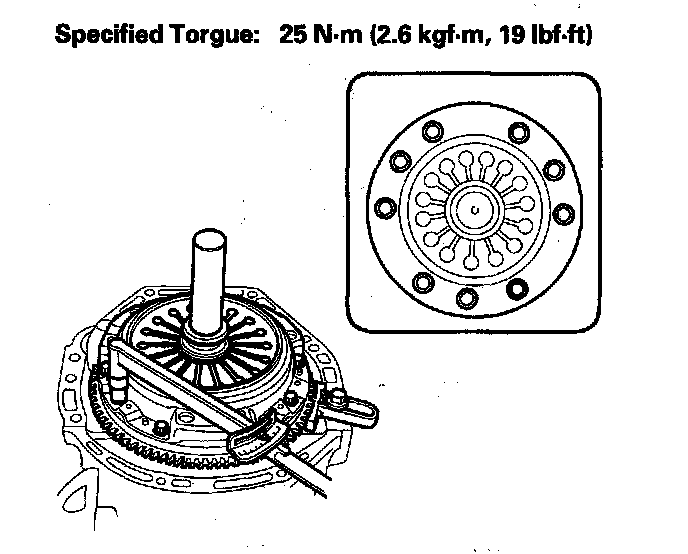

Torque the mounting bolts in a crisscross pattern in several steps to prevent warping the diaphragm spring.

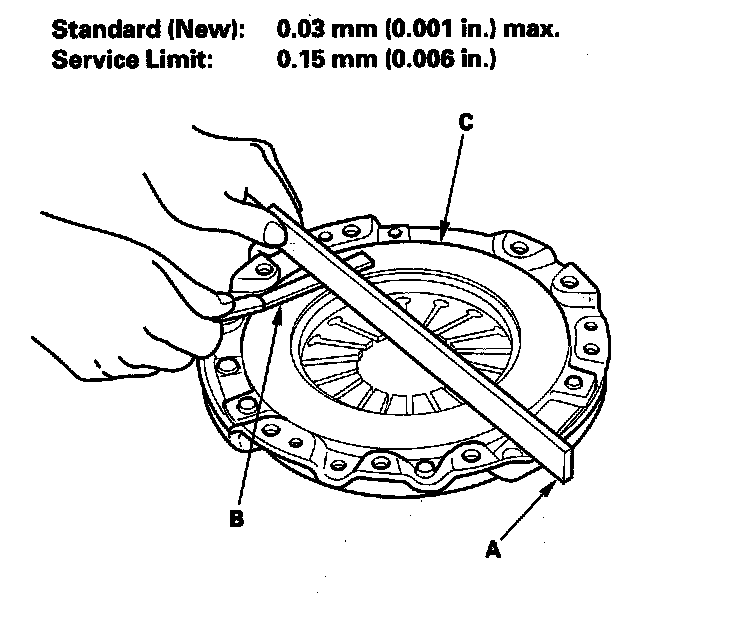

Pressure Plate Warpage





Diaphragm Spring

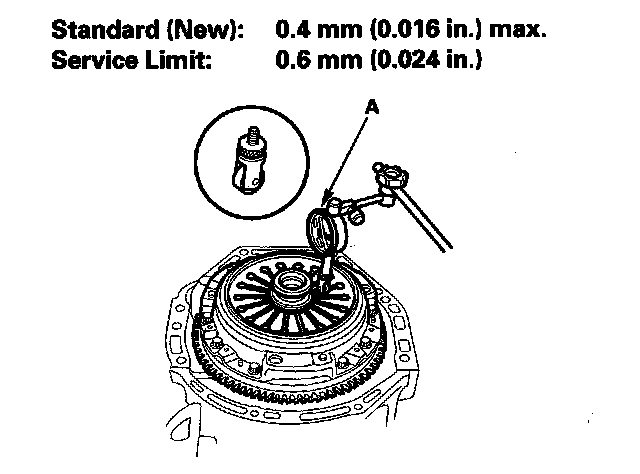

Height-variation of the diaphragm spring

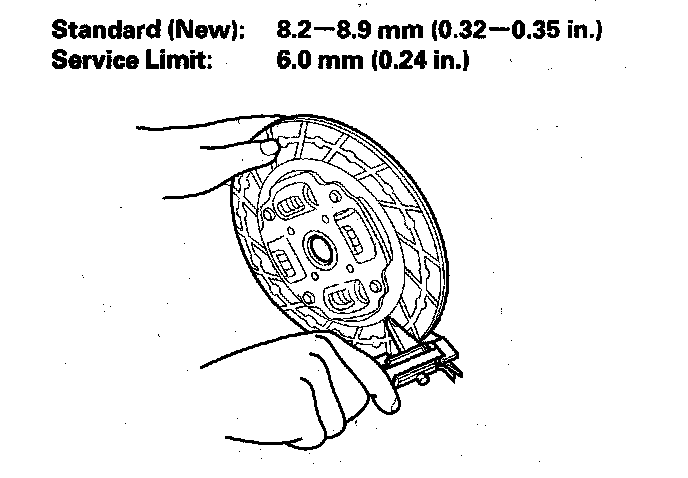

Clutch Disc Thickness

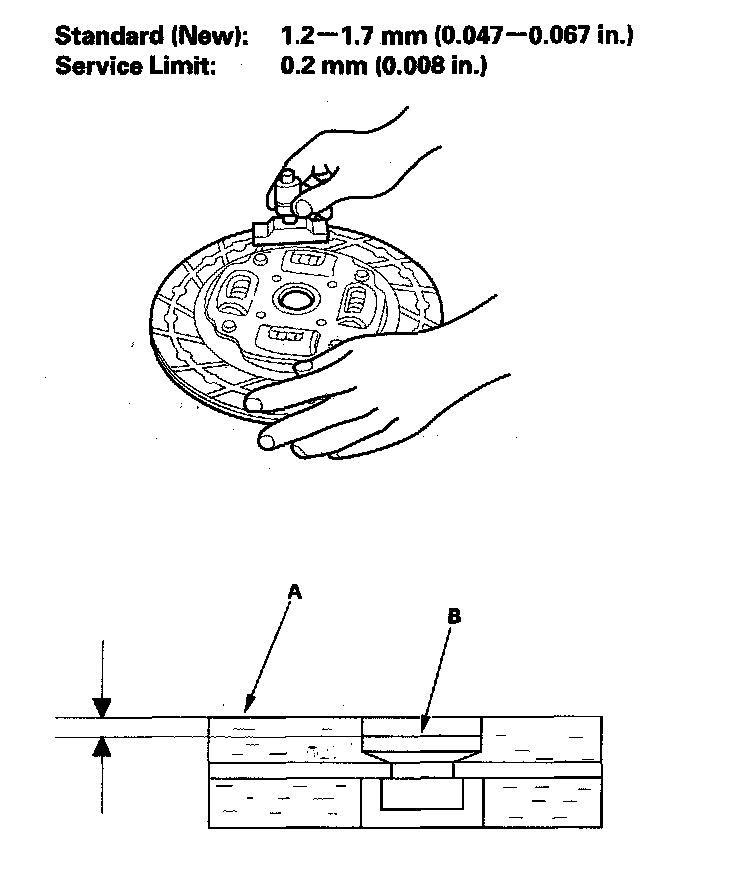

Rivet Depth





For information regarding Clutch Overhaul Specifications, please refer to Service and Repair. Service and Repair
