Keyless Receiver Unit Input Test

Keyless Receiver Unit Input Test

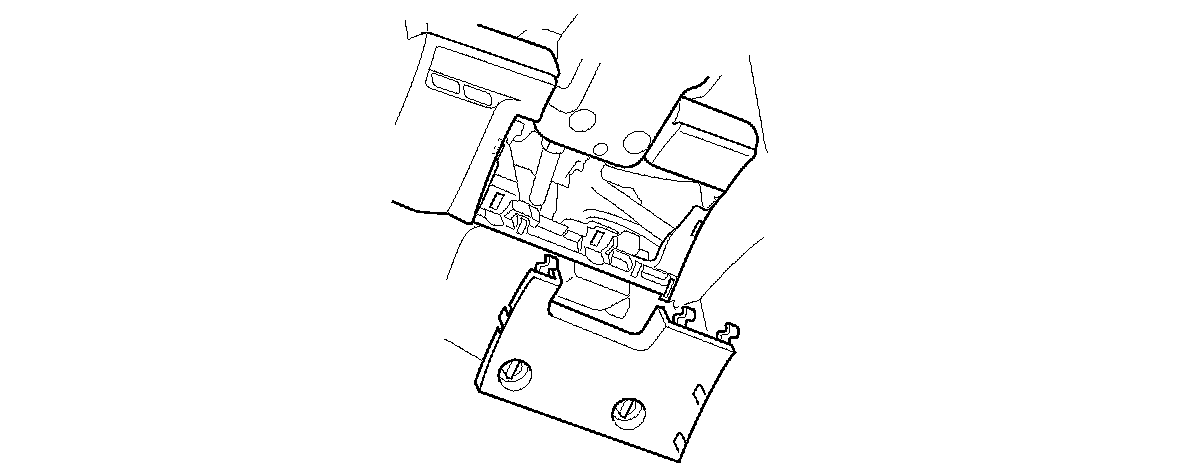

1. Remove the driver's dashboard lower cover. Drivers Dashboard Lower Cover Removal/Installation

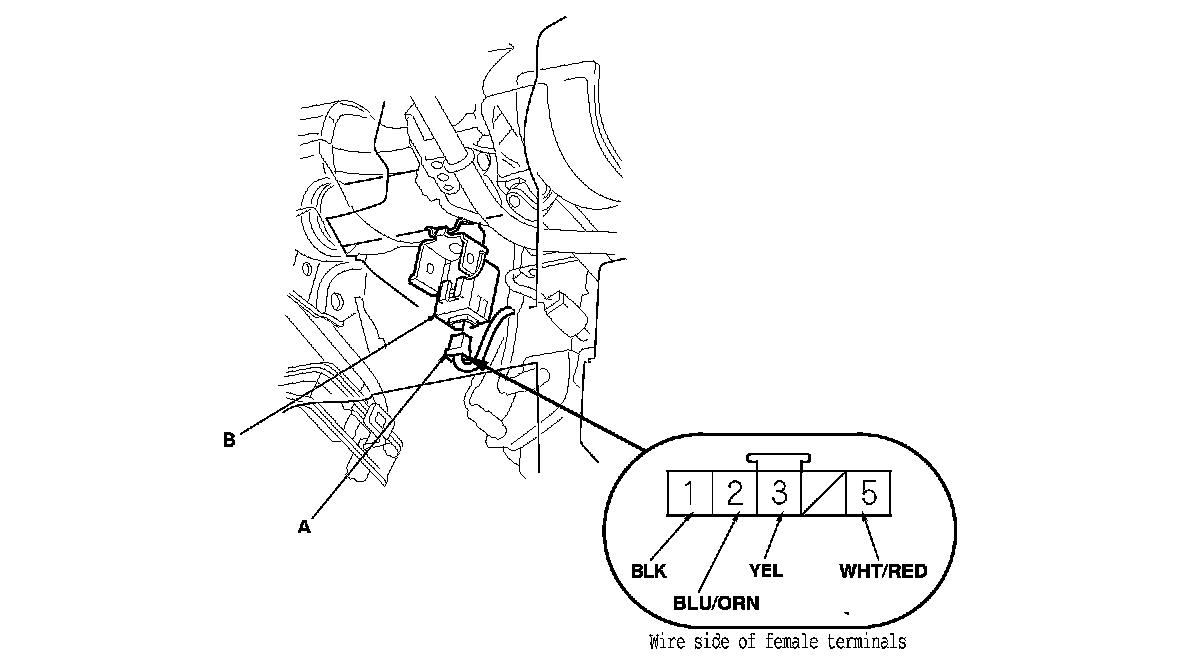

2. Disconnect the 5P connector (A) from the keyless receiver unit (B).

3. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.

- If the terminals look OK, go to step 4.

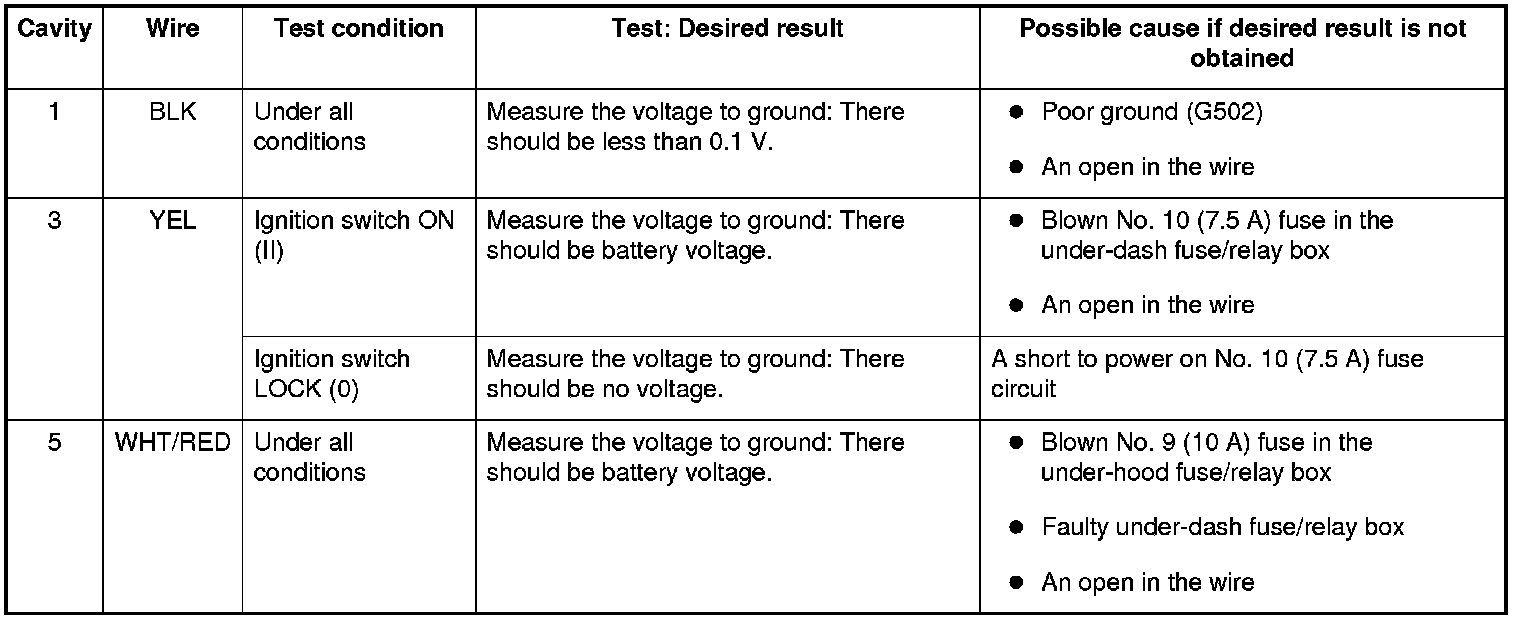

4. Reconnect the connector, and do these input tests at the following connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.

- If all the input tests prove OK, go to step 5.

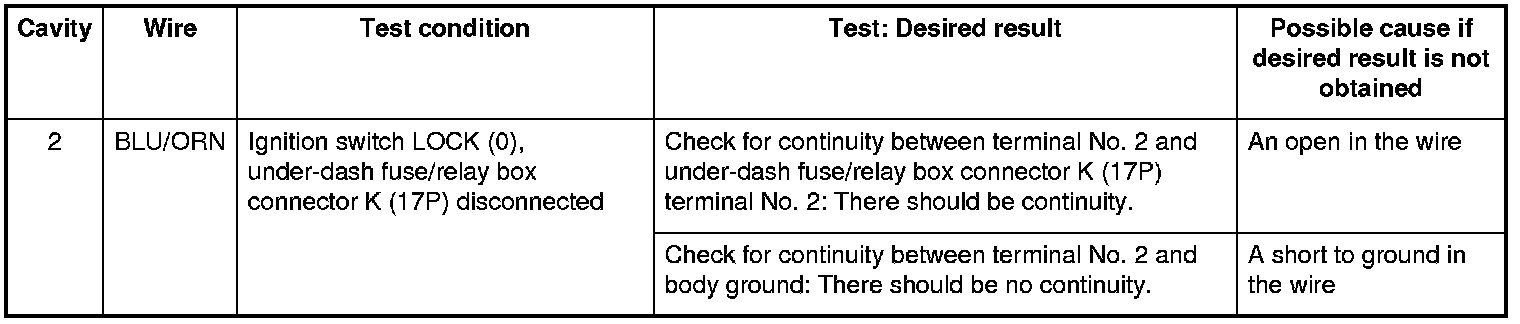

5. Disconnect the connector, and do this input test at the following connector.
- If the test indicates a problem, find and correct the cause, then recheck the system.

- If the input test proves OK, replace the keyless receiver unit.
