Honda
>>
2009
>>
Element 2WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Alarm Module, (Vehicle Antitheft)
>>
Security Control Unit Connector (Option) Connector View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

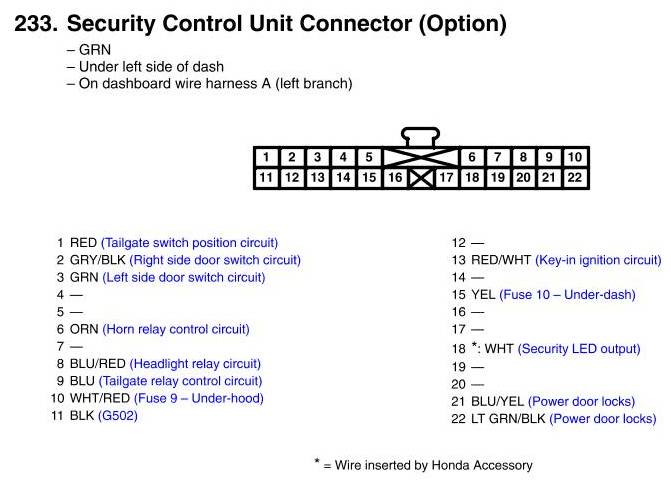

Security Control Unit Connector (Option) Connector View
