Left Power Mirror Connector View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

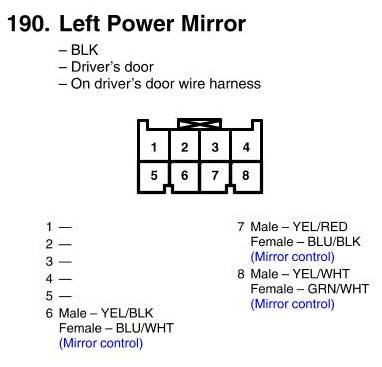

Left Power Mirror Connector View
