A/F Sensor Replacement

A/F Sensor Replacement

Special Tools Required

- O2 sensor socket wrench, Snap-on YA8875 or SWR2, or equivalent, commercially available

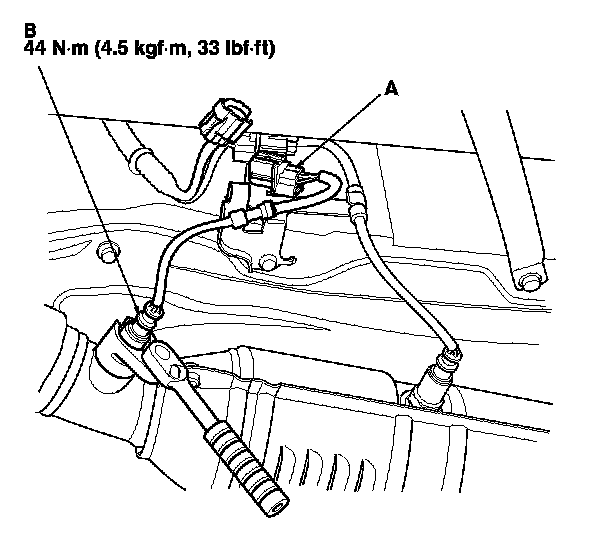

1. Disconnect the A/F sensor 4P connector (A), then remove the A/F sensor (B).

2. Install the parts in the reverse order of removal.
