Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Right Side Of Engine Compartment

G00268411

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Right Side Of Engine Compartment

G00268412

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Front Of Engine Compartment

G00268413

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Front Of Engine Compartment

G00268414

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Left Side Of Engine Compartment

G00268415

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 6: Left Side Of Engine Compartment

G00268416

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 7: Right Side Of Engine

G00430914

Courtesy of AMERICAN HONDA MOTOR CO., INC.

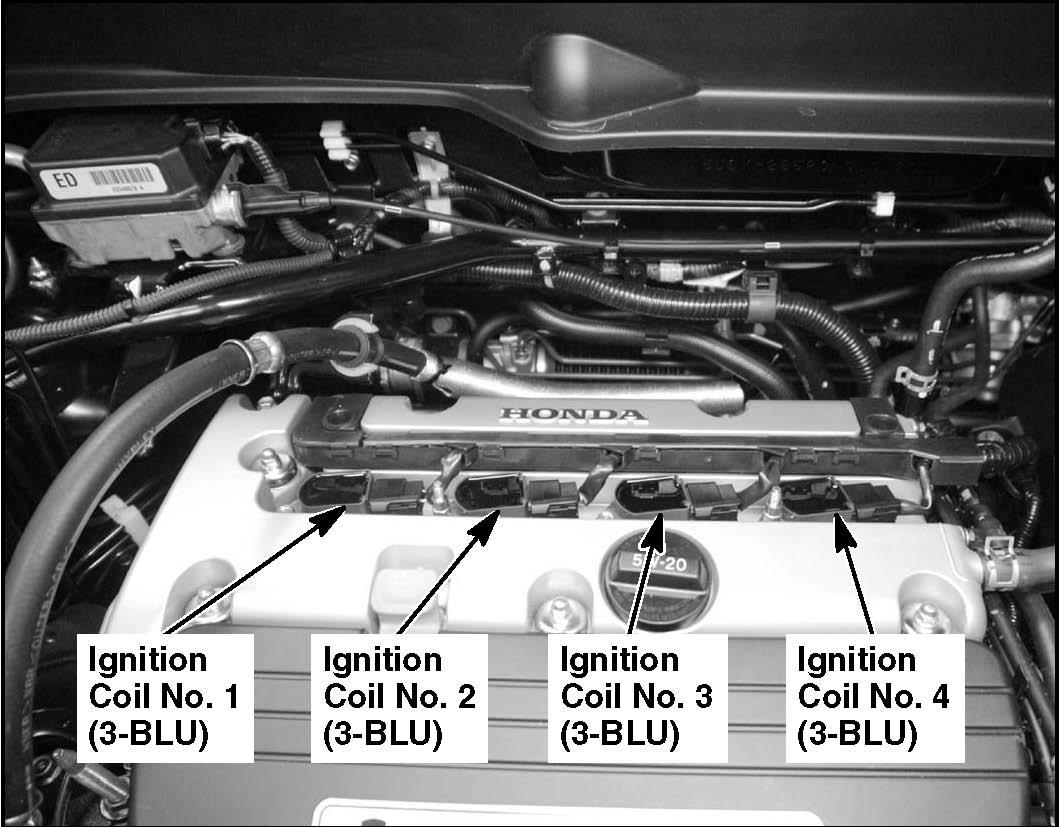

Fig 8: Middle Of Engine

G00459041

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 9: Middle Of Engine

G00430915

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Middle Of Engine Compartment

G00445776

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 11: Front Of Engine (Intake Removed)

G00268423

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 12: Right Side Of Engine Compartment (Intake Removed)

G00268424

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 13: Left Side Of Intake Manifold

G00445768

Courtesy of AMERICAN HONDA MOTOR CO., INC.

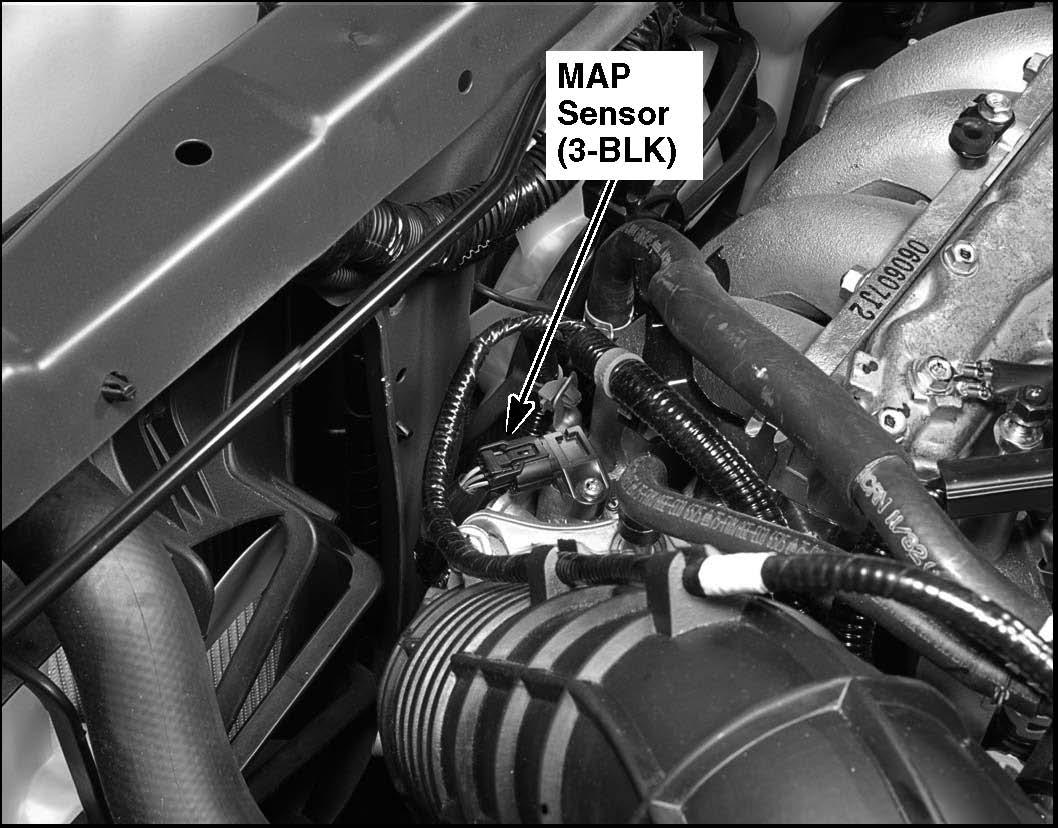

Fig 14: Left Front Of Engine

G00459040

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 15: Left Side Of Engine

G00268428

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 16: Left Side Of Engine

G00268429

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 17: Left Side Of Engine

G00268430

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 18: Transmission Housing (A/T)

G00268431

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 19: Transmission Housing (A/T)

G00445772

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 20: Transmission Housing (A/T)

G00430917

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 21: Rear Of Engine Compartment

G00268435

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 22: Left Side Of Engine Compartment

G00268436

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 23: Under Left Side Of Cowl Cover

G00268437

Courtesy of AMERICAN HONDA MOTOR CO., INC.

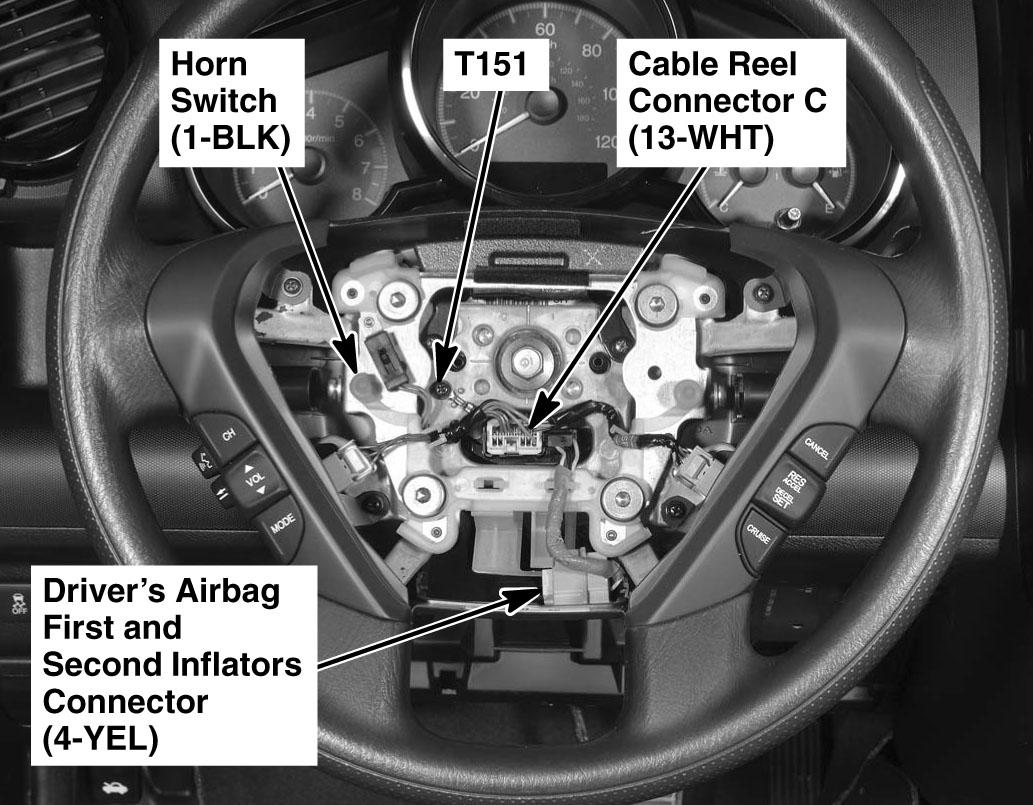

Fig 24: Inside Steering Wheel

G00472930

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 25: In Steering Column Cover

G00268440

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 26: Under Left Side Of Dash

G00445786

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 27: Behind Left Side Of Dash

G00445787

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 28: Under Left Side Of Dash

G00268443

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 29: Behind Right Side Of Dash

G00268444

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 30: Under Left Side Of Dash

G00445783

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 31: Under Left Side Of Dash

G00445781

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 32: Under Left Side Of Dash

G00445785

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 33: Under Left Side Of Dash

G00268448

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 34: Under Middle Of Dash

G00445795

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 35: Under Middle Of Dash

G00445791

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 36: Under Middle Of Dash

G00445796

Courtesy of AMERICAN HONDA MOTOR CO., INC.

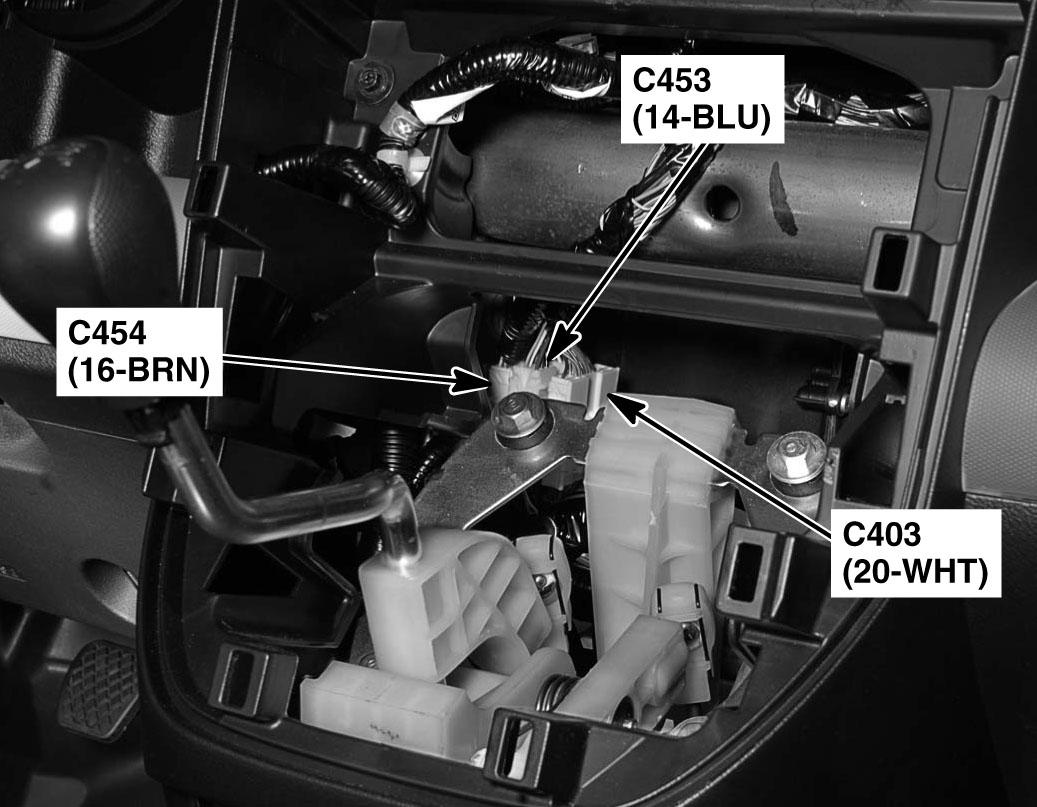

Fig 37: Under Middle Of Dash

G00472935

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 38: Under Middle Of Dash

G00268458

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 39: Under Middle Of Dash

G00268459

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 40: Under Middle Of Dash

G00445801

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 41: Behind Glove Box

G00268463

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 42: Behind Glove Box

G00445804

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 43: Behind Glove Box

G00445805

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 44: Behind Glove Box

G00268466

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 45: Behind Glove Box

G00445806

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 46: Under Right Side Of Dash

G00445807

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 47: Under Right Side Of Dash

G00268469

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 48: Behind Right Kick Panel (EX, SC)

G00268470

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 49: Driver's Door

G00268471

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 50: Front Passenger's Door

G00268472

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 51: Left Rear Door

G00445817

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 52: Under Driver's Seat

G00445808

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 53: Under Front Passenger's Seat

G00445812

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 54: Under Front Passenger's Seat

G00268479

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 55: Under Center Console

G00445802

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 56: Middle Of Floor

G00268481

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 57: Left Quarterpanel (Right Similar)

G00445820

Courtesy of AMERICAN HONDA MOTOR CO., INC.

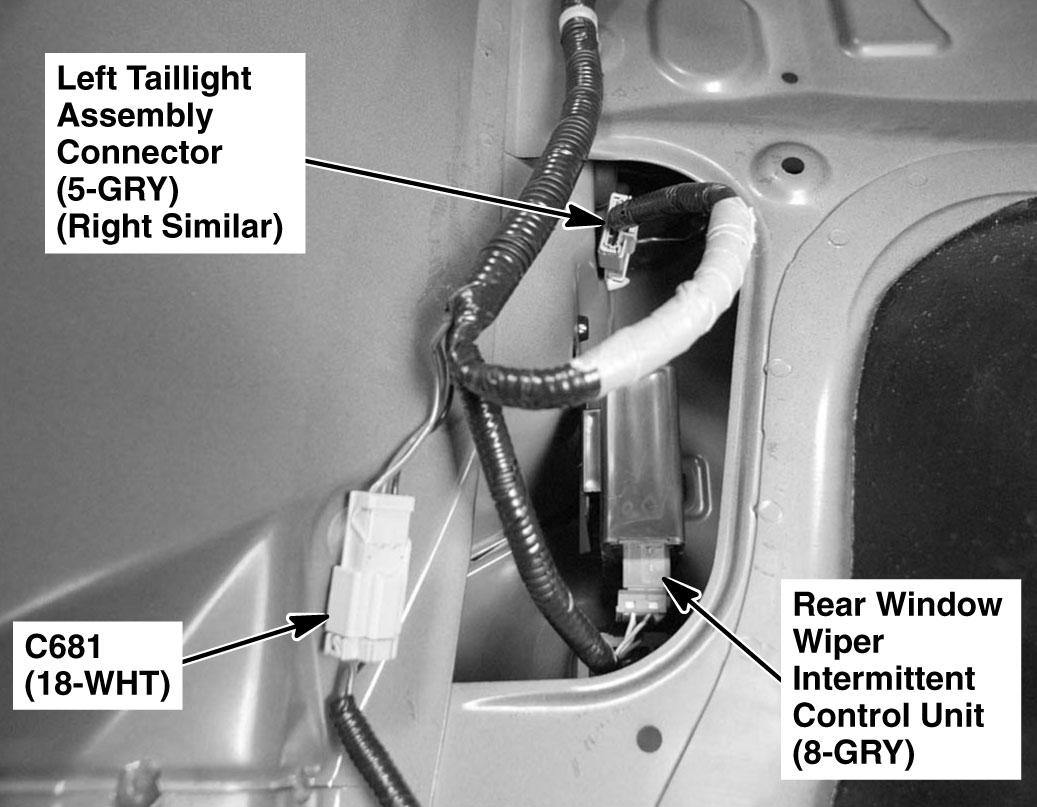

Fig 58: Left Quarterpanel

G00472940

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 59: Left "D" Pillar

G00445819

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 60: Right "D" Pillar

G00268486

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 61: Middle Of Hatch

G00268487

Courtesy of AMERICAN HONDA MOTOR CO., INC.

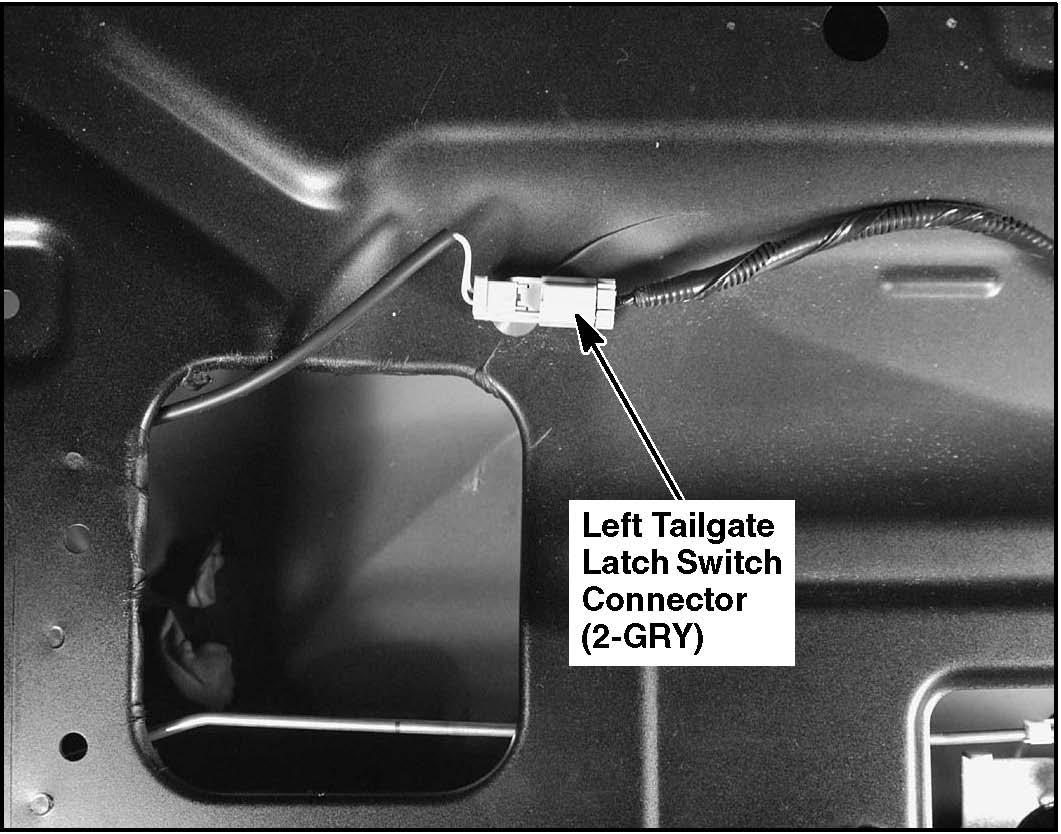

Fig 62: Left Side Of Tailgate

G00459042

Courtesy of AMERICAN HONDA MOTOR CO., INC.

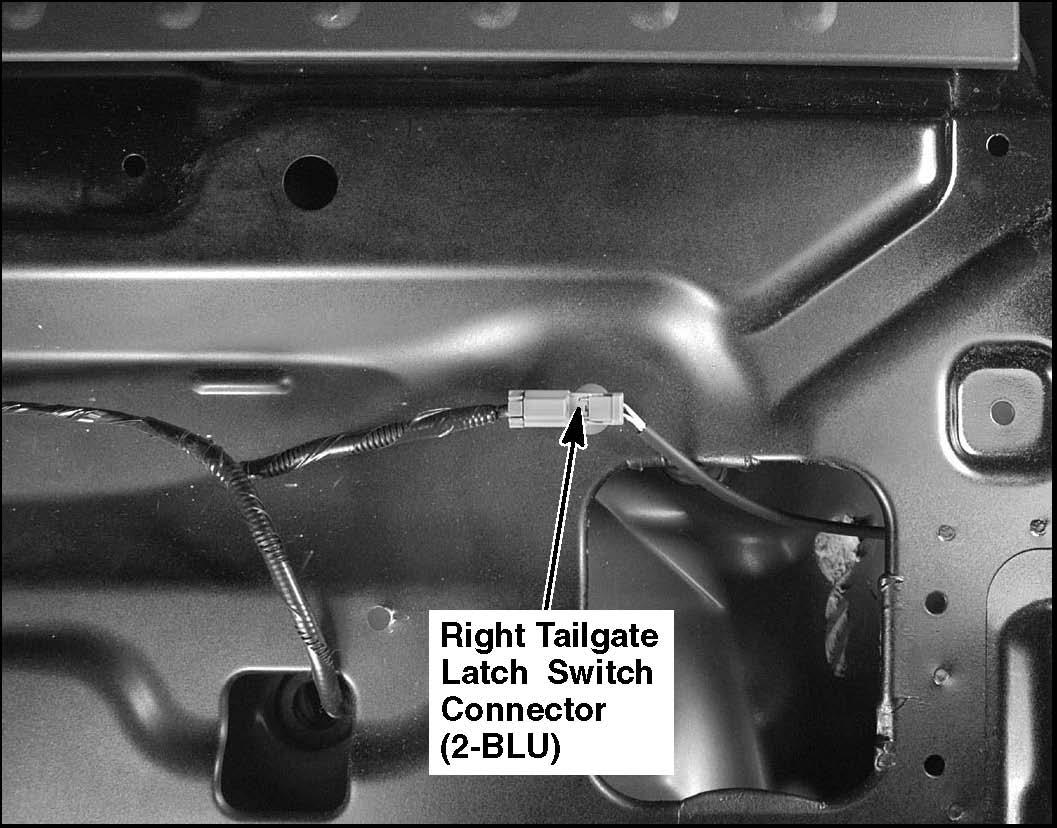

Fig 63: Right Side Of Tailgate

G00459043

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 64: Behind Left Side Of Front Bumper

G00445766

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 65: Behind Right Side Of Front Bumper

G00263921

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 66: Behind Right Side Of Front Bumper

G00445767

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 67: Behind Right Side Of Front Bumper

G00263923

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 68: Right Side Of Engine Compartment

G00445770

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 69: Right Side Of Engine

G00263925

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 70: Front Of Engine Compartment

G00445775

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 71: Left Side Of Engine Compartment

G00445774

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 72: Transmission Housing (A/T)

G00445771

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 73: Transmission Housing (A/T)

G00263929

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 74: Under Middle Of Vehicle

G00263930

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 75: Under Left Rear Of Vehicle (EX)

G00263931

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 76: Under Left Rear Of Vehicle

G00263932

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 77: Under Left Rear Of Vehicle

G00263933

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 78: Under Right Rear Of Vehicle (EX)

G00430937

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 79: Transmission Housing (M/T)

G00263935

Courtesy of AMERICAN HONDA MOTOR CO., INC.

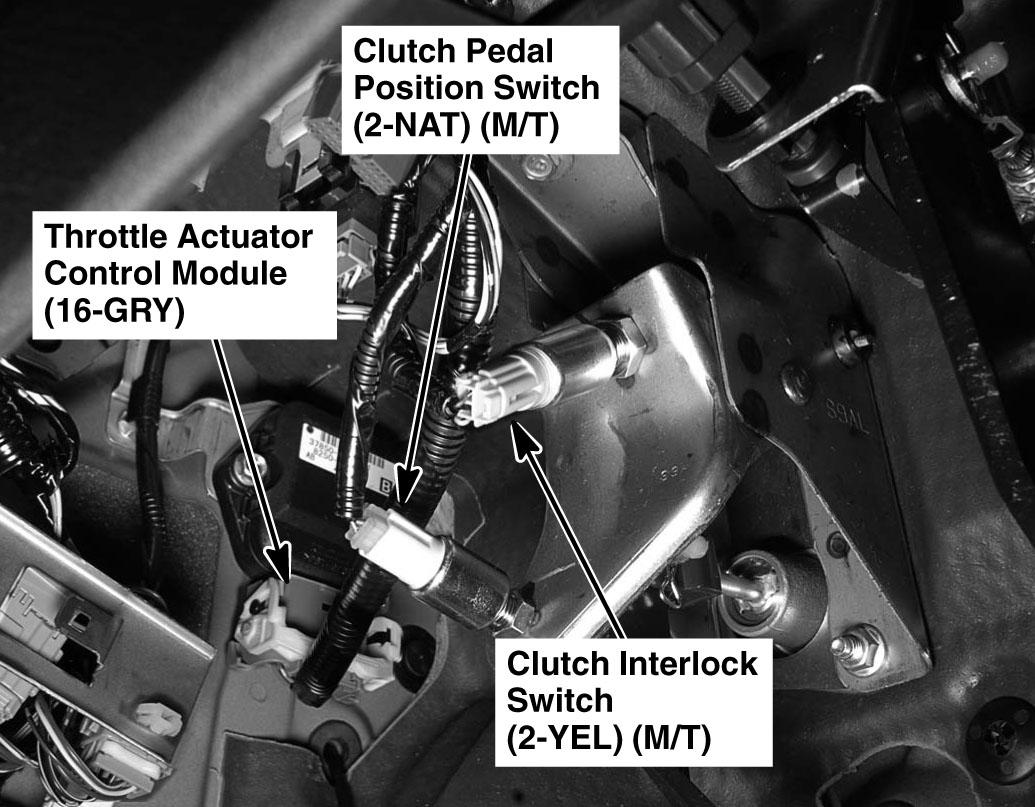

Fig 80: Under Left Side Of Dash (M/T)

G00472932

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 81: Front Of Engine Compartment

G00263943

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 82: Underdash Fuse/Relay Box

G00292073

Courtesy of AMERICAN HONDA MOTOR CO., INC.

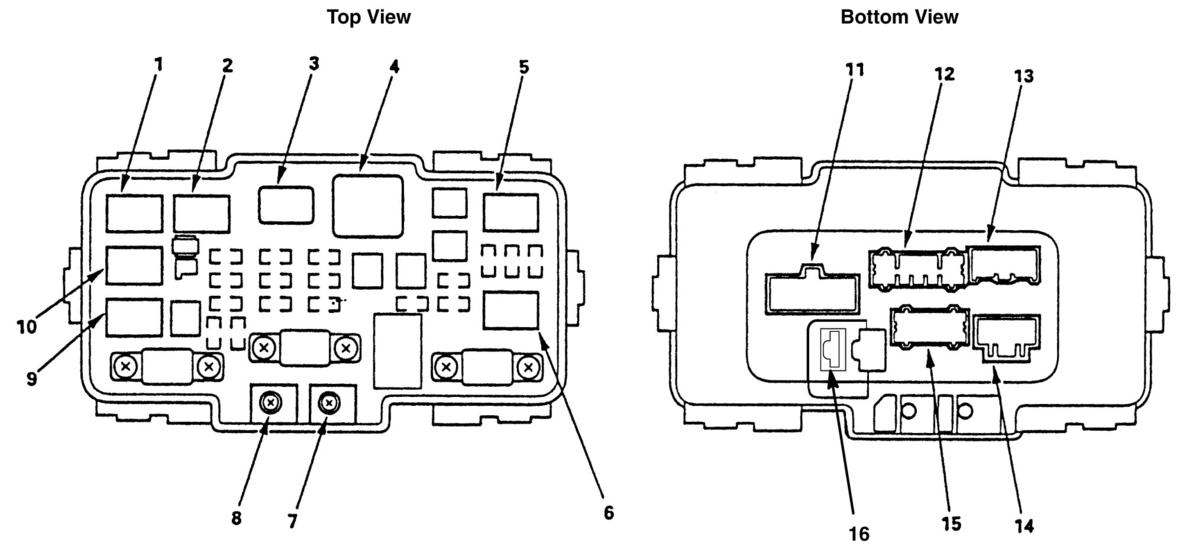

Fig 83: Underhood Fuse/Relay Box

G00472927

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 84: Right Rear Door

G00445818

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 85: Left Side Of Engine Compartment

G00430913

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 86: In Steering Column Cover

G00430918

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 87: In Steering Column Cover

G00430919

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 88: Middle Of Dash

G00430920

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 89: Driver's Door (Front Passenger's Similar)

G00430925

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 90: Driver's Door

G00430926

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 91: Front Passenger's Door

G00430927

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 92: Left Rear Door (Right Similar)

G00430928

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 93: Left Rear Door

G00430929

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 94: Right Rear Door

G00430930

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 95: Left Side Of Hatch

G00430933

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 96: Right Side Of Hatch

G00430934

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 97: Middle Of Hatch

G00430935

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 98: Left Side Of Front Passenger's Seat

G00445814

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 99: Right Quarterpanel (USA: EX SC)

G00430944

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 100: Rear Of Cargo Area

G00445825

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 101: Right Side Of Engine

G00430947

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 102: Transmission Housing (M/T)

G00445773

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 103: Left Front Of Engine Compartment (Right Similar)

G00445777

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 104: Right Rear Of Engine Compartment

G00445778

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 105: Transmission Housing (M/T)

G00445779

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 106: Right Side Of Engine Compartment

G00445780

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 107: Behind Left Side Of Dash

G00445782

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 108: Under Steering Column Cover

G00445788

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 109: Under Middle Of Dash (A/T)

G00445790

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 110: Under Left Side Of Dash

G00445792

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 111: Under Middle Of Dash (SC)

G00445797

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 112: Under Center Console (SC)

G00445798

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 113: Under Middle Of Dash

G00445799

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 114: Under Middle Of Dash

G00445800

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 115: Under Center Console

G00445803

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 116: Right Side Of Floor (Left Similar)

G00445809

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 117: Under Driver's Seat

G00445810

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 118: Left Side Of Floor

G00445811

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 119: Under Front Passenger's Seat

G00445813

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 120: Under Front Passenger's Seat

G00445815

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 121: Left Rear Door (Right Similar)

G00445816

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 122: Left Quarterpanel (Right Similar)

G00445822

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 123: Left Rear Of Roof

G00445823

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 124: Left Rear Of Roof (Right Similar)

G00445824

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 125: Right Quarterpanel

G00445826

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 126: Intake Manifold

G00445769

Courtesy of AMERICAN HONDA MOTOR CO., INC.

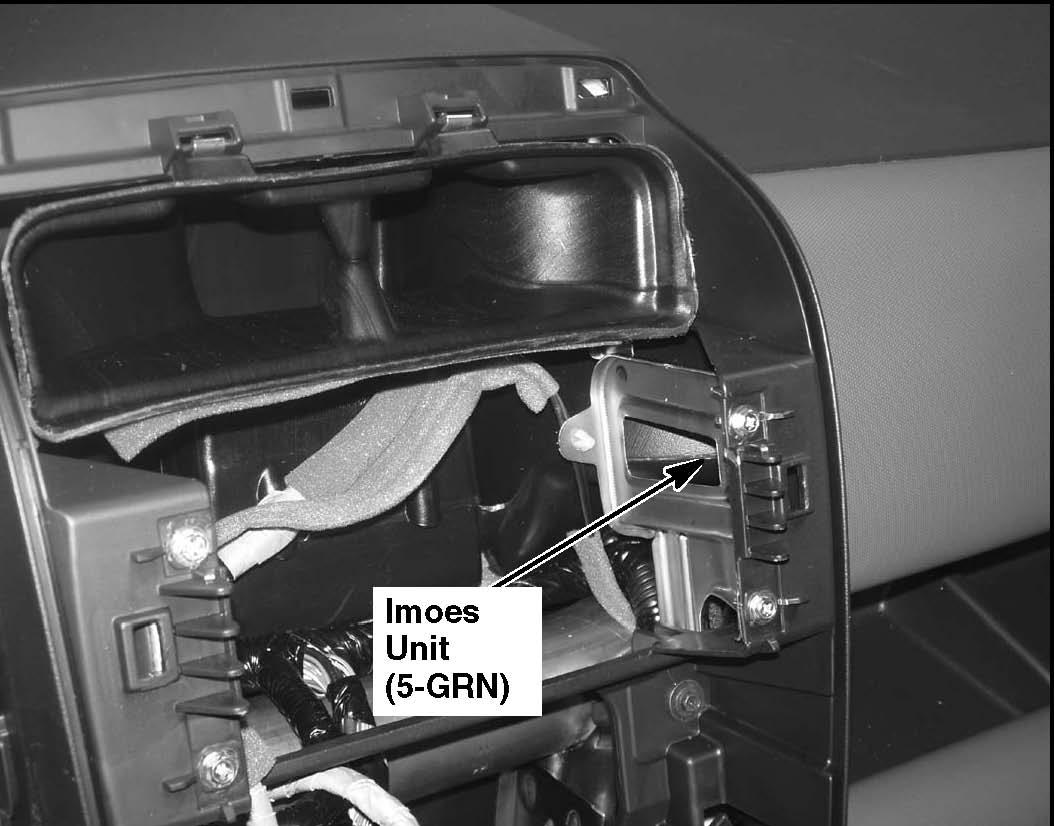

Fig 127: Under Middle Of Dash

G00459044

Courtesy of AMERICAN HONDA MOTOR CO., INC.

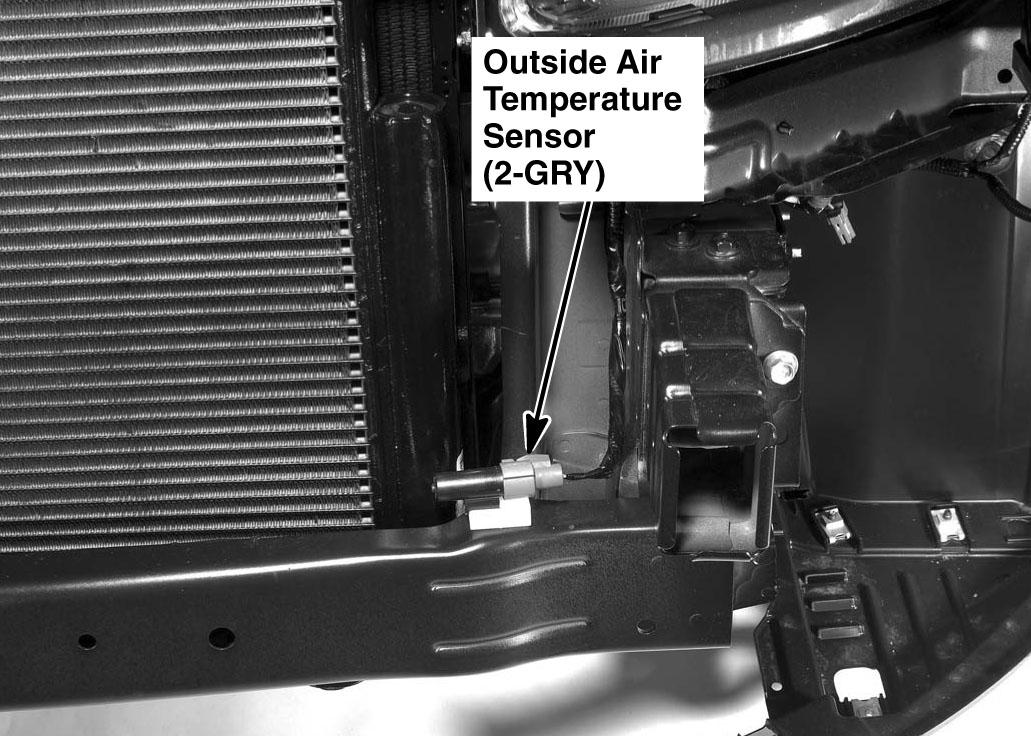

Fig 128: Behind Left Side Of Front Bumper (EX, SC)

G00472928

Courtesy of AMERICAN HONDA MOTOR CO., INC.

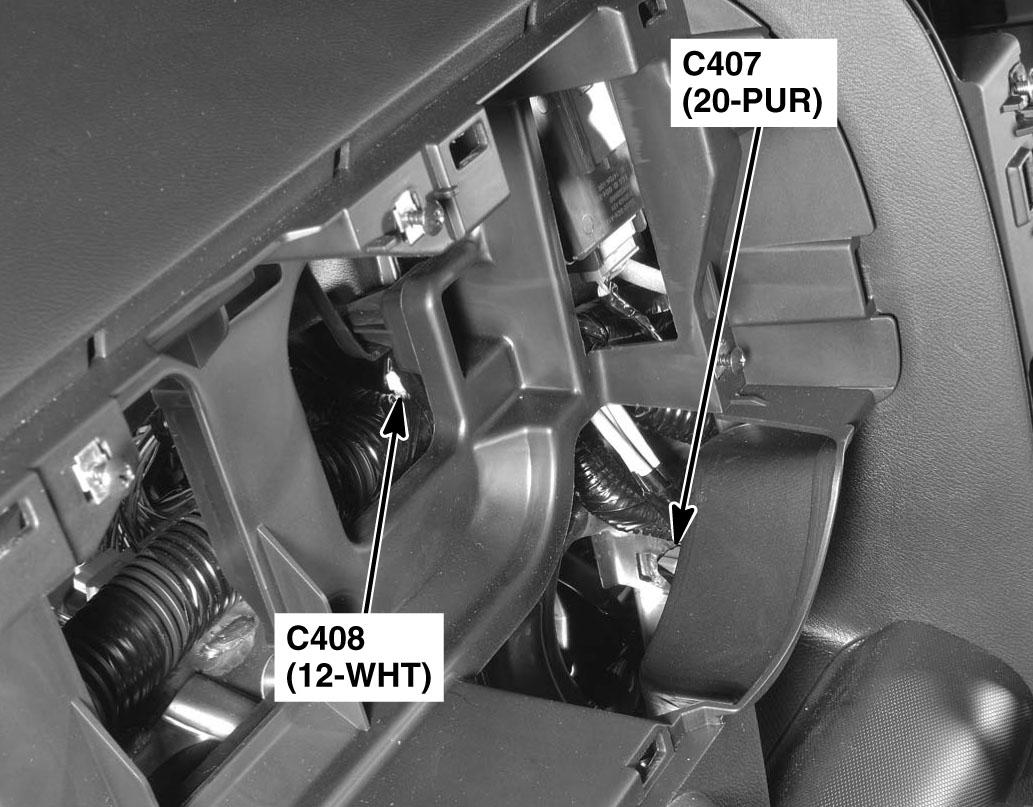

Fig 129: Behind Gauge Control Module

G00472929

Courtesy of AMERICAN HONDA MOTOR CO., INC.

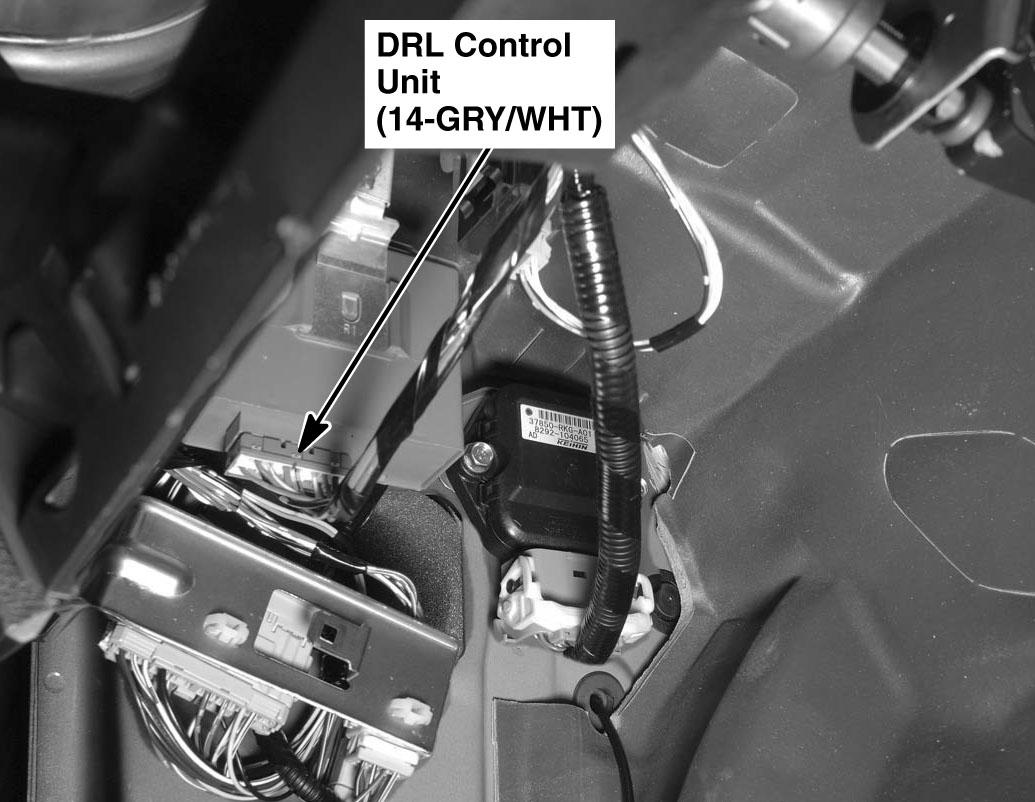

Fig 130: Under Left Side Of Dash

G00472931

Courtesy of AMERICAN HONDA MOTOR CO., INC.

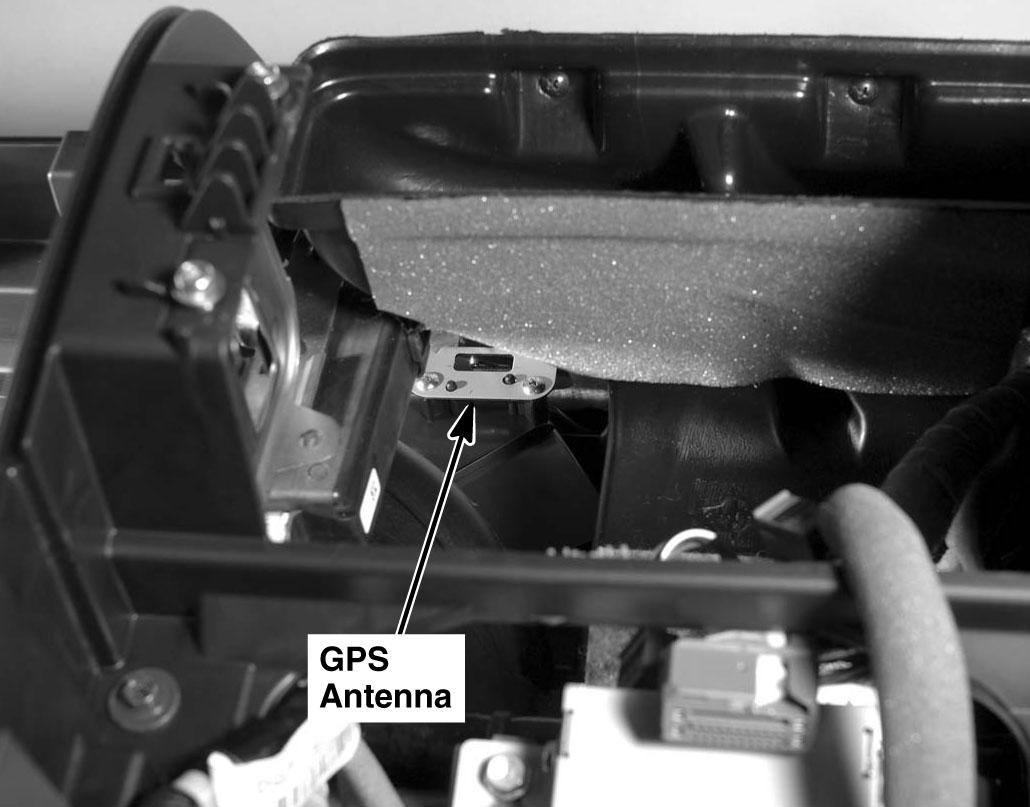

Fig 131: Under Middle Of Dash

G00472933

Courtesy of AMERICAN HONDA MOTOR CO., INC.

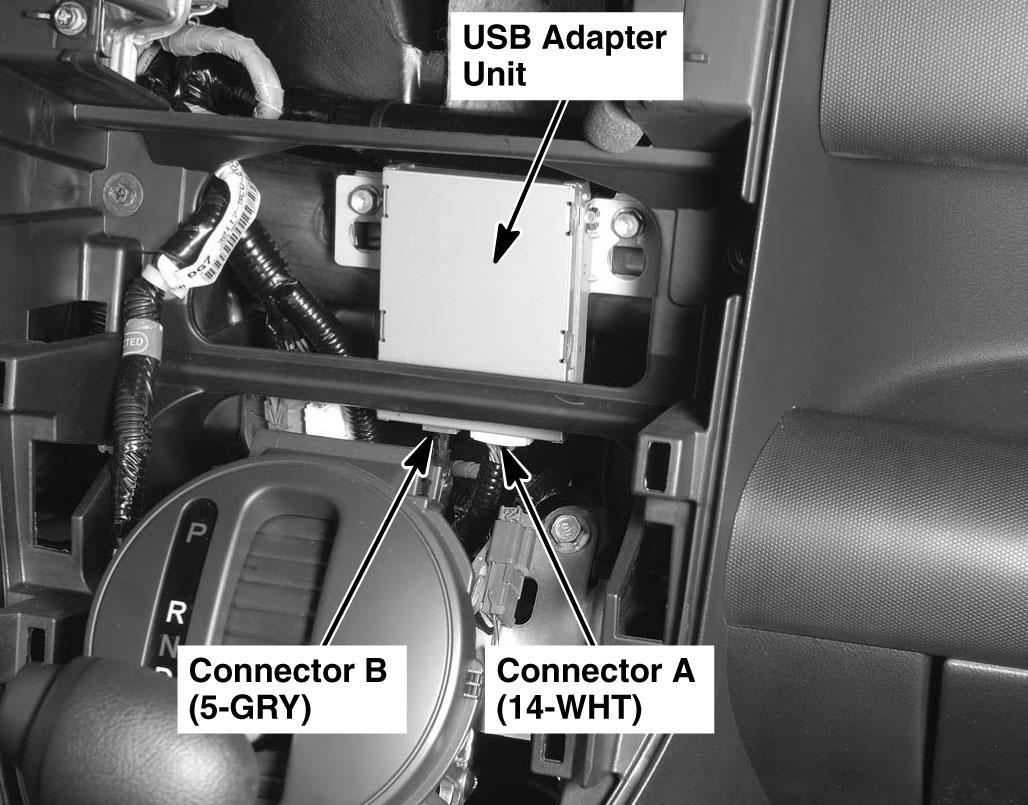

Fig 132: Behind Middle Of Dash

G00472934

Courtesy of AMERICAN HONDA MOTOR CO., INC.

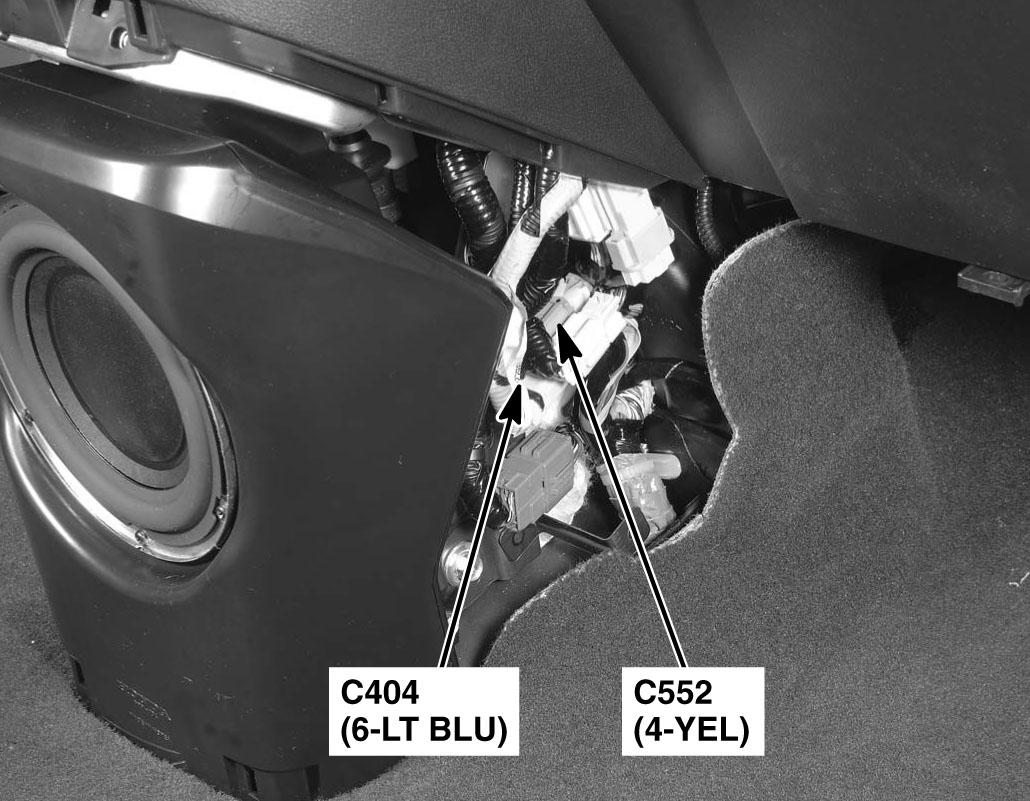

Fig 133: Under Middle Of Dash

G00472936

Courtesy of AMERICAN HONDA MOTOR CO., INC.

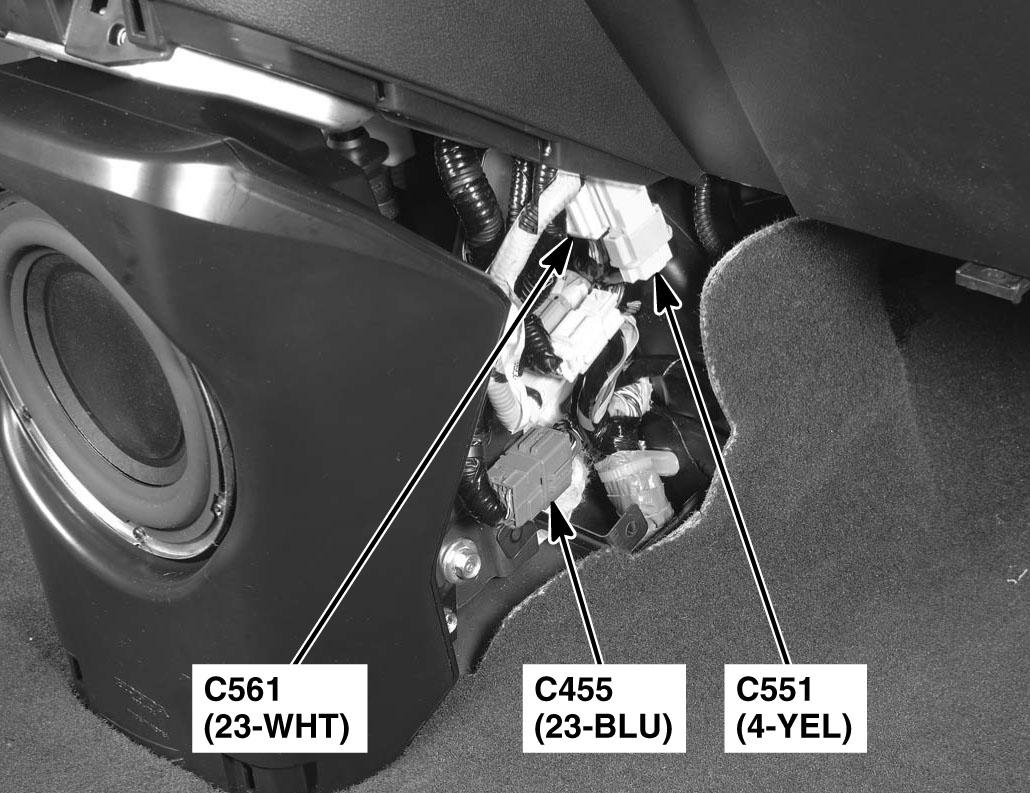

Fig 134: Under Middle Of Dash

G00472937

Courtesy of AMERICAN HONDA MOTOR CO., INC.

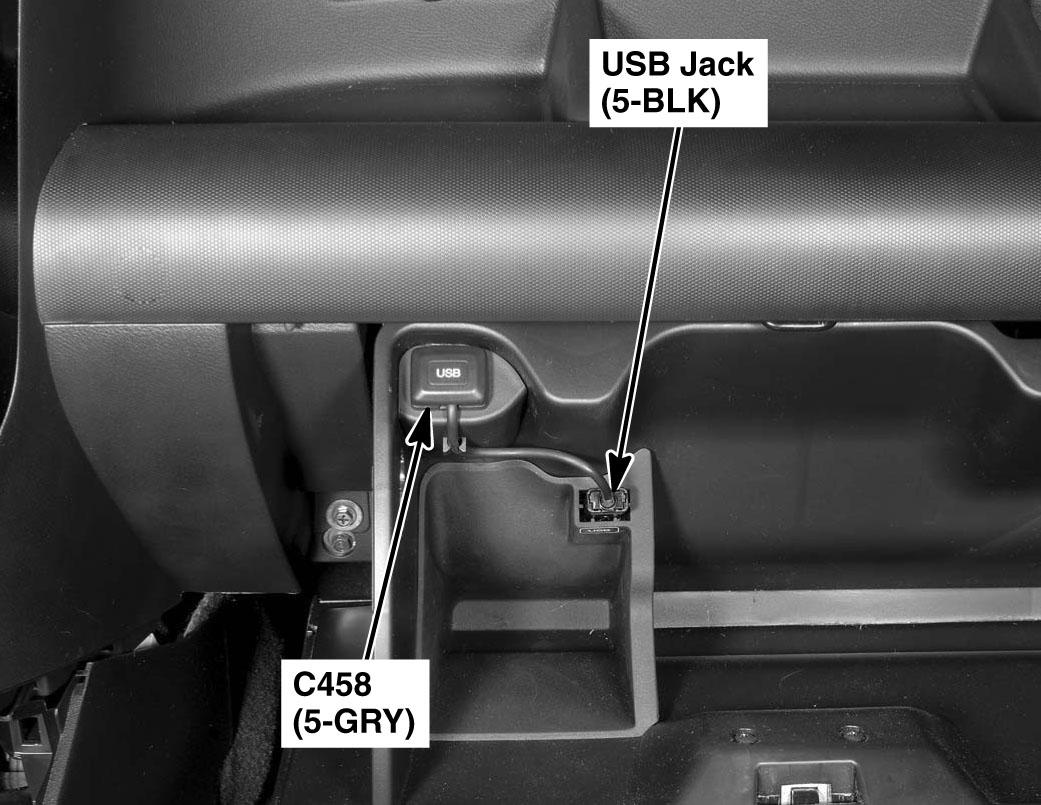

Fig 135: Glove Box

G00472938

Courtesy of AMERICAN HONDA MOTOR CO., INC.

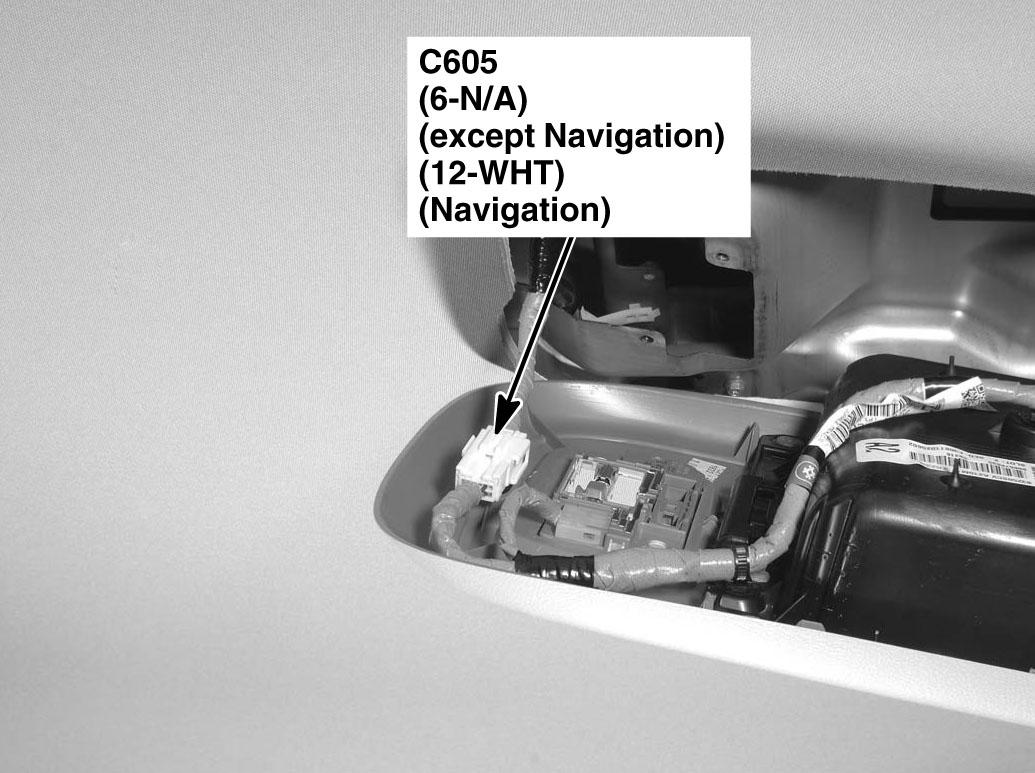

Fig 136: Middle Of Roof (EX, SC)

G00472939

Courtesy of AMERICAN HONDA MOTOR CO., INC.

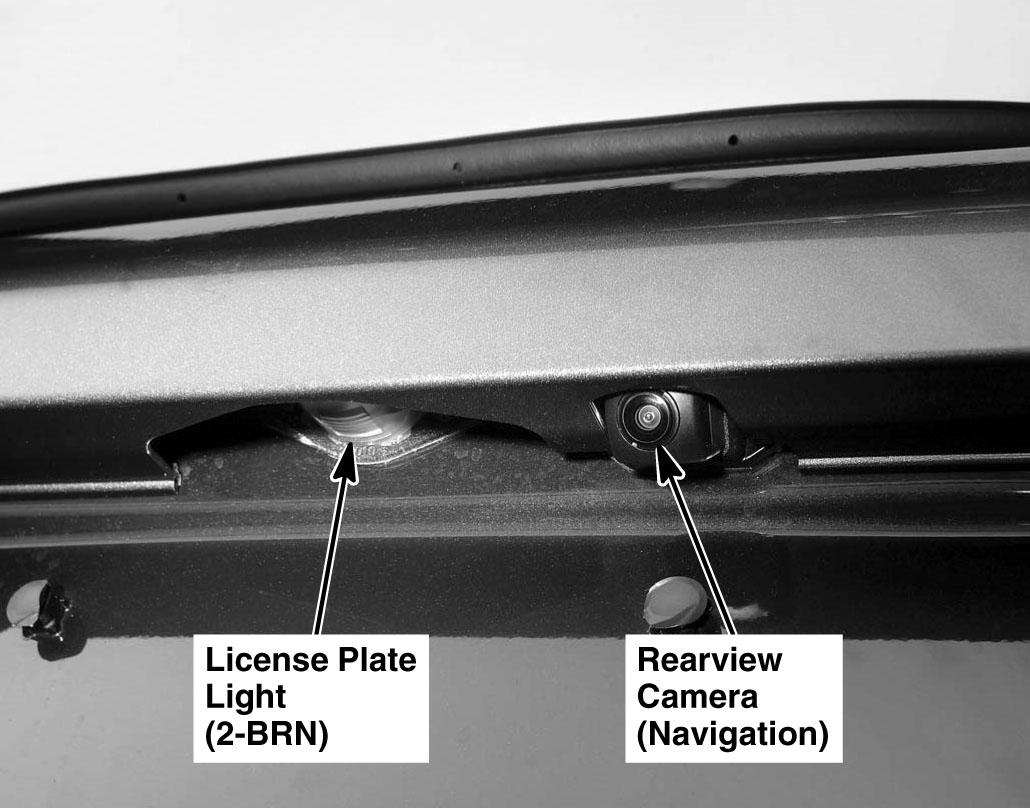

Fig 137: Middle Of Tailgate

G00472941

Courtesy of AMERICAN HONDA MOTOR CO., INC.
