Accelerator Pedal Replacement

Remove the throttle cable (A) from the accelerator pedal (B) (see THROTTLE CABLE REMOVAL/INSTALLATION ).

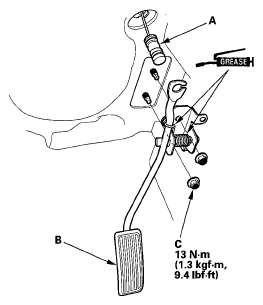

Fig 1: Throttle Cable & Accelerator Pedal With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the nuts (C) and the accelerator pedal.
Install the parts in the reverse order of removal.
