Component Location Index

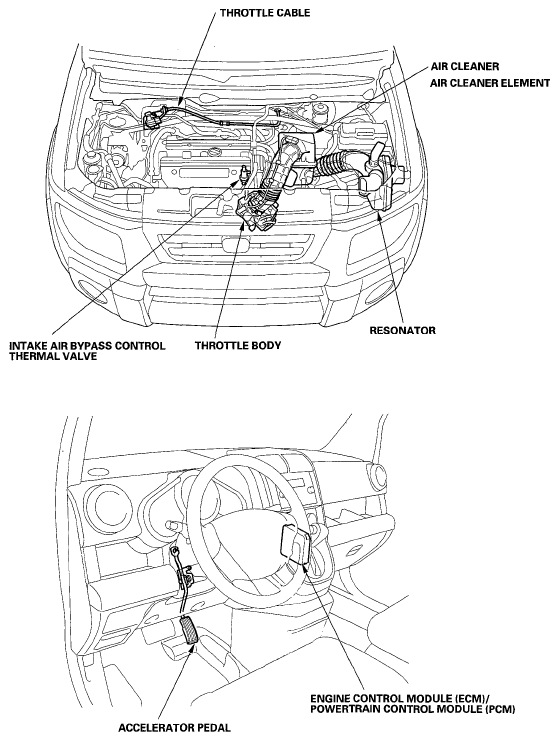

Fig 1: Identifying Intake Air System Replacement Component
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
