Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

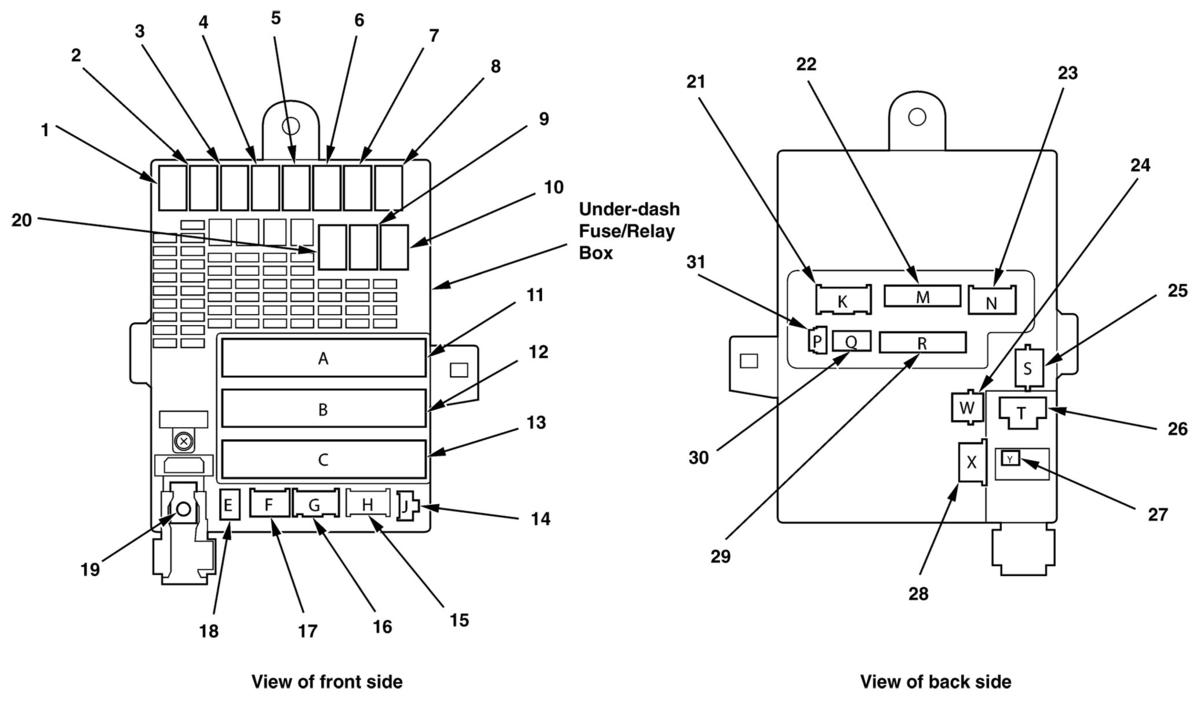

Fig 1: Underdash Fuse/Relay Box

G00472942

Courtesy of AMERICAN HONDA MOTOR CO., INC.

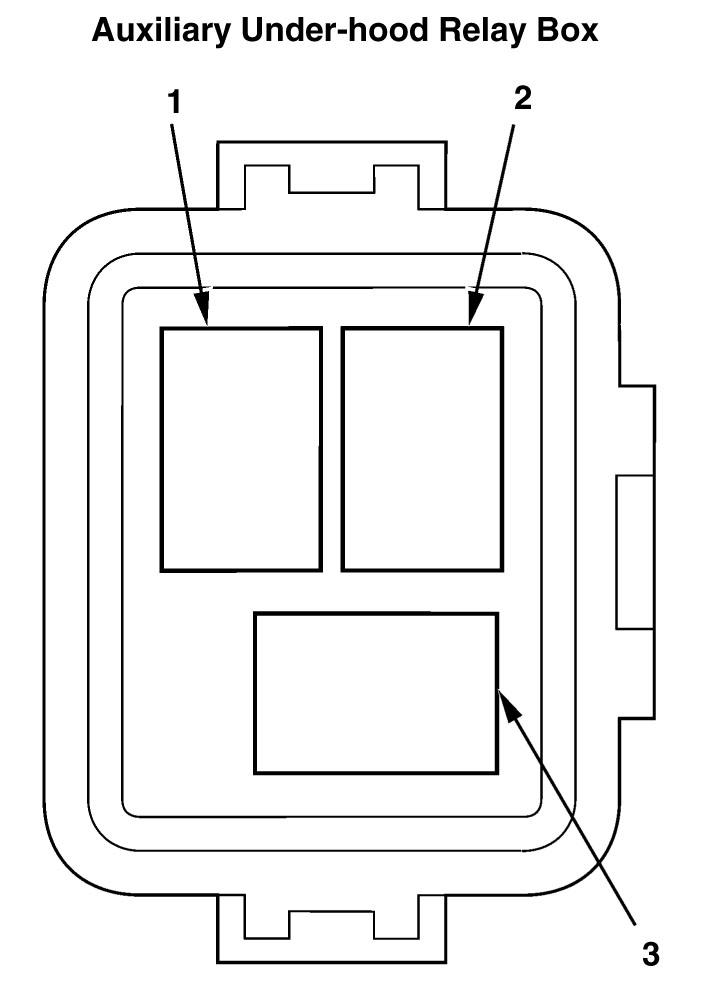

Fig 2: Auxiliary Underhood Relay Box

G00472943

Courtesy of AMERICAN HONDA MOTOR CO., INC.

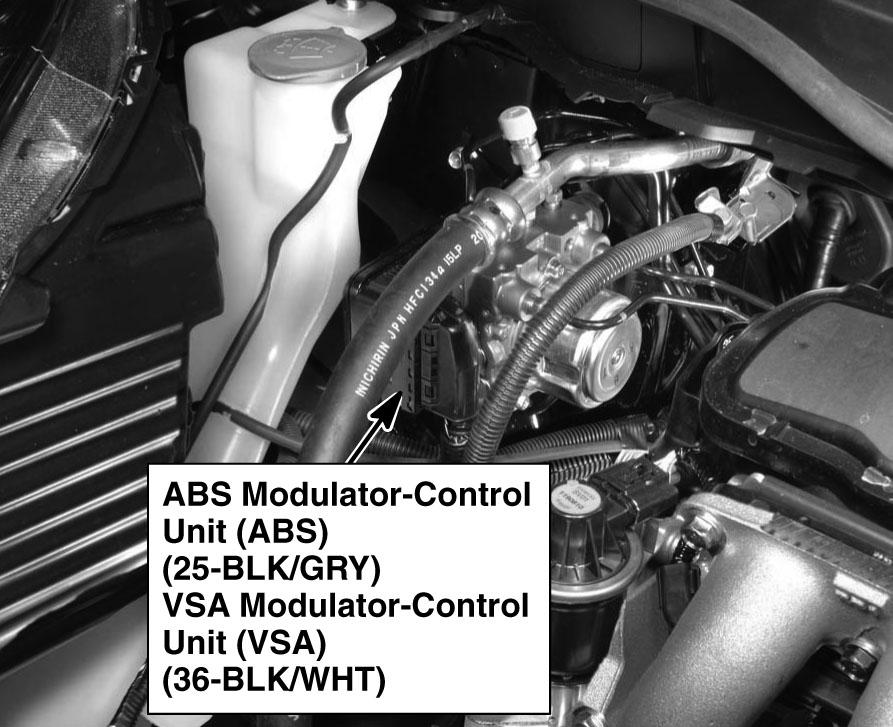

Fig 3: Right Side Of Engine Compartment

G00472944

Courtesy of AMERICAN HONDA MOTOR CO., INC.

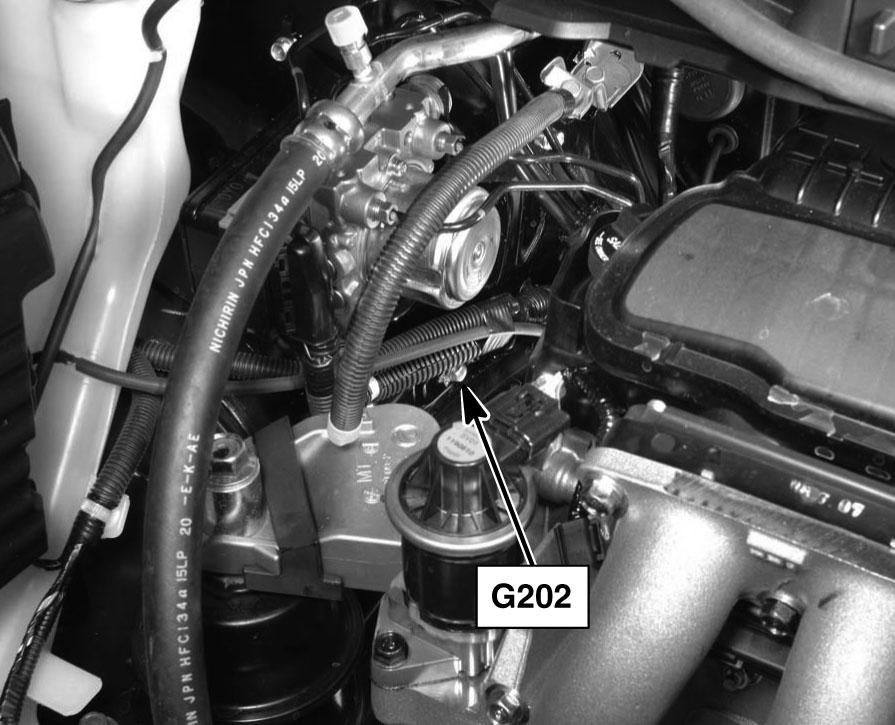

Fig 4: Right Side Of Engine Compartment

G00472945

Courtesy of AMERICAN HONDA MOTOR CO., INC.

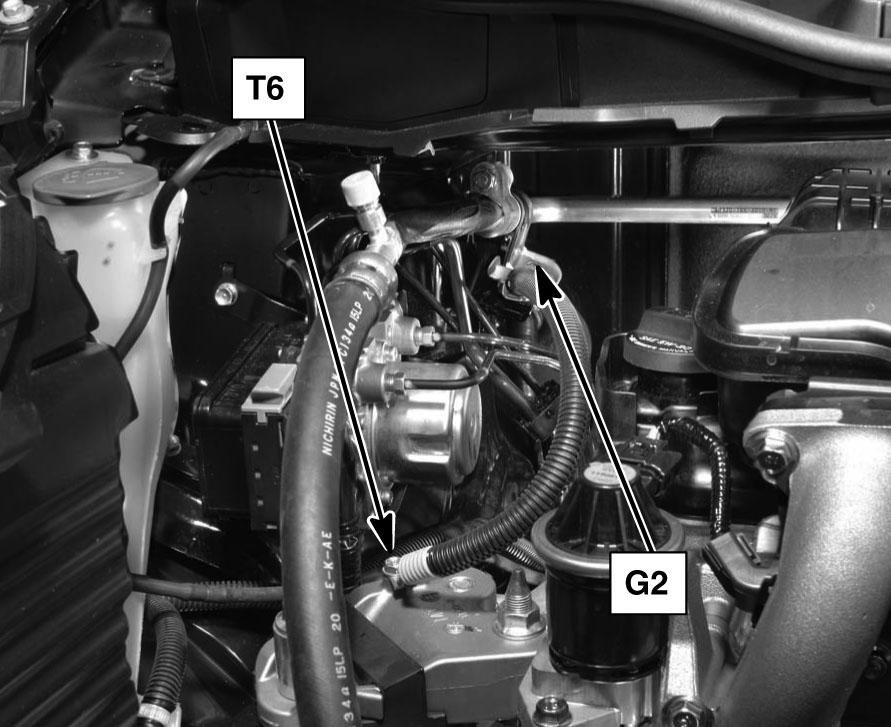

Fig 5: Right Side Of Engine Compartment

G00472946

Courtesy of AMERICAN HONDA MOTOR CO., INC.

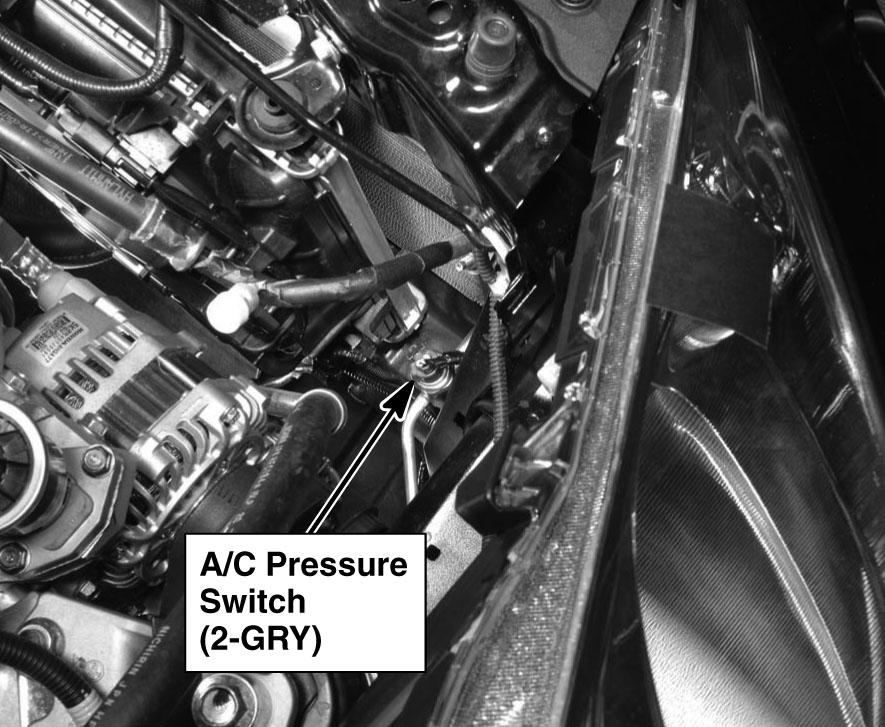

Fig 6: Right Front Of Engine Compartment

G00472947

Courtesy of AMERICAN HONDA MOTOR CO., INC.

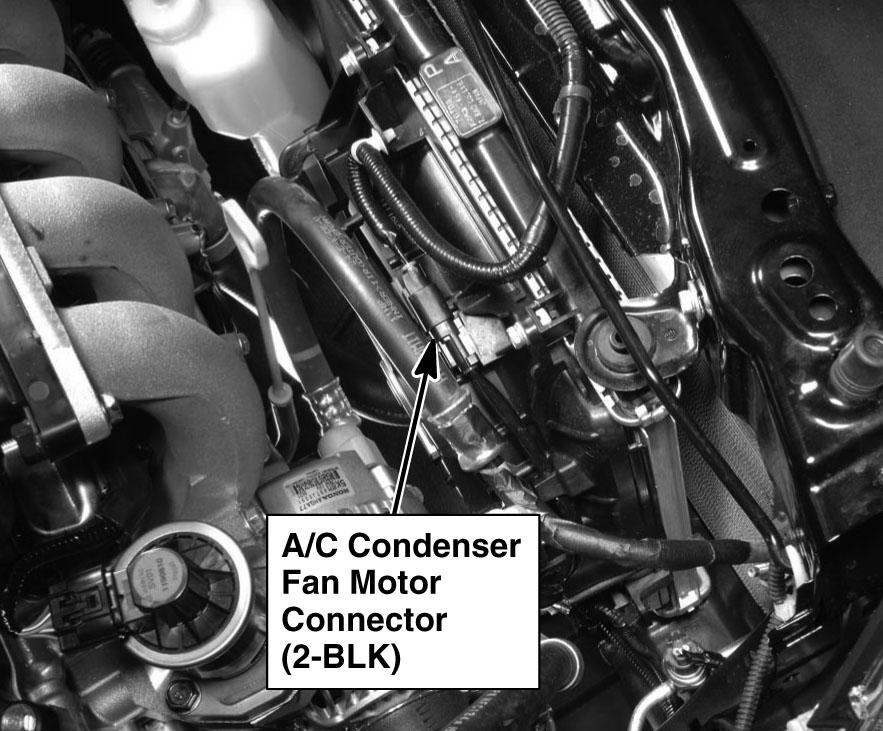

Fig 7: Right Front Of Engine Compartment

G00472948

Courtesy of AMERICAN HONDA MOTOR CO., INC.

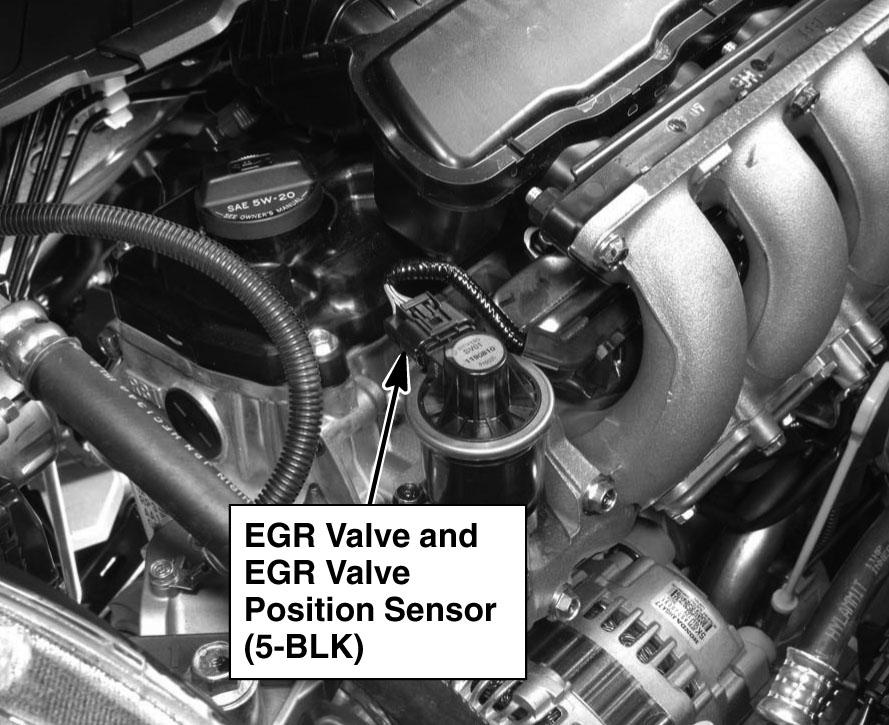

Fig 8: Front Of Engine

G00472949

Courtesy of AMERICAN HONDA MOTOR CO., INC.

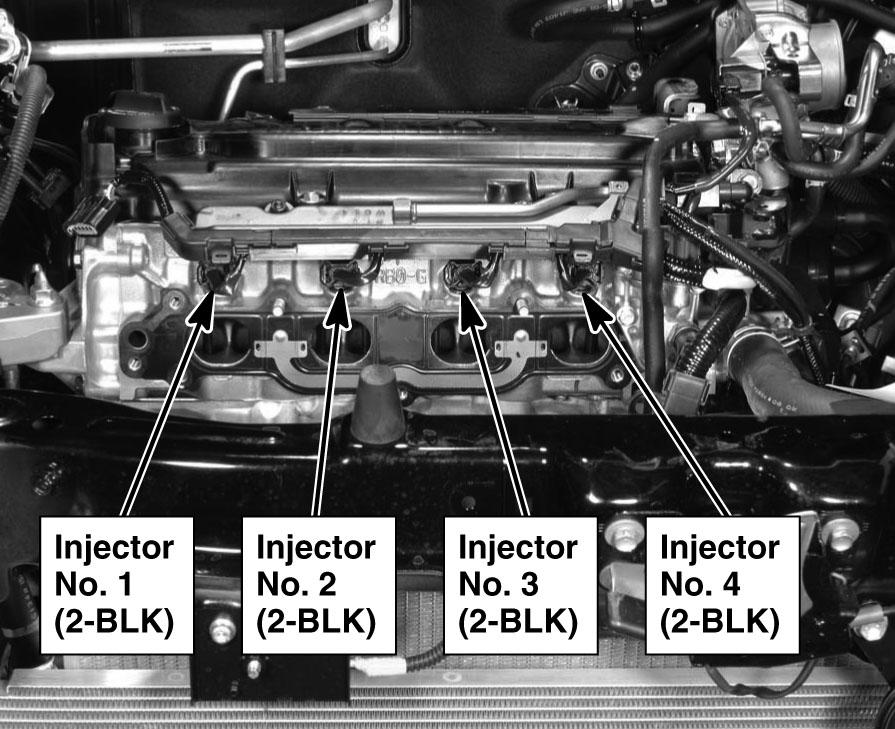

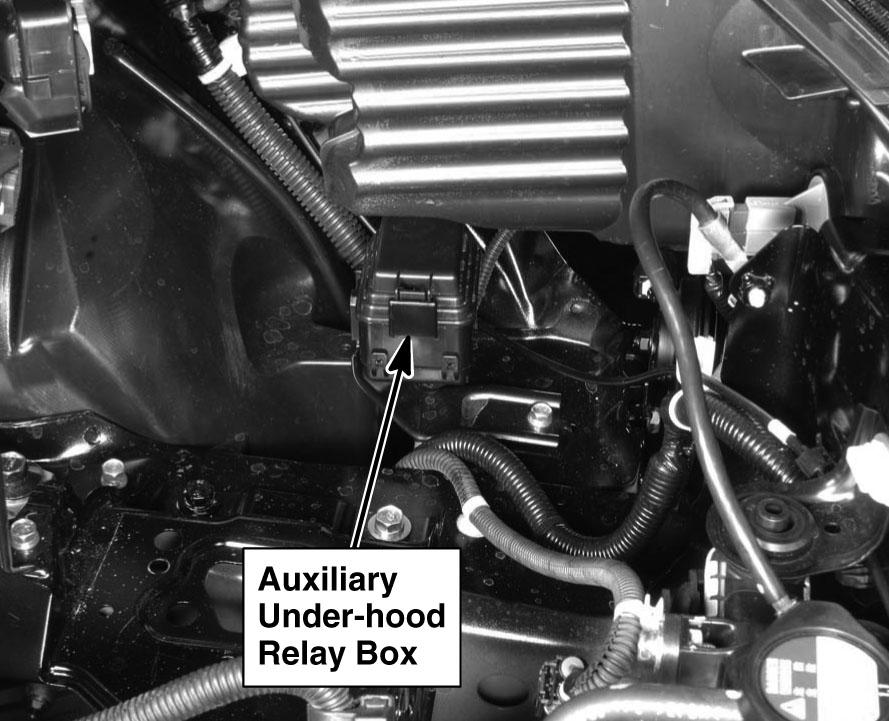

Fig 9: Top Of Engine

G00472950

Courtesy of AMERICAN HONDA MOTOR CO., INC.

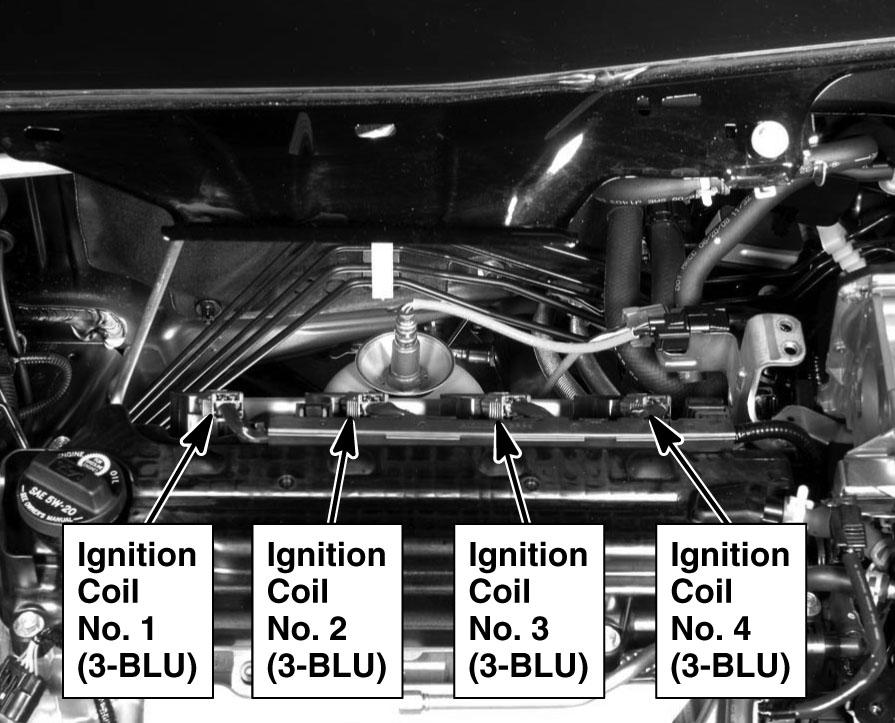

Fig 10: Top Of Engine

G00472951

Courtesy of AMERICAN HONDA MOTOR CO., INC.

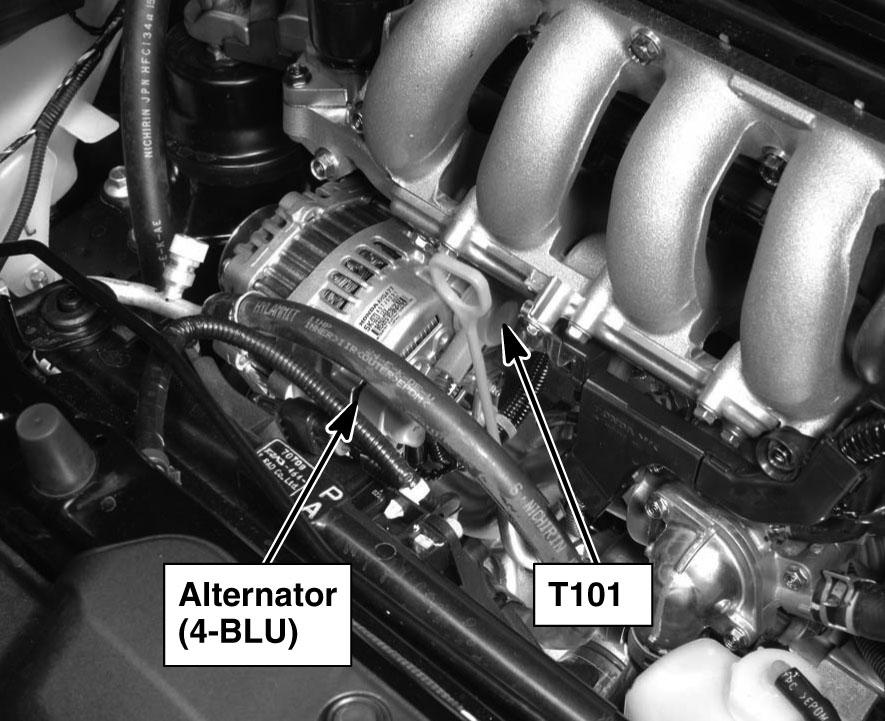

Fig 11: Front Of Engine

G00472952

Courtesy of AMERICAN HONDA MOTOR CO., INC.

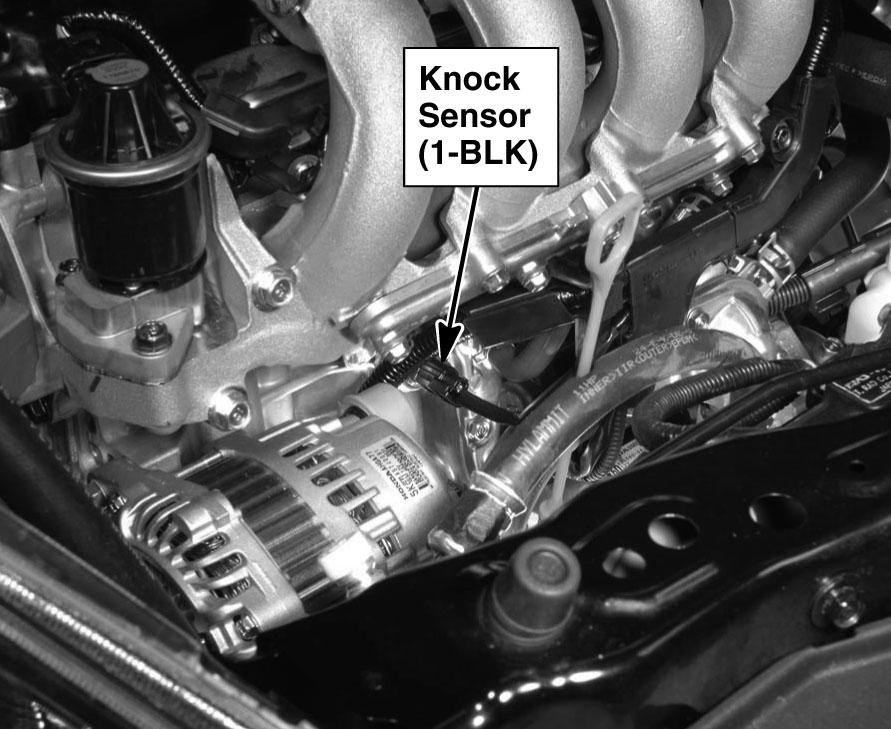

Fig 12: Front Of Engine

G00472953

Courtesy of AMERICAN HONDA MOTOR CO., INC.

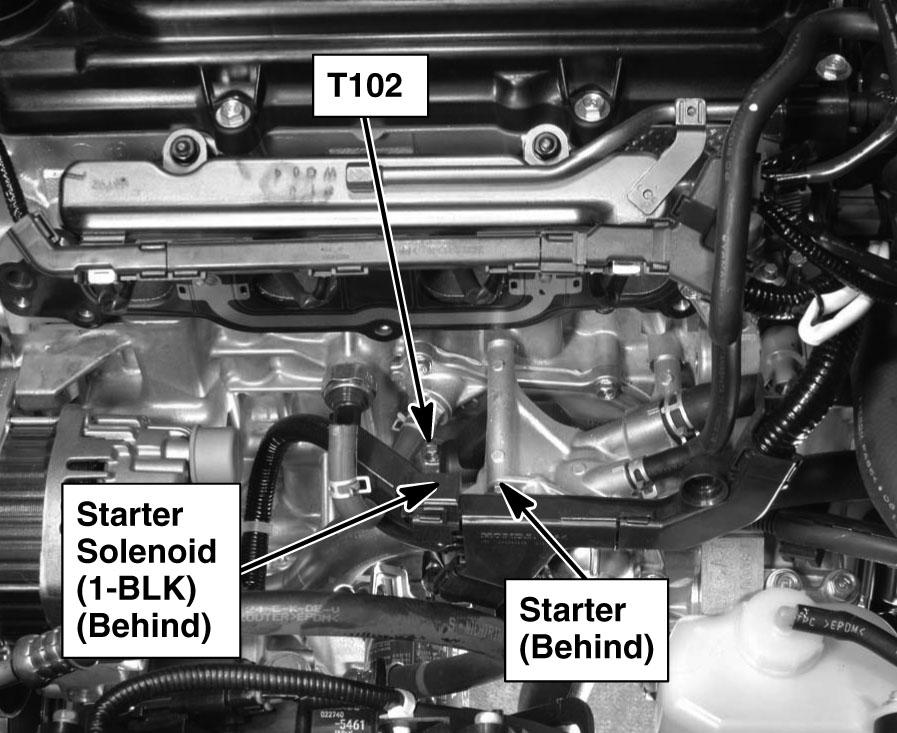

Fig 13: Left Side Of Engine

G00472954

Courtesy of AMERICAN HONDA MOTOR CO., INC.

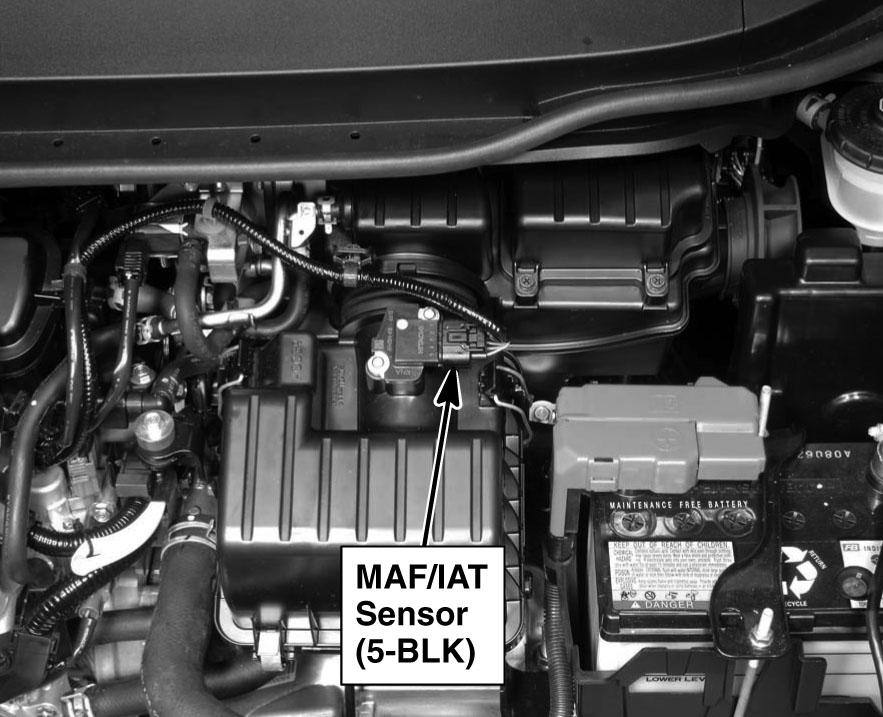

Fig 14: Left Rear Of Engine Compartment

G00472955

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 15: Rear Of Engine

G00472956

Courtesy of AMERICAN HONDA MOTOR CO., INC.

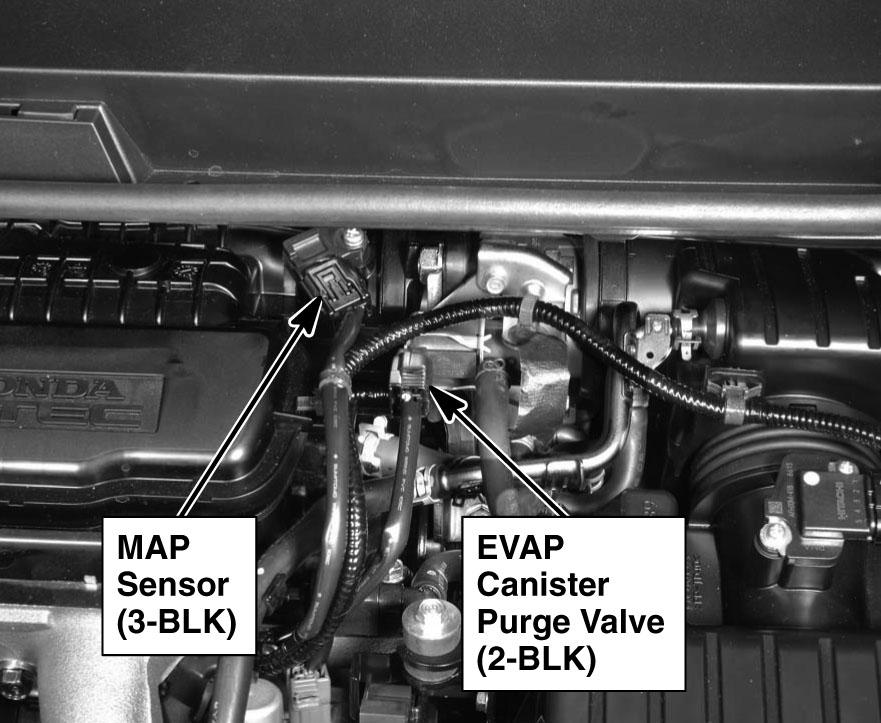

Fig 16: Rear Of Engine

G00472957

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 17: Rear Of Engine

G00472958

Courtesy of AMERICAN HONDA MOTOR CO., INC.

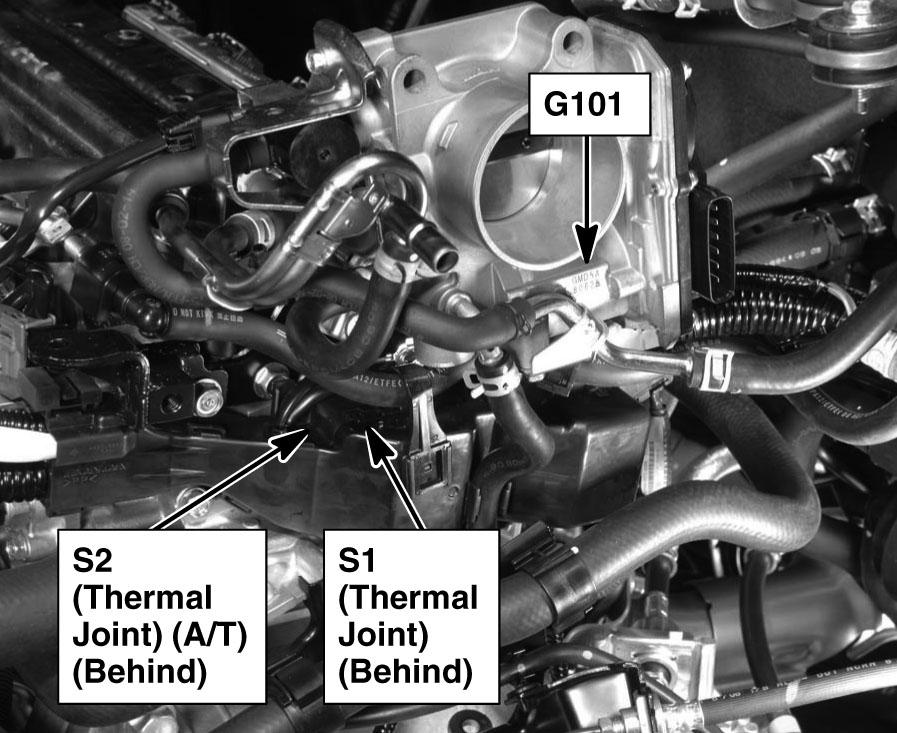

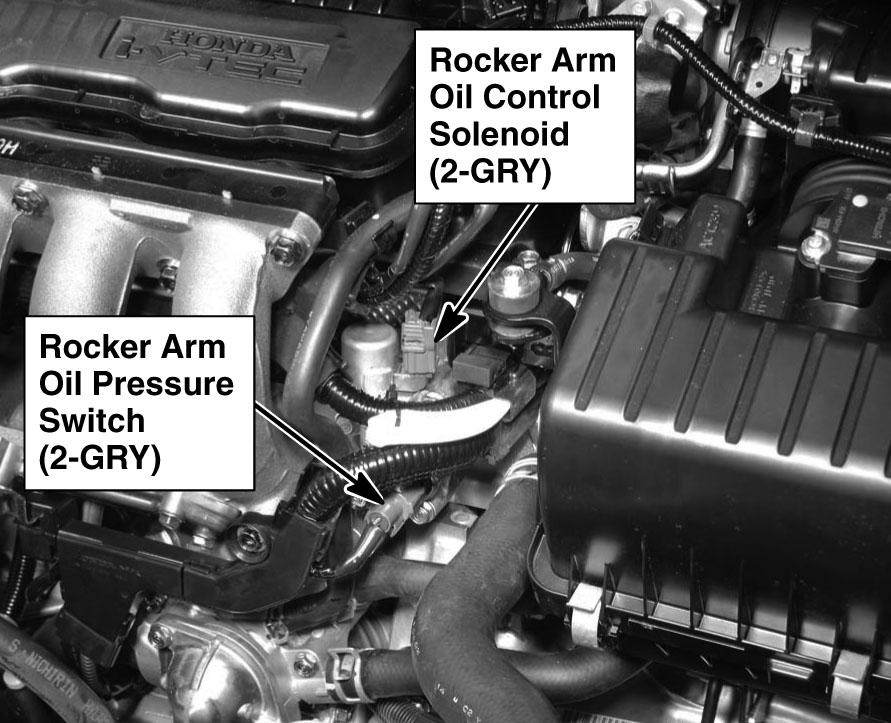

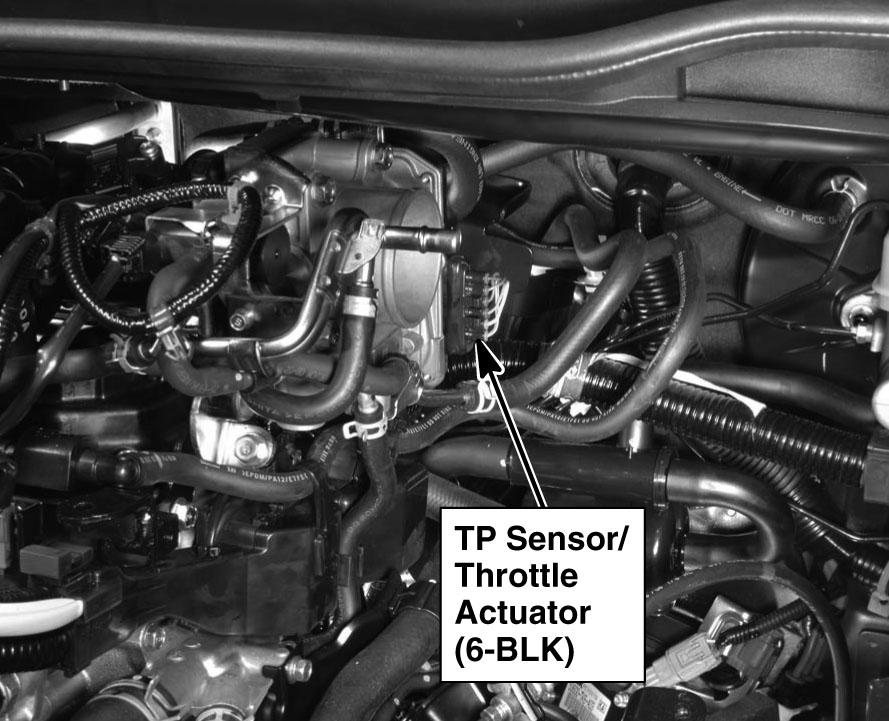

Fig 18: Rear Of Engine

G00472959

Courtesy of AMERICAN HONDA MOTOR CO., INC.

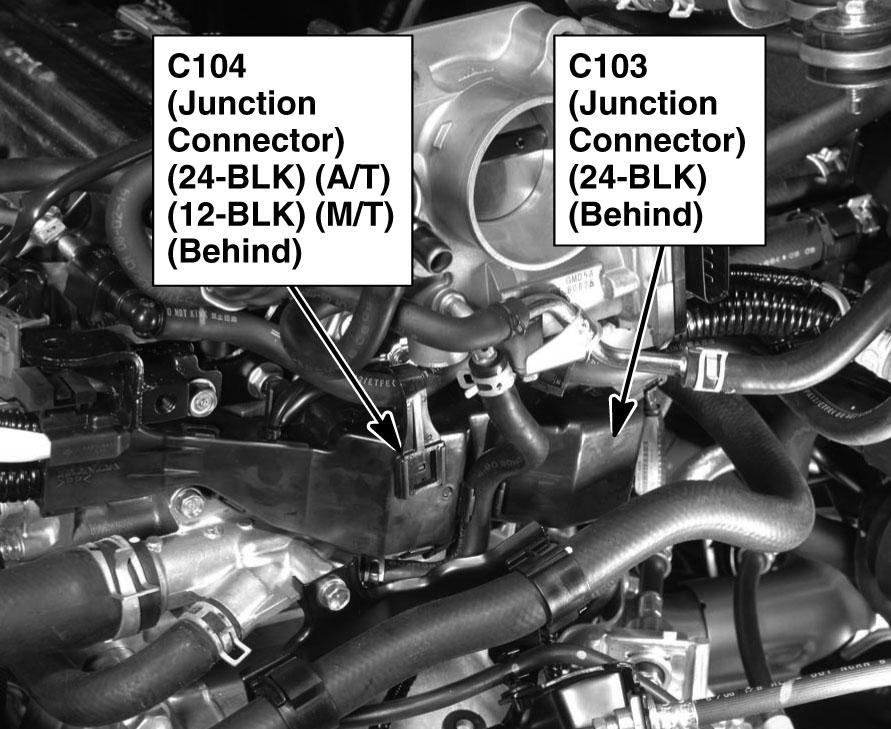

Fig 19: Rear Of Engine

G00472960

Courtesy of AMERICAN HONDA MOTOR CO., INC.

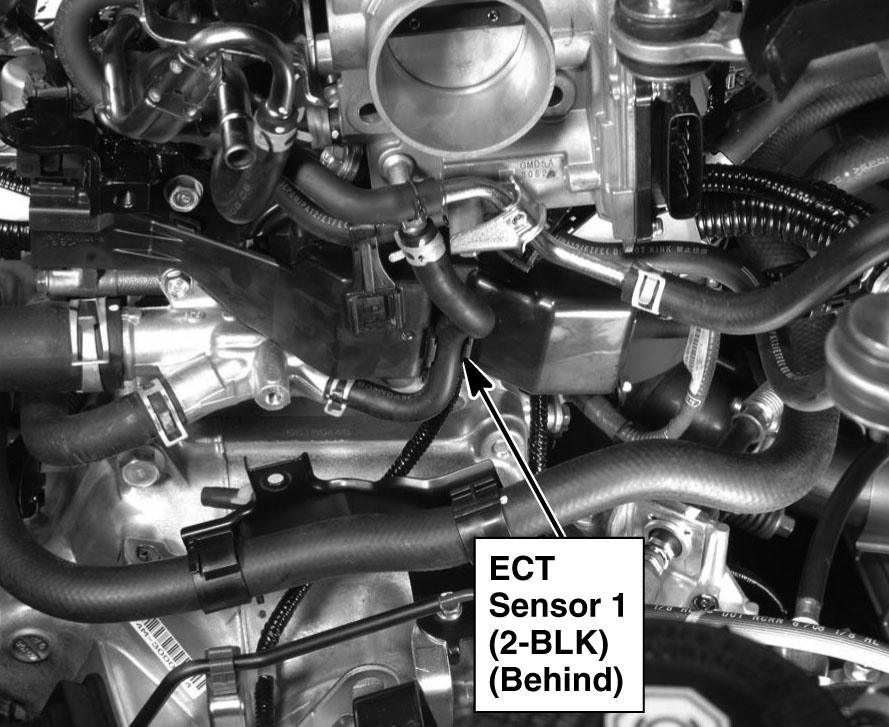

Fig 20: Rear Of Engine

G00472961

Courtesy of AMERICAN HONDA MOTOR CO., INC.

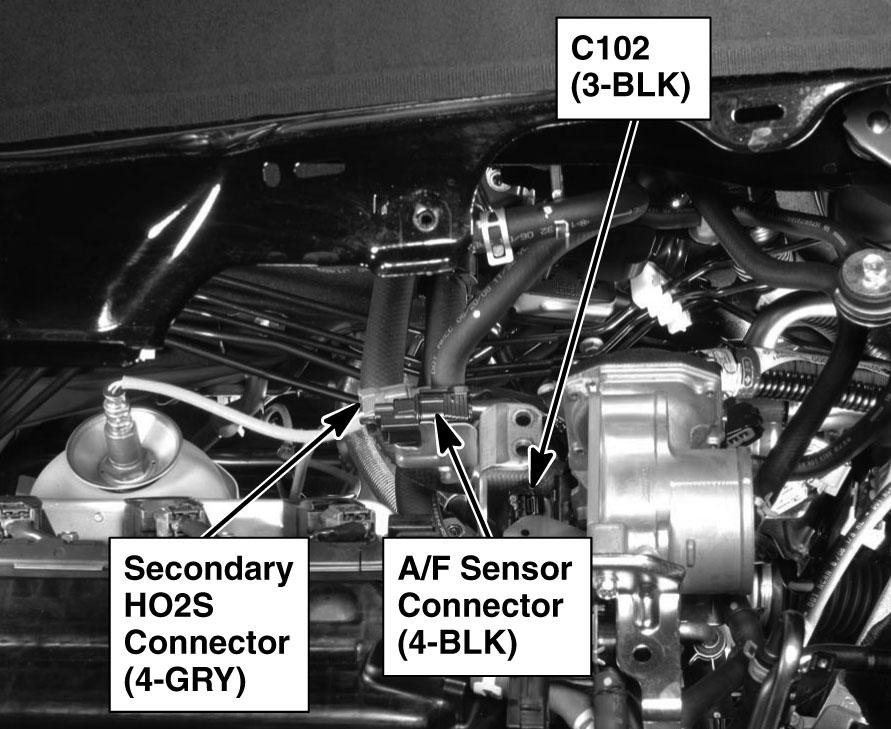

Fig 21: Rear Of Engine

G00472962

Courtesy of AMERICAN HONDA MOTOR CO., INC.

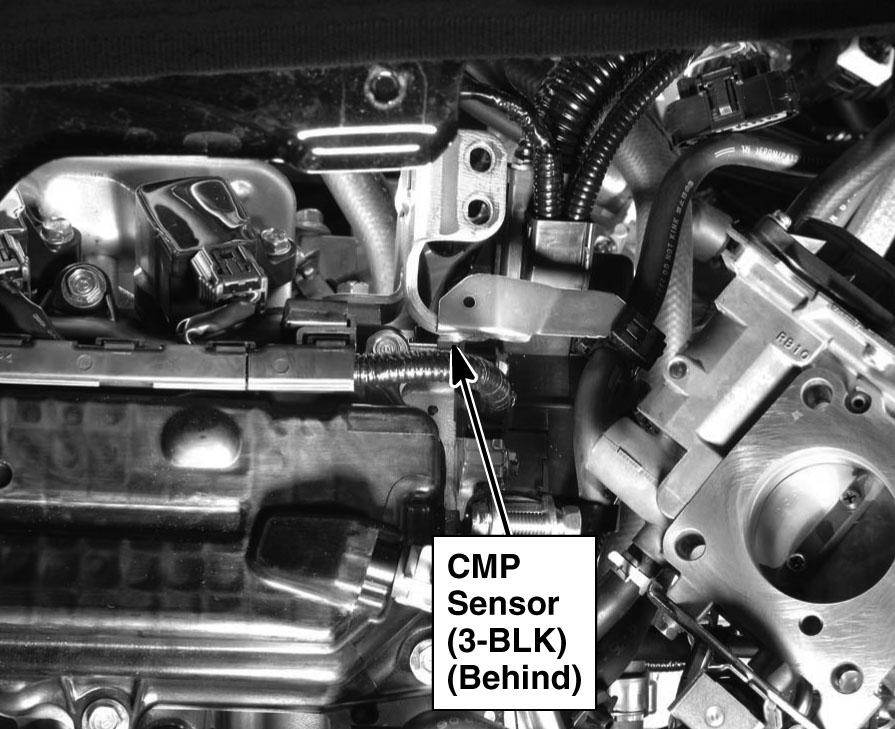

Fig 22: Right Rear Of Engine

G00472963

Courtesy of AMERICAN HONDA MOTOR CO., INC.

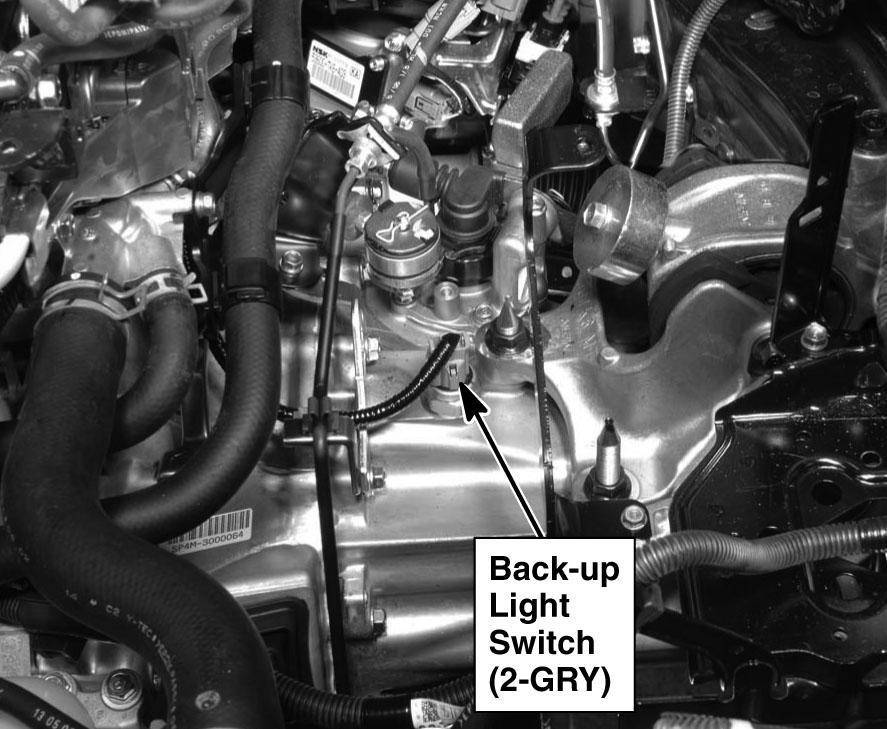

Fig 23: Top Of Manual Transmission

G00472964

Courtesy of AMERICAN HONDA MOTOR CO., INC.

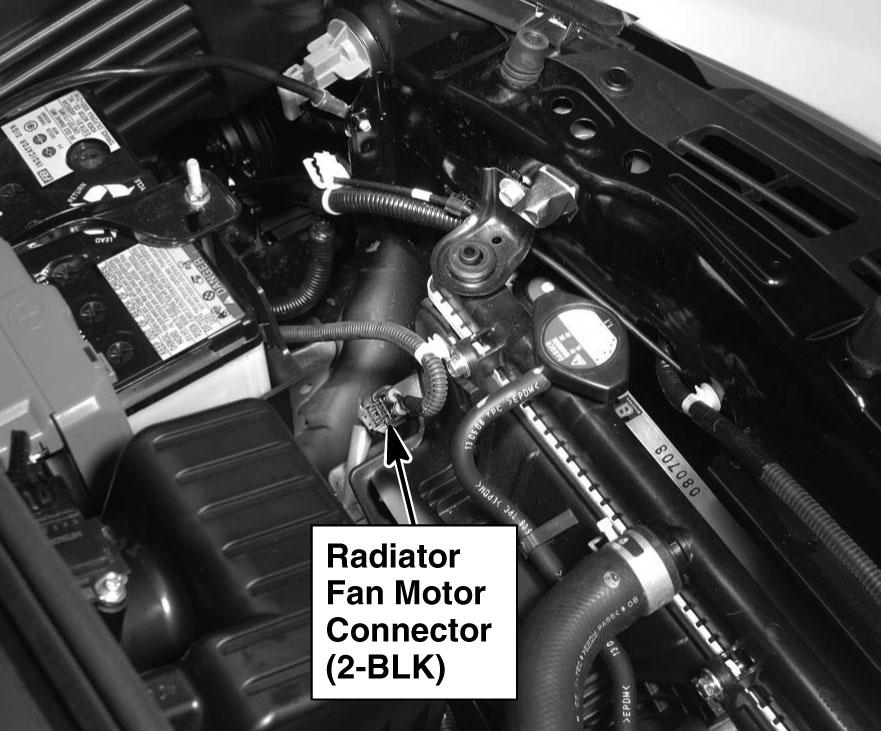

Fig 24: Left Front Of Engine Compartment

G00472965

Courtesy of AMERICAN HONDA MOTOR CO., INC.

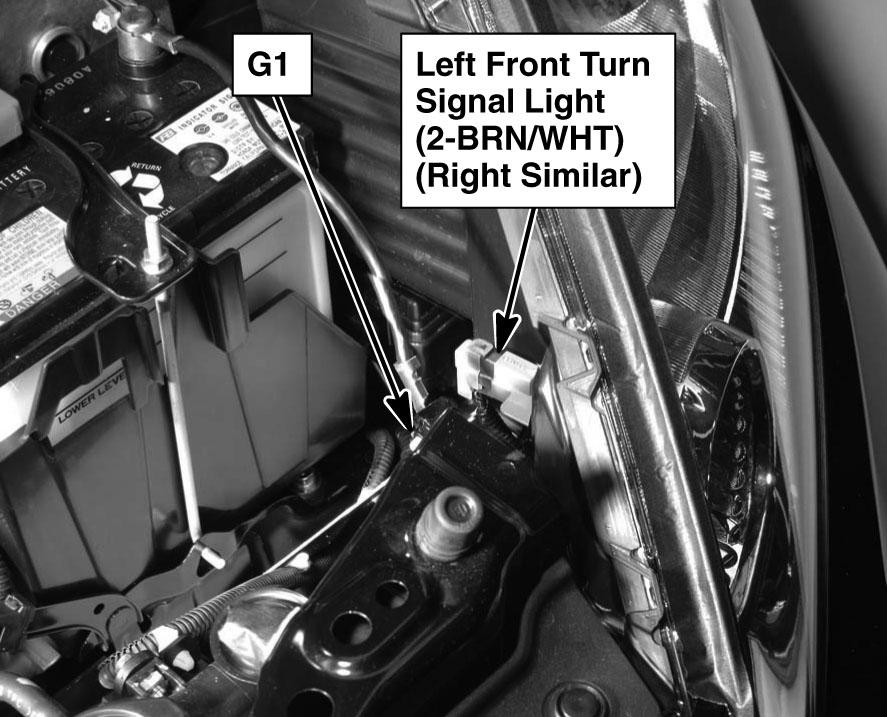

Fig 25: Left Front Of Engine Compartment

G00472966

Courtesy of AMERICAN HONDA MOTOR CO., INC.

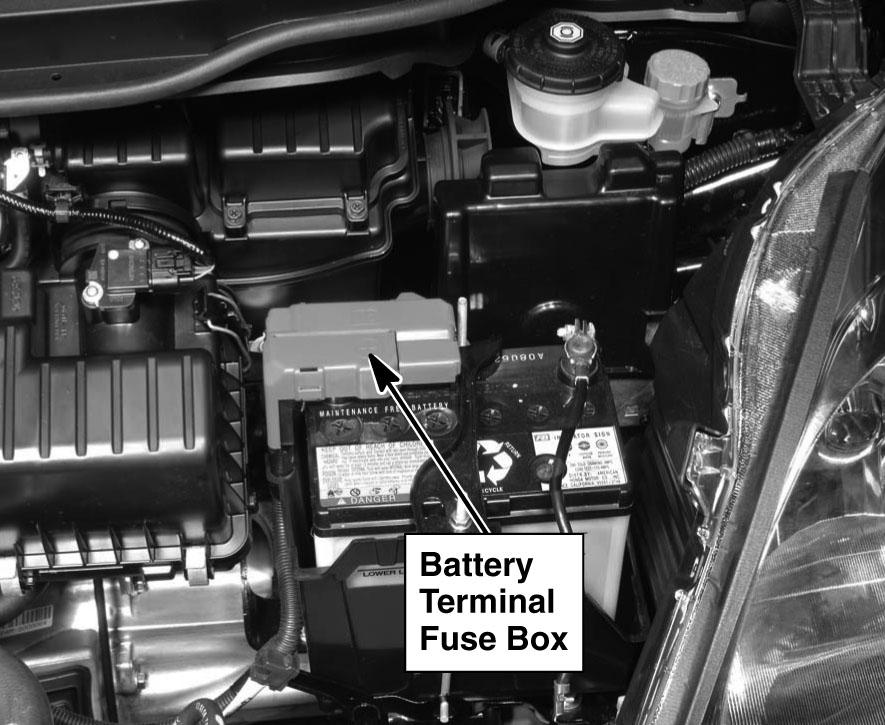

Fig 26: Left Side Of Engine Compartment

G00472967

Courtesy of AMERICAN HONDA MOTOR CO., INC.

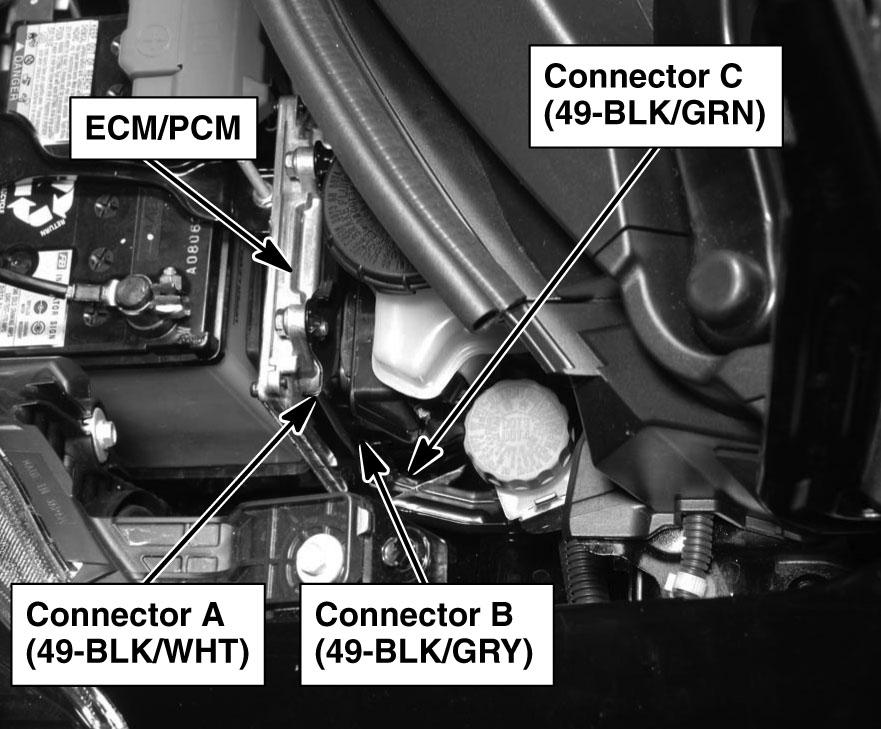

Fig 27: Left Side Of Engine Compartment

G00472968

Courtesy of AMERICAN HONDA MOTOR CO., INC.

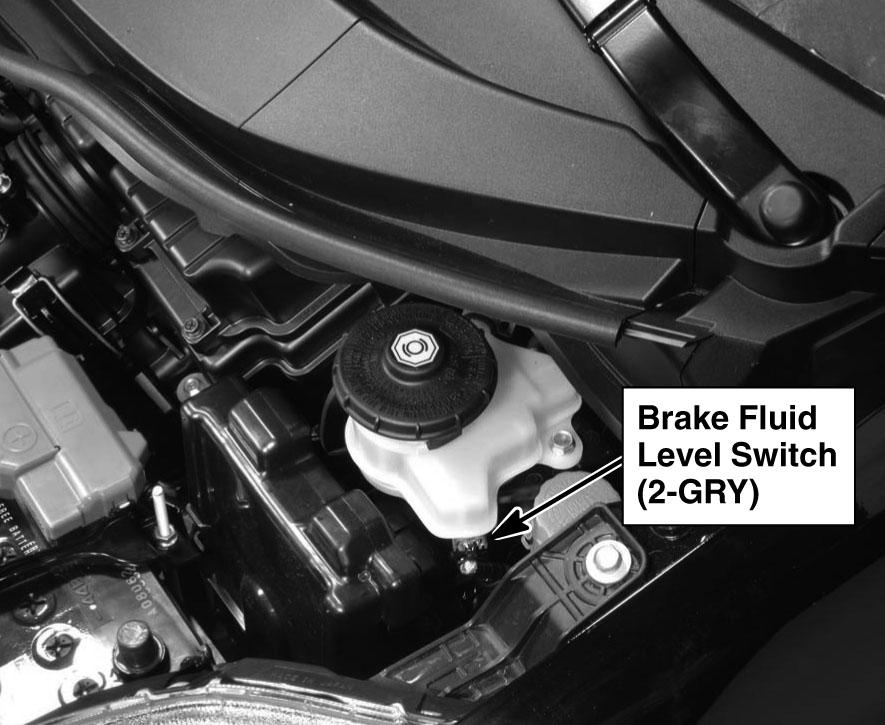

Fig 28: Left Side Of Engine Compartment

G00472969

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 29: Left Side Of Engine Compartment

G00472970

Courtesy of AMERICAN HONDA MOTOR CO., INC.

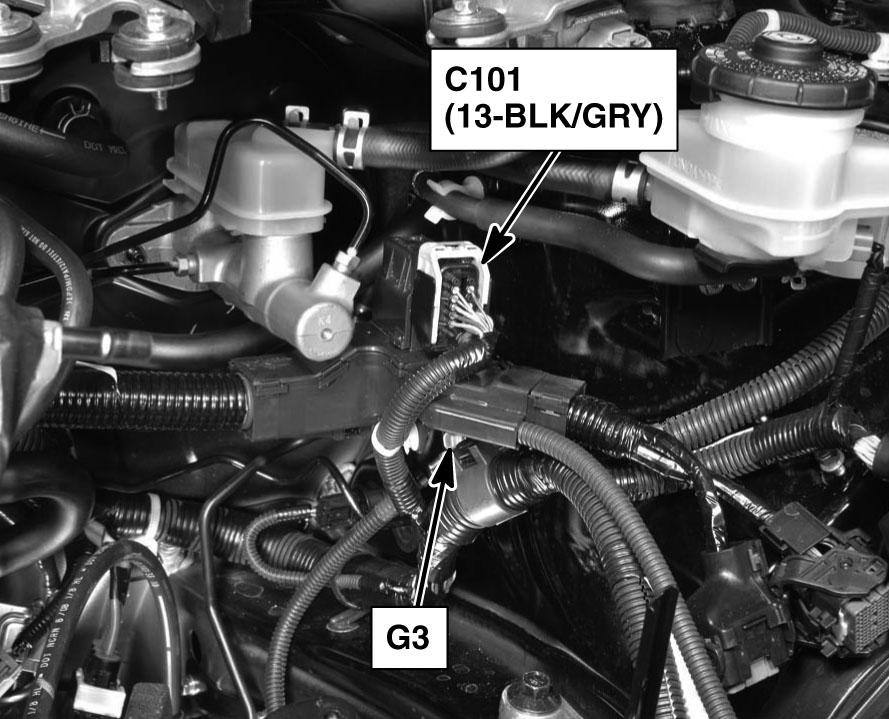

Fig 30: Left Rear Of Engine Compartment

G00472972

Courtesy of AMERICAN HONDA MOTOR CO., INC.

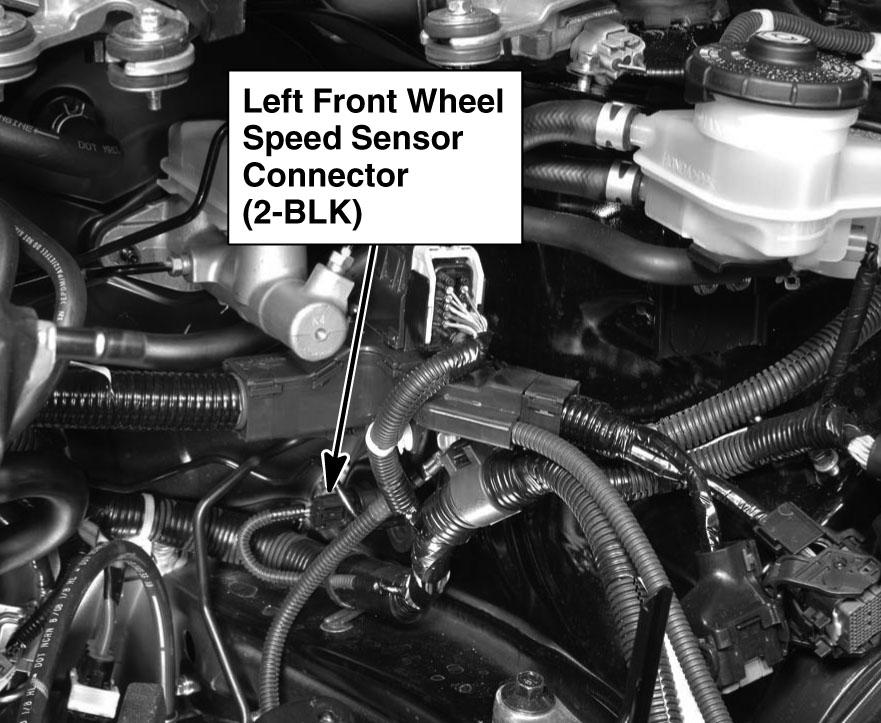

Fig 31: Left Rear Of Engine Compartment

G00472973

Courtesy of AMERICAN HONDA MOTOR CO., INC.

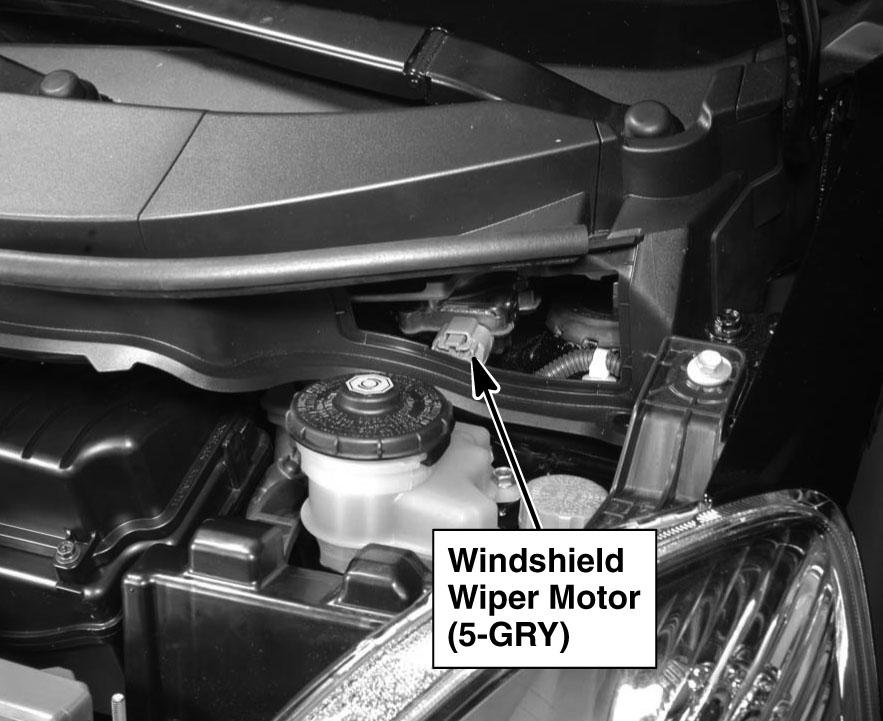

Fig 32: Under Left Side Of Cowl Cover

G00472974

Courtesy of AMERICAN HONDA MOTOR CO., INC.

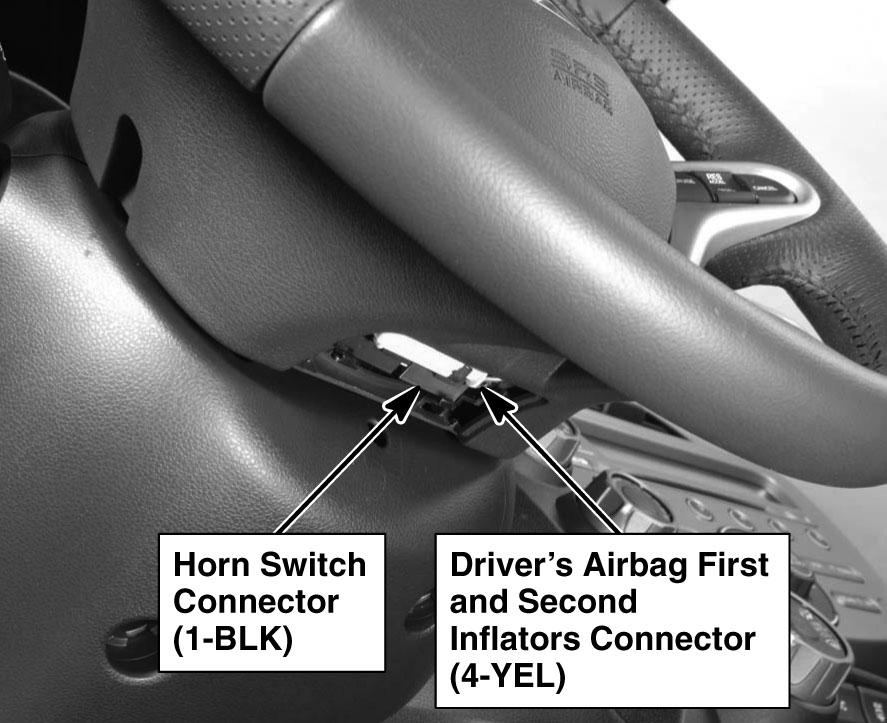

Fig 33: Steering Wheel

G00472975

Courtesy of AMERICAN HONDA MOTOR CO., INC.

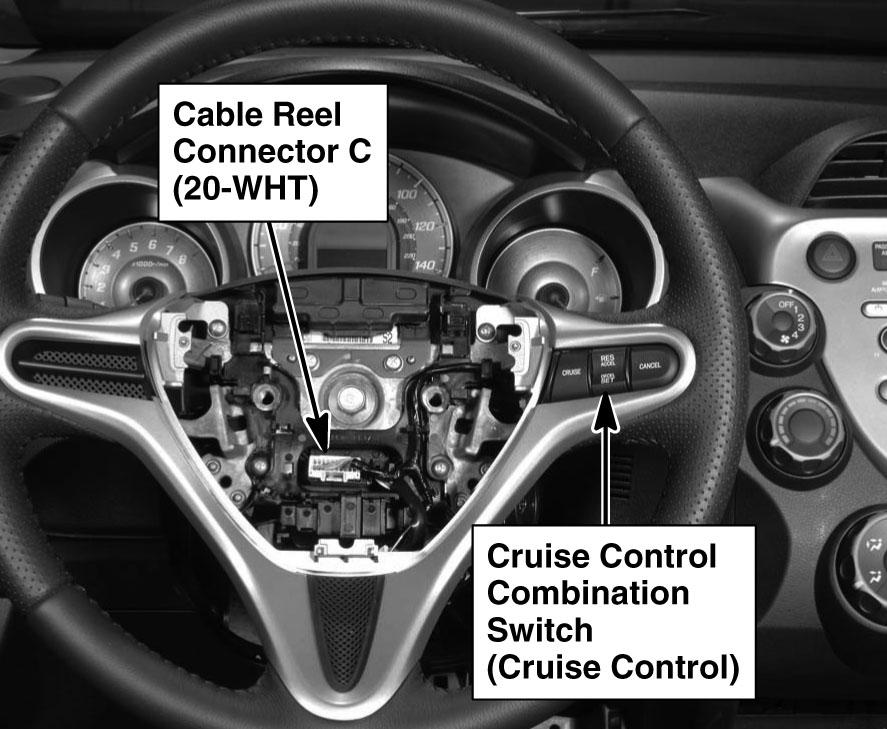

Fig 34: Steering Wheel

G00472976

Courtesy of AMERICAN HONDA MOTOR CO., INC.

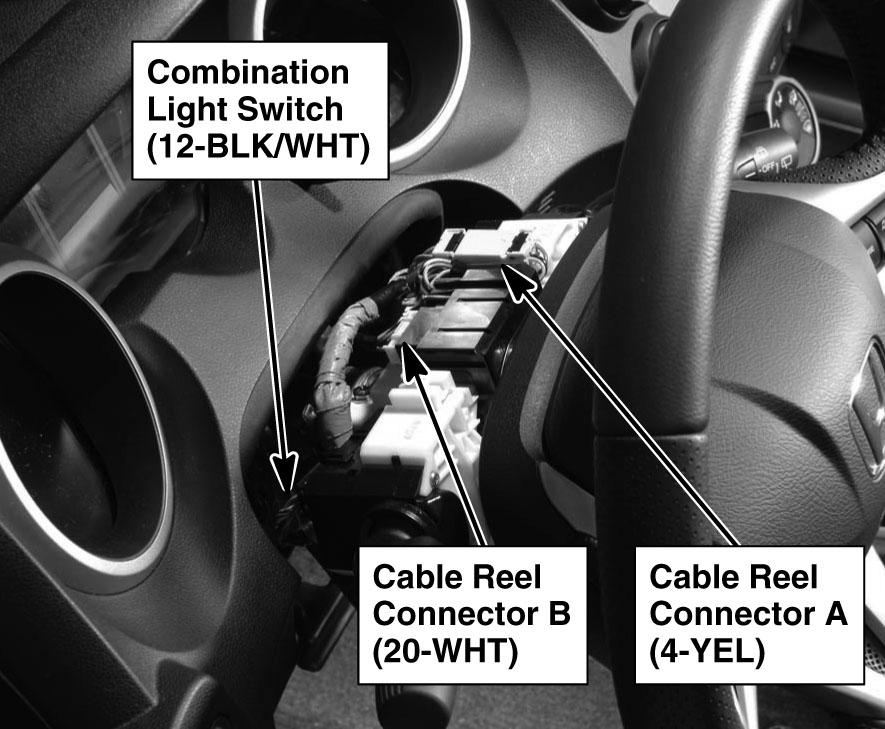

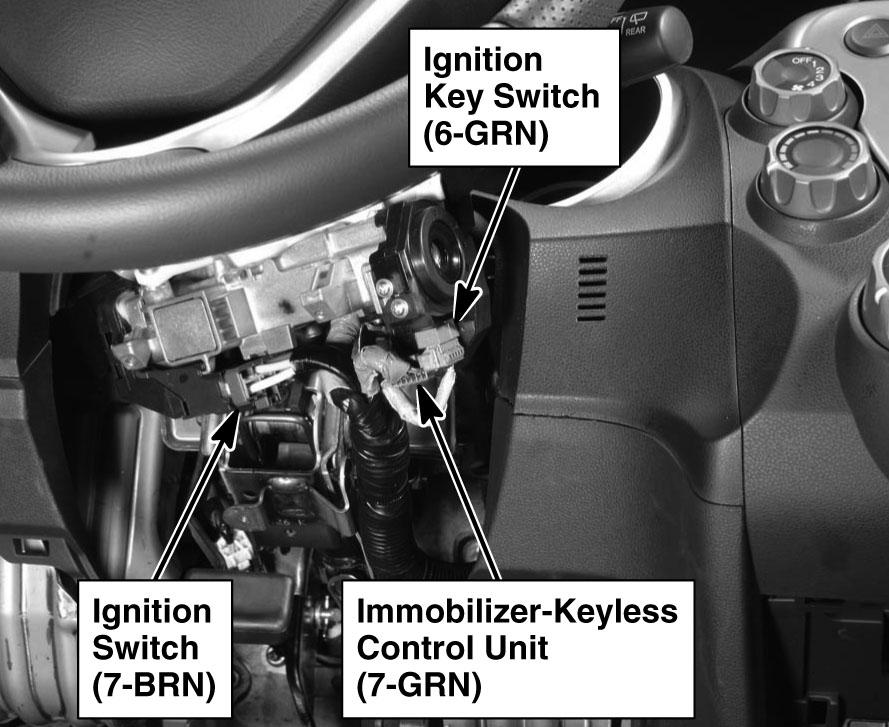

Fig 35: Steering Column

G00472977

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 36: Steering Column

G00472978

Courtesy of AMERICAN HONDA MOTOR CO., INC.

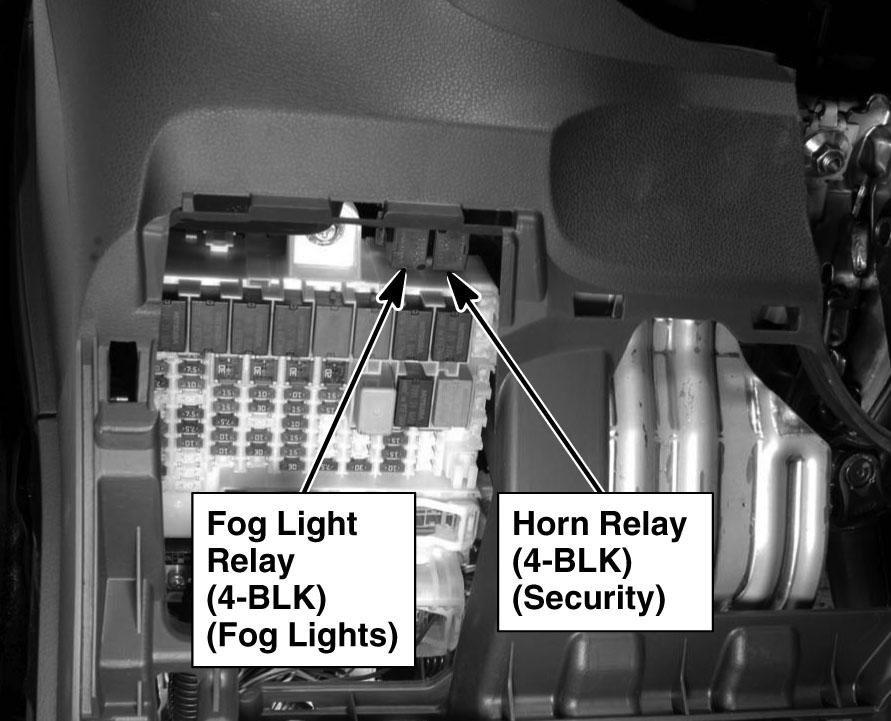

Fig 37: Behind Left Side Of Dash

G00472979

Courtesy of AMERICAN HONDA MOTOR CO., INC.

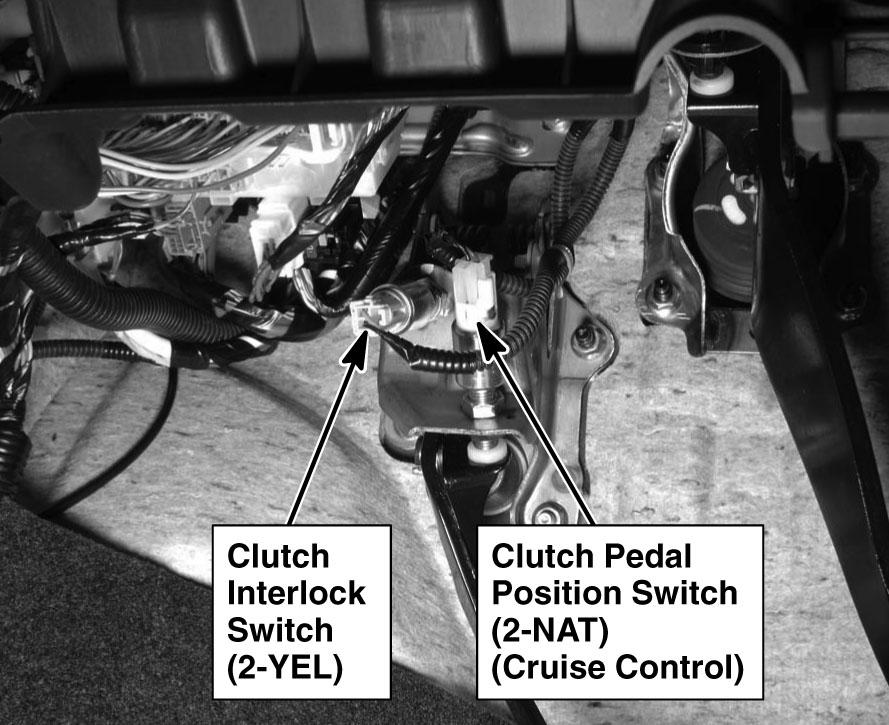

Fig 38: Under Left Side Of Dash

G00472980

Courtesy of AMERICAN HONDA MOTOR CO., INC.

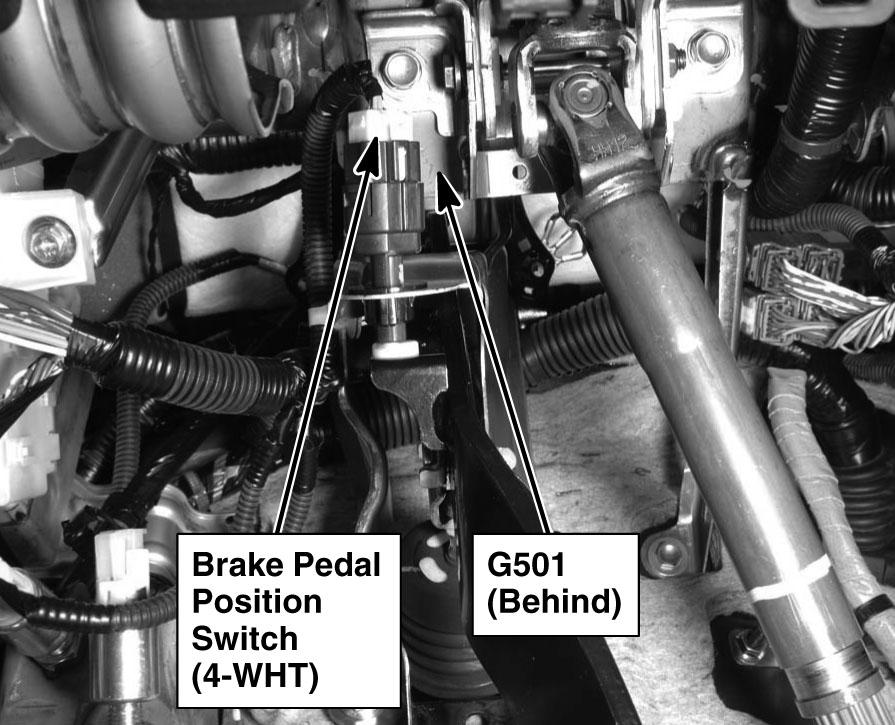

Fig 39: Under Left Side Of Dash

G00472981

Courtesy of AMERICAN HONDA MOTOR CO., INC.

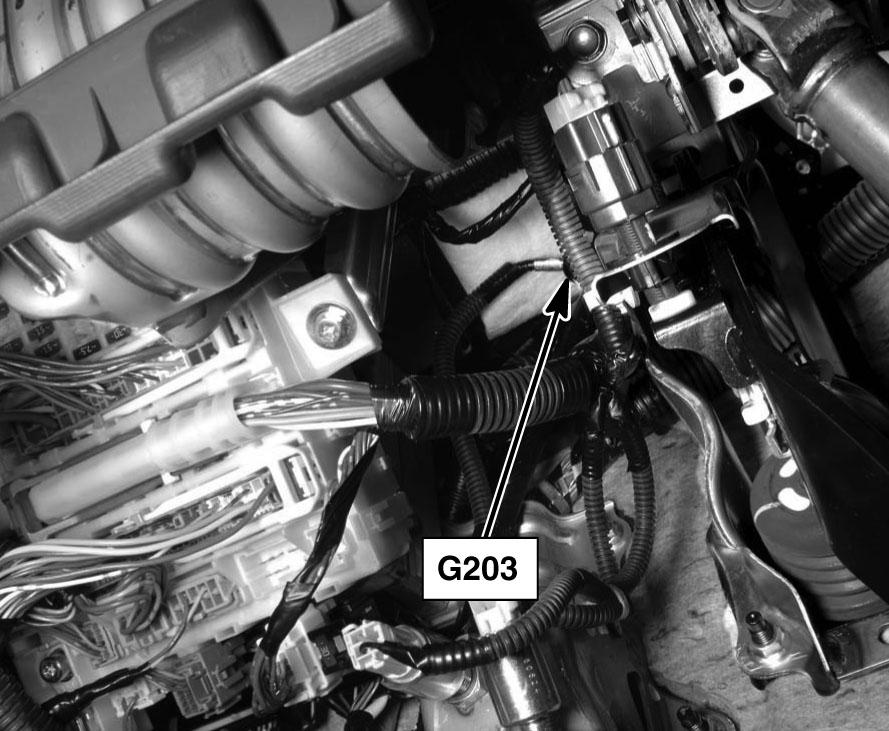

Fig 40: Under Left Side Of Dash

G00472982

Courtesy of AMERICAN HONDA MOTOR CO., INC.

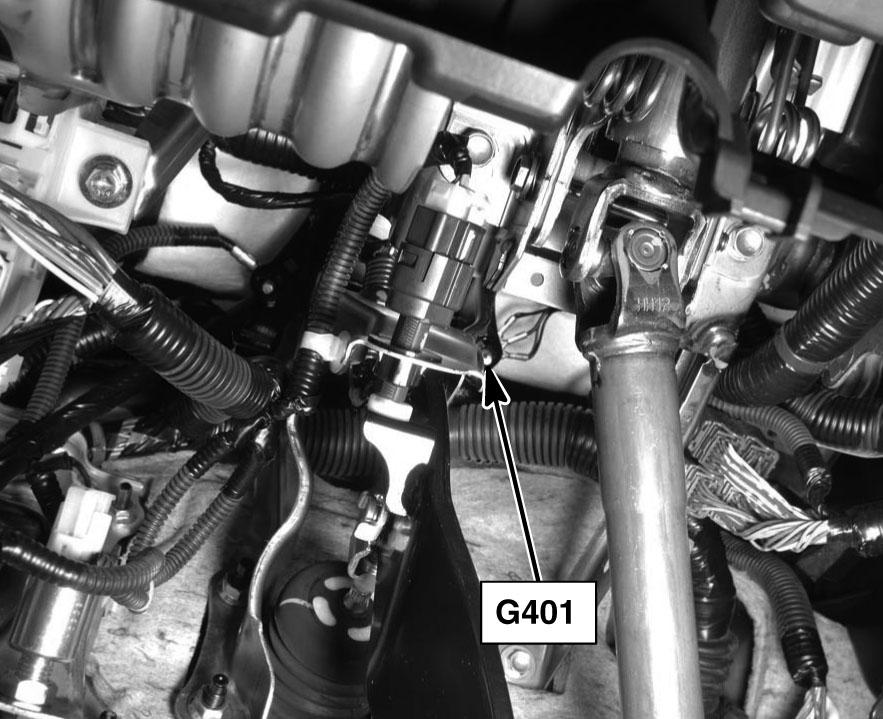

Fig 41: Under Left Side Of Dash

G00472983

Courtesy of AMERICAN HONDA MOTOR CO., INC.

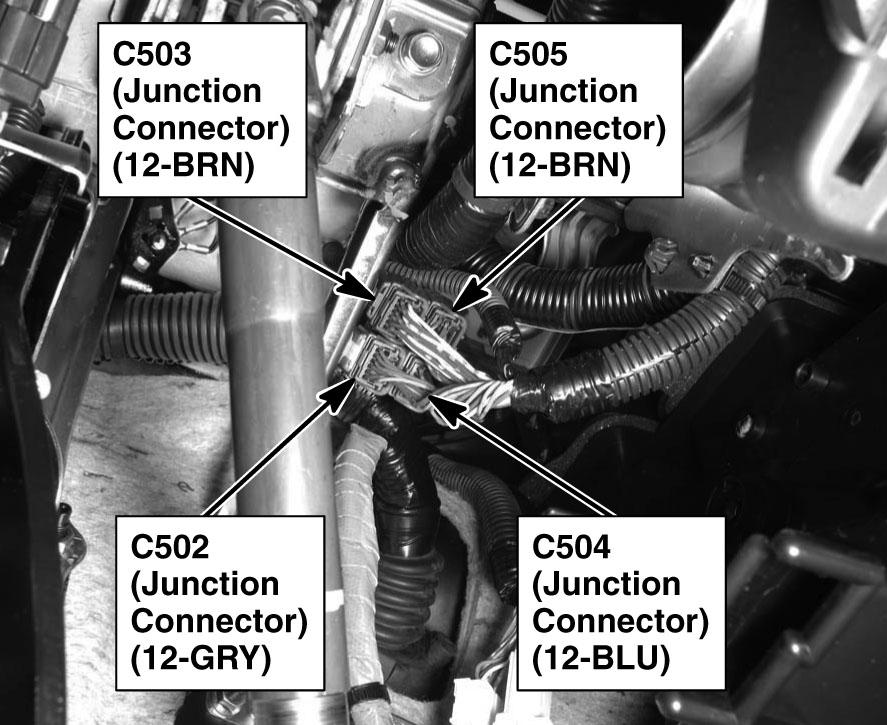

Fig 42: Under Left Side Of Dash

G00472984

Courtesy of AMERICAN HONDA MOTOR CO., INC.

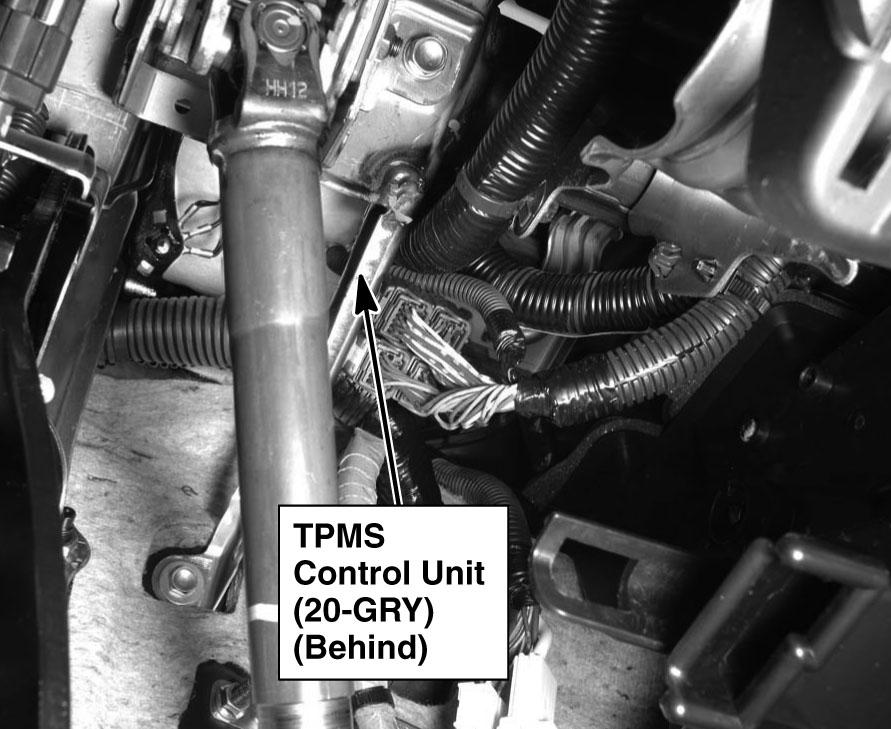

Fig 43: Under Left Side Of Dash

G00472985

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 44: Under Left Side Of Dash

G00472986

Courtesy of AMERICAN HONDA MOTOR CO., INC.

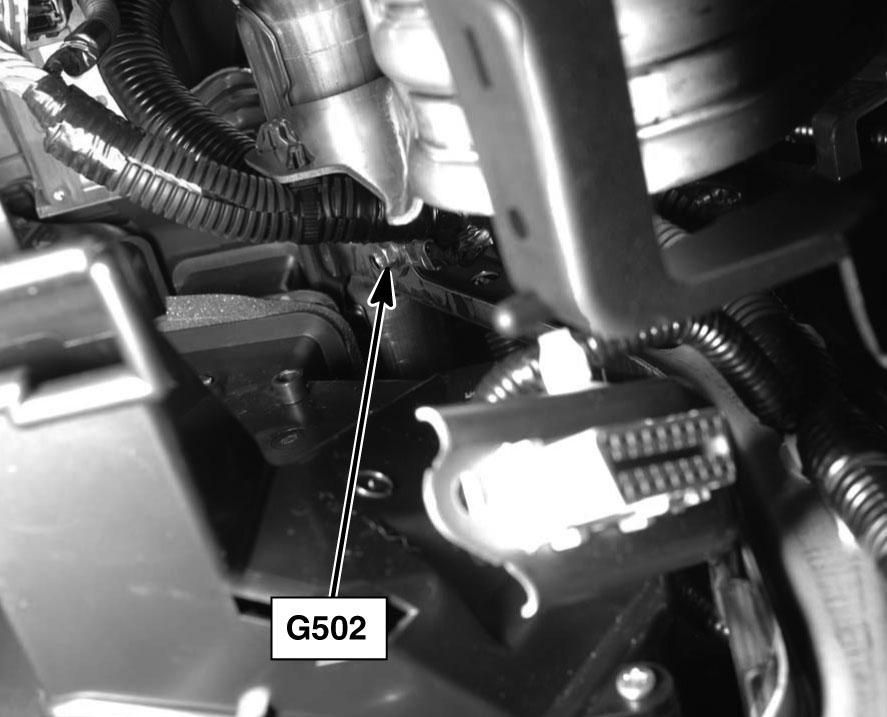

Fig 45: Under Left Side Of Dash

G00472987

Courtesy of AMERICAN HONDA MOTOR CO., INC.

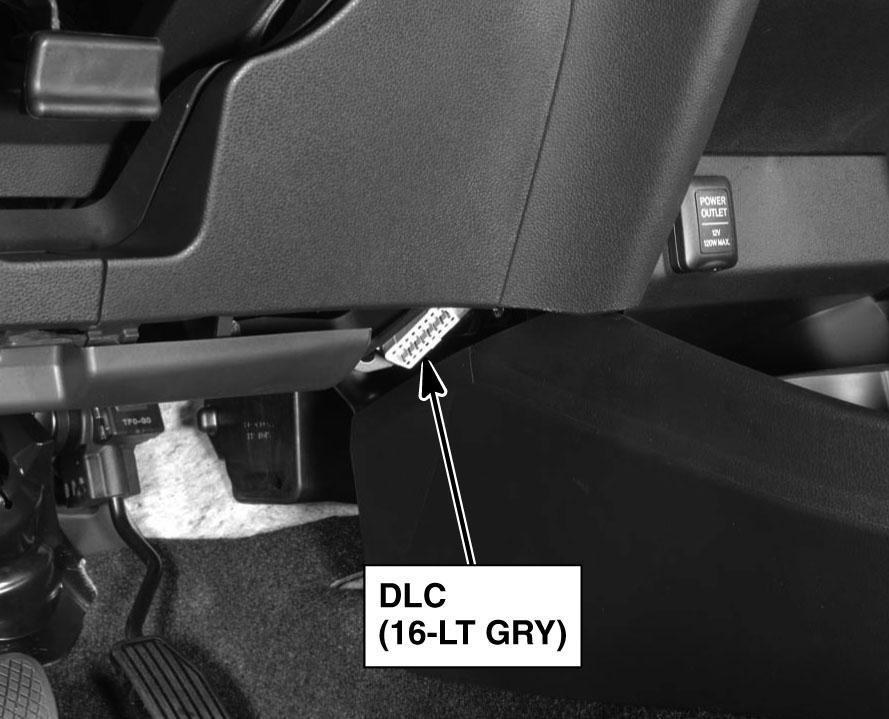

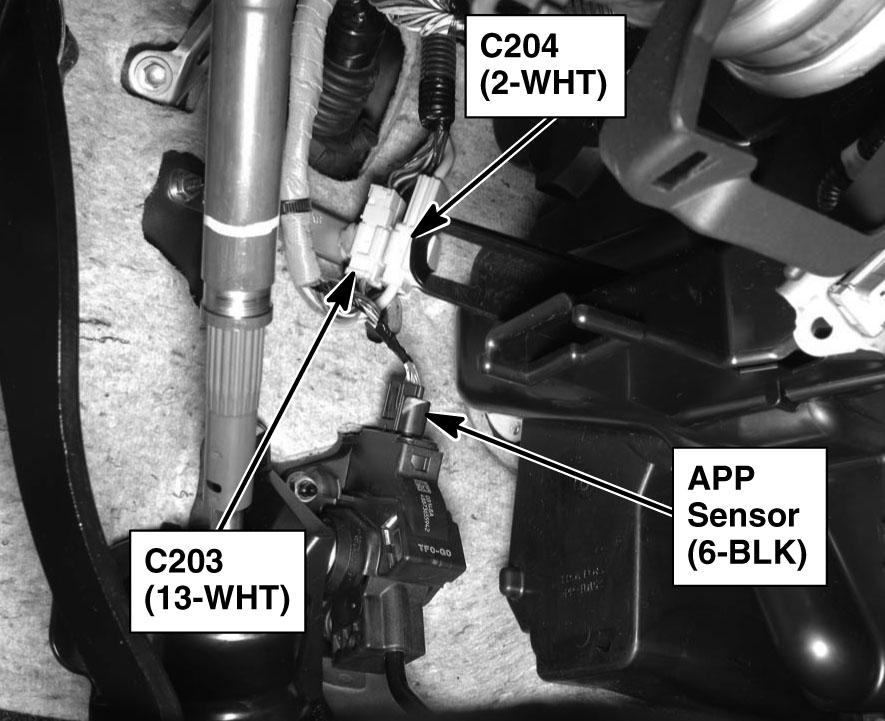

Fig 46: Under Left Side Of Dash

G00472988

Courtesy of AMERICAN HONDA MOTOR CO., INC.

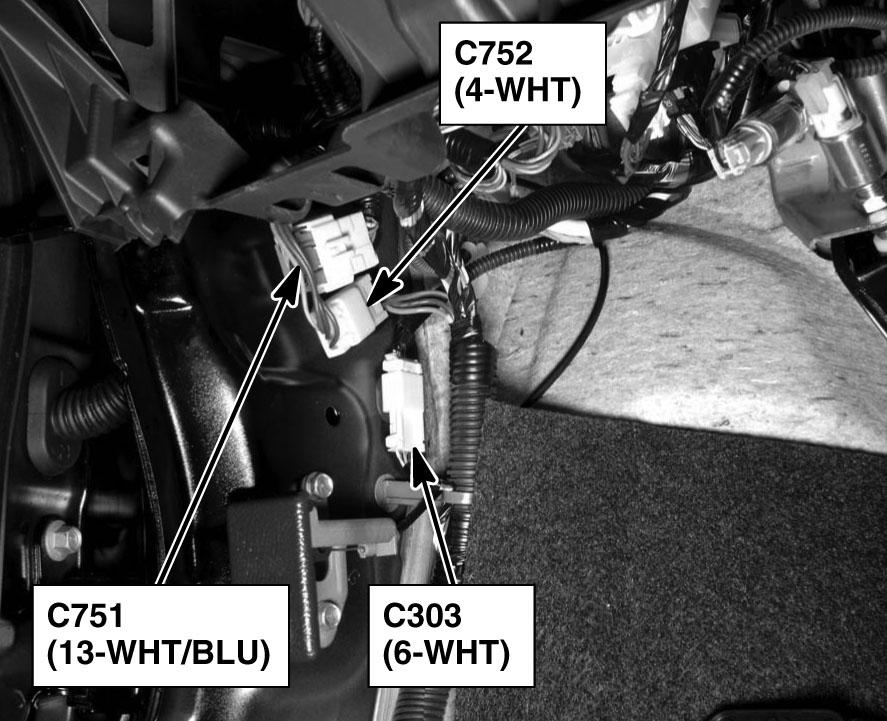

Fig 47: Behind Left Kick Panel

G00472989

Courtesy of AMERICAN HONDA MOTOR CO., INC.

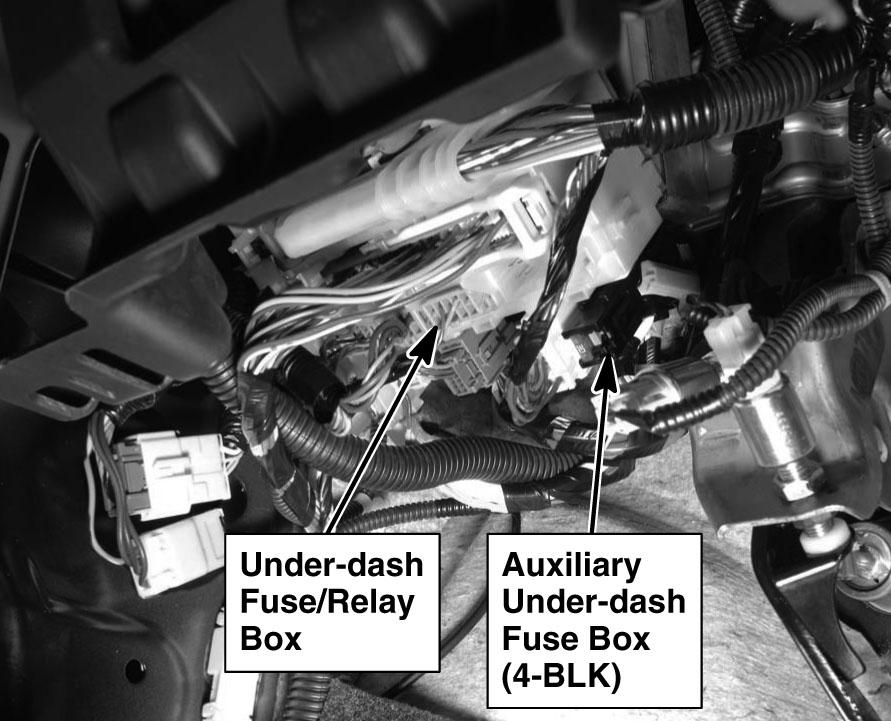

Fig 48: Under Left End Of Dash

G00472990

Courtesy of AMERICAN HONDA MOTOR CO., INC.

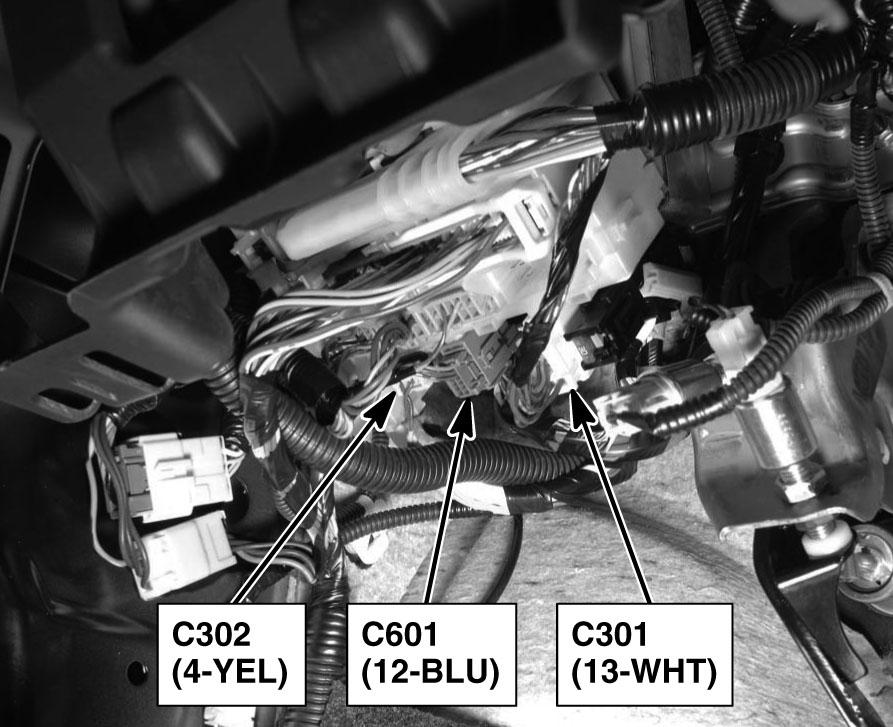

Fig 49: Under Left End Of Dash

G00472991

Courtesy of AMERICAN HONDA MOTOR CO., INC.

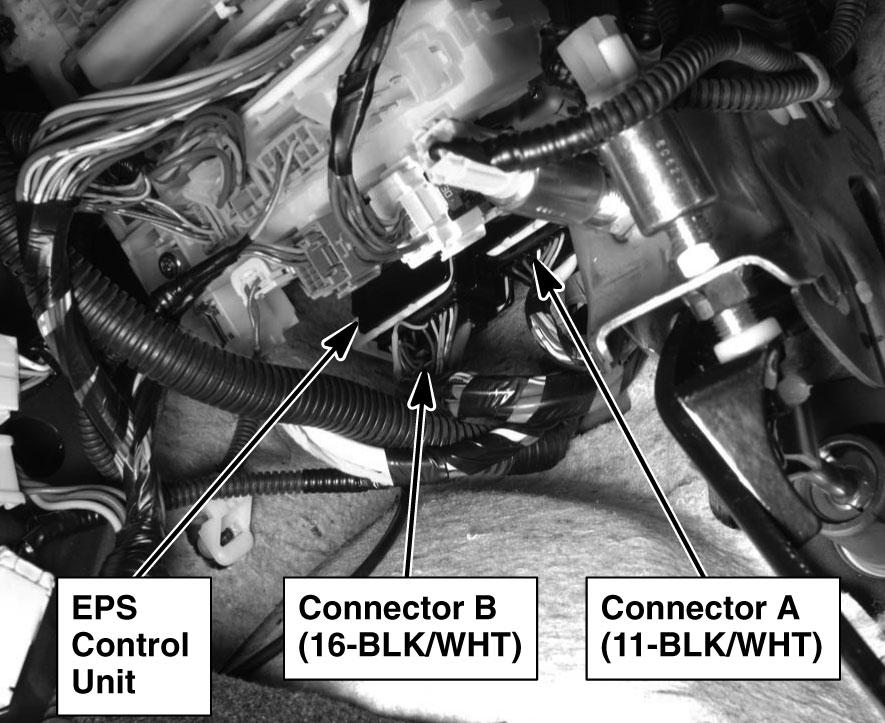

Fig 50: Under Left End Of Dash

G00472992

Courtesy of AMERICAN HONDA MOTOR CO., INC.

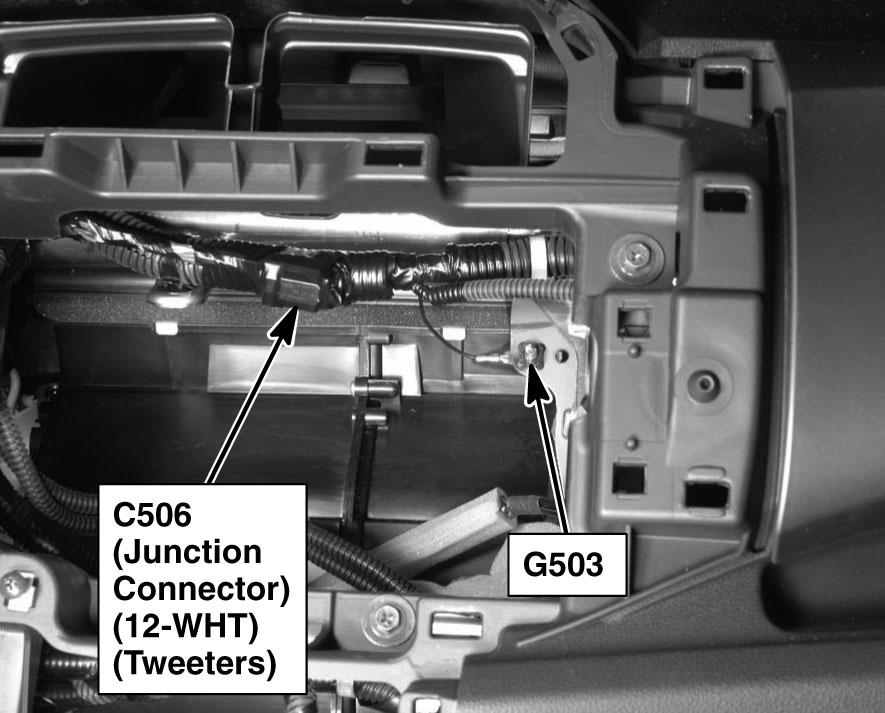

Fig 51: Behind Middle Of Dash

G00472993

Courtesy of AMERICAN HONDA MOTOR CO., INC.

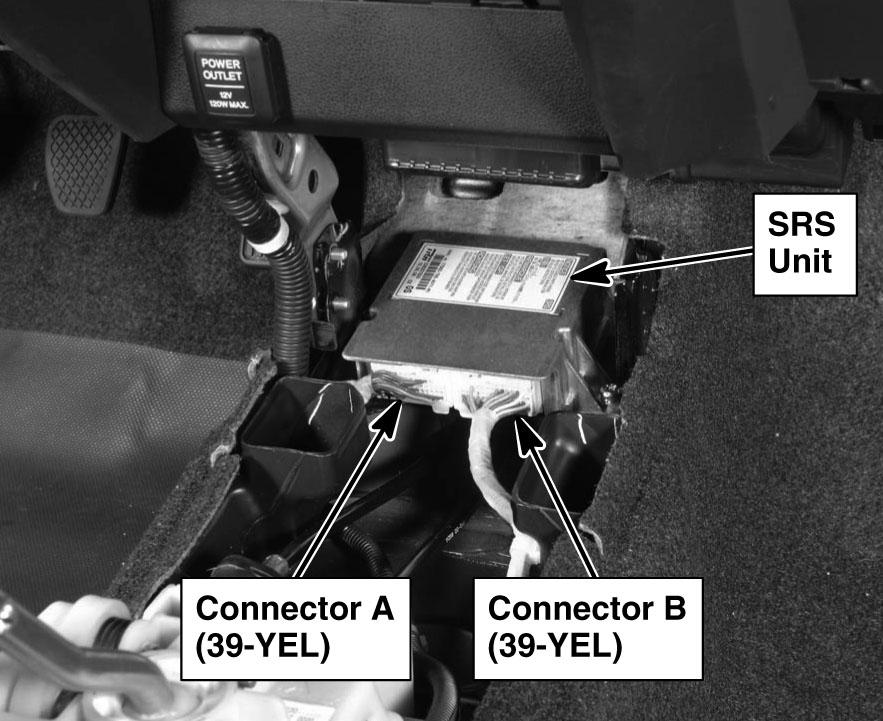

Fig 52: Under Middle Of Dash

G00472994

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 53: Under Middle Of Dash

G00472995

Courtesy of AMERICAN HONDA MOTOR CO., INC.

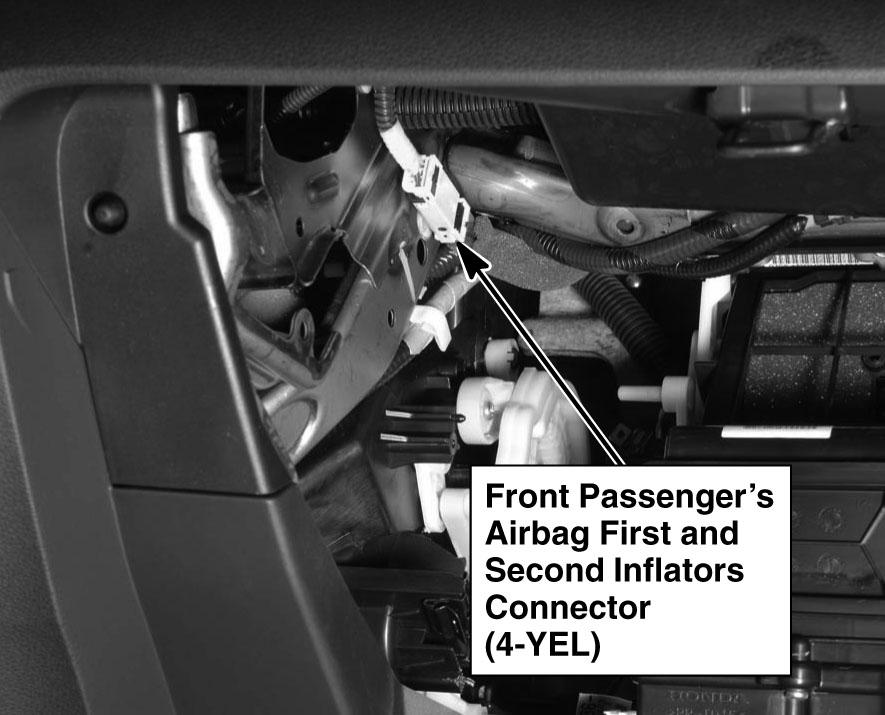

Fig 54: Behind Glove Box

G00472996

Courtesy of AMERICAN HONDA MOTOR CO., INC.

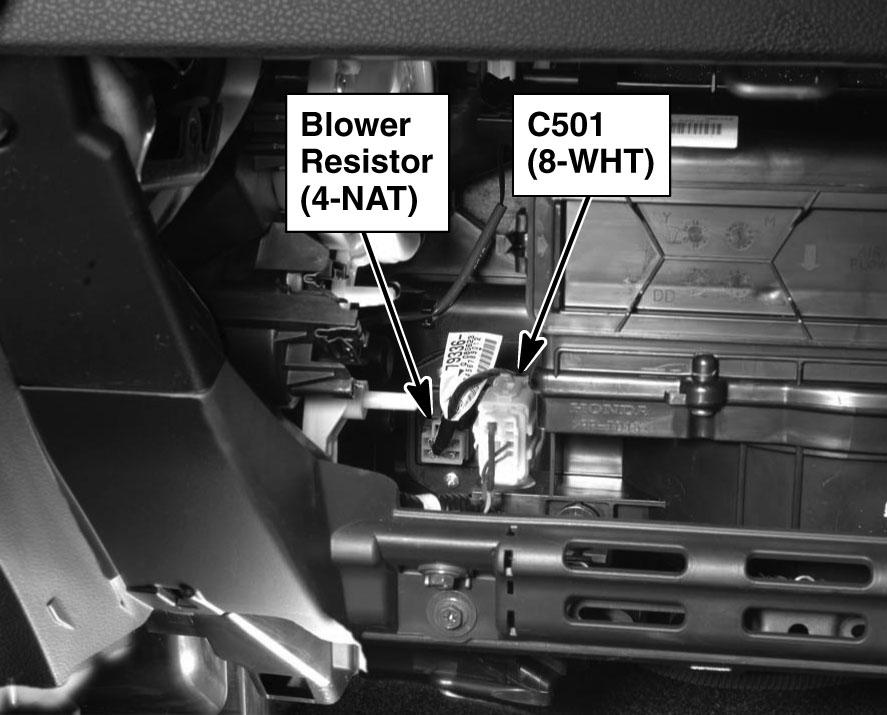

Fig 55: Behind Glove Box

G00472997

Courtesy of AMERICAN HONDA MOTOR CO., INC.

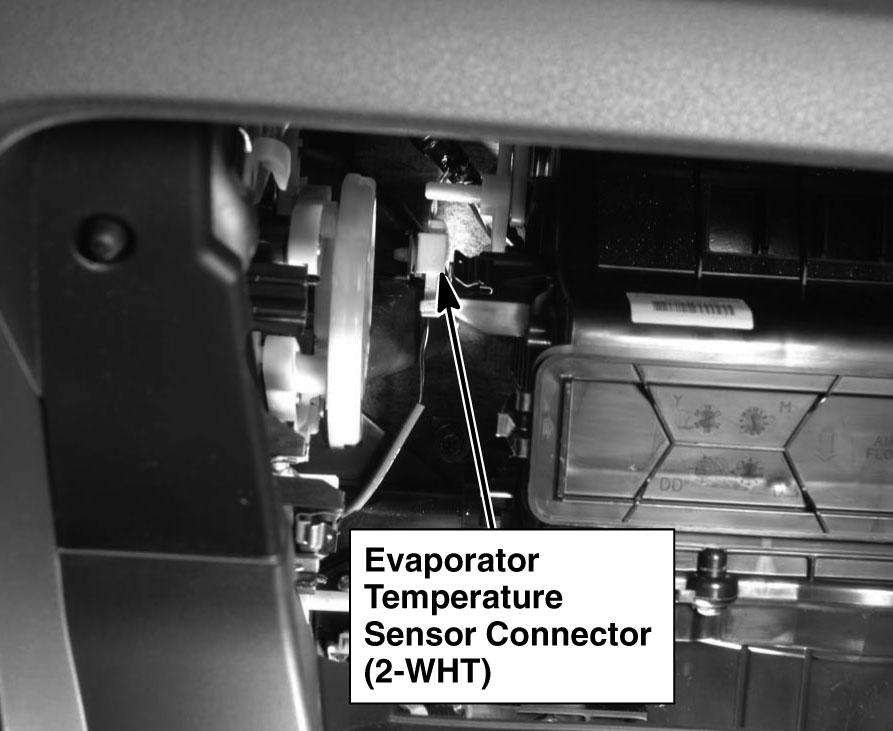

Fig 56: Behind Glove Box

G00472998

Courtesy of AMERICAN HONDA MOTOR CO., INC.

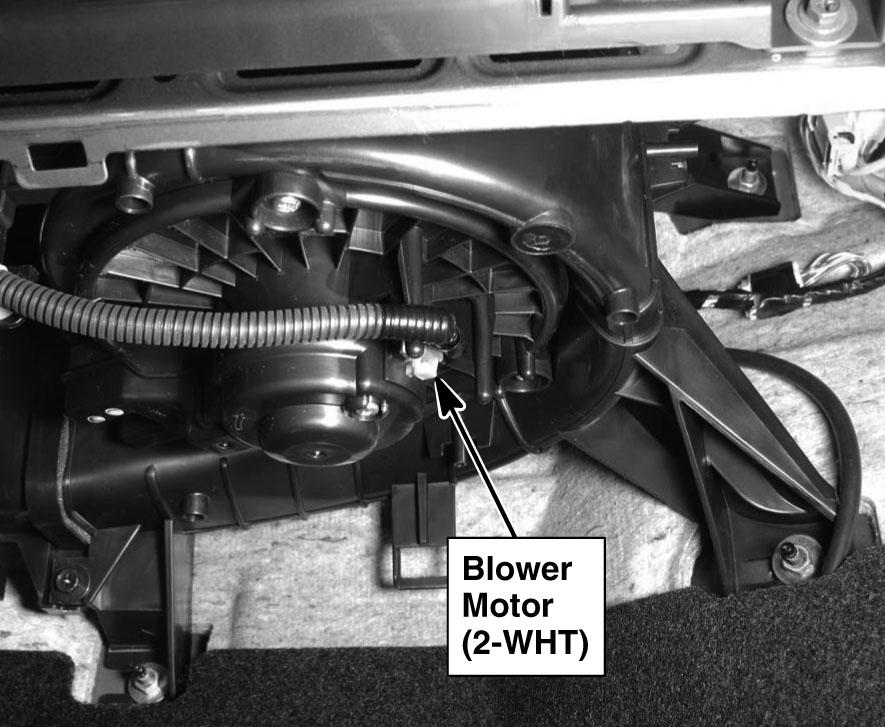

Fig 57: Under Right Side Of Dash

G00472999

Courtesy of AMERICAN HONDA MOTOR CO., INC.

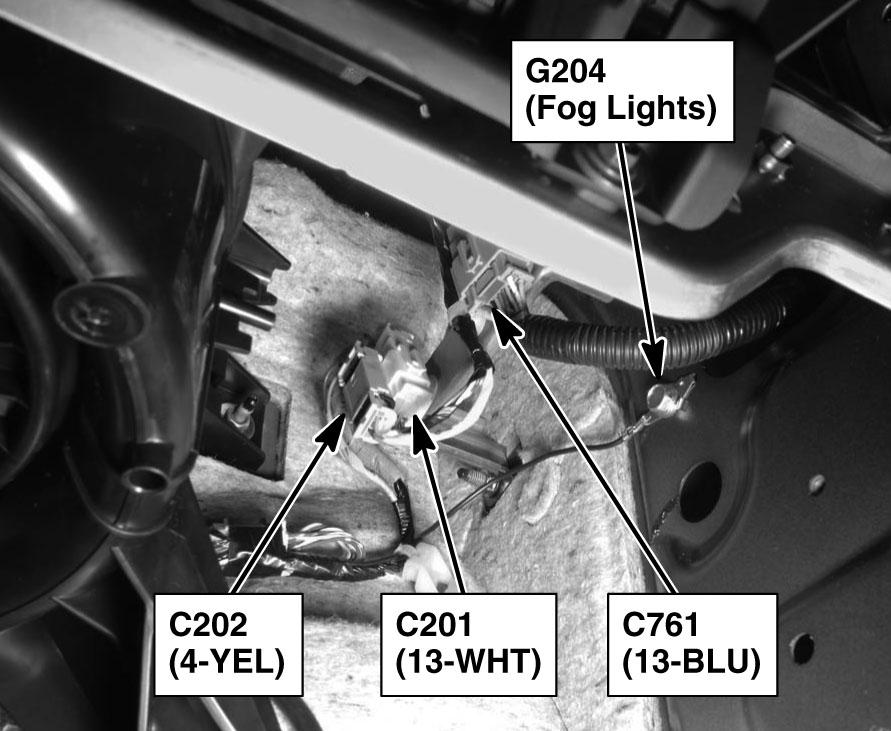

Fig 58: Under Right End Of Dash

G00473000

Courtesy of AMERICAN HONDA MOTOR CO., INC.

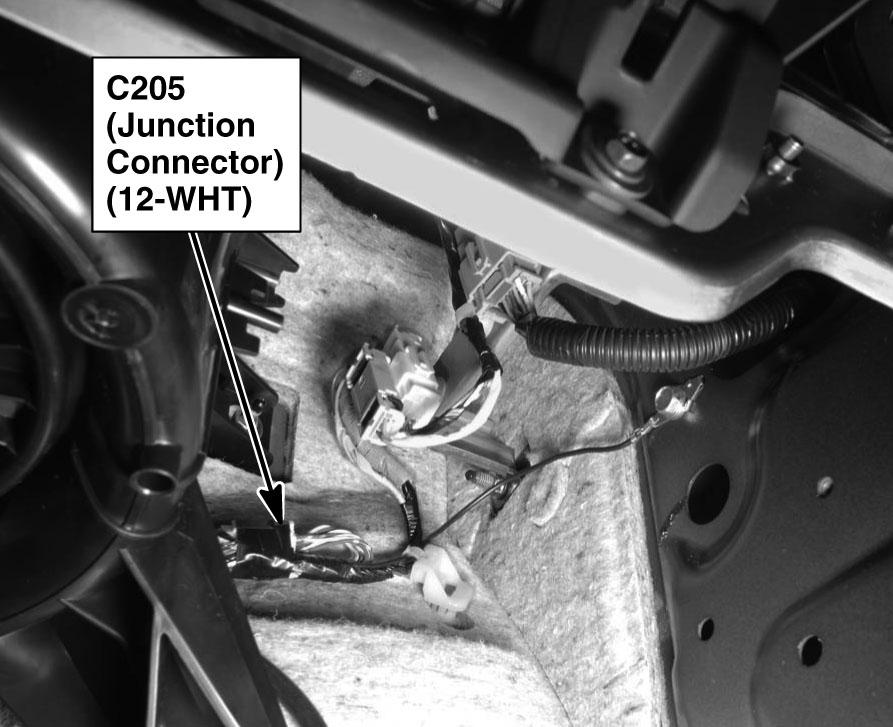

Fig 59: Under Right End Of Dash

G00473001

Courtesy of AMERICAN HONDA MOTOR CO., INC.

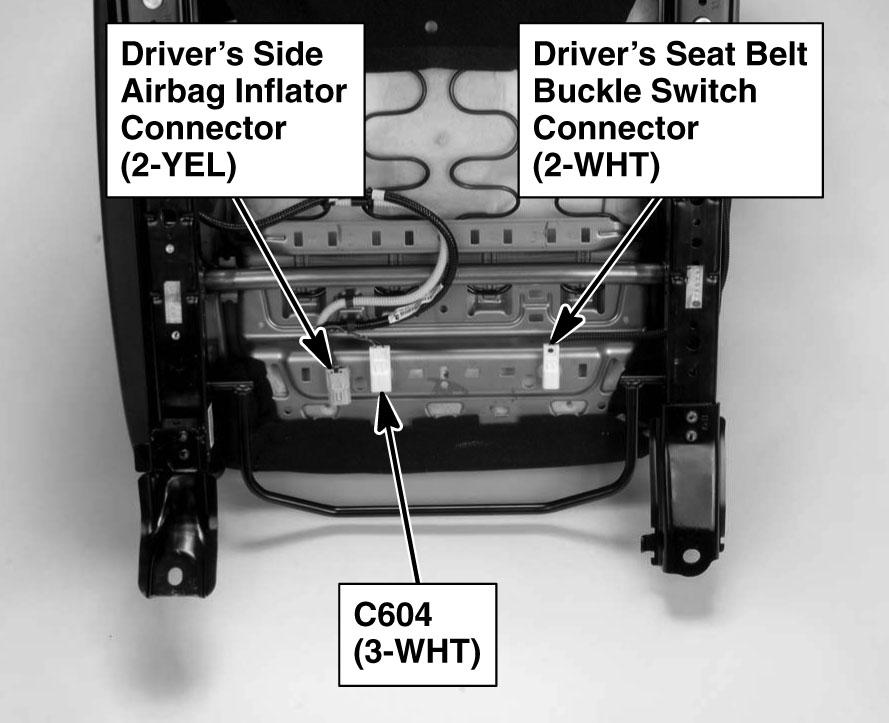

Fig 60: Under Driver's Seat

G00473002

Courtesy of AMERICAN HONDA MOTOR CO., INC.

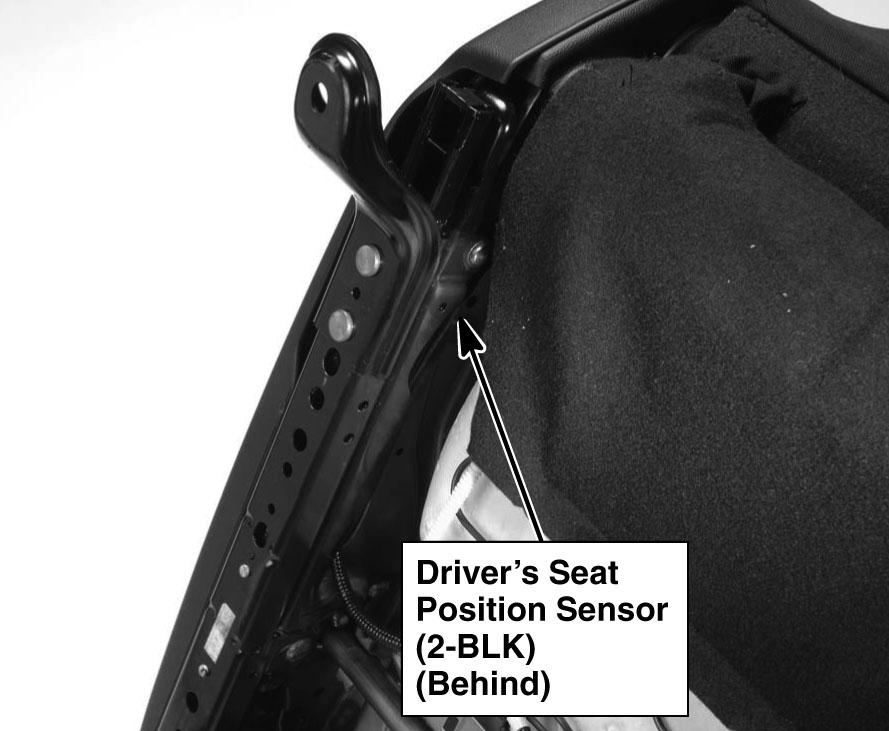

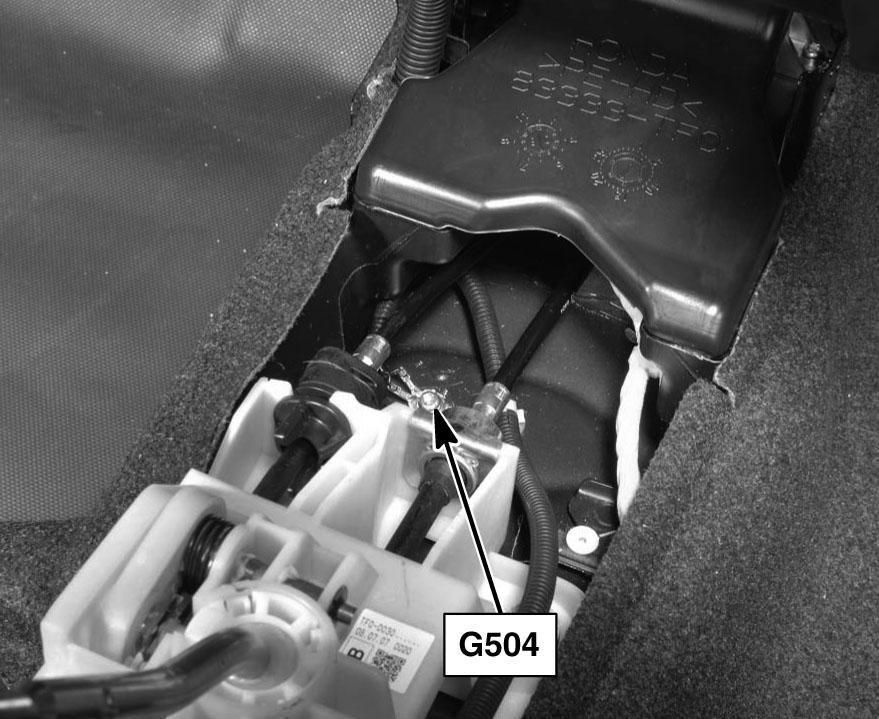

Fig 61: Under Driver's Seat

G00473003

Courtesy of AMERICAN HONDA MOTOR CO., INC.

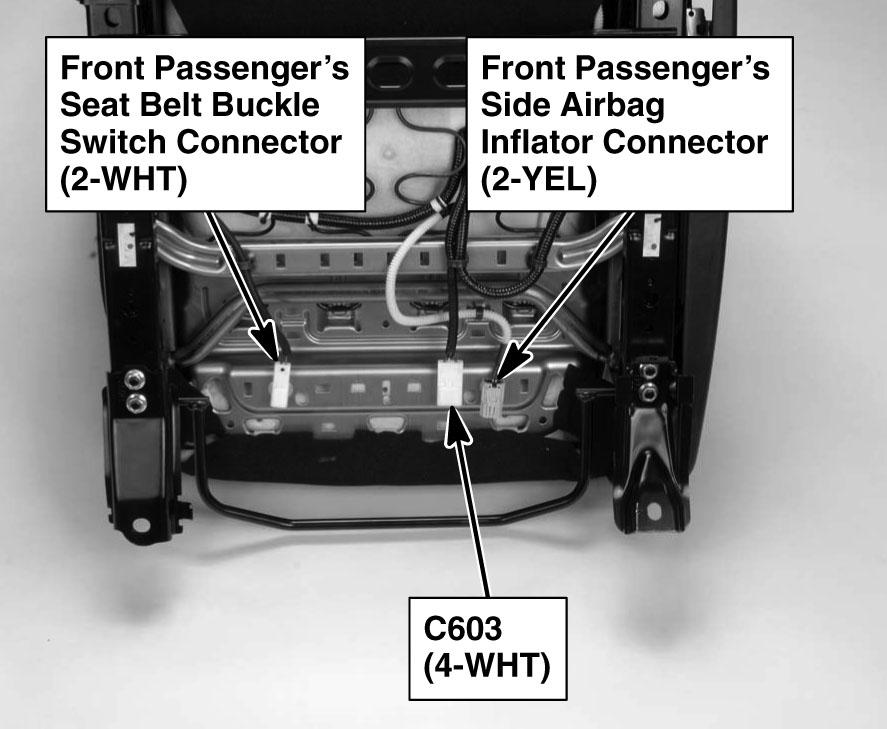

Fig 62: Under Front Passenger's Seat

G00473004

Courtesy of AMERICAN HONDA MOTOR CO., INC.

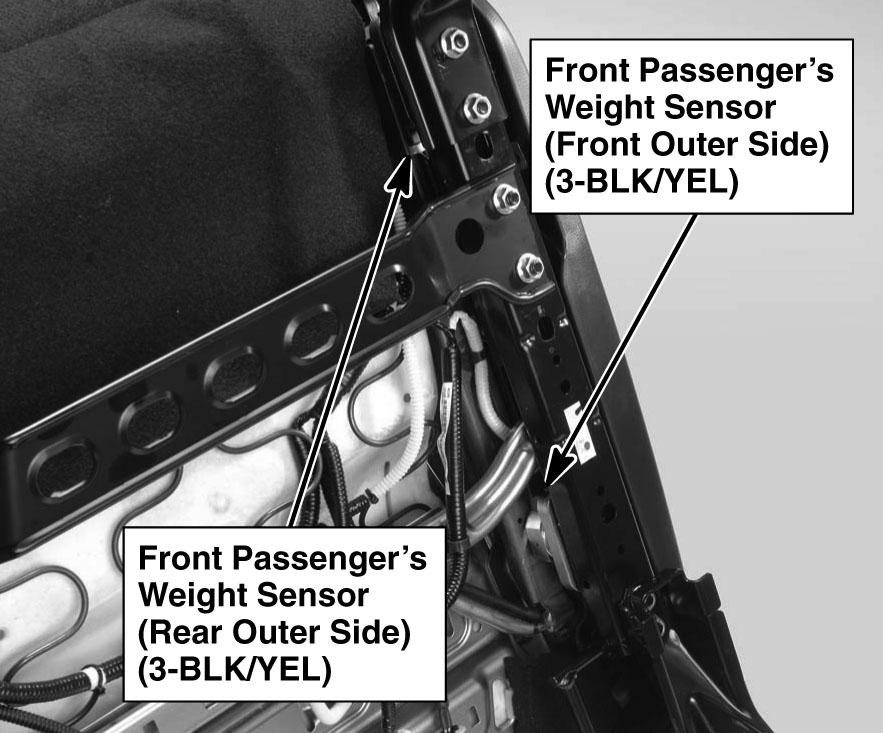

Fig 63: Under Front Passenger's Seat

G00473005

Courtesy of AMERICAN HONDA MOTOR CO., INC.

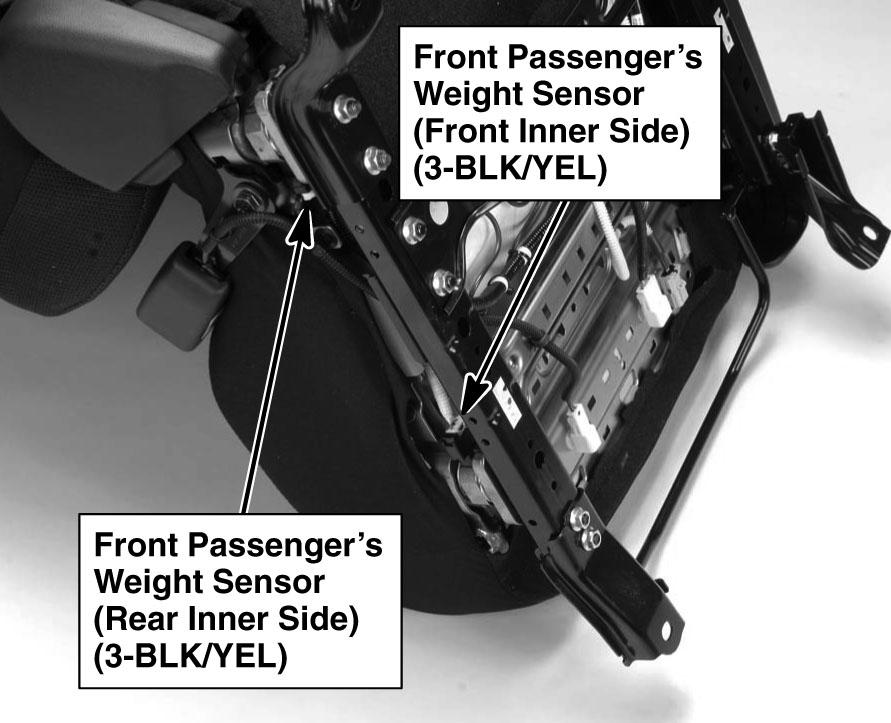

Fig 64: Under Front Passenger's Seat

G00473006

Courtesy of AMERICAN HONDA MOTOR CO., INC.

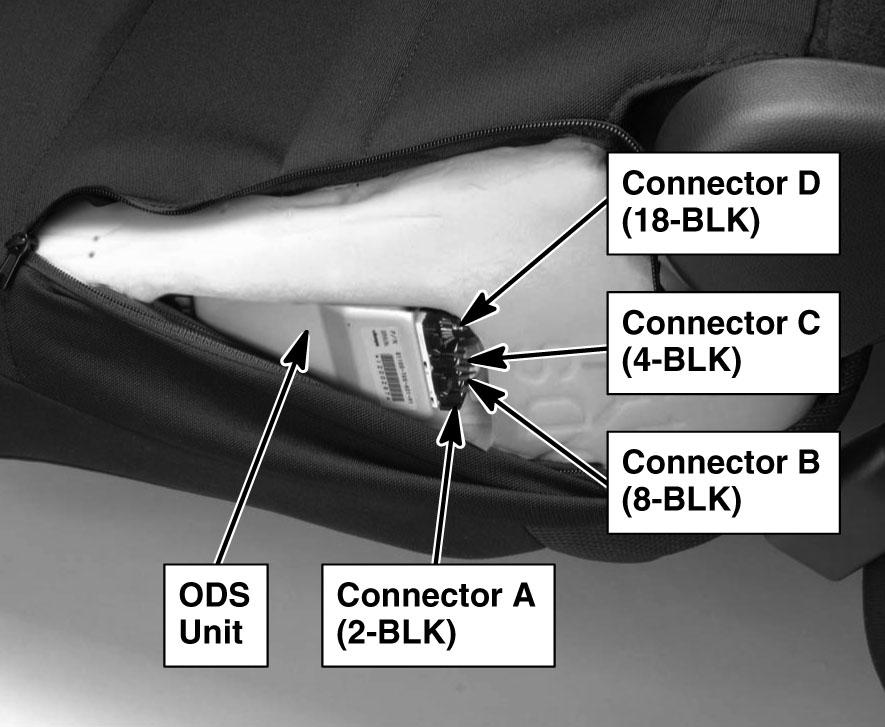

Fig 65: Front Passenger's Seat Back

G00473007

Courtesy of AMERICAN HONDA MOTOR CO., INC.

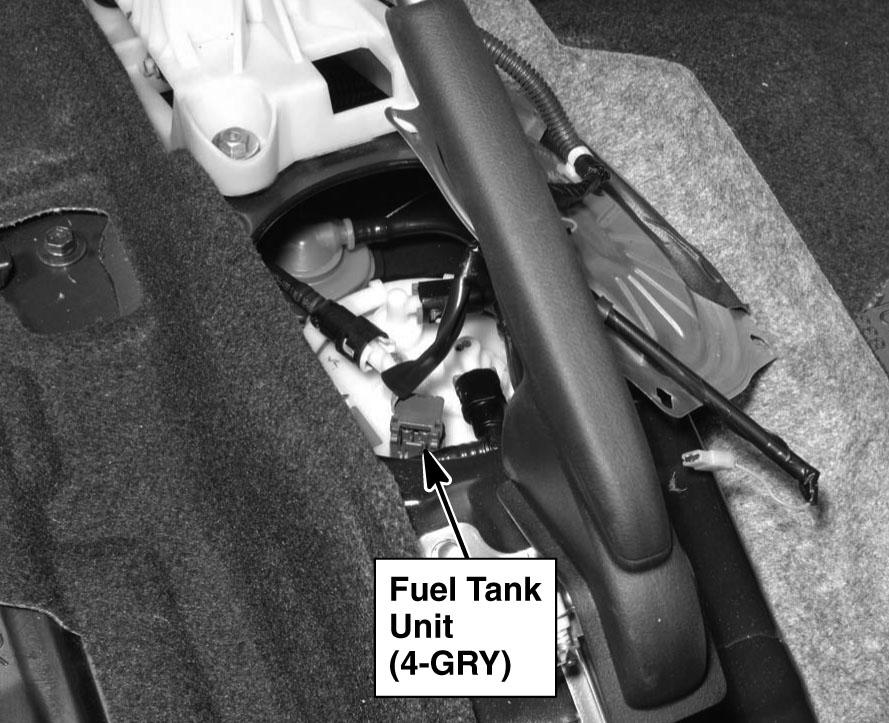

Fig 66: Under Center Console

G00473008

Courtesy of AMERICAN HONDA MOTOR CO., INC.

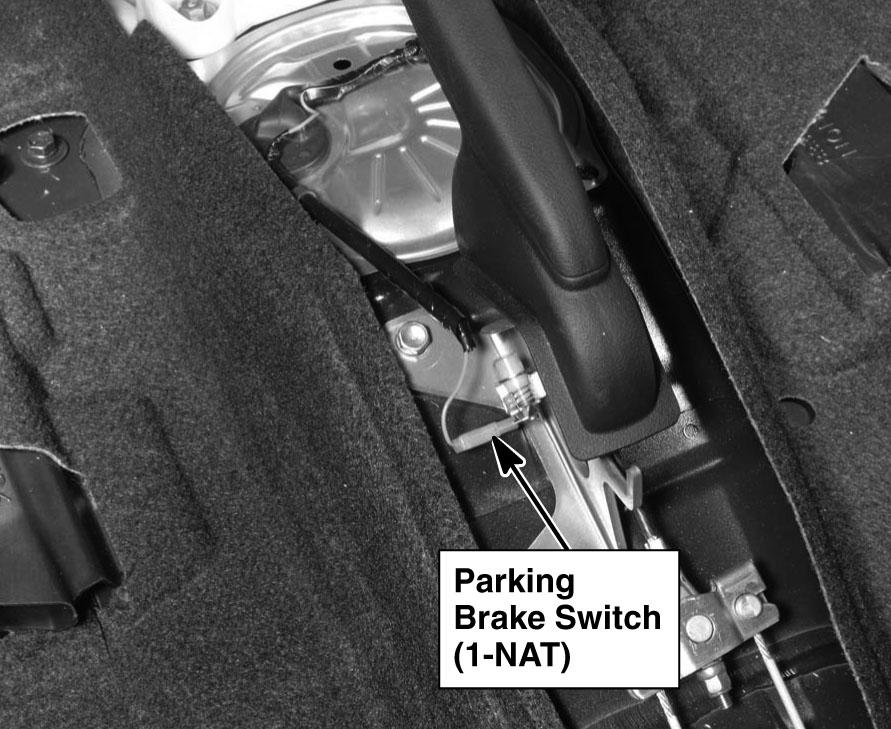

Fig 67: Under Center Console

G00473009

Courtesy of AMERICAN HONDA MOTOR CO., INC.

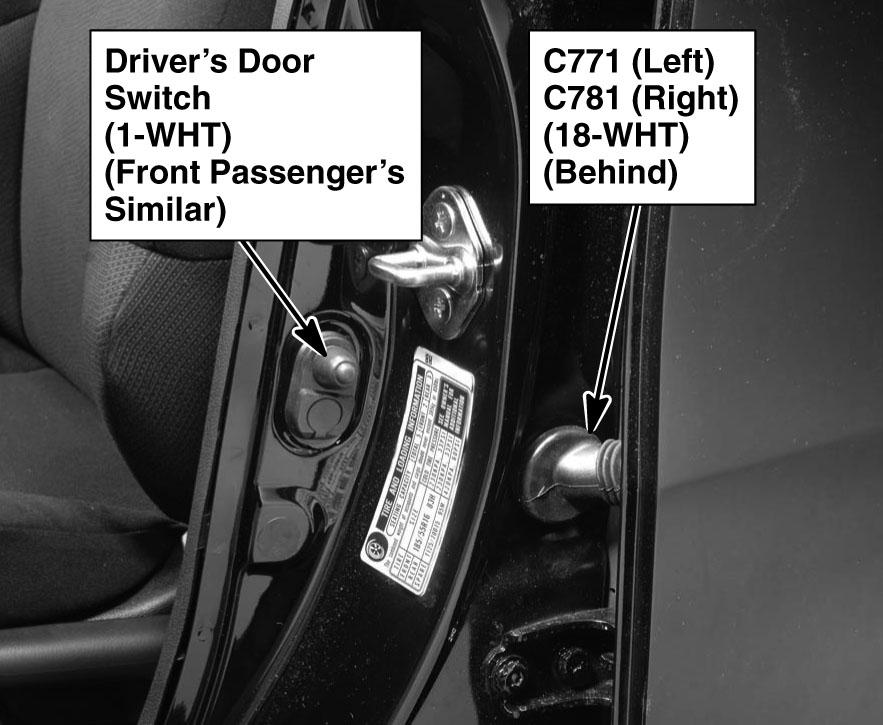

Fig 68: Left "B" Pillar (Right Similar)

G00473010

Courtesy of AMERICAN HONDA MOTOR CO., INC.

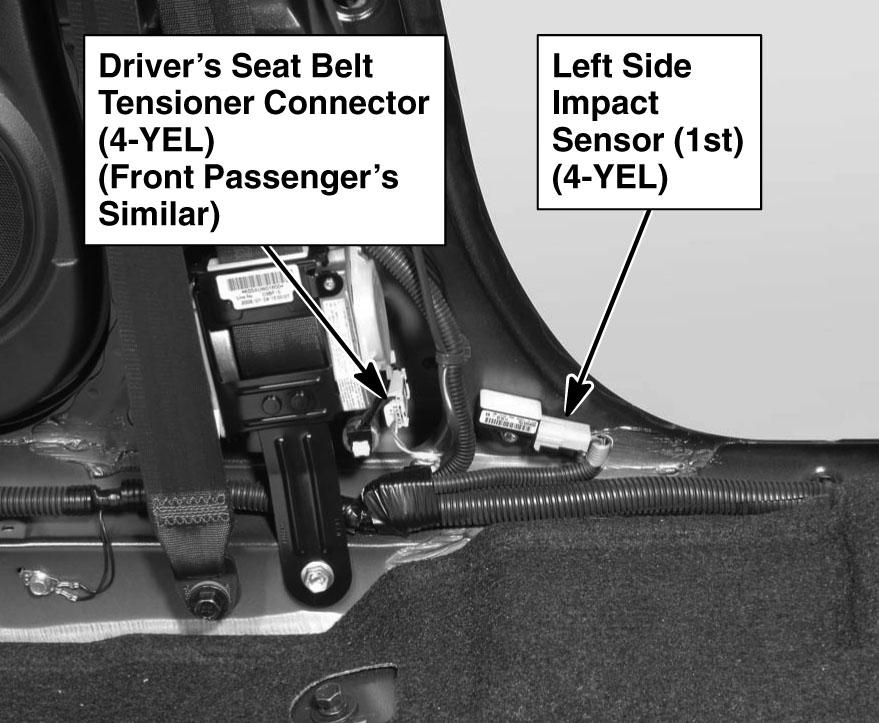

Fig 69: Base Of Left "B" Pillar (Right Similar)

G00473011

Courtesy of AMERICAN HONDA MOTOR CO., INC.

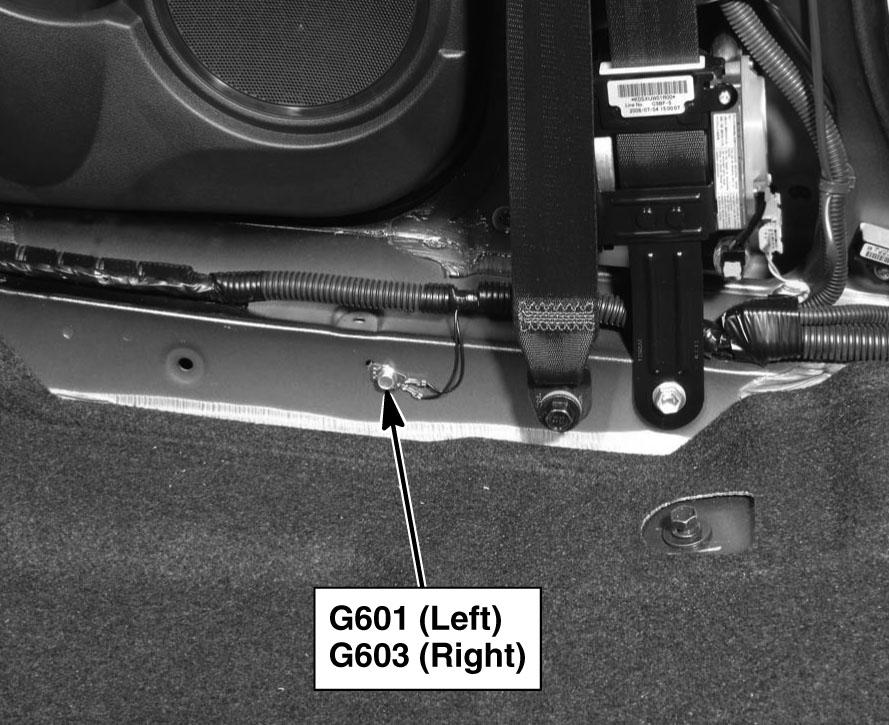

Fig 70: Left Side Of Floor (Right Similar)

G00473012

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 71: Left "C" Pillar

G00473013

Courtesy of AMERICAN HONDA MOTOR CO., INC.

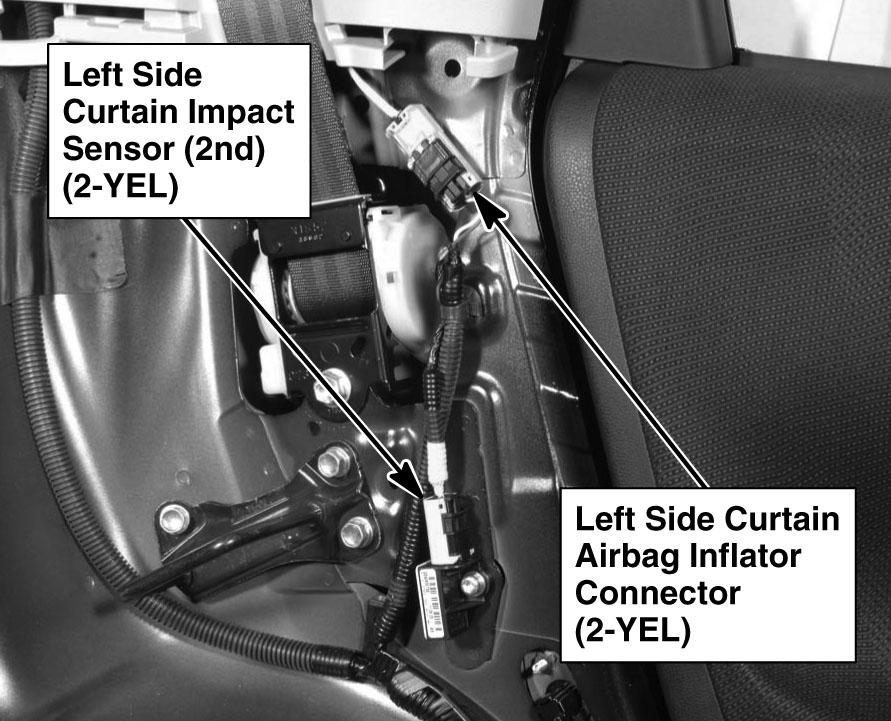

Fig 72: Left "C" Pillar

G00473014

Courtesy of AMERICAN HONDA MOTOR CO., INC.

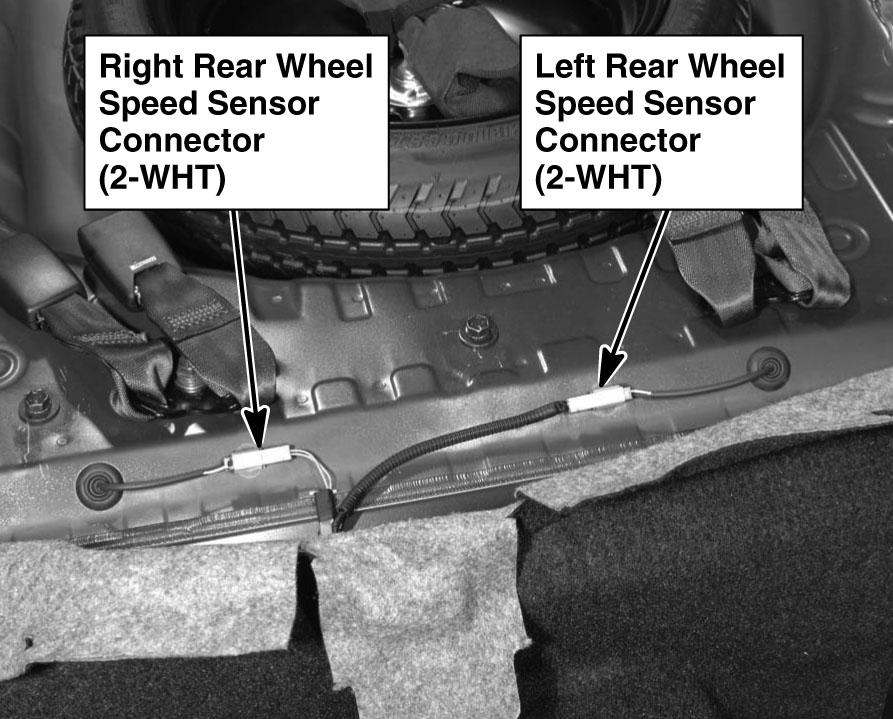

Fig 73: Rear Of Floor

G00473015

Courtesy of AMERICAN HONDA MOTOR CO., INC.

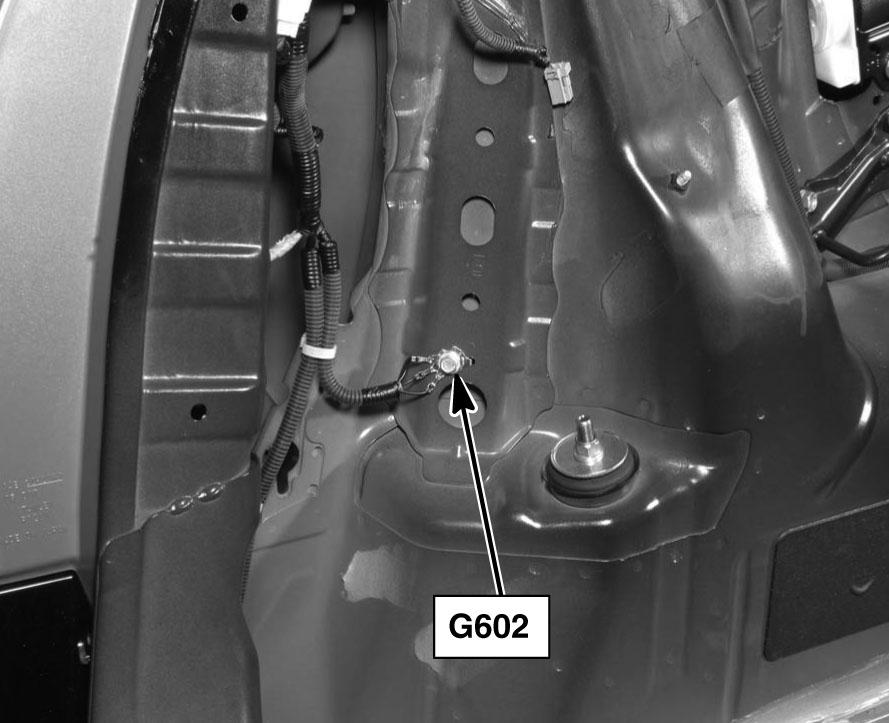

Fig 74: Left Side Of Cargo Area

G00473016

Courtesy of AMERICAN HONDA MOTOR CO., INC.

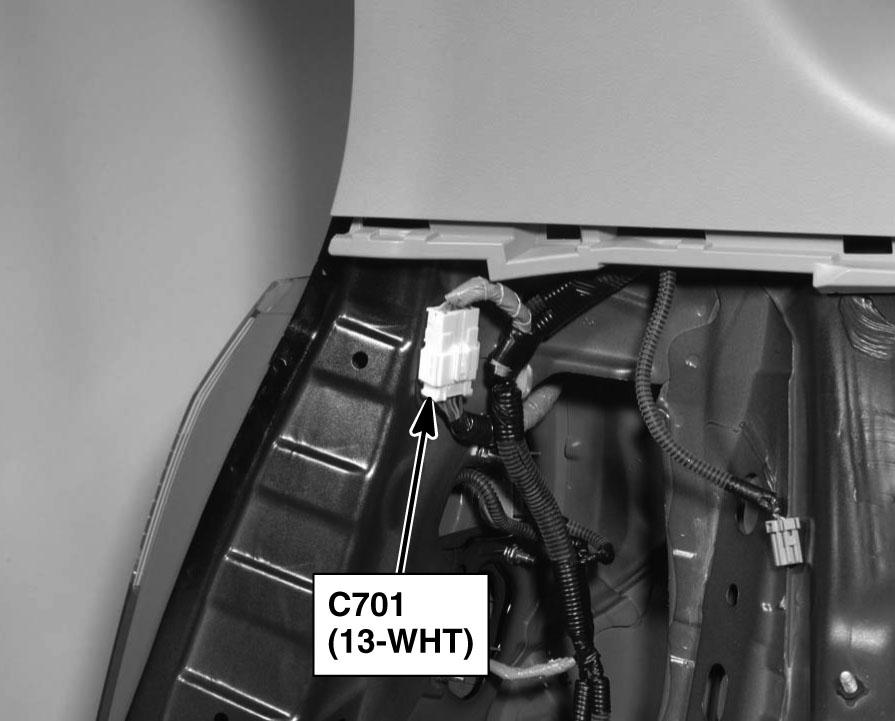

Fig 75: Left Side Of Cargo Area

G00473017

Courtesy of AMERICAN HONDA MOTOR CO., INC.

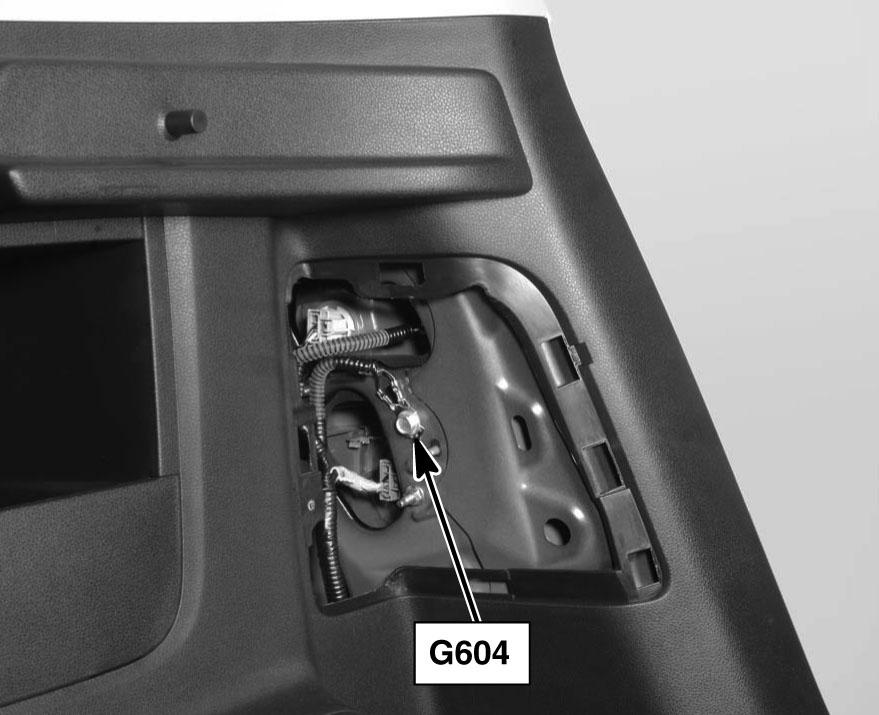

Fig 76: Right Side Of Cargo Area

G00473018

Courtesy of AMERICAN HONDA MOTOR CO., INC.

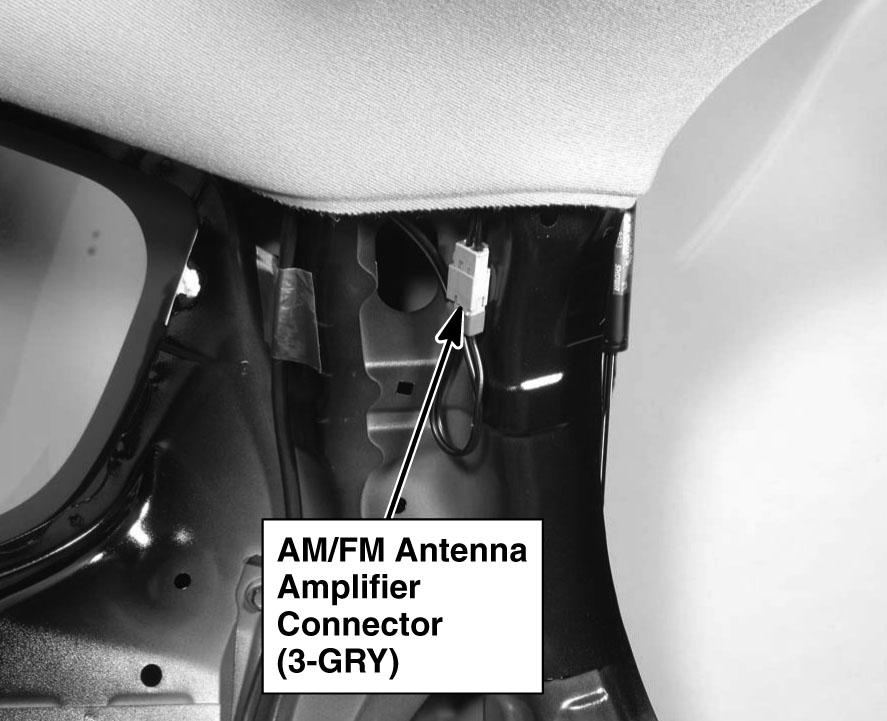

Fig 77: Right "D" Pillar

G00473019

Courtesy of AMERICAN HONDA MOTOR CO., INC.

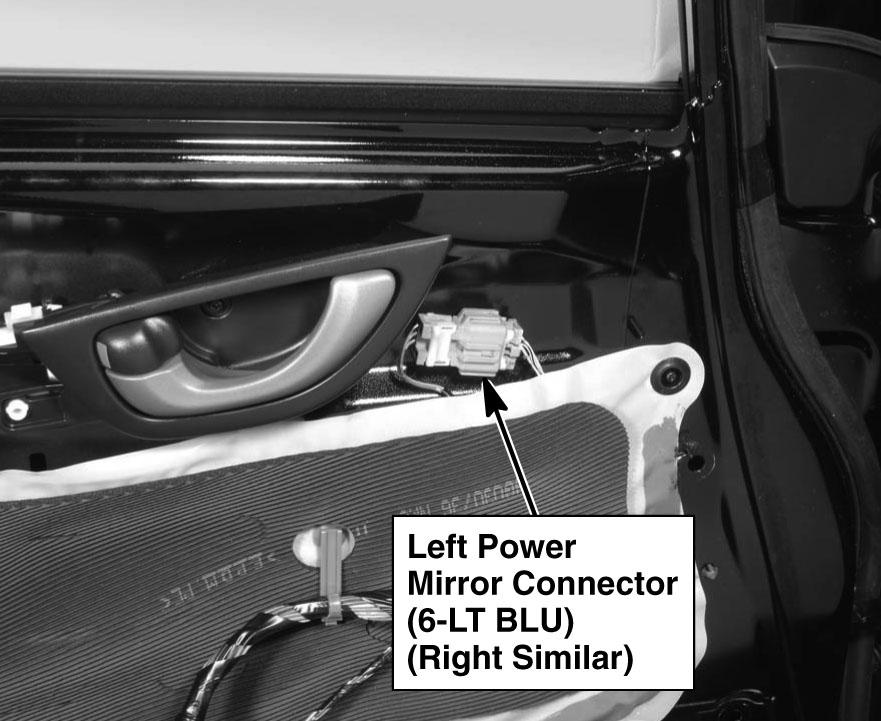

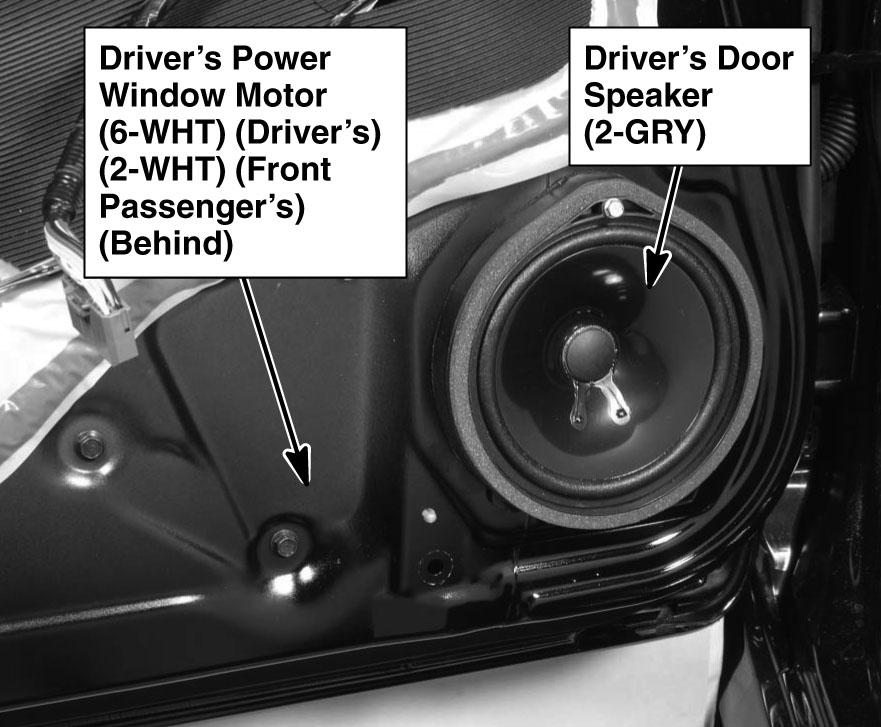

Fig 78: Driver's Door (Front Passenger's Similar)

G00473020

Courtesy of AMERICAN HONDA MOTOR CO., INC.

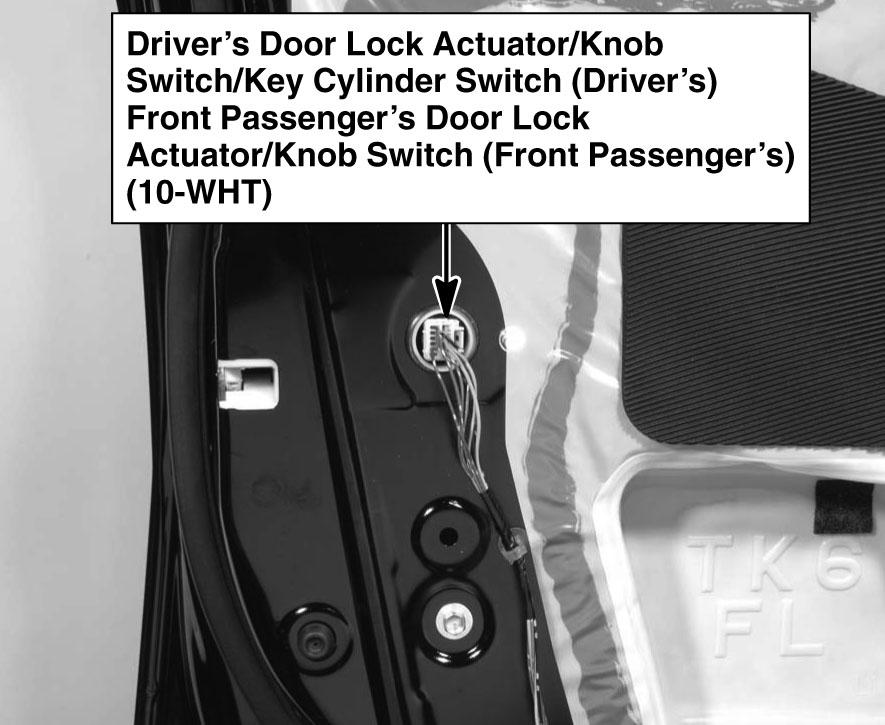

Fig 79: Driver's Door (Front Passenger's Similar)

G00473021

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 80: Driver's Door (Front Passenger's Similar)

G00473022

Courtesy of AMERICAN HONDA MOTOR CO., INC.

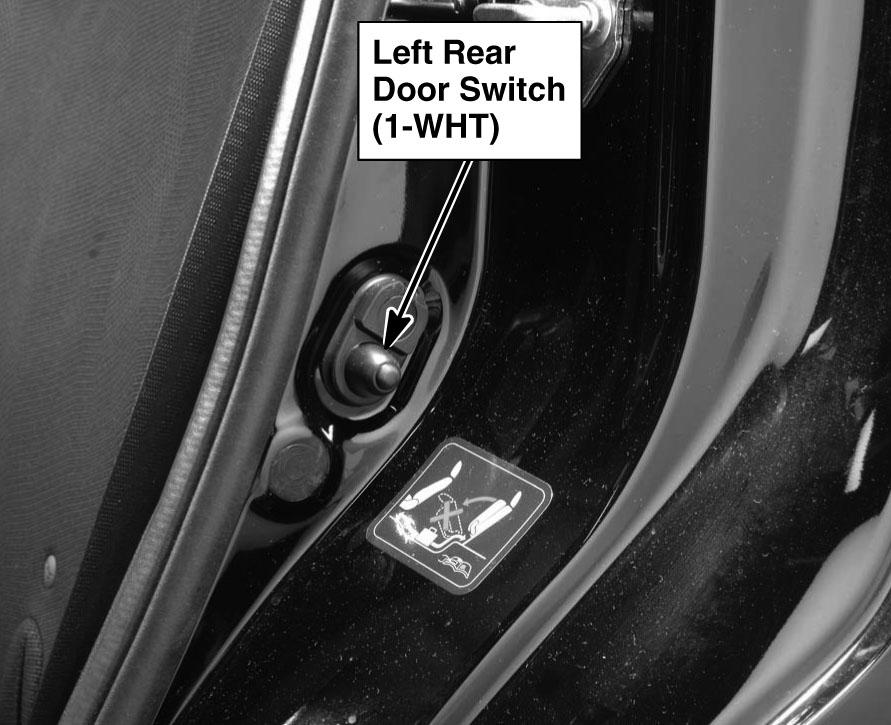

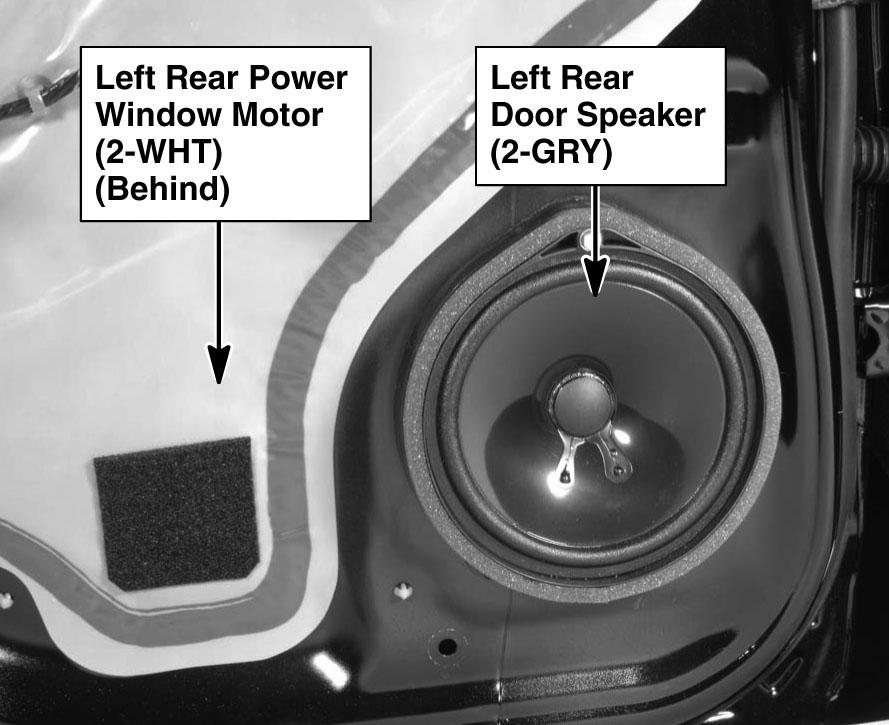

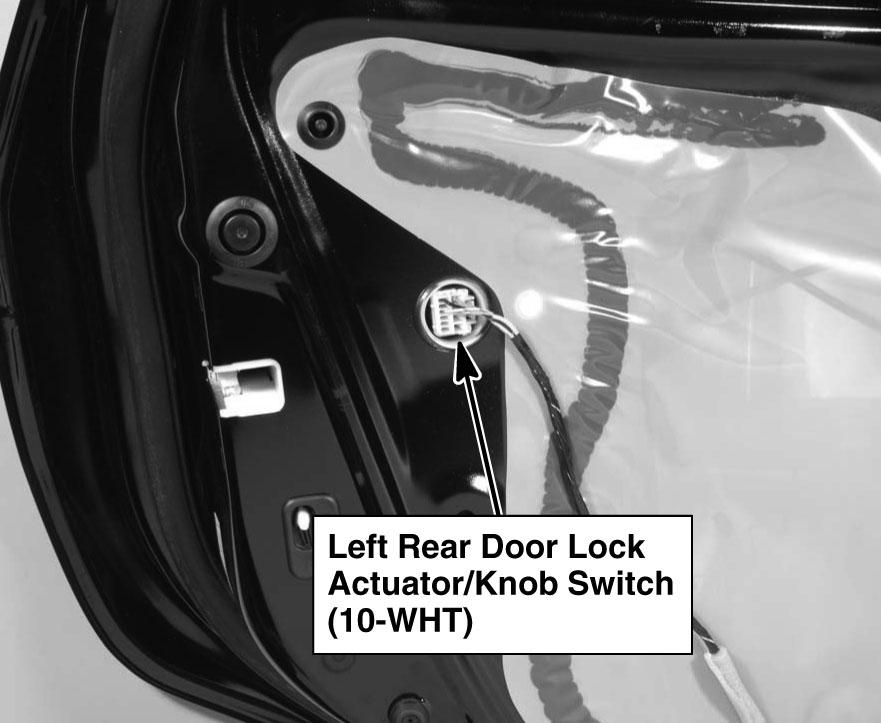

Fig 81: Left Rear Door

G00473023

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 82: Left Rear Door

G00473024

Courtesy of AMERICAN HONDA MOTOR CO., INC.

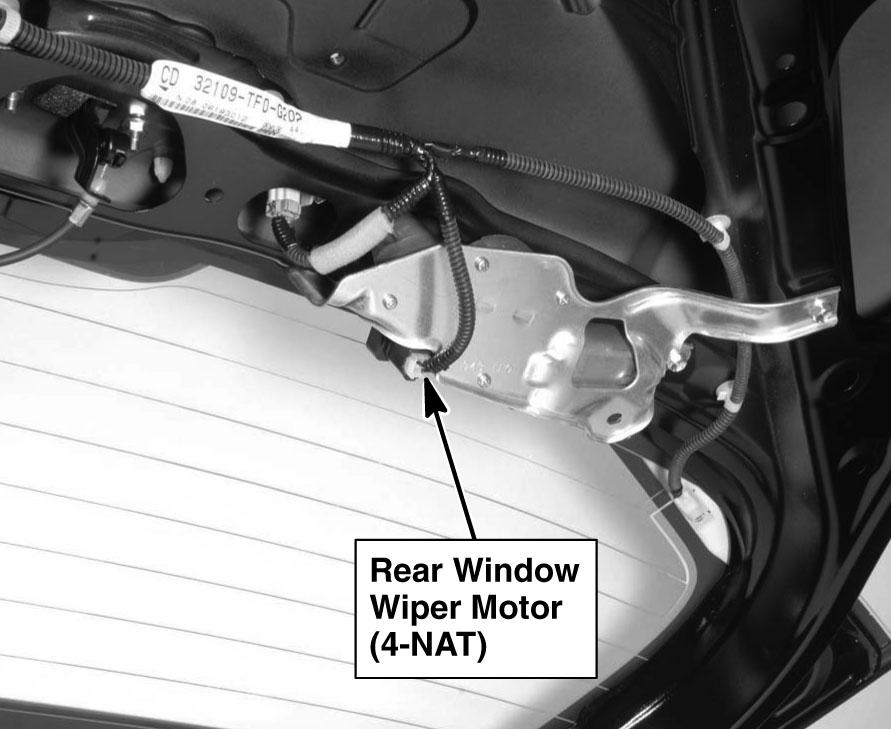

Fig 83: Tailgate

G00473025

Courtesy of AMERICAN HONDA MOTOR CO., INC.

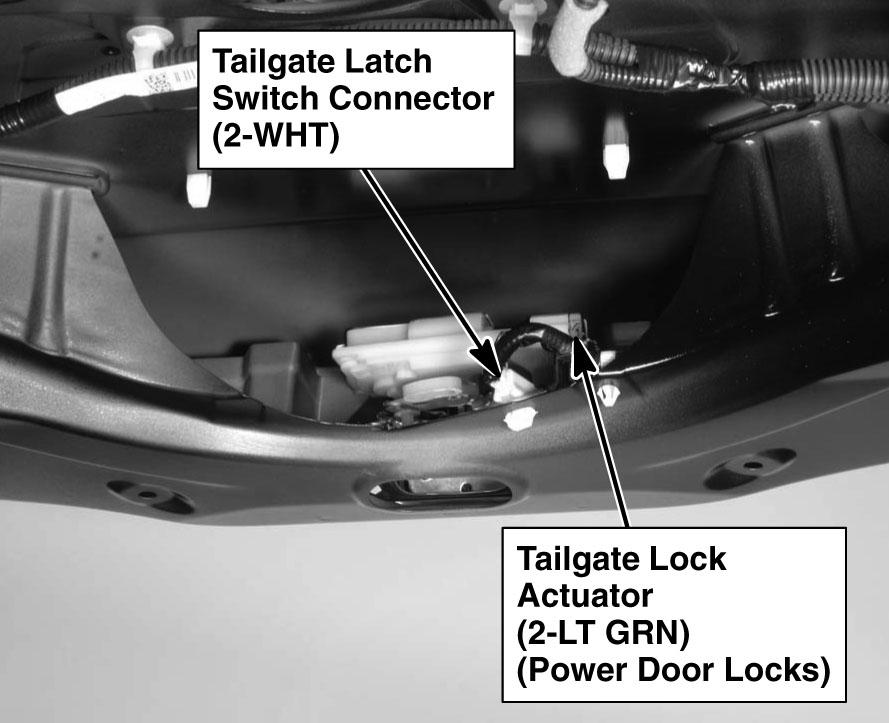

Fig 84: Tailgate

G00473026

Courtesy of AMERICAN HONDA MOTOR CO., INC.

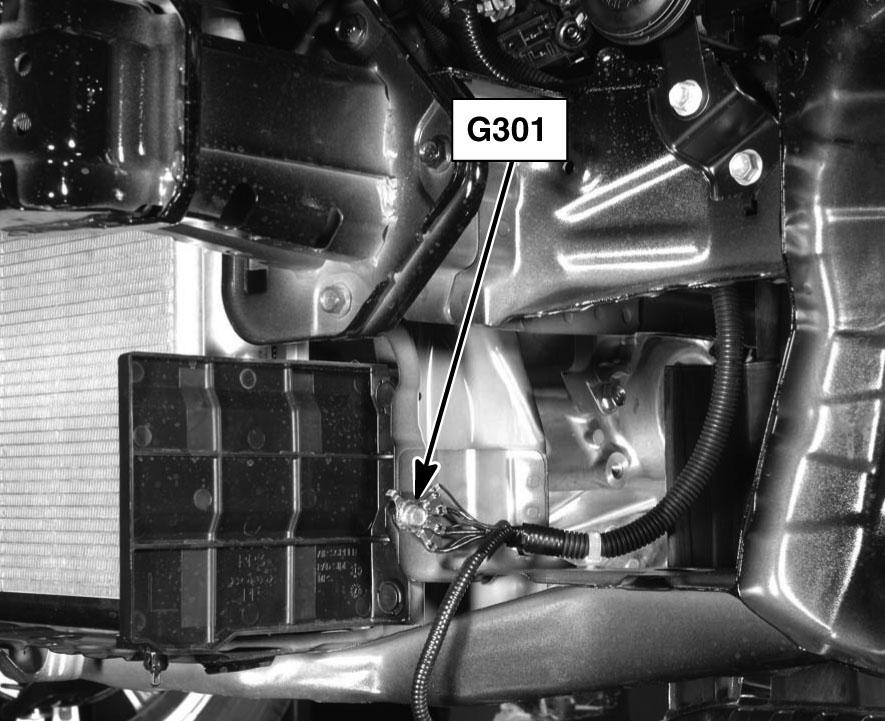

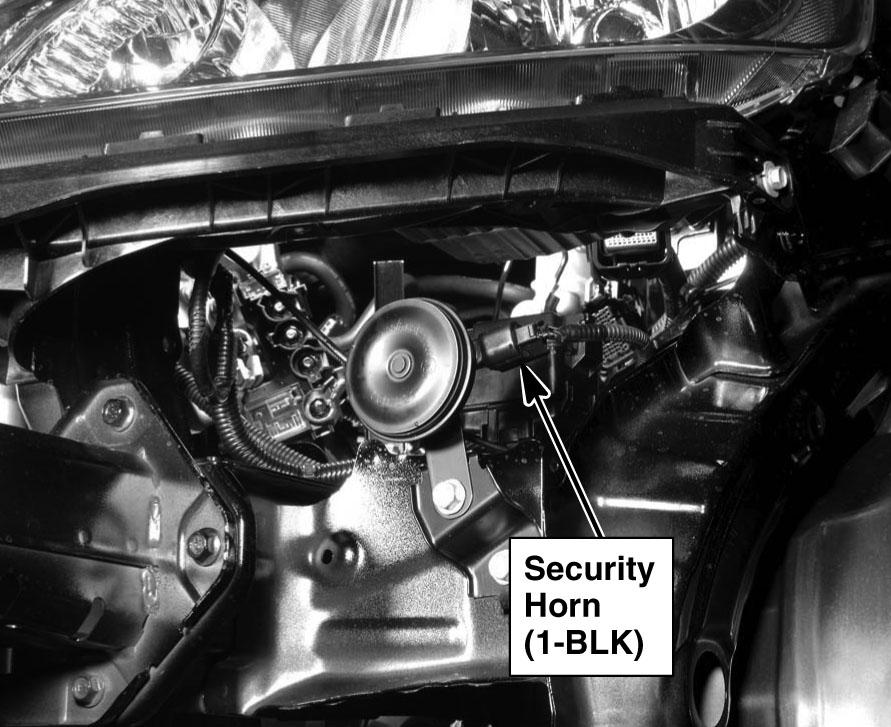

Fig 85: Behind Left Side Of Front Bumper

G00473027

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 86: Behind Left Side Of Front Bumper

G00473028

Courtesy of AMERICAN HONDA MOTOR CO., INC.

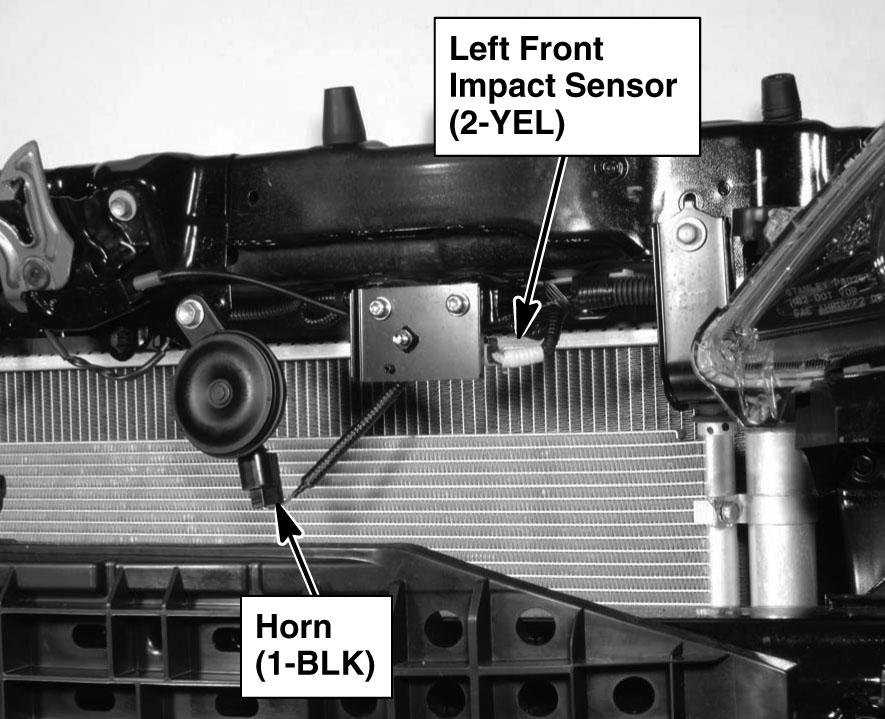

Fig 87: Behind Left Side Of Front Bumper

G00473029

Courtesy of AMERICAN HONDA MOTOR CO., INC.

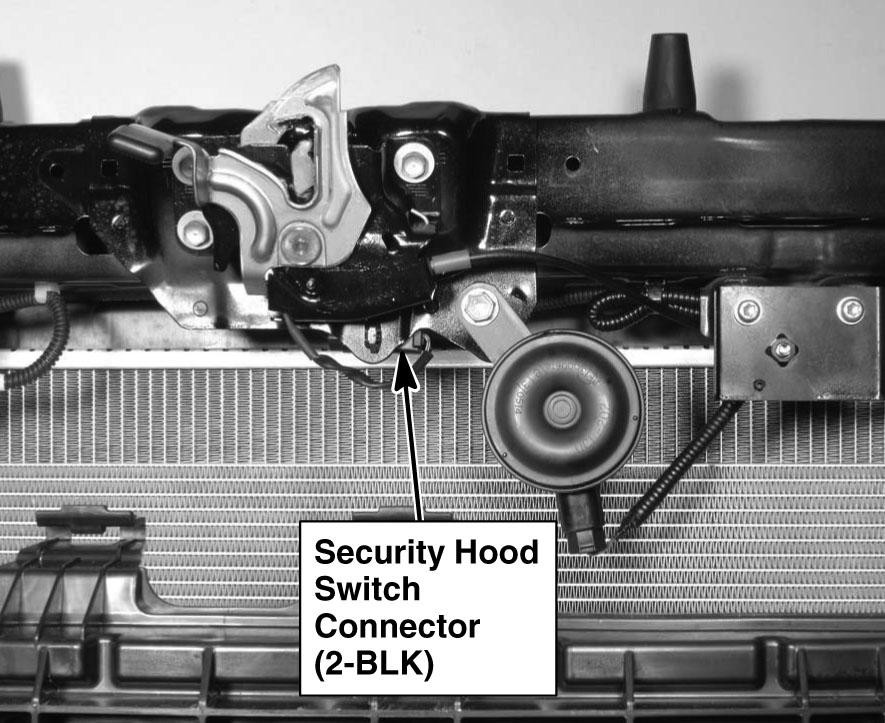

Fig 88: Behind Middle Of Front Bumper

G00473030

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 89: Behind Right Side Of Front Bumper

G00473031

Courtesy of AMERICAN HONDA MOTOR CO., INC.

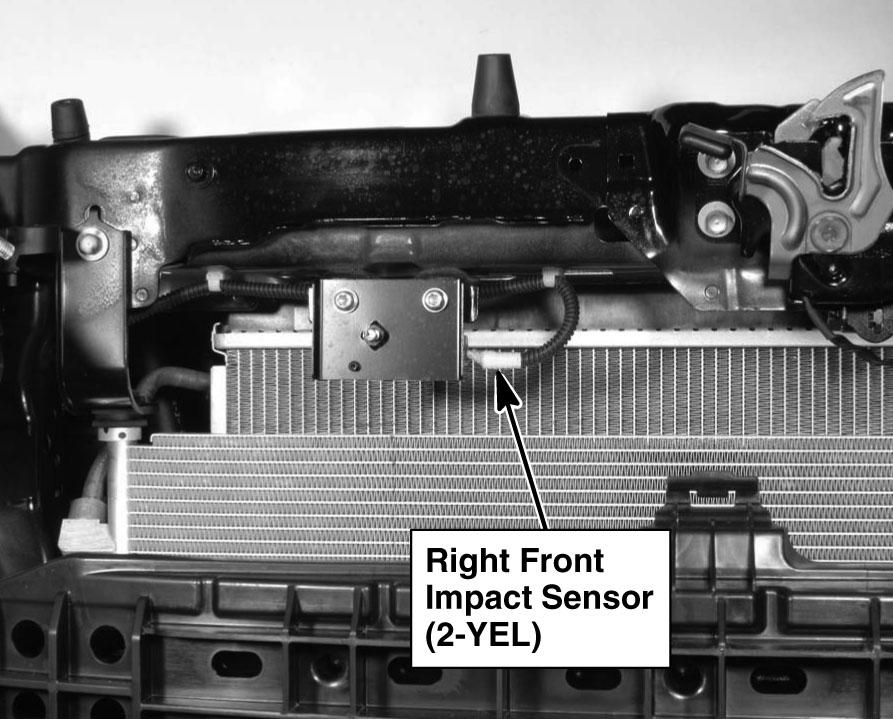

Fig 90: Behind Right Side Of Front Bumper

G00473032

Courtesy of AMERICAN HONDA MOTOR CO., INC.

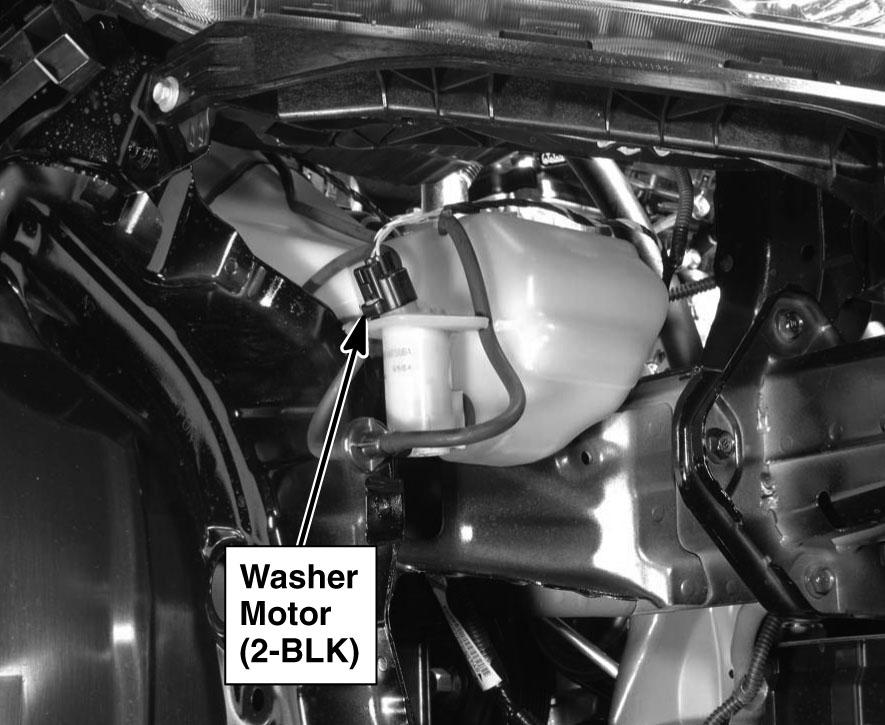

Fig 91: Behind Right Side Of Front Bumper

G00473033

Courtesy of AMERICAN HONDA MOTOR CO., INC.

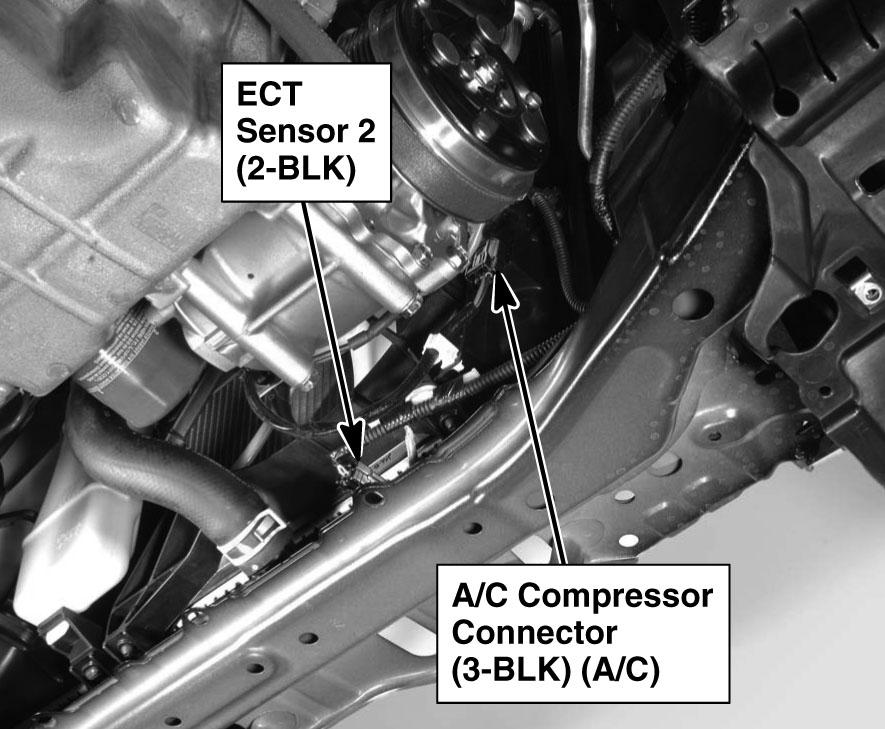

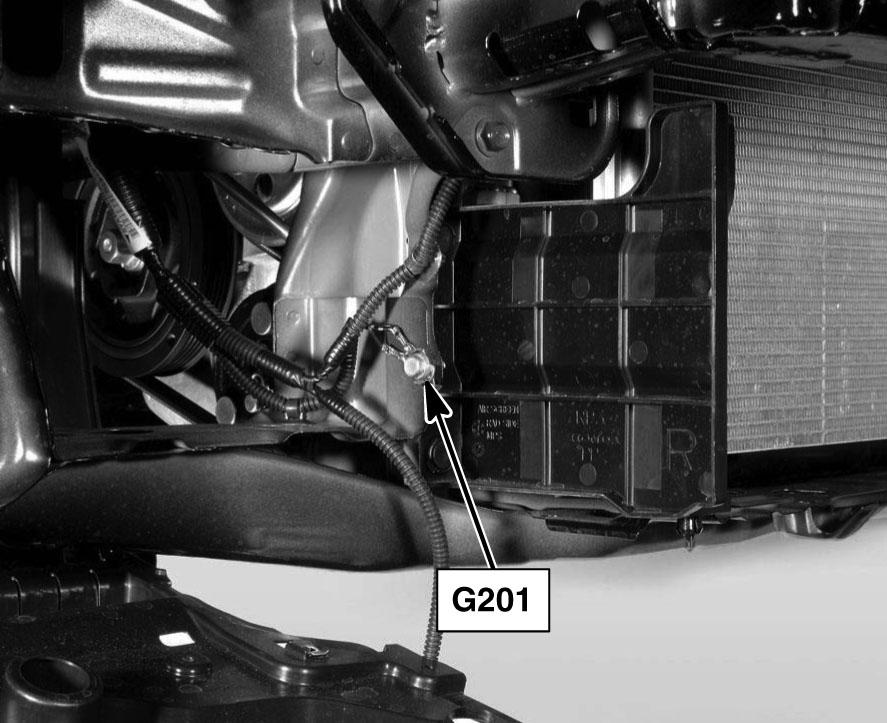

Fig 92: Under Right Front Of Engine Compartment

G00473034

Courtesy of AMERICAN HONDA MOTOR CO., INC.

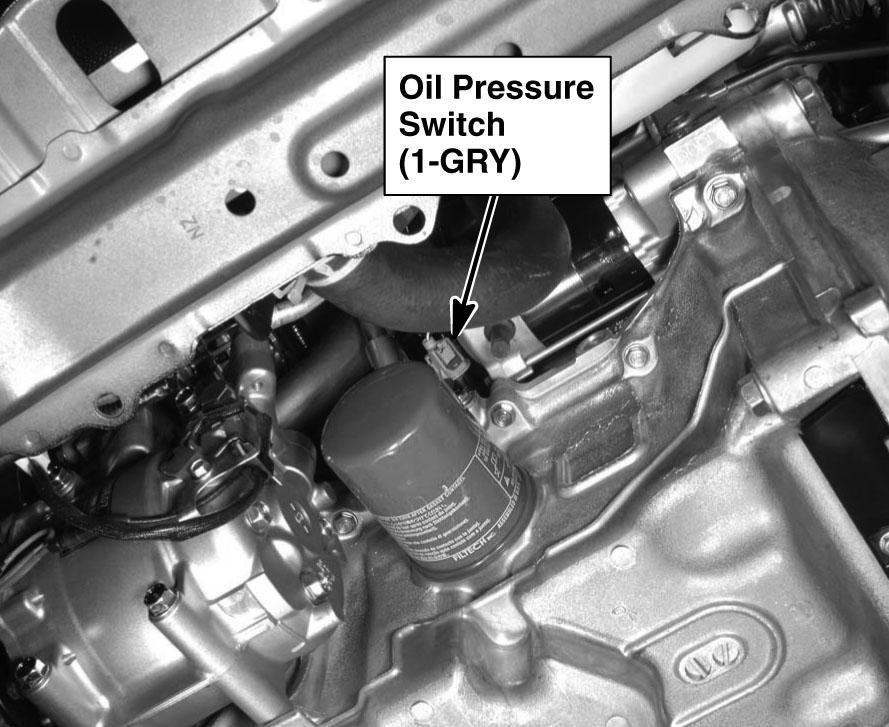

Fig 93: Under Left Side Of Engine

G00473035

Courtesy of AMERICAN HONDA MOTOR CO., INC.

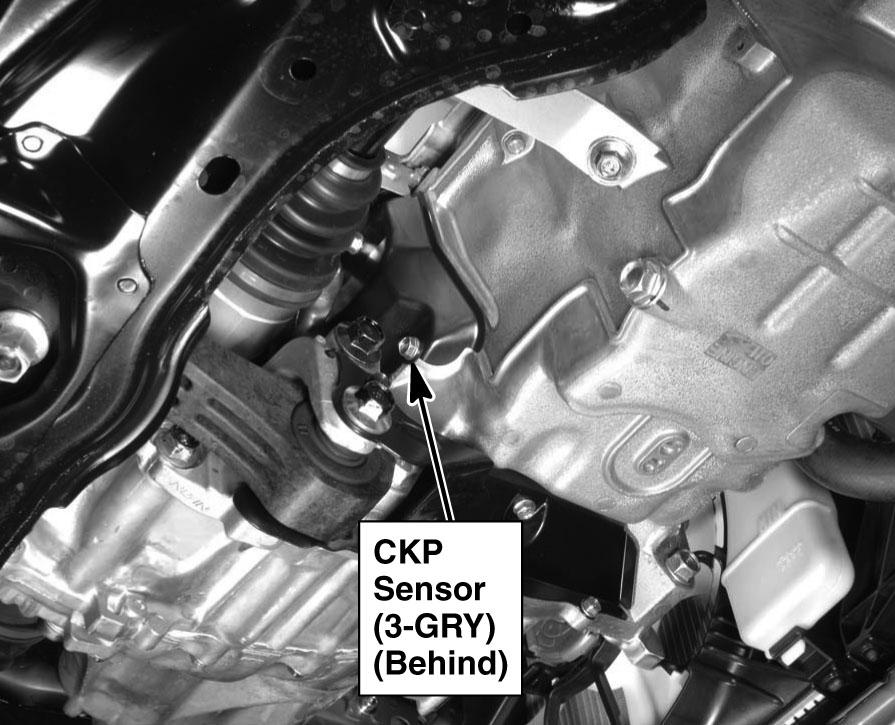

Fig 94: Under Rear Of Engine

G00473036

Courtesy of AMERICAN HONDA MOTOR CO., INC.

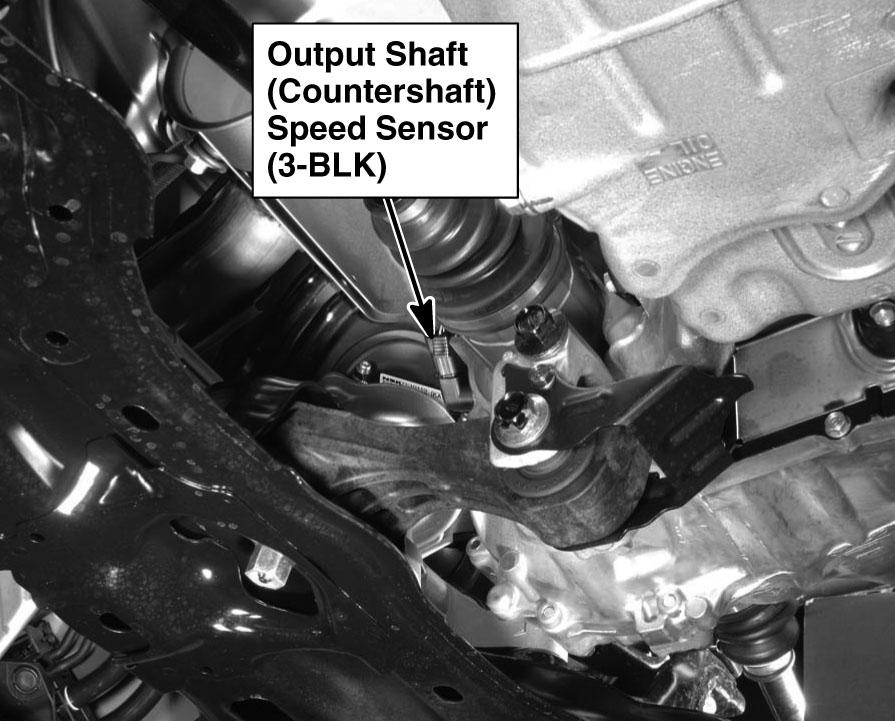

Fig 95: Under Rear Of Manual Transmission Housing

G00473037

Courtesy of AMERICAN HONDA MOTOR CO., INC.

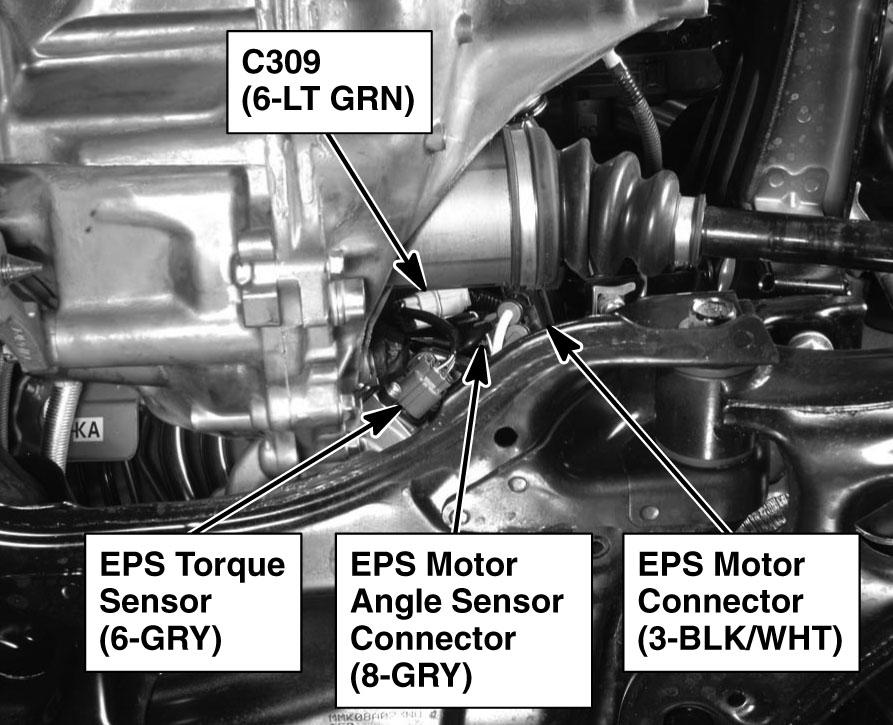

Fig 96: Under Left Rear Of Engine Compartment

G00473038

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 97: Under Middle Of Vehicle

G00473039

Courtesy of AMERICAN HONDA MOTOR CO., INC.

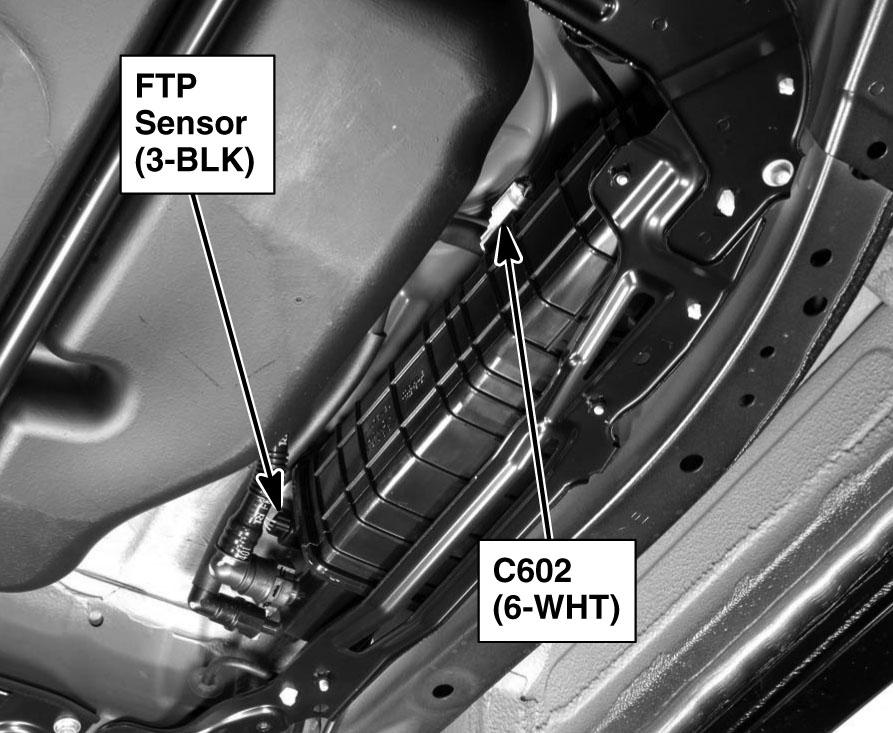

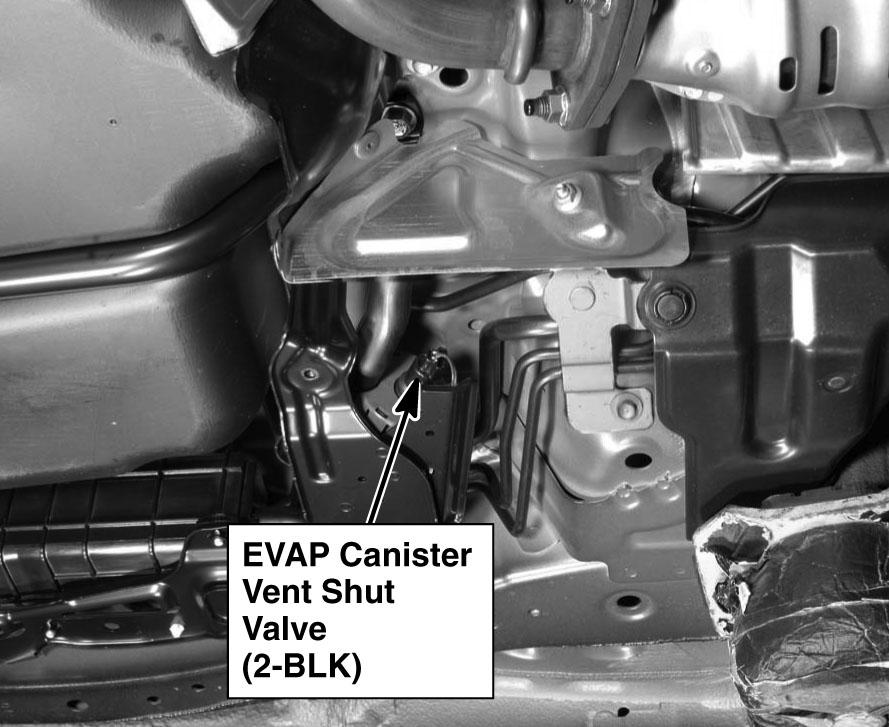

Fig 98: Under Middle Of Vehicle

G00473040

Courtesy of AMERICAN HONDA MOTOR CO., INC.

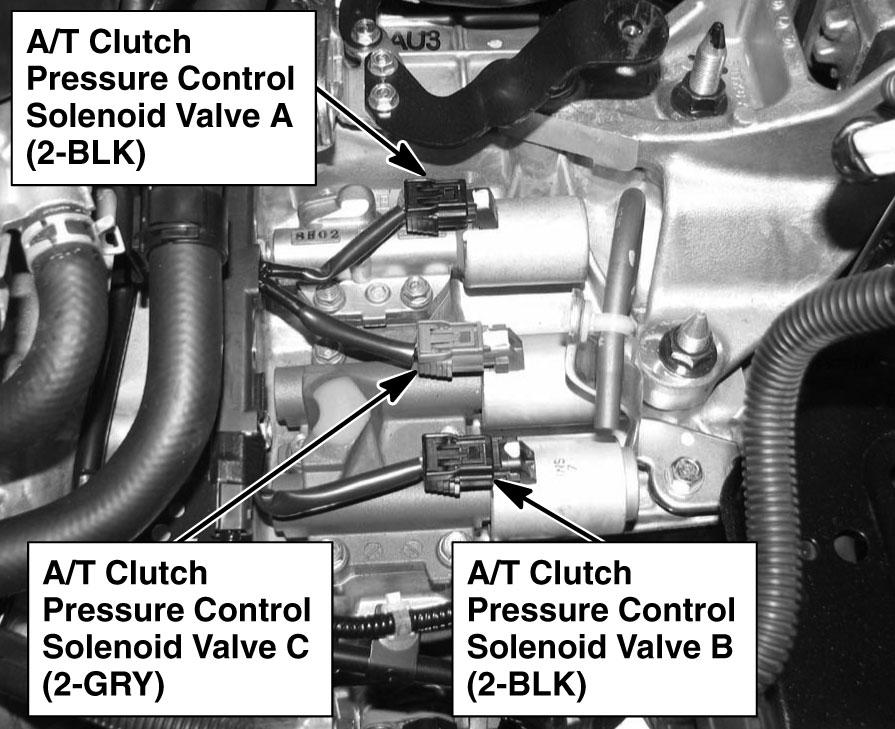

Fig 99: Top Of Automatic Transmission

G00473041

Courtesy of AMERICAN HONDA MOTOR CO., INC.

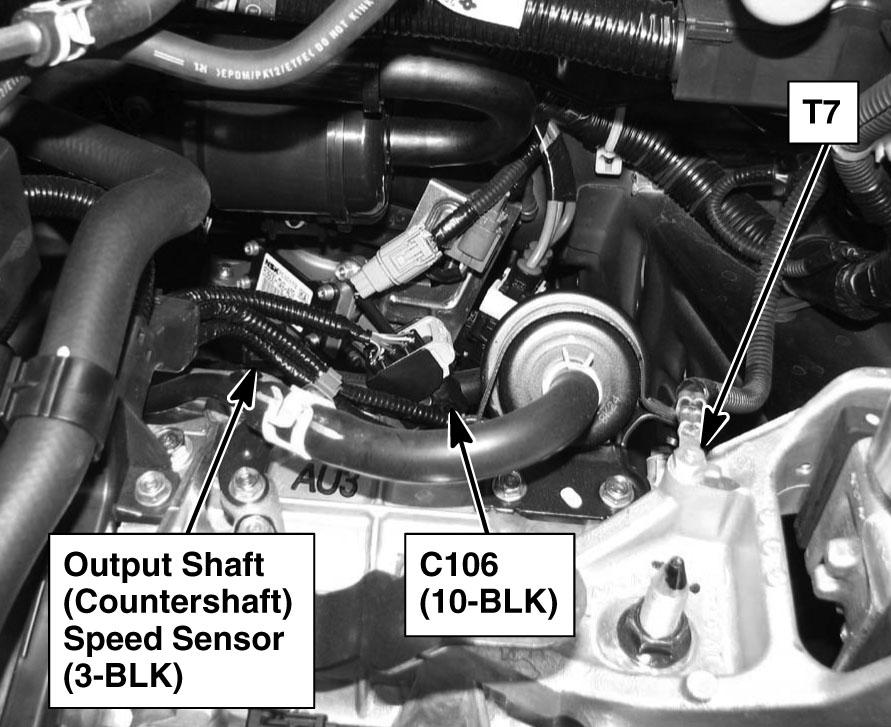

Fig 100: Automatic Transmission Housing

G00473042

Courtesy of AMERICAN HONDA MOTOR CO., INC.

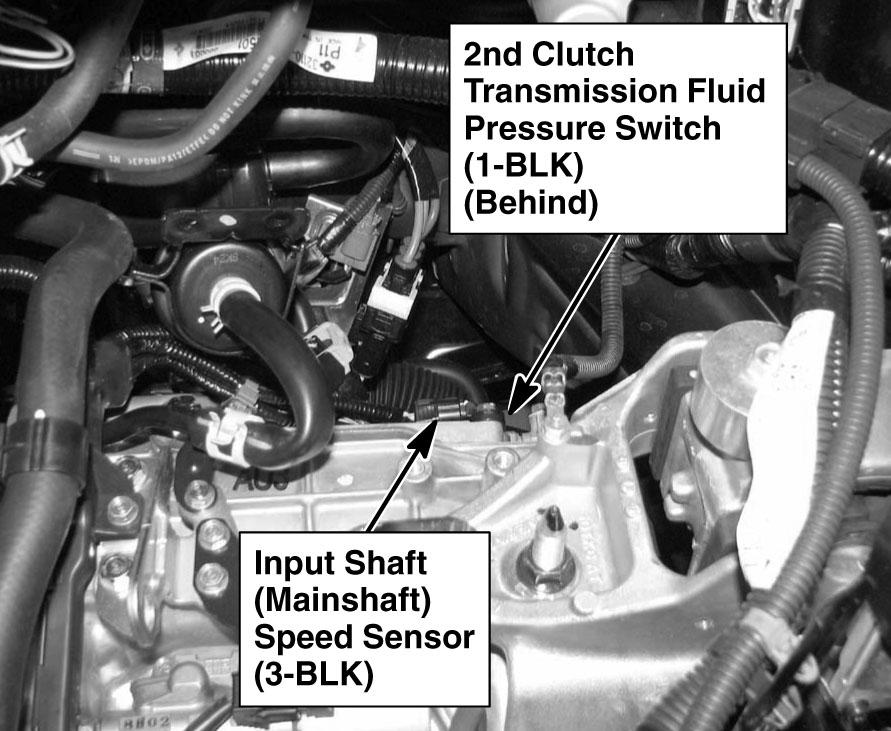

Fig 101: Top Of Automatic Transmission Housing

G00473043

Courtesy of AMERICAN HONDA MOTOR CO., INC.

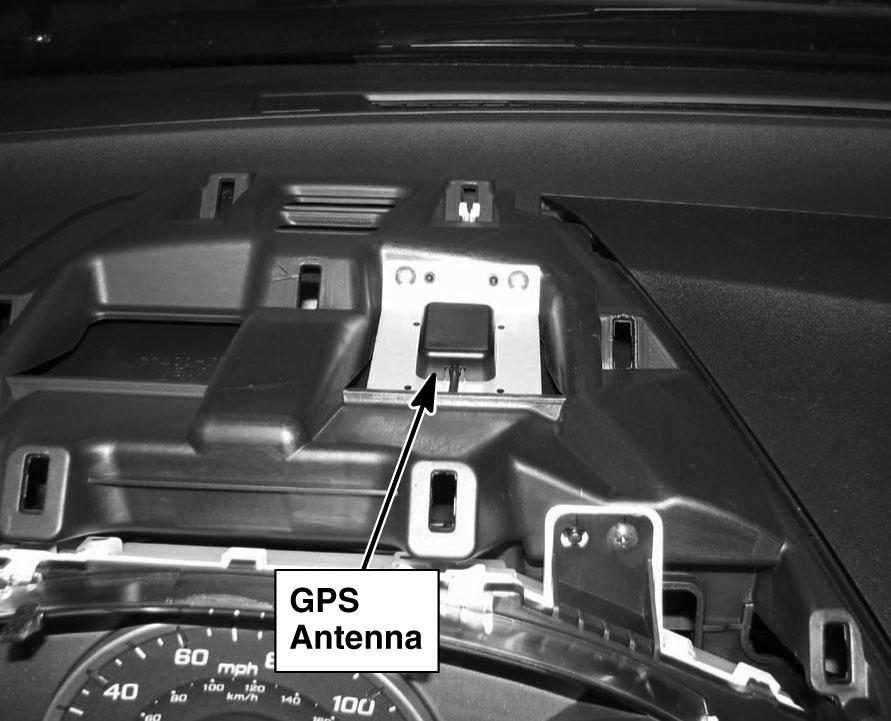

Fig 102: Behind Left Side Of Dash

G00473044

Courtesy of AMERICAN HONDA MOTOR CO., INC.

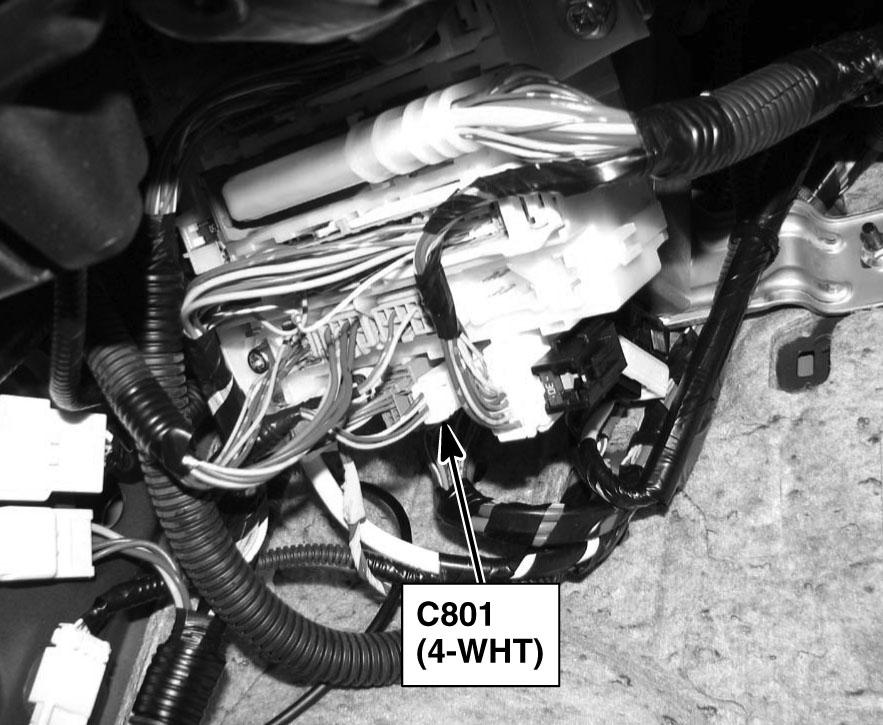

Fig 103: Under Left End Of Dash

G00473045

Courtesy of AMERICAN HONDA MOTOR CO., INC.

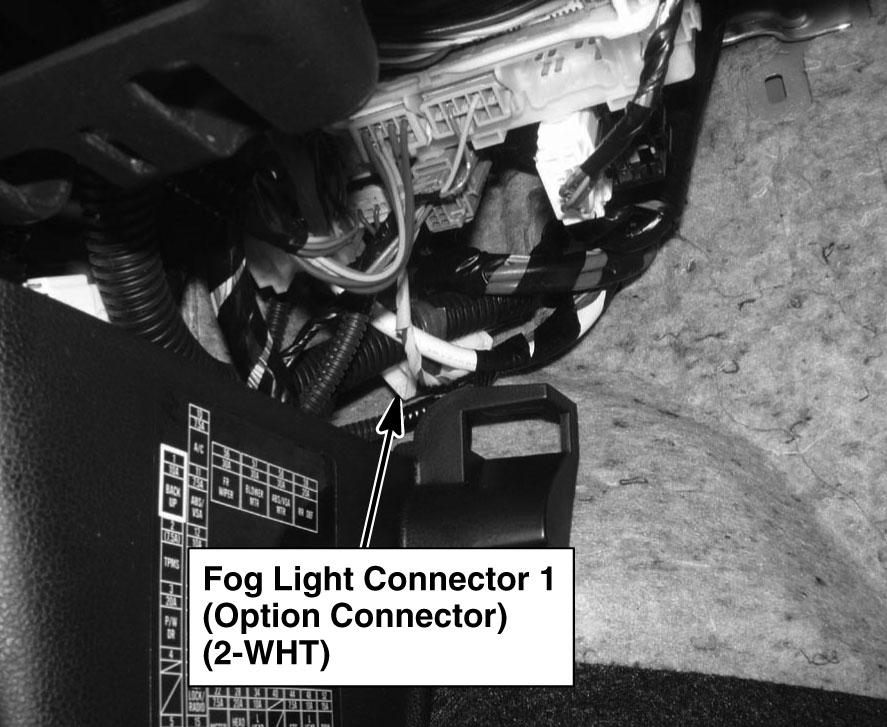

Fig 104: Behind Left Kick Panel

G00473046

Courtesy of AMERICAN HONDA MOTOR CO., INC.

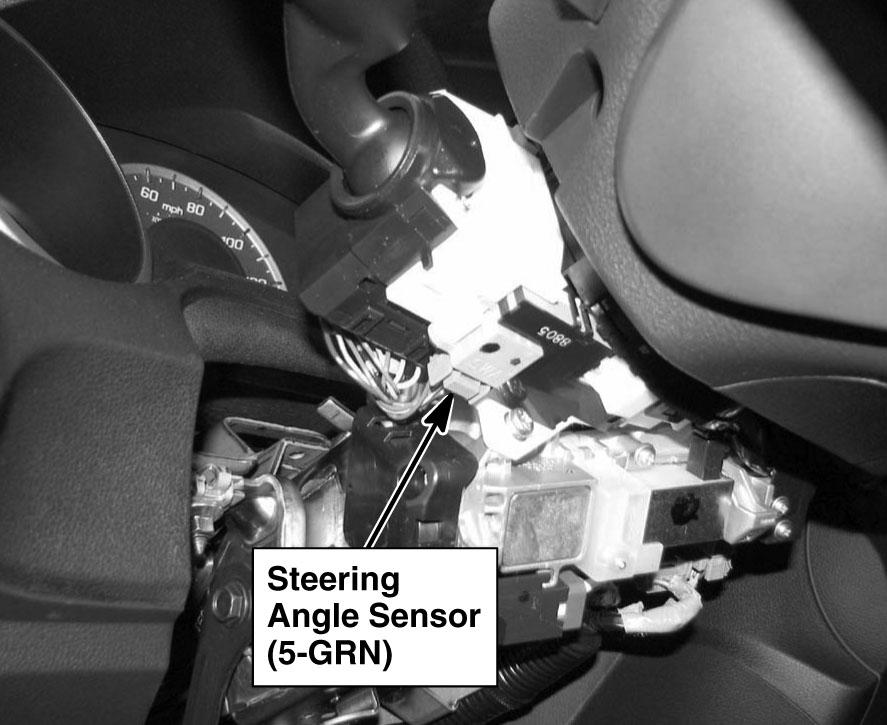

Fig 105: Steering Column

G00473047

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 106: Under Middle Of Dash

G00473048

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 107: Behind Glove Box

G00473049

Courtesy of AMERICAN HONDA MOTOR CO., INC.

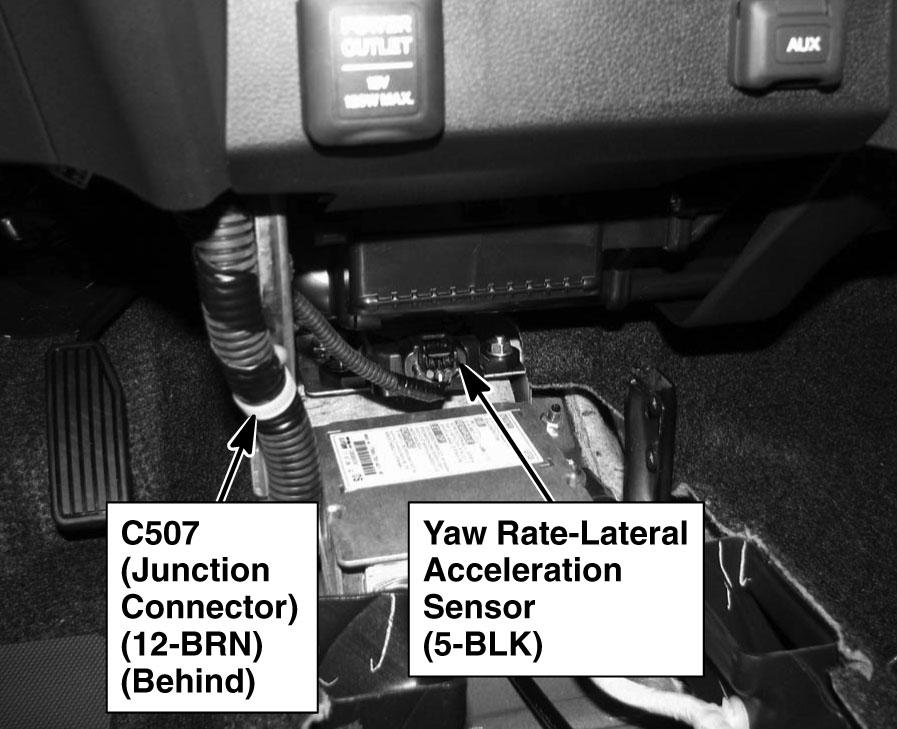

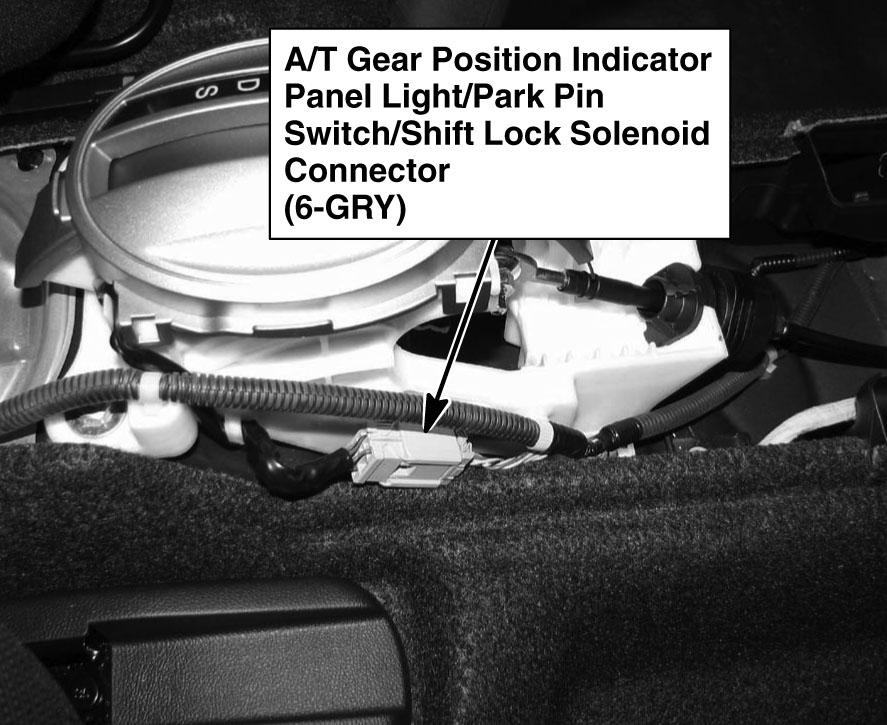

Fig 108: Under Center Console

G00473050

Courtesy of AMERICAN HONDA MOTOR CO., INC.

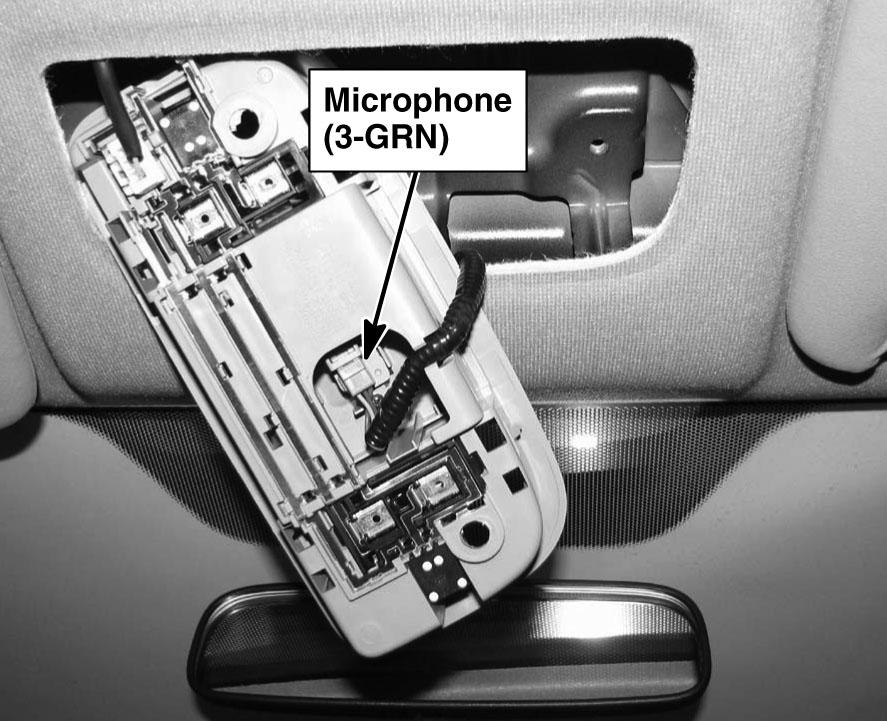

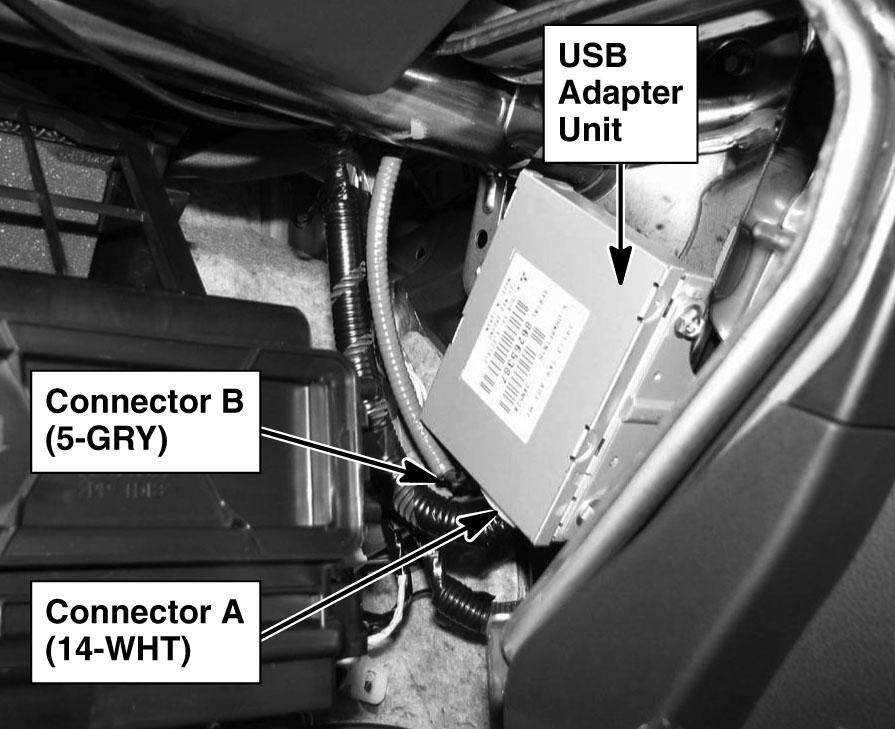

Fig 109: Center Front Of Roof

G00473051

Courtesy of AMERICAN HONDA MOTOR CO., INC.

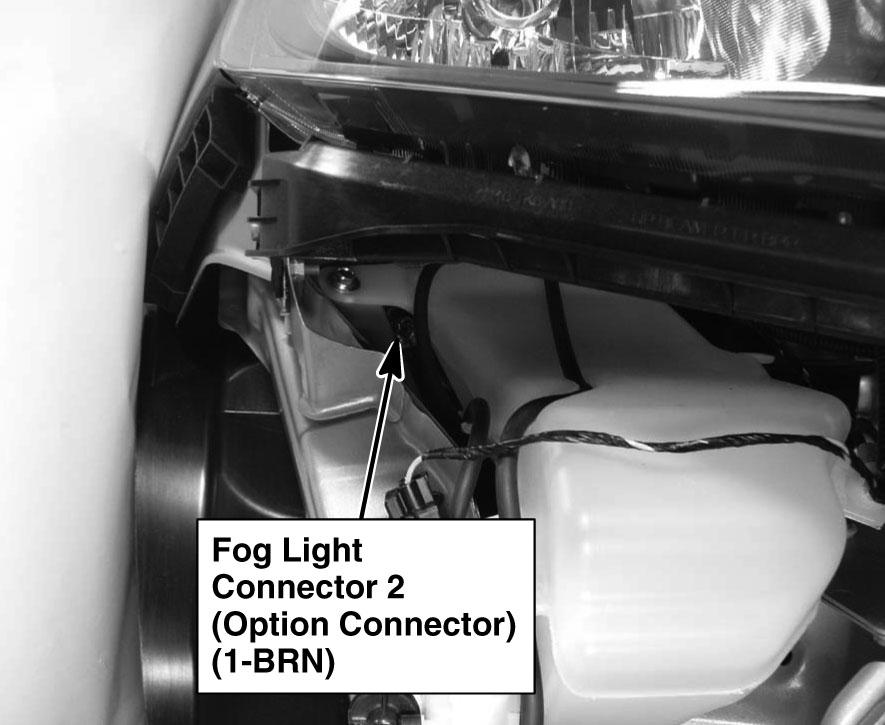

Fig 110: Behind Right Side Of Front Bumper

G00473052

Courtesy of AMERICAN HONDA MOTOR CO., INC.

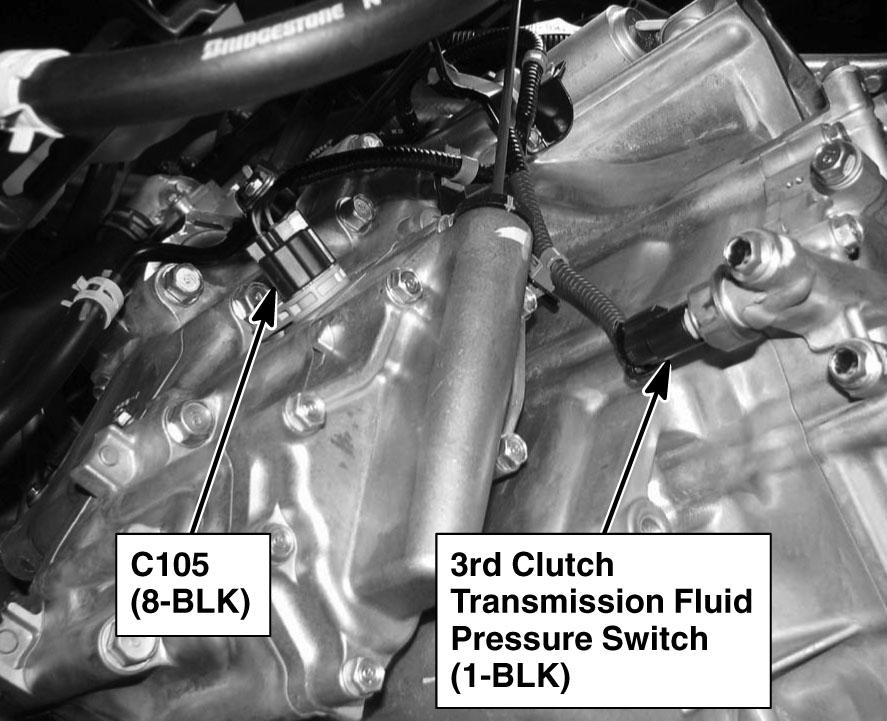

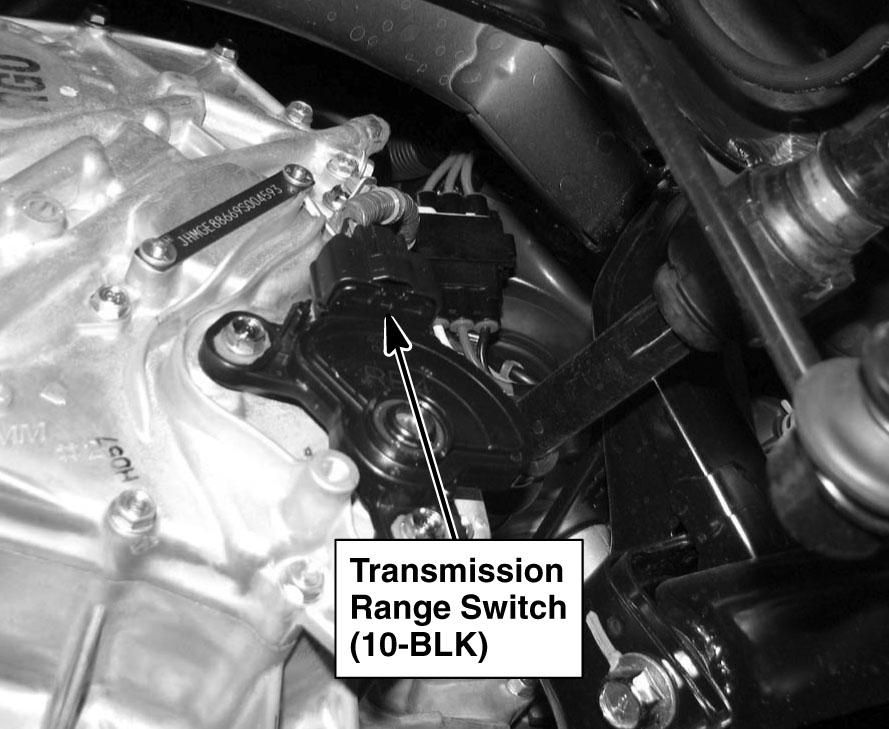

Fig 111: Under Automatic Transmission Housing

G00473053

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 112: Under Automatic Transmission Housing

G00473054

Courtesy of AMERICAN HONDA MOTOR CO., INC.
