DTC P1659: Electronic Throttle Control System (ETCS) Control Relay OFF Malfunction: Notes

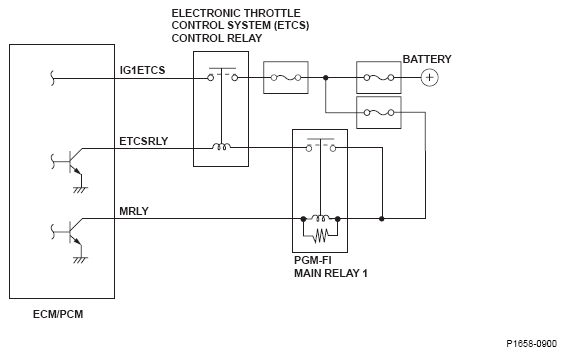

Fig 1: Electronic Throttle Control System (ETCS) Control Relay Off Malfunction - Circuit Diagram
G06124341Courtesy of AMERICAN HONDA MOTOR CO., INC.
