DTC P0741: Torque Converter Clutch Circuit Performance or Stuck OFF: Notes

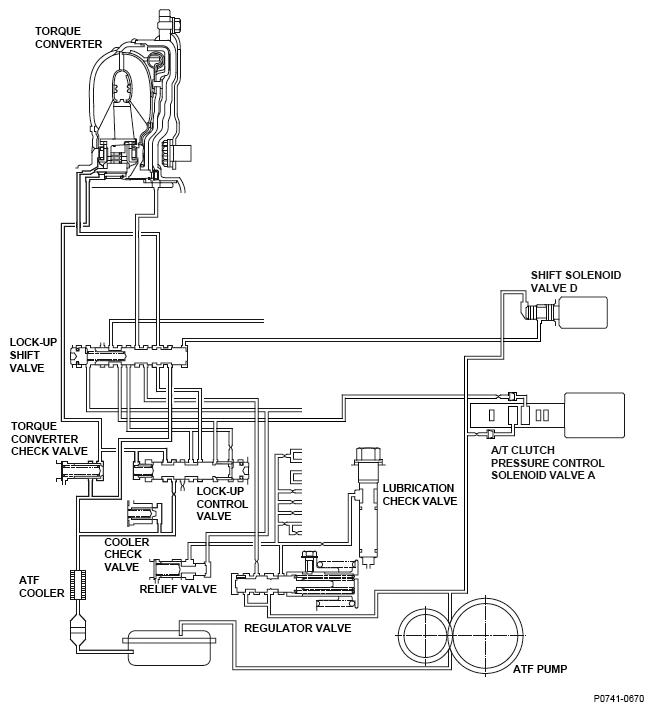

Fig 1: Torque Converter Clutch - Circuit Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Throttle Pedal Position

Courtesy of AMERICAN HONDA MOTOR CO., INC.

TORQUE CONVERTER CLUTCH OPERATION

Torque converter clutch operation		A/T clutch pressure control solenoid valve A
		ON (100 %)	OFF (0 %)
Shift solenoid valve D	ON (12 V)	Torque converter clutch: maximum duty	Torque converter clutch OFF
	OFF (0 V)	Torque converter clutch OFF	Torque converter clutch OFF
