'07 model

  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Remove the bolt (A), the clips (B), and the cover (C).

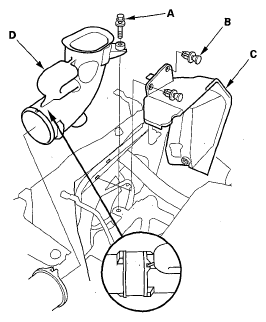

    Fig 1: Identifying Intake Air Duct, Cover, Clips And Bolt
    G05524110Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the intake air duct (D).
  4. Remove the intake air resonator (A).
    Fig 2: Intake Air Resonator With Torque Specification
    G05524111Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the parts in the reverse order of removal.
