Cutting Positions

Slip piano wire through the adhesive at each position as shown below, and pull it back as indicated by the arrows. For the upper portion, cut the adhesive with a utility knife from inside while pushing the rear window out.

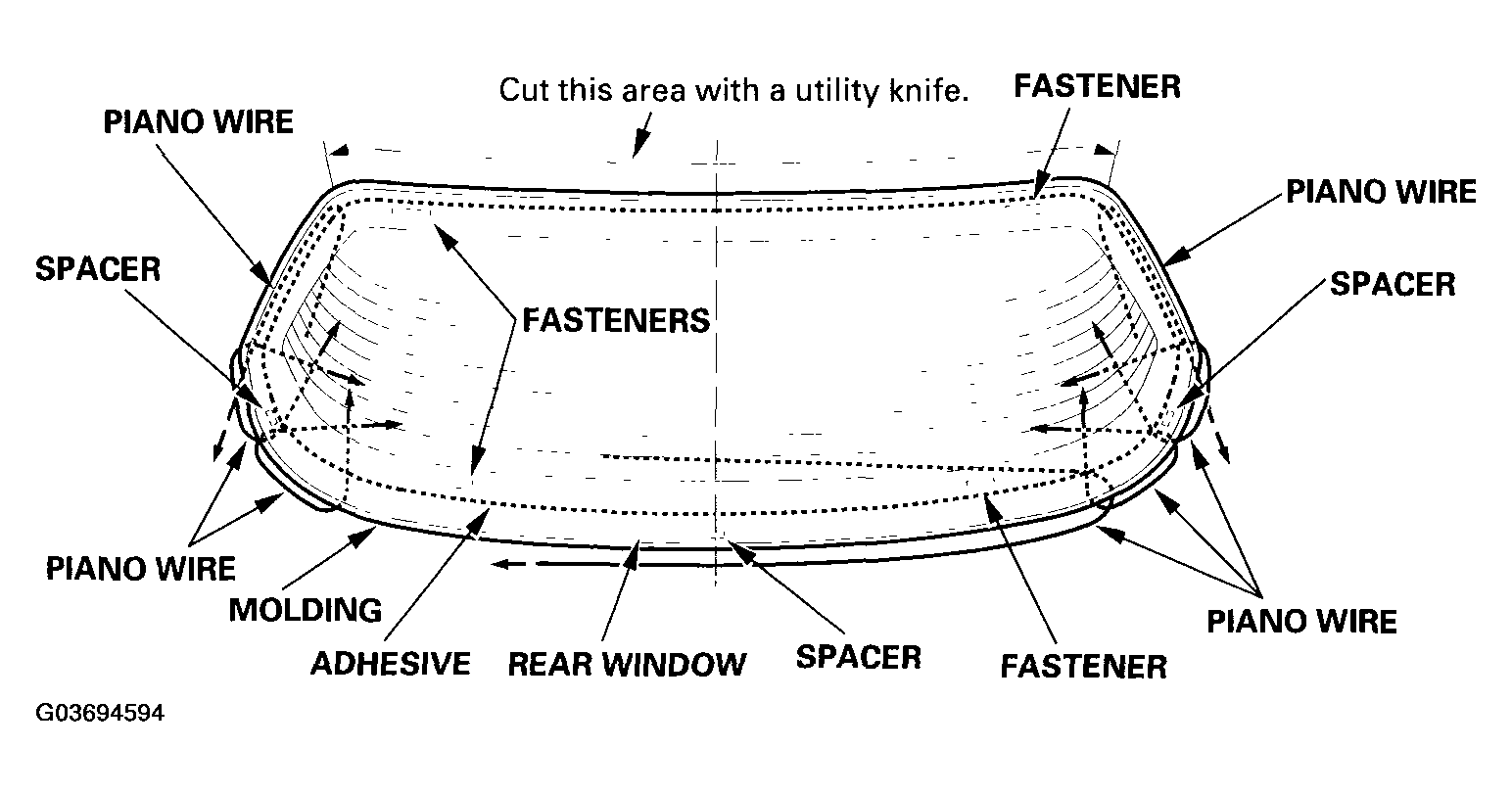

Fig 1: Identifying Cutting Positions - Rear Window
G03694594Courtesy of AMERICAN HONDA MOTOR CO., INC.
