Steering Angle Sensor Replacement

NOTE: Do not damage or drop the combination switch as the steering angle sensor is sensitive to shock and vibration.
  1. With the wheels in the straight-ahead position and the steering wheel centered, remove the steering wheel (see STEERING WHEEL REMOVAL ).
  2. Remove the steering column covers (see STEERING COLUMN REMOVAL AND INSTALLATION ) and the cable reel (see REMOVAL ('06-09 MODELS) ).
  3. Remove the combination switch assembly (see STEERING COLUMN REMOVAL AND INSTALLATION ).
  4. Remove the combination light switch (A) and the wiper/washer switch (B) from the combination switch body assembly (C).

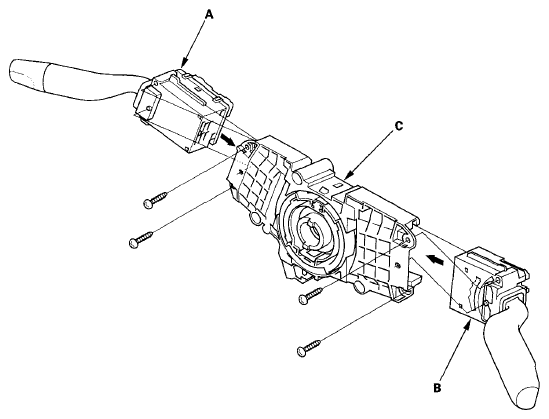

    Fig 1: Identifying Combination Light Switch, Wiper/Washer Switch And Combination Switch Body Assembly
    G06232198Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the combination switch body assembly in the reverse order of removal.
    NOTE:
    • Do not remove the steering angle sensor from the combination switch body.
    • When installing the cable reel, set the turn signal canceling sleeve position so that the arrow points straight up (see INSTALLATION ('06-09 MODELS) ).
  6. Do the VSA sensor neutral position memorization (see SENSOR CLUSTER REPLACEMENT ).
