Alternator Removal and Installation: Removal

Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
Remove the drive belt (see DRIVE BELT INSPECTION ).
Disconnect the 4P connector (A) and the positive alternator cable (B) from the alternator.

Fig 1: Identifying 4P Connector And Positive Alternator Cable
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the mounting bolts, then remove the alternator.

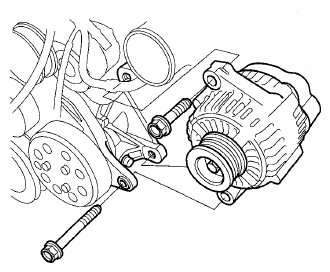

Fig 2: Identifying Mounting Bolts And Alternator

Courtesy of AMERICAN HONDA MOTOR CO., INC.
