Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|
| A/C Pressure Switch | On receiver drier, behind center of front bumper. See Figure. |

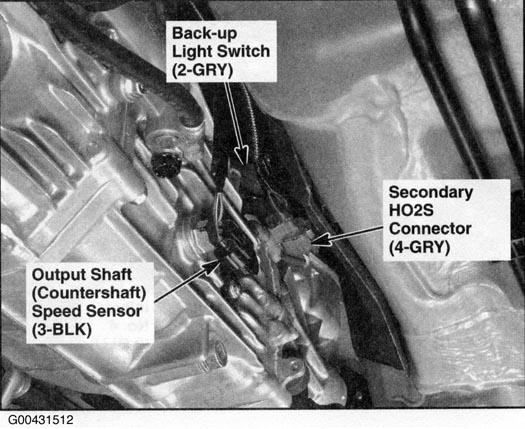

| Back-Up Light Switch | On left side of transmission. See Figure. |

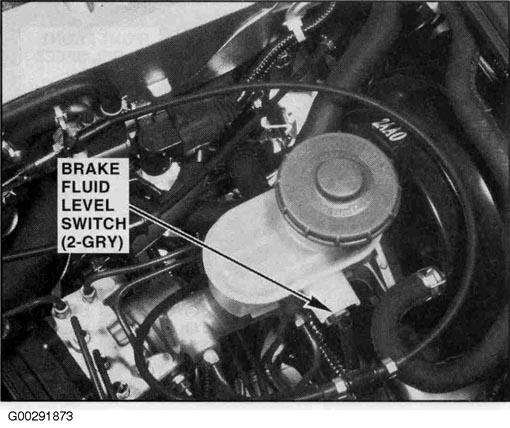

| Brake Fluid Level Switch | On master cylinder reservoir. See Figure. |

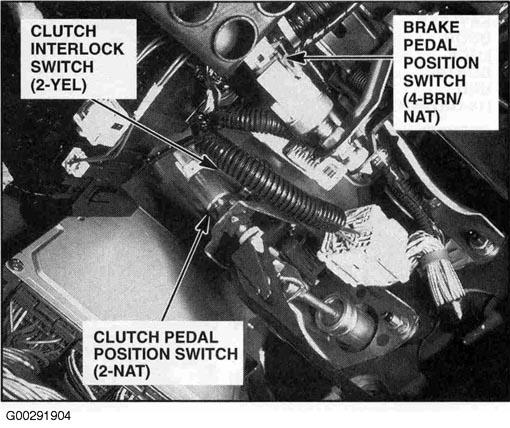

| Brake Pedal Position Switch | On brake pedal support. See Figure. |
| Clutch Interlock Switch | On clutch pedal support. See Figure. |
| Clutch Pedal Position Switch | Under left side of dash. See Figure. |

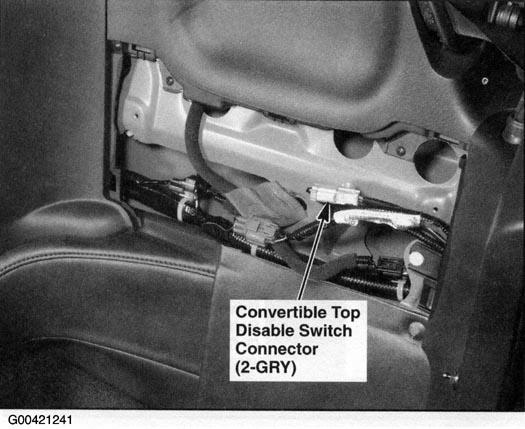

| Convertible Top Disable Switch Connector | Under driver's roll bar. See Figure. |

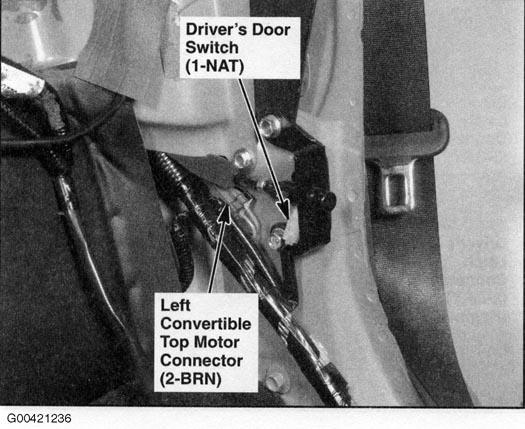

| Door Switch (Driver's) | At left "C" pillar. See Figure. |

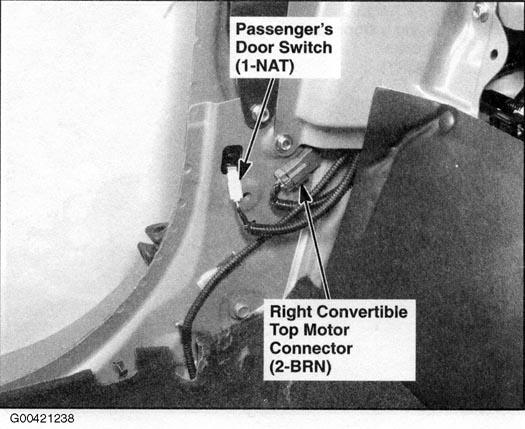

| Door Switch (Passenger's) | At right "C" pillar. See Figure. |

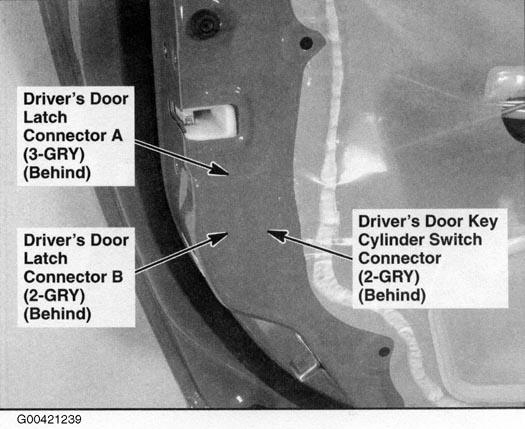

| Driver's Door Key Cylinder Switch Connector | At rear of driver's door. See Figure. |
| Driver's Seat Belt Switch | Under driver's seat. See Figure. |

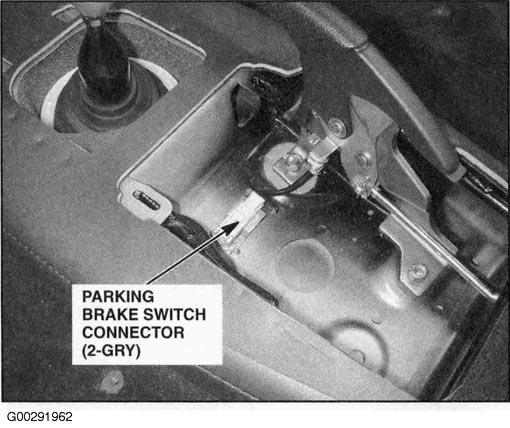

| Parking Brake Switch Connector | At base of parking brake lever. See Figure. |

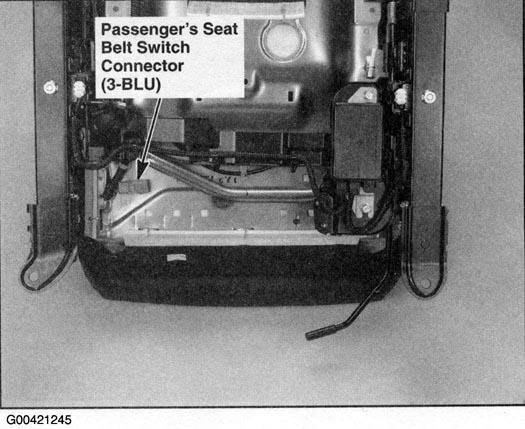

| Passenger's Seat Belt Switch Connector | Under passenger's seat. See Figure. |
| Rocker Arm Oil Pressure Switch (VTEC Oil Pressure Switch) | On right front of engine. See Figure. |

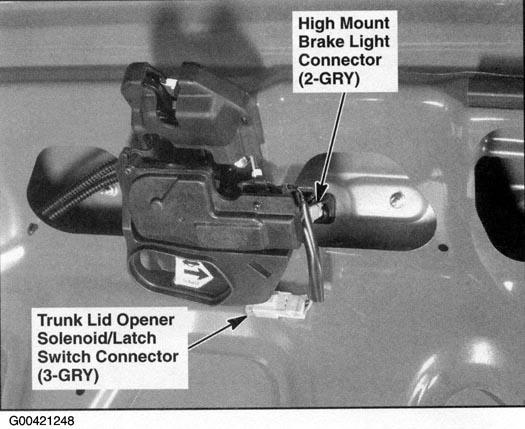

| Trunk Lid Opener Solenoid/Latch Switch Connector | On center rear of trunk lid. See Figure. |
