DTC P0685: Engine Control Module (ECM) Power Control Circuit/Internal Circuit Malfunction: Notes

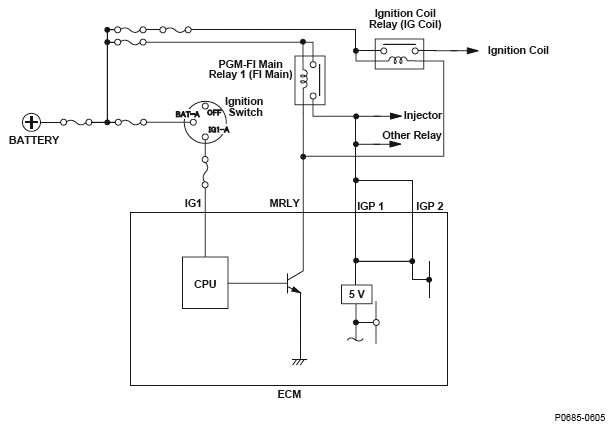

Fig 1: Engine Control Module (ECM) Power Control Circuit/Internal Circuit Diagram
G04818020
