EVAP Canister Purge Valve Replacement

  1. Disconnect the EVAP canister purge valve 2P connector (A), and hose (B).

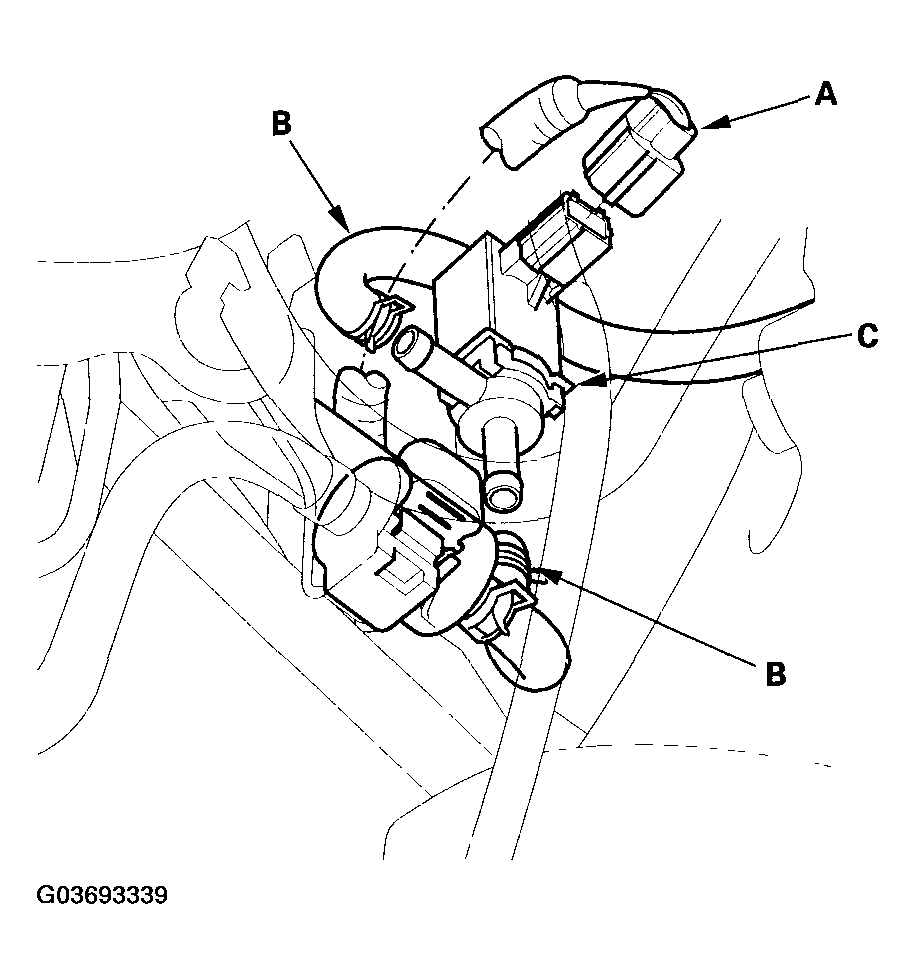

    Fig 1: Identifying EVAP Canister Purge Valve 2P Connector & Hose
    G03693339Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the EVAP canister purge valve (C).
  3. Install the EVAP canister purge valve in the reverse order of removal.
