Fuel Tank Vapor Control Float Replacement

Remove the fuel tank (see FUEL TANK REPLACEMENT ).
Remove the fuel tank vapor control float (A) from the fuel tank (B).

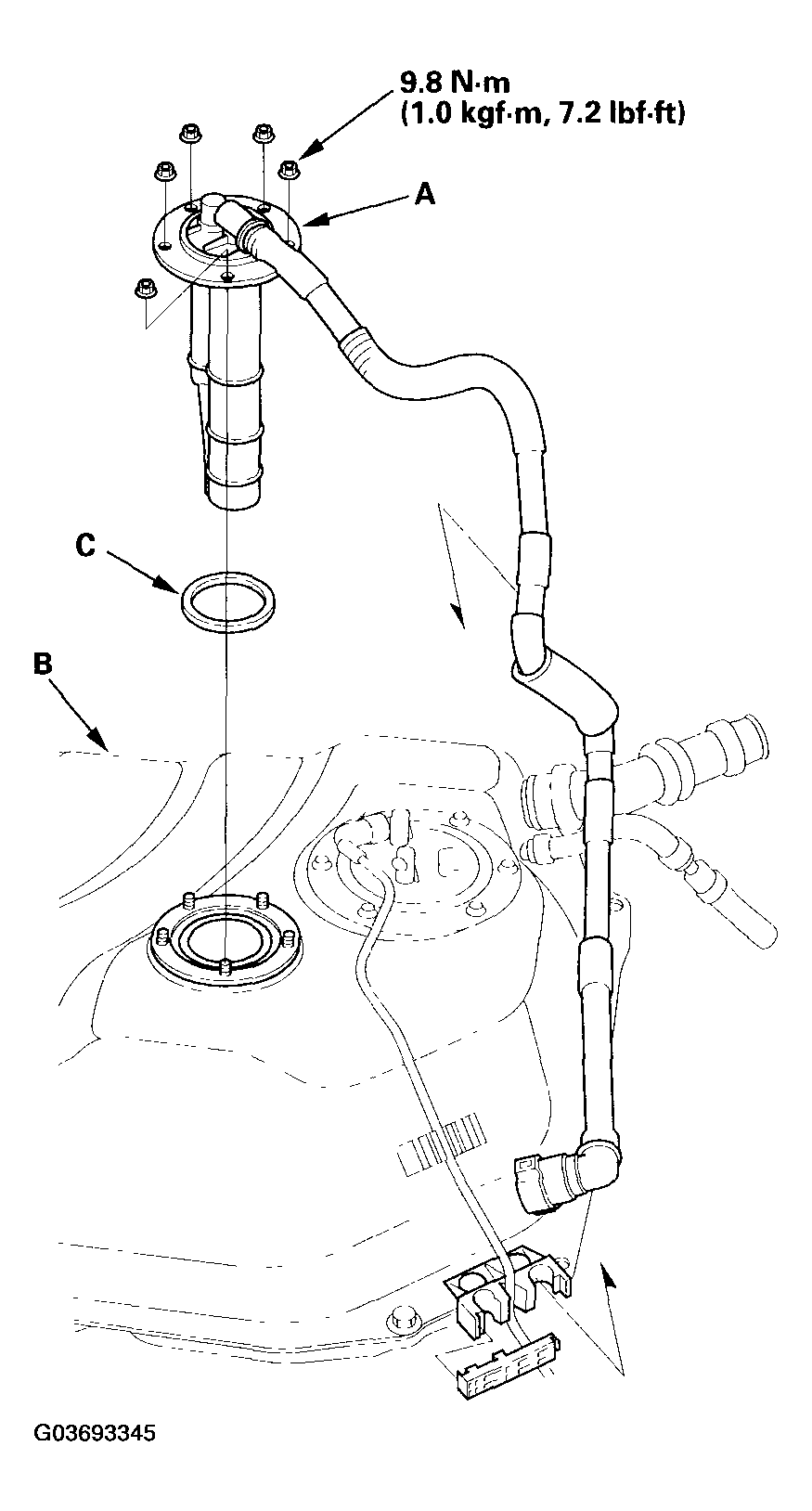

Fig 1: Fuel Tank Vapor Control Float & Fuel Tank With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the float in the reverse order of removal with a new packing (C).
