Air Cleaner Removal/Installation

  1. Remove the air cleaner element (see AIR CLEANER REMOVAL/INSTALLATION  ).
  2. Remove the bolts (A).

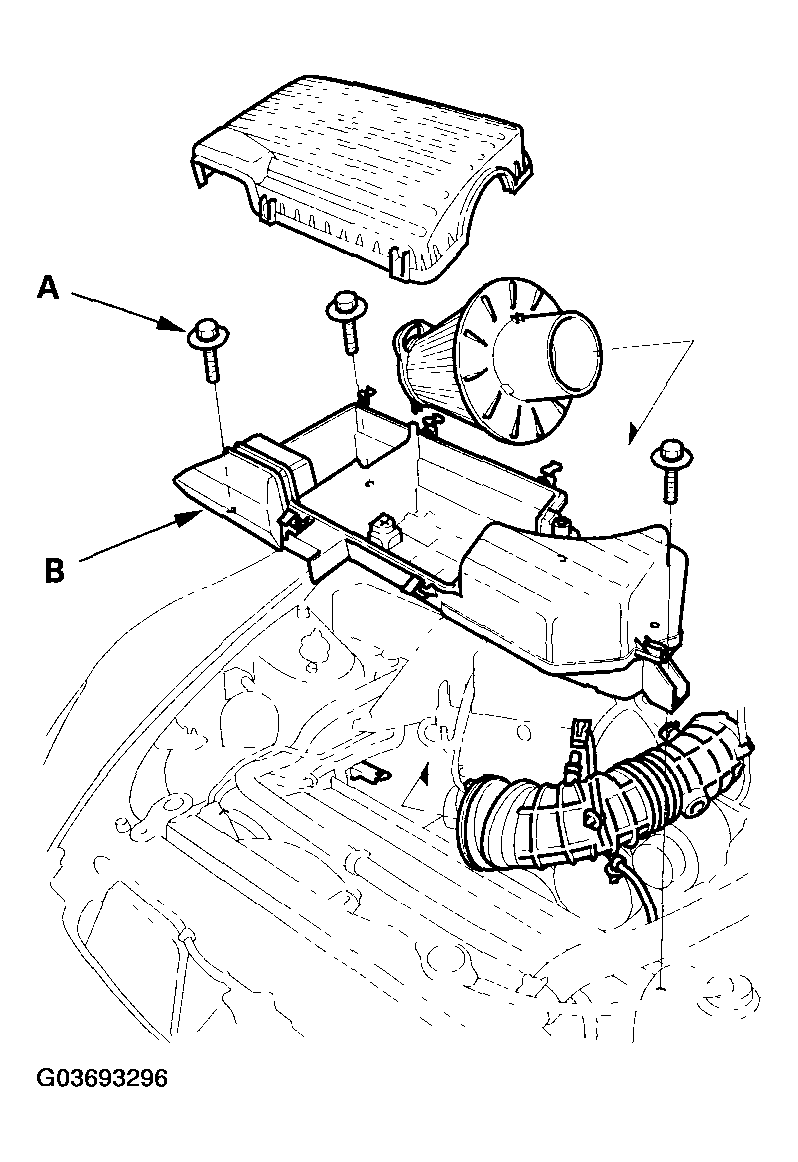

    Fig 1: Identifying Air Cleaner & Bolts
    G03693296Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the air cleaner (B).
  4. Install the parts in the reverse order of removal.
