Knock Sensor Replacement

Remove the intake manifold (see INTAKE MANIFOLD REMOVAL AND INSTALLATION ).
Disconnect the knock sensor 1P connector (A).

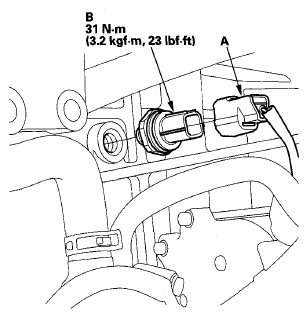

Fig 1: Lnock Sensor 1P Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the knock sensor (B).
Install the parts in the reverse order of removal.
