Convertible Top Control Module: Testing and Inspection

Convertible Top Control Unit Input Test

1. Remove the passenger's dashboard lower cover. Passengers Dashboard Lower Cover Removal/Installation

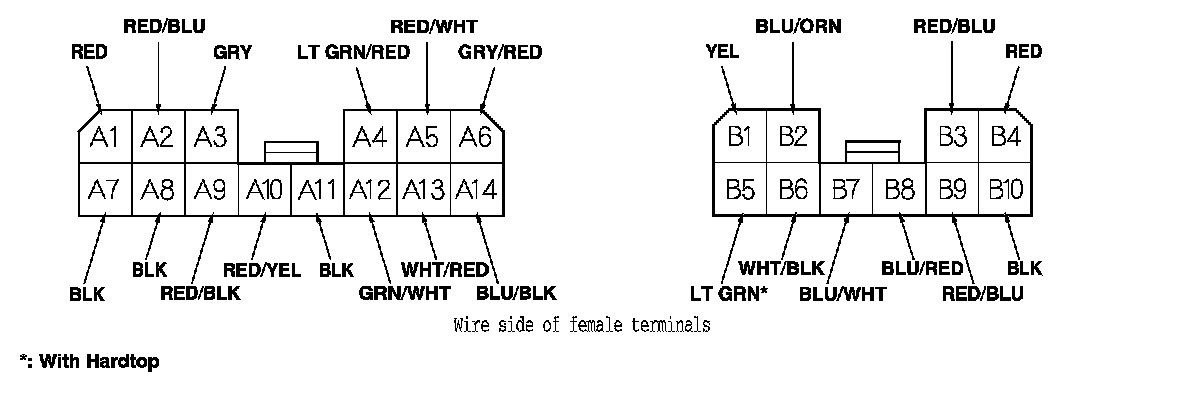

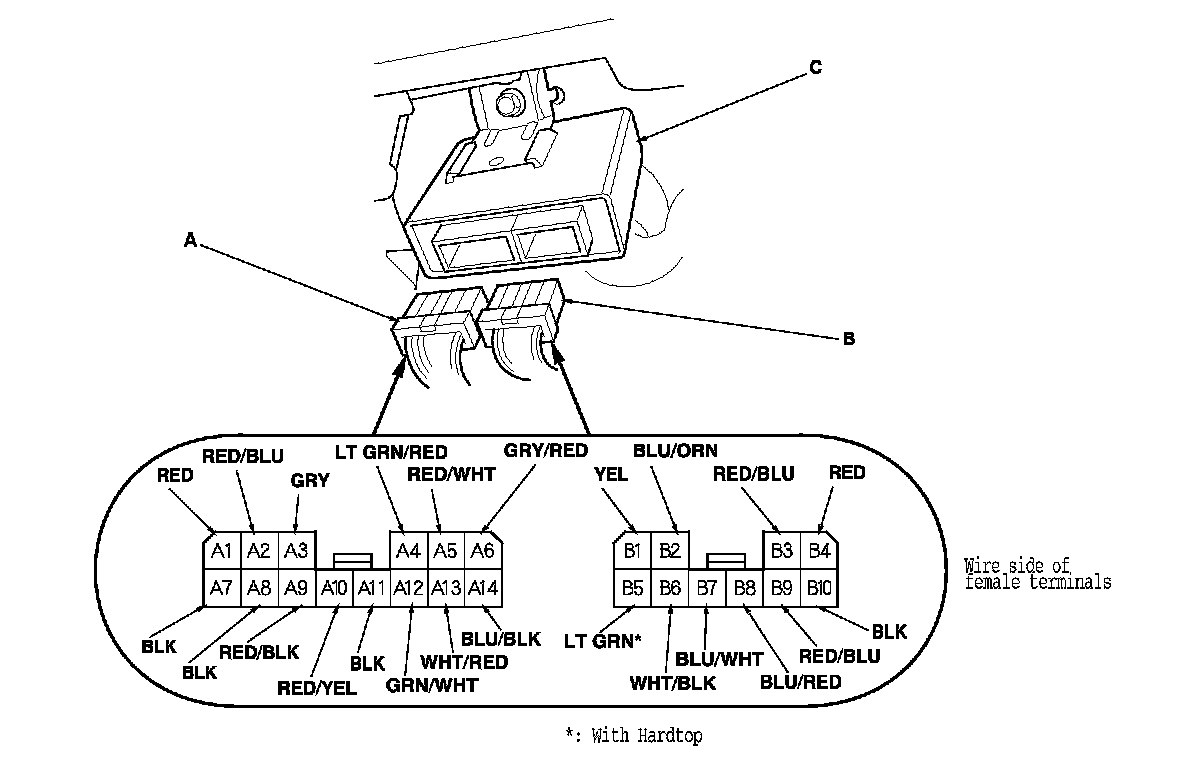

2. Disconnect the 14P connector (A) and 10P connector (B) from the convertible top control unit (C).

3. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.

- If the terminals look OK, go to step 4.

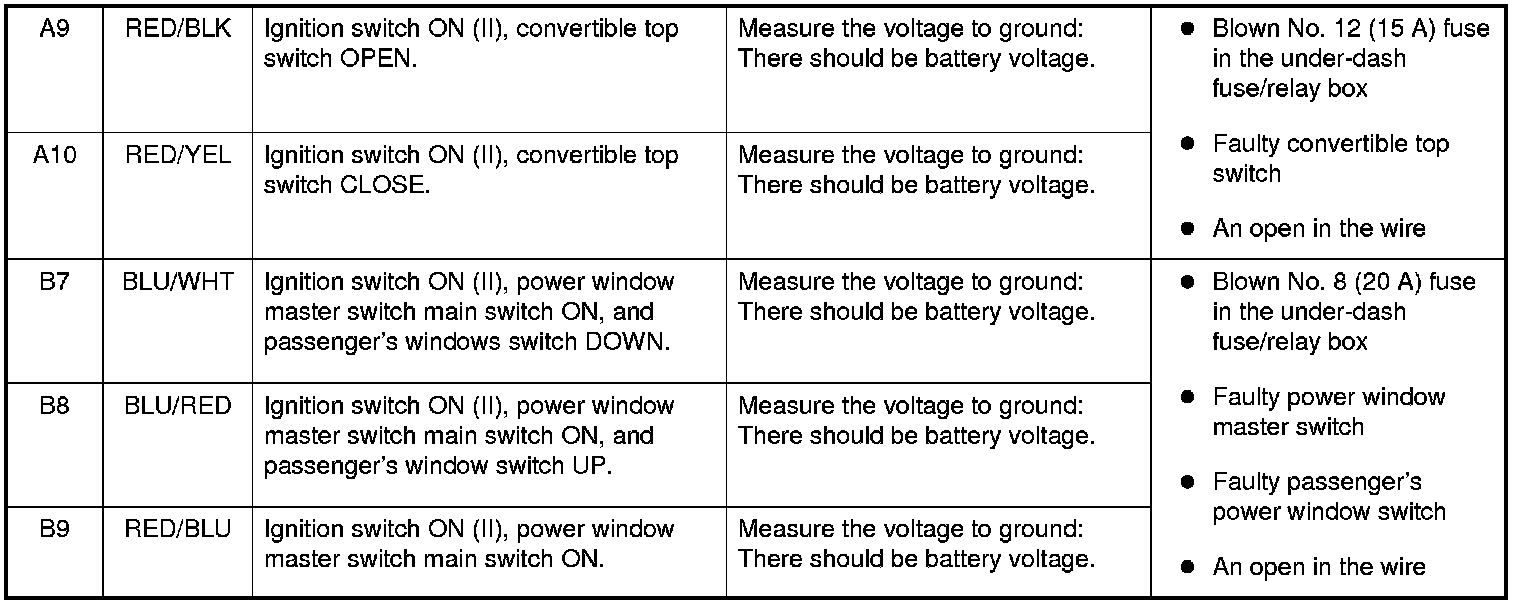

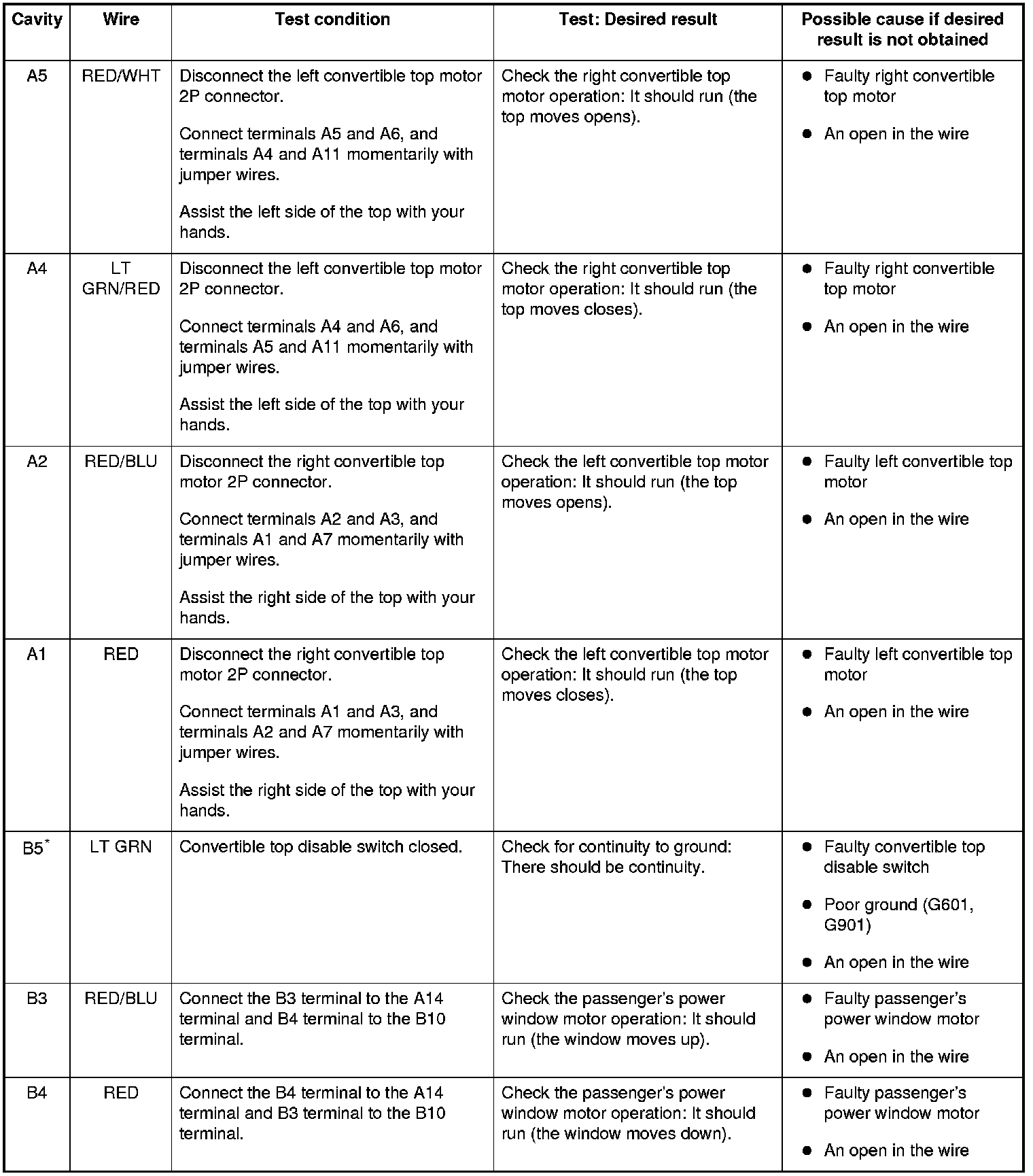

4. Reconnect the connectors to the control unit, and do these input tests at the following connectors.
- If any test indicates a problem, find and correct the cause, then recheck the system.

- If all the input tests prove OK, the control unit must be faulty; go to step 5.

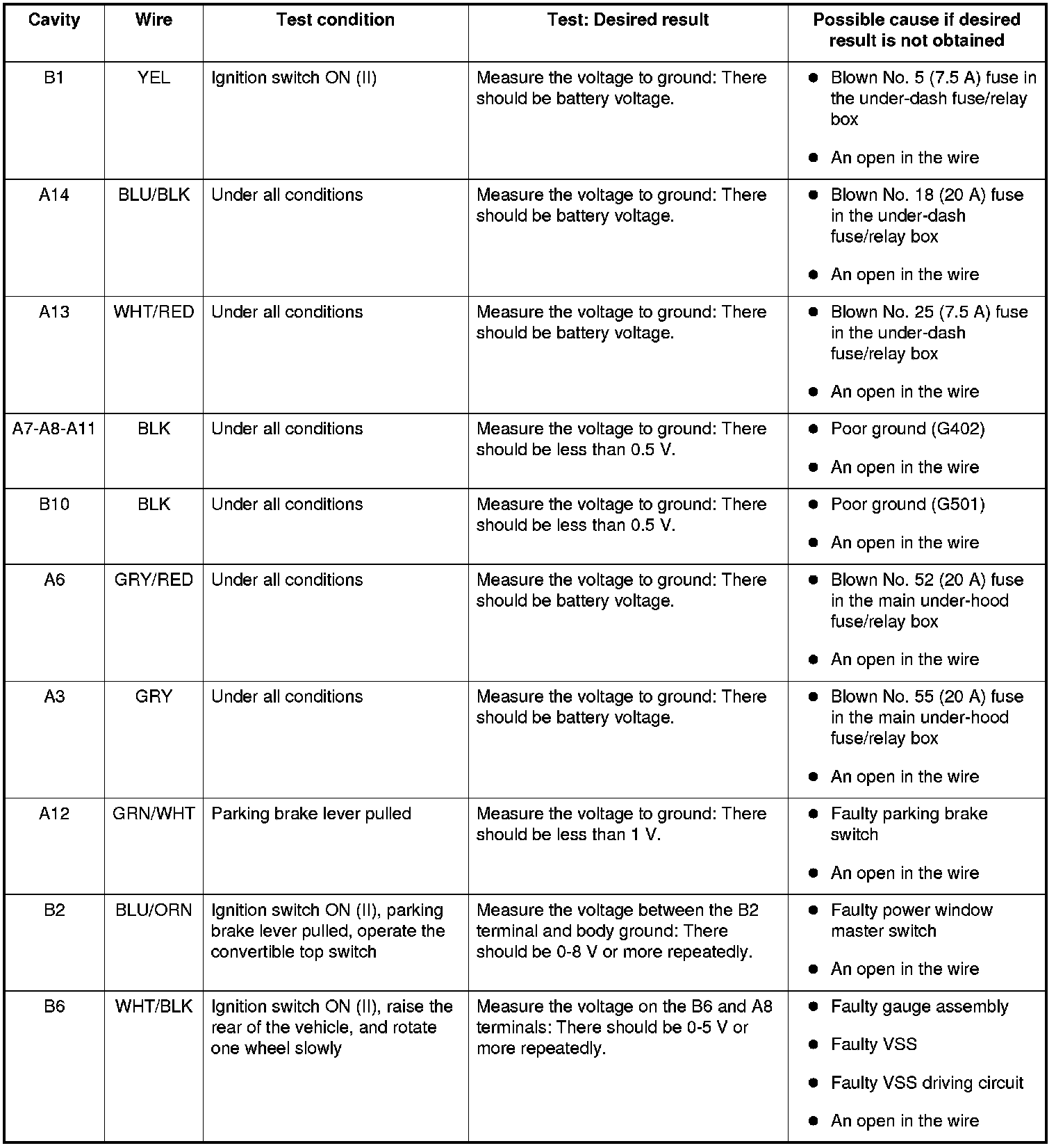

5. Disconnect the connectors and do these input tests at the following connectors.
- If any test indicates a problem, find and correct the cause, then recheck the system.

- If all the input tests prove OK, the control unit must be faulty; replace it.









*: With Hardtop
