Daytime Running Lamp Control Unit
>>
DRL Control Unit Connector View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

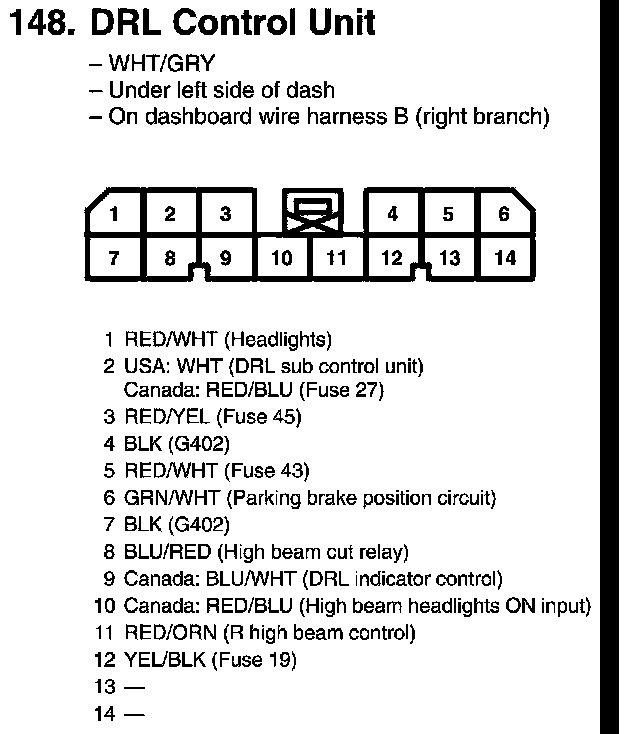

DRL Control Unit Connector View
