Service Specifications

Flywheel

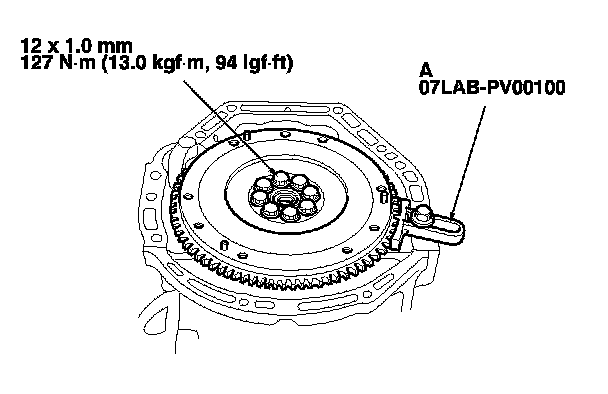

Install the ring gear holder (A), then torque the flywheel mounting bolts in a crisscross pattern in several steps.

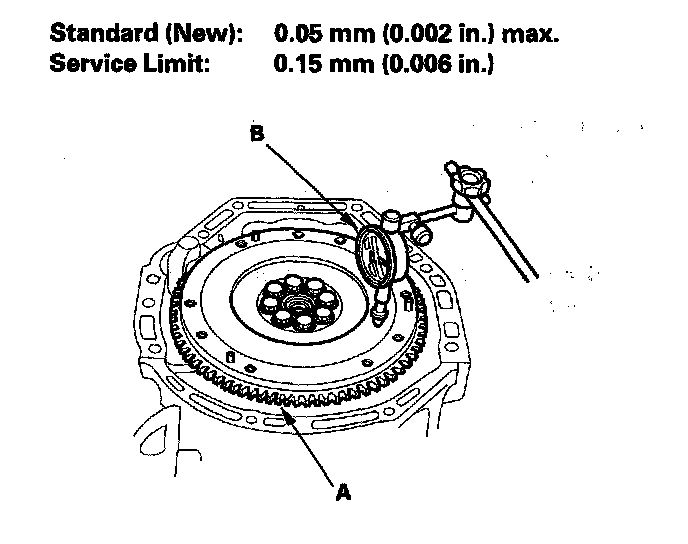

Flywheel Runout

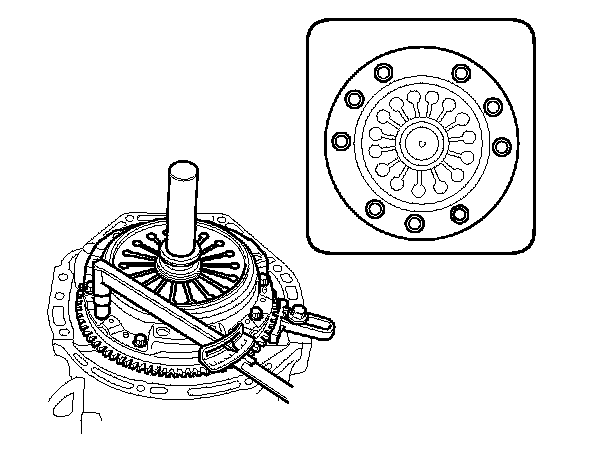

Pressure Plate

Torque the mounting bolts in a crisscross pattern in several steps to prevent warping the diaphragm spring.

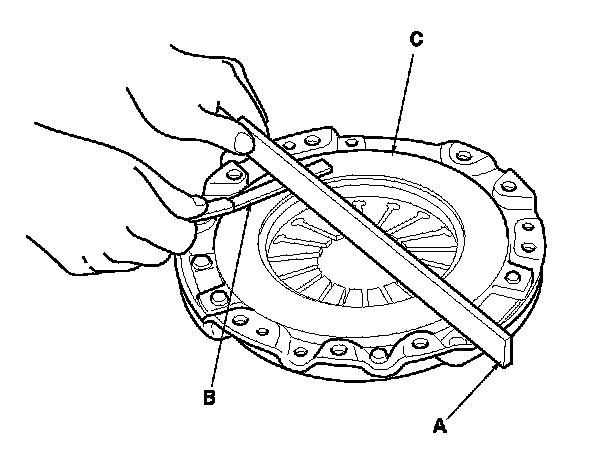

Pressure Plate Warpage









Diaphragm Spring

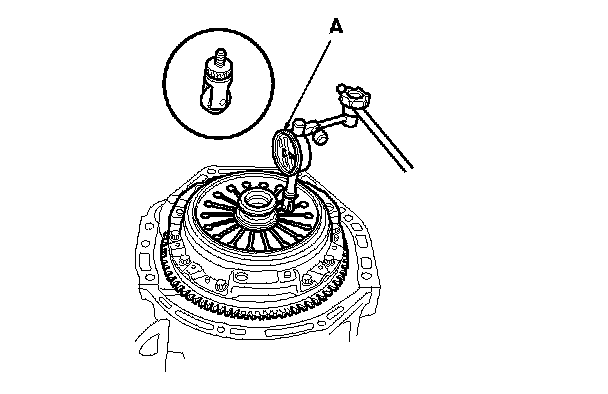

Height-variation of the diaphragm spring

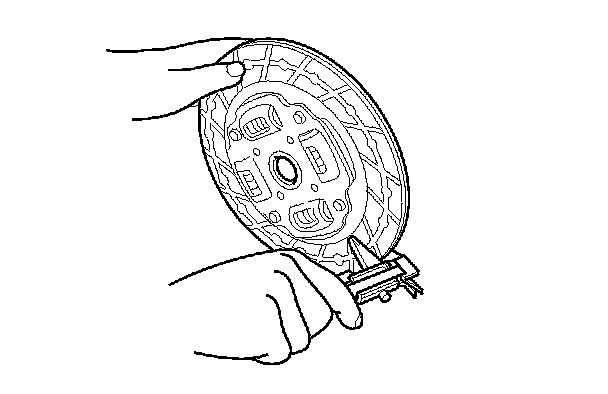

Clutch Disc Thickness

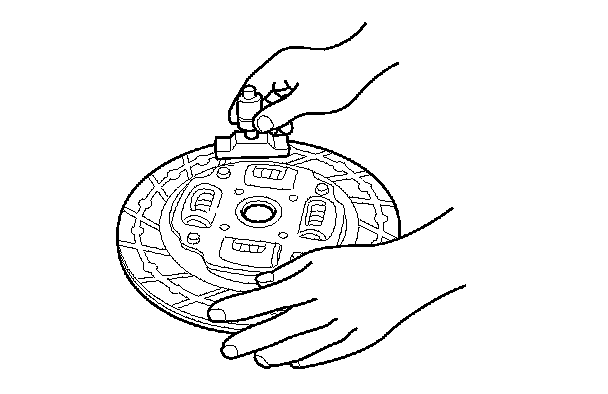

Rivet Depth









For information regarding Clutch Overhaul Specifications, please refer to Service and Repair. Service and Repair
