Timing Components

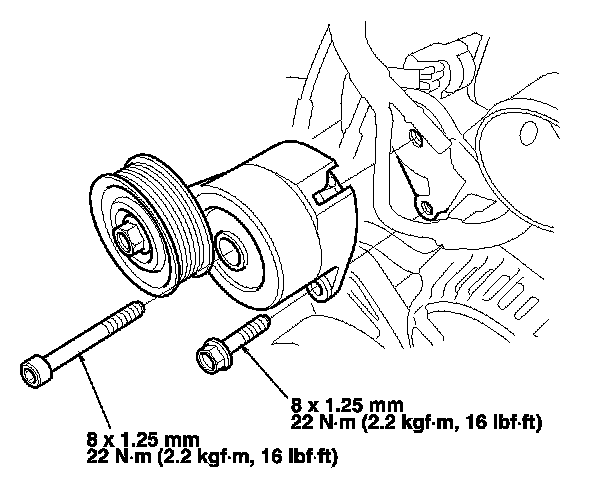

Timing Chain Tensioner






Crankshaft Pulley Torque

Tighten the bolt to 260 N-m (26.5 kgf-m, 192 lbf-ft). Do not use an impact wrench.

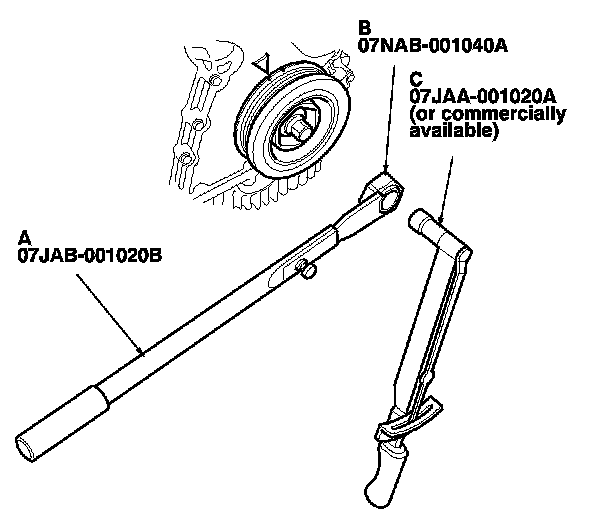

Hold the pulley with the holder handle (A) and the holder attachment (B).
Tighten the bolt with a torque wrench and a heavy duty 19 mm socket (C).

Timing Cover Torque

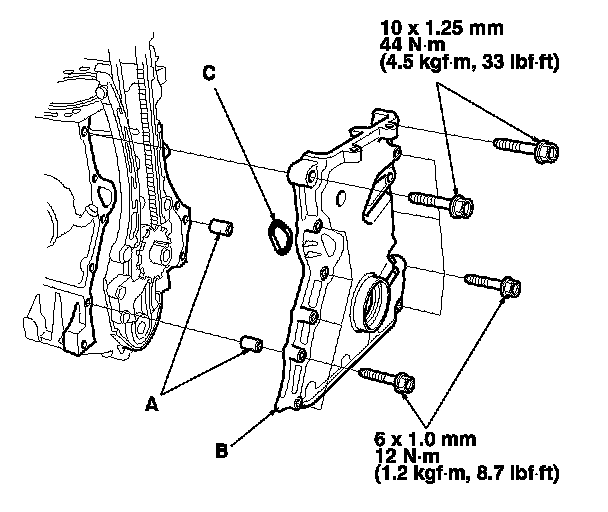

Apply a light coat of new engine oil to the lip of the chain case oil seal, then install the dowel pins (A) and the chain case (B) using a new O-ring (C).
