Ignition Key Switch Test

Ignition Key Switch Test

1. Remove the steering column upper and lower covers. Service and Repair

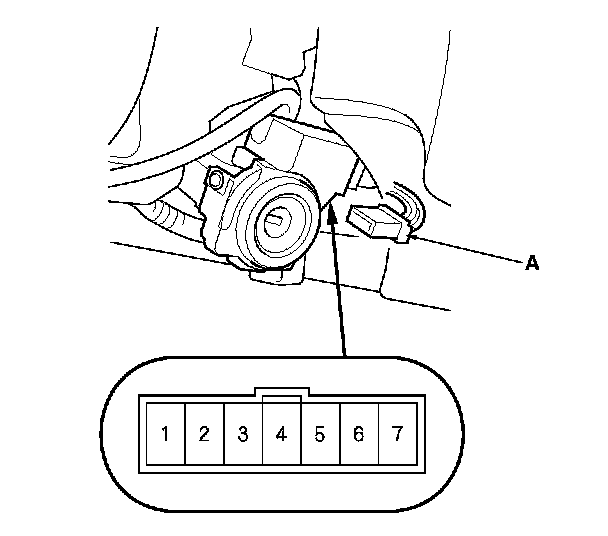

2. Disconnect the 7P connector (A).

3. Check for continuity between terminals No. 1 and No. 3 terminals.
- There should be continuity with the key in the ignition switch.

- There should be no continuity with the key removed from the ignition switch.

4. If the continuity is not as specified, replace the ignition key switch .
