Ignition Switch Test

Ignition Switch Test

SRS components are located in this area. Review the SRS component locations, and precautions and procedures Technician Safety Information before doing repairs or service.

1. Do the battery terminal disconnection procedure. Procedures

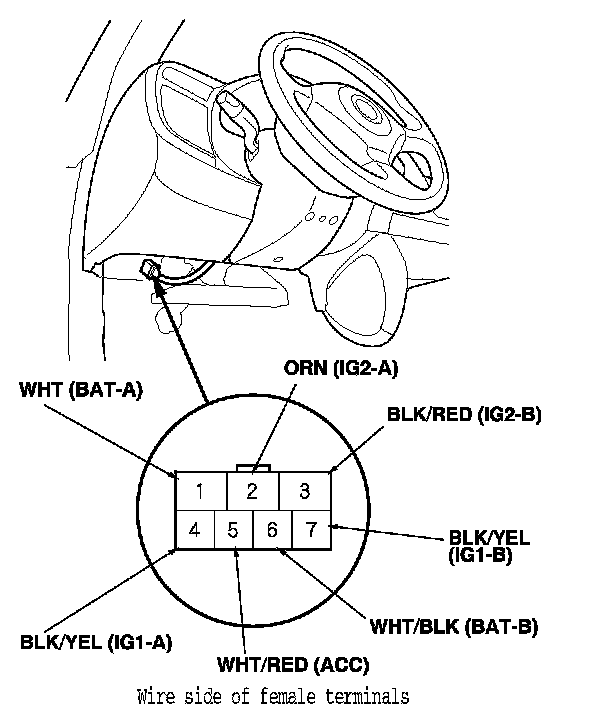

2. Disconnect the 7P connector from the under-dash fuse/relay box.






3. Check for continuity between the terminals in each switch position according to the table.

4. If the continuity is not as specified, replace the ignition switch.

5. Do the battery terminal reconnection procedure. Procedures
