Power Window Master Switch Test

Power Window Master Switch Test

1. Remove the driver's door panel. Service and Repair

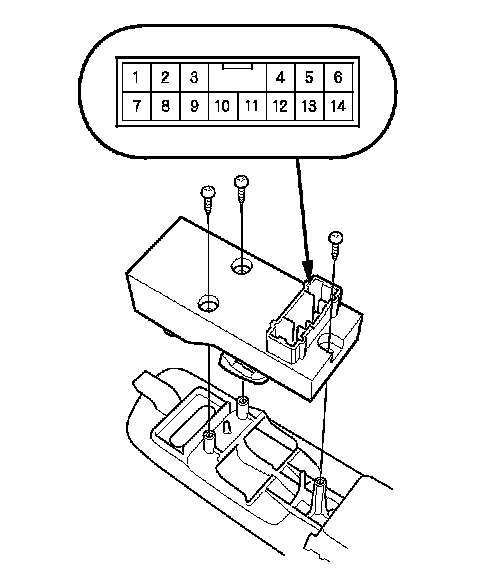

2. Disconnect the 14P connector from the power window master switch.






3. Check for continuity between the terminals in each switch position according to the table.
Driver's Switch

NOTE: The driver's switch is combined with the control unit so you cannot isolate the switch to test it. Instead, run the master switch input test procedures. Power Window Master Switch Input Test

4. If the continuity is not as specified, replace the switch.

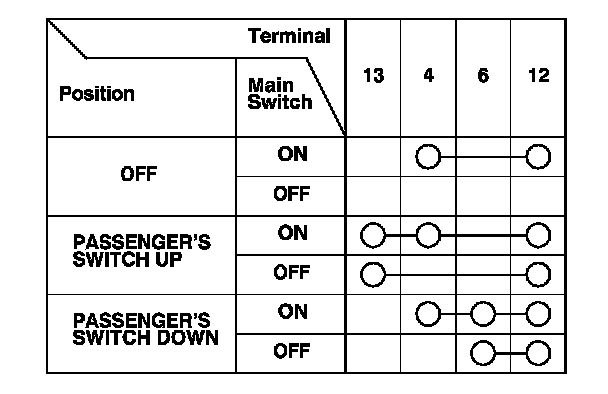

Passenger's Switch
