Window Track: Service and Repair

Door Sash Holder Replacement

NOTE:

- Put on gloves to protect your hands.

- Take care not to scratch the door.

1. Remove these items:
- Door glass Service and Repair

- Door weatherstrip, as needed Service and Repair

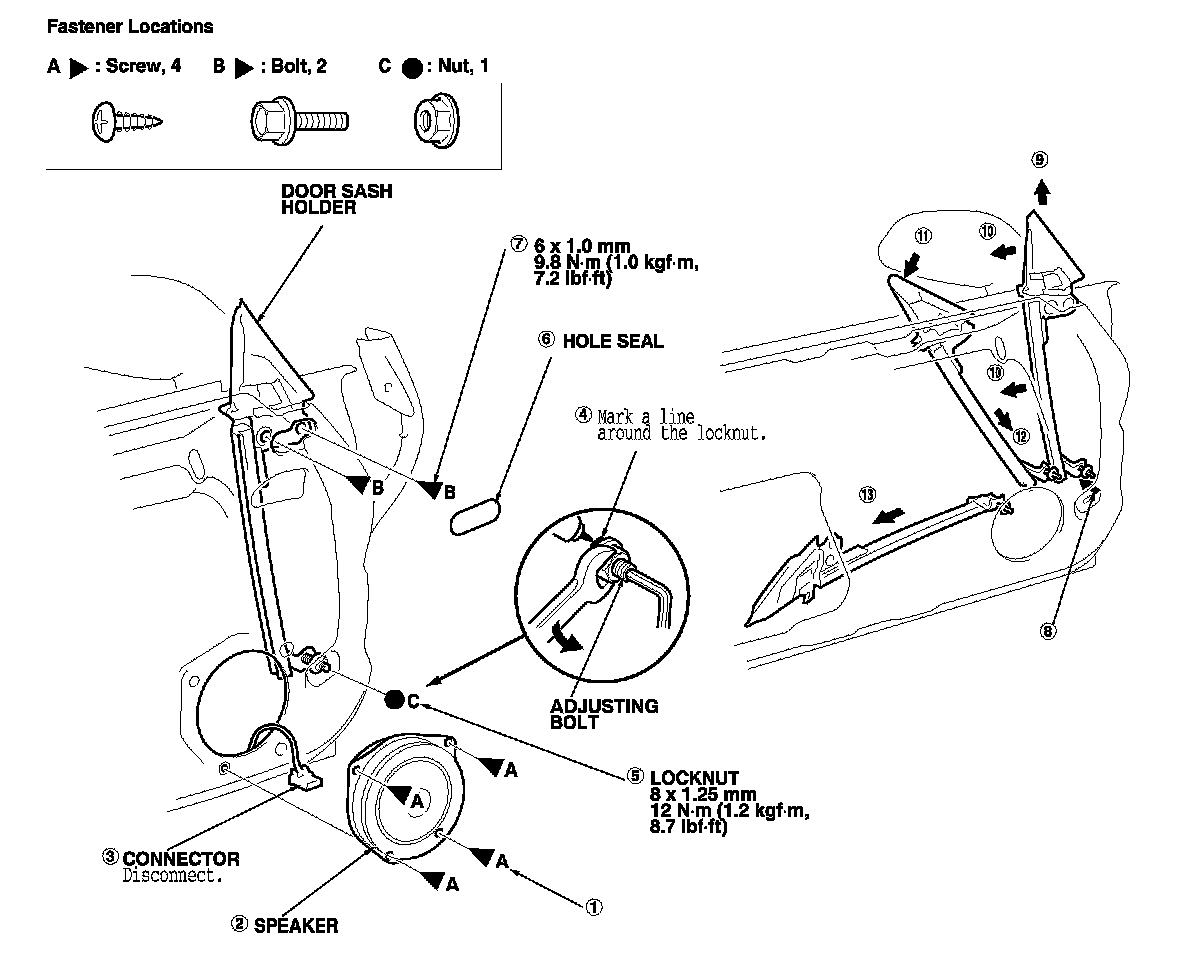

2. Remove the door sash holder in the numbered sequence:
- Hold the adjusting bolt with a hex wrench when removing the locknut.

- Mark a line around the locknut to show the original adjustment.

3. Install the holder in the reverse order of removal, and note these items:
- Adjust the position of the door sash holder.

- Test-drive, and check for wind noise and rattles.

- When reinstalling the door panel, make sure the plastic cover is installed properly and sealed around its outside perimeter to seal out water.

- Check for water leaks. Adjustments
