Wiper/Washer Switch Test/Replacement

Wiper/Washer Switch Test/Replacement

1. Lower the steering column, and remove the steering column covers. Service and Repair

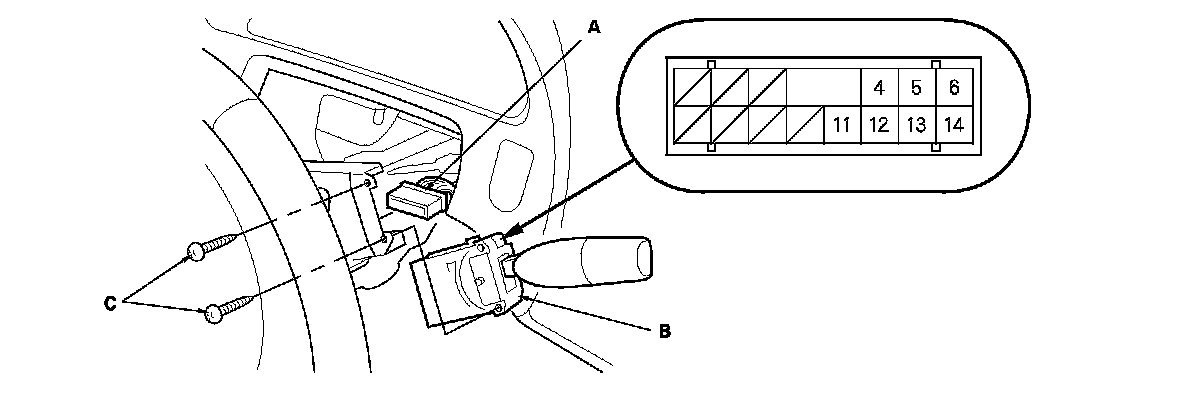

2. Disconnect the 14P connector (A) from the wiper/washer switch (B).

3. Remove the two screws (C), then pull out the wiper/washer switch.

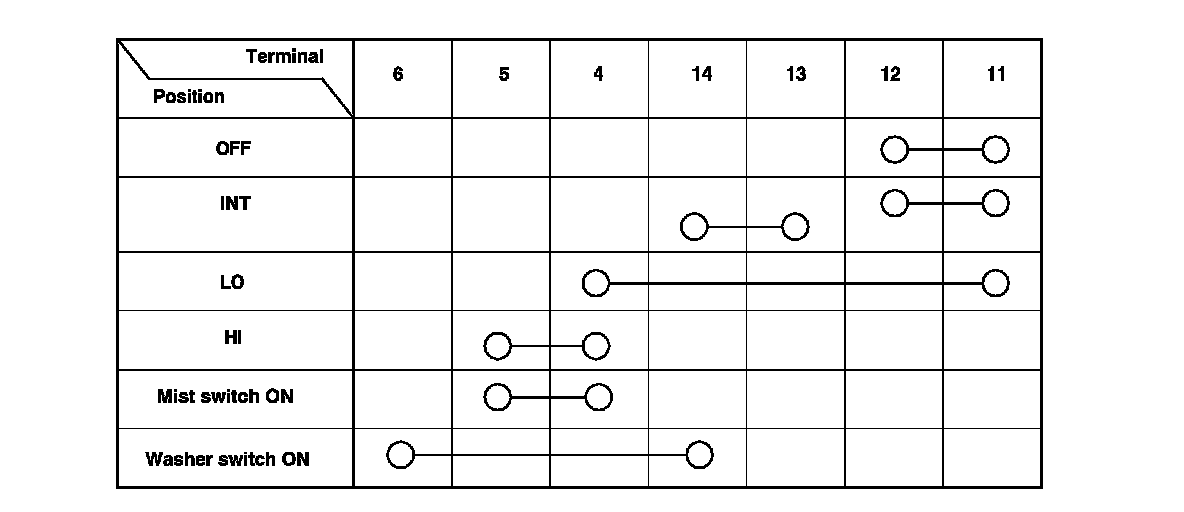

4. Check for continuity between the terminals in each switch position according to the table. If the continuity is not as specified, replace the switch.
