Subframe: Service and Repair

Subframe Replacement

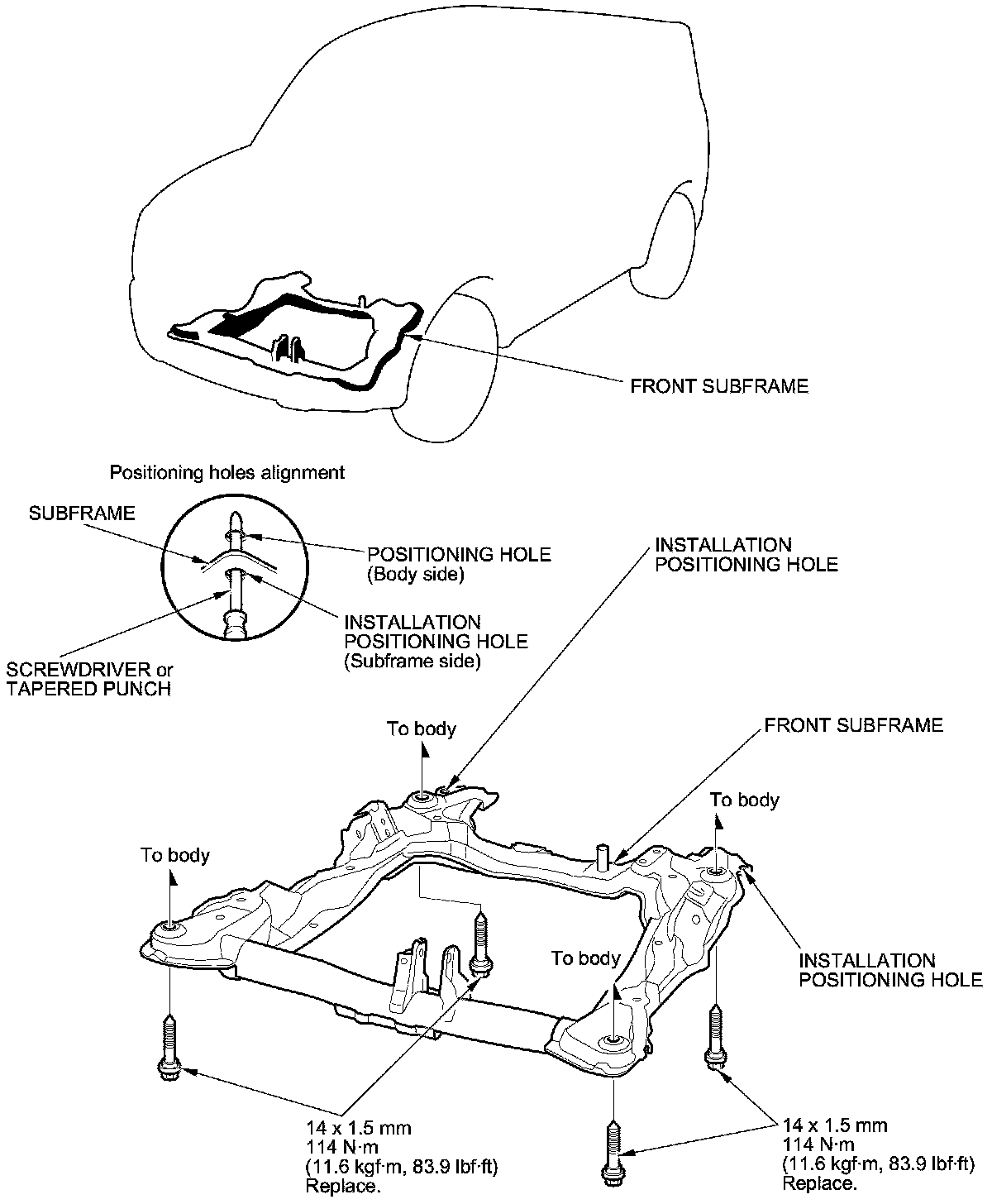

Front Subframe Torque

NOTE:

- Always replace any removed subframe mounting bolts with new ones.
- When installing, align both installation positioning holes in the subframe with both positioning holes in the body with a screwdriver or tapered punch as a guide.

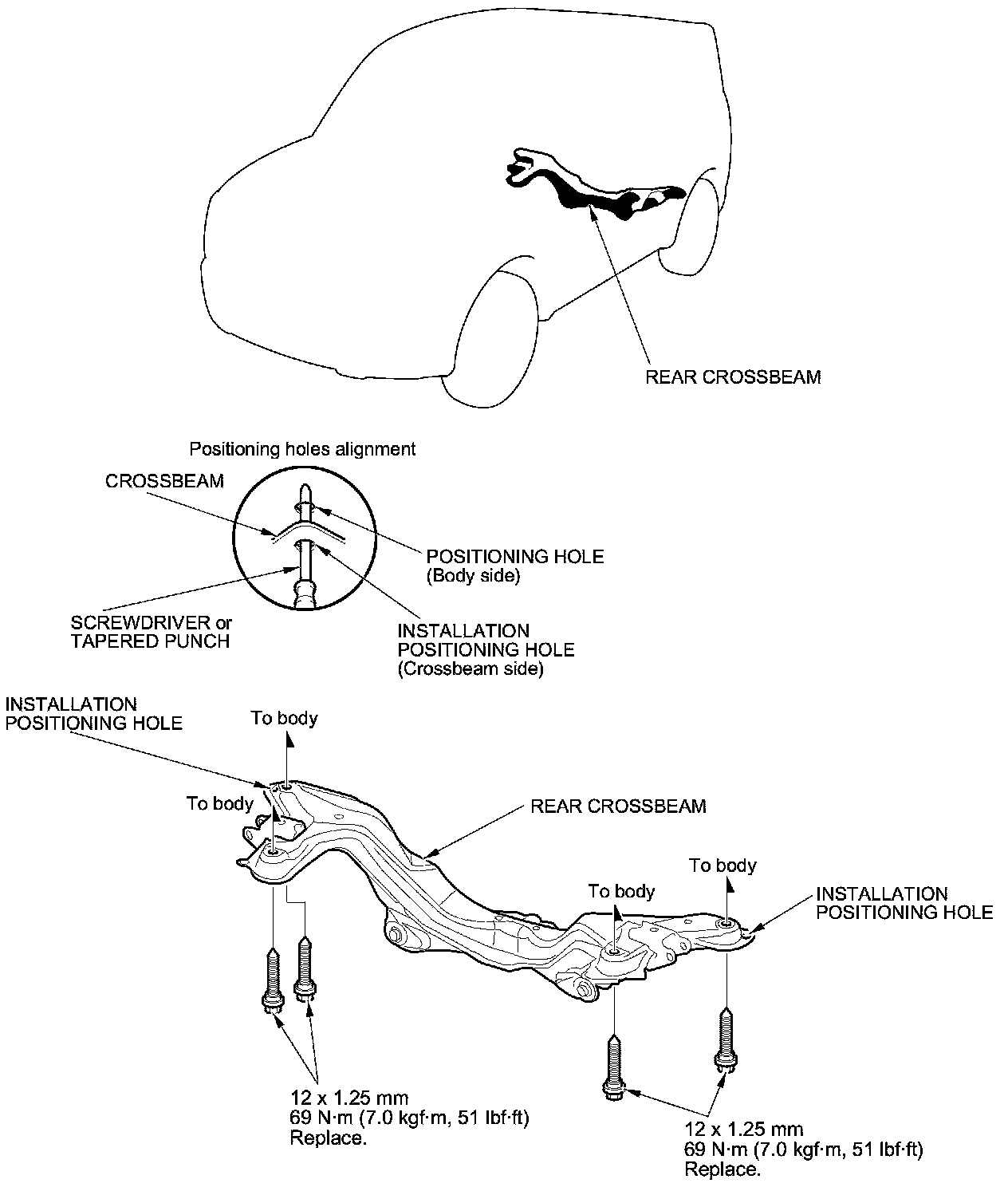

Rear Crossbeam Torque

NOTE:

- Always replace any removed crossbeam mounting bolts with new ones.
- When installing, align both installation positioning holes in the crossbeam with both positioning holes in the body with a screwdriver or tapered punch as a guide.
