Intake Manifold

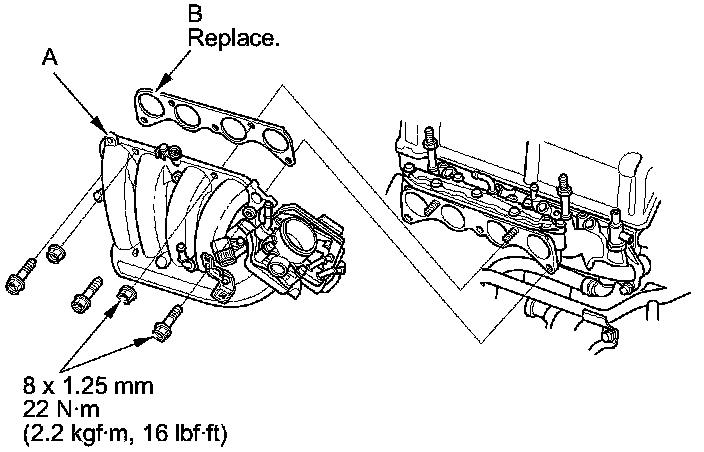

Intake manifold
(A) with a new gasket (B), and tighten the bolts/nuts in a crisscross pattern in three steps, beginning with the inner bolt.
