CMP Sensor A Replacement

  1. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
  2. Disconnect the CMP sensor A connector (A).

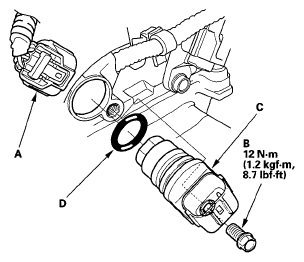

    Fig 1: CMP Sensor A Connector With Torque Specifications
    G05449193Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolt (B).
  4. Remove CMP sensor A (C).
  5. Install the parts in the reverse order of removal with a new O-ring (D).
