Passenger's Power Window Switch Replacement

  1. Remove the pocket cap (see DOOR PANEL REMOVAL/INSTALLATION ).
  2. Remove the switch panel from the door panel.

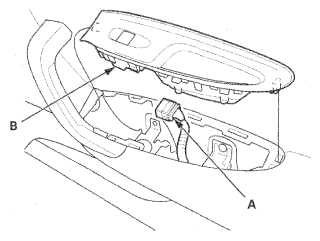

  3. Disconnect the 8P connector (A) from the passenger's power window switch (B).
    Fig 1: Identifying Passenger's Power Window Switch With 8P Connector
    G06954057Courtesy of AMERICAN HONDA MOTOR CO., INC.

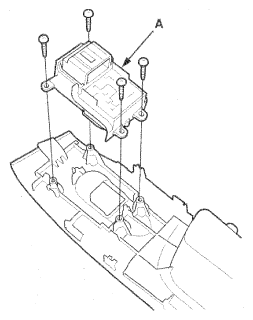

  4. Remove the four screws and the passenger's power window switch (A).
    Fig 2: Identifying Passenger's Power Window Switch
    G06954058Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the switch in the reverse order of removal.
