Fuse-to-Components Index

Fuse Number Fuse Name Amps See Component or Circuit Protected Notes
1 BACK UP 10A UNDER-DASH FUSE/RELAY BOX - FUSE 1 Audio Unit (without Navigation), Audio-Navigation Unit (Navigation), Cargo Area Light, Ceiling Light, DLC, Gauge Control Module, Immobilizer-Keyless Control Unit, Individual Map Lights (Individual Map Lights), MICU
2 TPMS (7.5A) UNDER-DASH FUSE/RELAY BOX - FUSES 2, 3, 4, 9, AND 25 MICU, TPMS Control Unit TPMS
3 P/W DR 20A UNDER-DASH FUSE/RELAY BOX - FUSES 2, 3, 4, 9, AND 25 Power Window Master Switch
4 - 20A UNDER-DASH FUSE/RELAY BOX - FUSES 2, 3, 4, 9, AND 25 Honda Accessory Fog Lights
5 BACK UP LIGHT 10A UNDER-DASH FUSE/RELAY BOX - FUSES 5, 6, 7, AND 8 Back-up Light Switch (M/T), MICU
6 SRS 10A UNDER-DASH FUSE/RELAY BOX - FUSES 5, 6, 7, AND 8 MICU, SRS Unit
7 TRNS SOL (10A) UNDER-DASH FUSE/RELAY BOX - FUSES 5, 6, 7, AND 8 ECM/PCM A/T
8 SRS 7.5A UNDER-DASH FUSE/RELAY BOX - FUSES 5, 6, 7, AND 8 Front Passenger's Airbag Cut-off Indicator, MICU, ODS Unit, SRS Unit
9 FR FOG (20A) UNDER-DASH FUSE/RELAY BOX - FUSES 2, 3, 4, 9, AND 25 Fog Light Relay, MICU Fog Lights
10 A/C 7.5A UNDER-DASH FUSE/RELAY BOX - FUSES 10 AND 15 A/C Compressor Clutch Relay (A/C), A/C Condenser Fan Relay (A/C), A/C Switch (A/C), Blower Motor Relay, MICU, Power Mirror Switch, Radiator Fan Relay, Rear Window Defogger Relay, Rear Window Defogger Switch (without Power Mirror Defoggers), Rear Window/Power Mirror Defoggers Switch (Power Mirror Defoggers)
11 ABS/VSA 7.5A UNDER-DASH FUSE/RELAY BOX - FUSES 11 AND 12 ABS Modulator-Control Unit (ABS), EPS Control Unit, MICU, VSA Modulator-Control Unit (VSA), Yaw Rate-Lateral Acceleration Sensor (VSA)
12 ACG 10A UNDER-DASH FUSE/RELAY BOX - FUSES 11 AND 12 Alternator, Brake Pedal Position Switch (Cruise Control), EVAP Canister Purge Valve, MAF/IAT Sensor, MICU, Secondary HO2S
13 ACC SOCKET 20A UNDER-DASH FUSE/RELAY BOX - FUSES 13 AND 14 AND AUXILIARY UNDER-DASH FUSE BOX - FUSE 1 Accessory Power Socket, MICU
14 KEY LOCK/RADIO 7.5A UNDER-DASH FUSE/RELAY BOX - FUSES 13 AND 14 AND AUXILIARY UNDER-DASH FUSE BOX - FUSE 1 Fuse 1 in Auxiliary Under-dash Fuse Box, Ignition Key Switch (A/T), MICU
15 DAY LIGHT 7.5A UNDER-DASH FUSE/RELAY BOX - FUSES 10 AND 15 MICU
16 RR WIPER 10A UNDER-DASH FUSE/RELAY BOX - FUSES 16, 20, AND 21 MICU, Rear Window Wiper Motor
17 P/WAS 20A UNDER-DASH FUSE/RELAY BOX - FUSES 17, 18, AND 19 Front Passenger's Power Window Switch, MICU, Power Window Master Switch
18 PA/V RR R 20A UNDER-DASH FUSE/RELAY BOX - FUSES 17, 18, AND 19 Power Window Master Switch, Right Rear Power Window Switch
19 P/W RR L 20A UNDER-DASH FUSE/RELAY BOX - FUSES 17, 18, AND 19 Power Window Master Switch, Left Rear Power Window Switch
20 FUEL PUMP 15A UNDER-DASH FUSE/RELAY BOX - FUSES 16, 20, AND 21 ECM/PCM, Immobilizer-Keyless Control Unit, MICU, PGM-FI Main Relay 2
21 WASHER 15A UNDER-DASH FUSE/RELAY BOX - FUSES 16, 20, AND 21 MICU
22 METER 7.5A UNDER-DASH FUSE/RELAY BOX - FUSES 22 AND 56 ELD Unit, Gauge Control Module, MICU, Shift Lock Solenoid (A/T), TPMS Control Unit (TPMS)
23 HAZARD 10A UNDER-DASH FUSE/RELAY BOX - FUSES 23 AND 24 Hazard Warning Switch, MICU
24 STOP/HORN 10A UNDER-DASH FUSE/RELAY BOX - FUSES 23 AND 24 Brake Pedal Position Switch, Horn Relay (Security), MICU
25 - - UNDER-DASH FUSE/RELAY BOX - FUSES 2, 3, 4, 9, AND 25 Not Used
26 LAF 10A UNDER-DASH FUSE/RELAY BOX - FUSES 26, 31, 33, 37, AND 58 A/F Sensor Relay

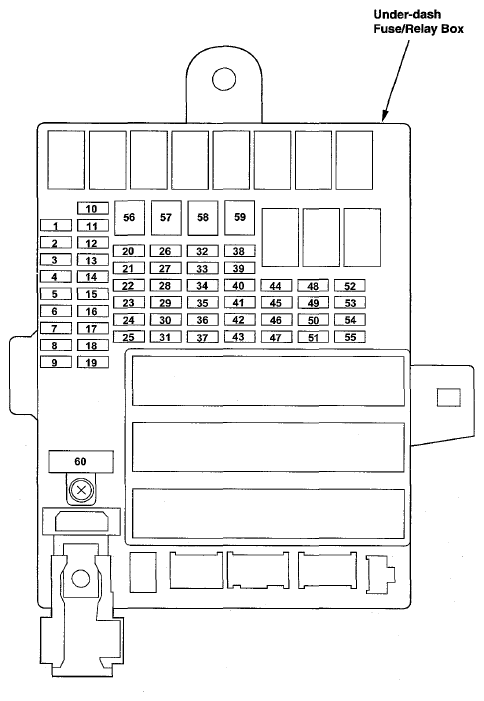

Fig 1: Under-Dash Fuse/Relay Box (6-1)
G07757524
Fuse Number Fuse Name Amps See Component or Circuit Protected Notes
27 DOOR LOCK (30A) UNDER-DASH FUSE/RELAY BOX - FUSES 27, 35, 36, 49, AND 50 Door Lock Relay, Door Unlock Relay, MICU Power Door Locks
28 HEAD LIGHT 20A UNDER-DASH FUSE/RELAY BOX - FUSES 28, 30, 39, 40, 41, 42, 43, 48, AND 51 High Beam Control Circuits, MICU
29 SMALL LIGHT 10A UNDER-DASH FUSE/RELAY BOX - FUSE 29 MICU, Taillight Relay
30 MAIN FAN MTR 30A UNDER-DASH FUSE/RELAY BOX - FUSES 28, 30, 39, 40, 41, 42, 43, 48, AND 51 Radiator Fan Relay
31 - - UNDER-DASH FUSE/RELAY BOX - FUSES 26, 31, 33, 37, AND 58 Not Used
32 R HEAD LIGHT 10A UNDER-DASH FUSE/RELAY BOX - FUSES 32, 34, AND 38 Fog Light Connector 1 (Option Connector), Right Headlight
33 IG COIL 15A UNDER-DASH FUSE/RELAY BOX - FUSES 26, 31, 33, 37, AND 58 Ignition Coil Relay
34 L HEAD LIGHT 10A UNDER-DASH FUSE/RELAY BOX - FUSES 32, 34, AND 38 Left Headlight
35 DOOR LOCK (15A) UNDER-DASH FUSE/RELAY BOX - FUSES 27, 35, 36, 49, AND 50 Front Passenger's Door Lock Actuator/Knob Switch, MICU, Right Rear Door Lock Actuator/Knob Switch, Tailgate Lock Actuator Power Door Locks
36 DOOR LOCK (15A) UNDER-DASH FUSE/RELAY BOX - FUSES 27, 35, 36, 49, AND 50 Driver's Door Lock Actuator/Knob Switch/Key Cylinder Switch, Left Rear Door Lock Actuator/Knob Switch Power Door Locks
37 ABS/VSA F/S 30A UNDER-DASH FUSE/RELAY BOX - FUSES 26, 31, 33, 37, AND 58 ABS Modulator-Control Unit (ABS), VSA Modulator-Control Unit (VSA)
38 DOOR LOCK (15A) UNDER-DASH FUSE/RELAY BOX - FUSES 32, 34, AND 38 Driver's Door Lock Actuator/Knob Switch/Key Cylinder Switch Power Door Locks
39 IGP 15A UNDER-DASH FUSE/RELAY BOX - FUSES 28, 30, 39, 40, 41, 42, 43, 48, AND 51 PGM-FI Main Relay 1
40 - - UNDER-DASH FUSE/RELAY BOX - FUSES 28, 30, 39, 40, 41, 42, 43, 48, AND 51 Not Used
41 - - UNDER-DASH FUSE/RELAY BOX - FUSES 28, 30, 39, 40, 41, 42, 43, 48, AND 51 Not Used
42 - - UNDER-DASH FUSE/RELAY BOX - FUSES 28, 30, 39, 40, 41, 42, 43, 48, AND 51 Not Used
43 MG CLUTCH (7.5A) UNDER-DASH FUSE/RELAY BOX - FUSES 28, 30, 39, 40, 41, 42, 43, 48, AND 51 A/C Compressor Clutch Relay A/C
44 STS 7.5A IGNITION SWITCH AND UNDER-DASH FUSE/RELAY BOX - FUSE 44 AND MULTI-FUSE FUSE 60 Starter Cut Relay
45 - - UNDER-DASH FUSE/RELAY BOX - FUSES 45, 46, 47, 52, 53, AND 57 Not Used
46 - - UNDER-DASH FUSE/RELAY BOX - FUSES 45, 46, 47, 52, 53, AND 57 Not Used
47 SUB FAN MTR (30A) UNDER-DASH FUSE/RELAY BOX - FUSES 45, 46, 47, 52, 53, AND 57 A/C Condenser Fan Relay A/C
48 L HEAD LIGHT 10A UNDER-DASH FUSE/RELAY BOX - FUSES 28, 30, 39, 40, 41, 42, 43, 48, AND 51 Left Headlight
49 DOOR LOCK (15A) UNDER-DASH FUSE/RELAY BOX - FUSES 27, 35, 36, 49, AND 50 Front Passenger's Door Lock Actuator/Knob Switch, MICU, Right Rear Door Lock Actuator/Knob Switch, Tailgate Lock Actuator Power Door Locks
50 DOOR LOCK (15A) UNDER-DASH FUSE/RELAY BOX - FUSES 27, 35, 36, 49, AND 50 Driver's Door Lock Actuator/Knob Switch/Key Cylinder Switch, Left Rear Door Lock Actuator/Knob Switch Power Door Locks
51 R HEAD LIGHT 10A UNDER-DASH FUSE/RELAY BOX - FUSES 28, 30, 39, 40, 41, 42, 43, 48, AND 51 Right Headlight
52 DBW 15A UNDER-DASH FUSE/RELAY BOX - FUSES 45, 46, 47, 52, 53, AND 57 ETCS Control Relay
53 - - UNDER-DASH FUSE/RELAY BOX - FUSES 45, 46, 47, 52, 53, AND 57 Not Used

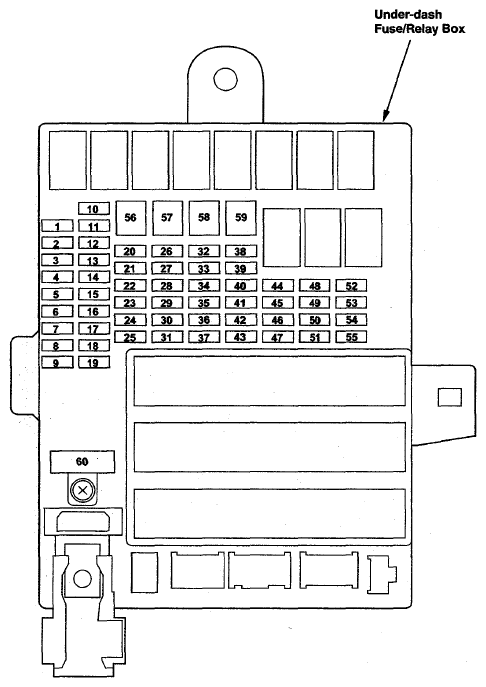

Fig 2: Under-Dash Fuse/Relay Box (6-3)
G07757525
Fuse Number Fuse Name Amps See Component or Circuit Protected Notes
54 RR DEF 20A UNDER-DASH FUSE/RELAY BOX - FUSES 54, 55, AND 59 Rear Window Defogger Power Mirror Defoggers
55 HEATED MIRROR 10A UNDER-DASH FUSE/RELAY BOX - FUSES 54, 55, AND 59 Left Power Mirror, MICU, Right Power Mirror Power Mirror Defoggers
56 FR WIPER 30A UNDER-DASH FUSE/RELAY BOX - FUSES 22 AND 56 MICU
57 BLOWER MTR 30A UNDER-DASH FUSE/RELAY BOX - FUSES 45, 46, 47, 52, 53, AND 57 Blower Motor Relay
58 ABS/VSA MTR 30A UNDER-DASH FUSE/RELAY BOX - FUSES 26, 31, 33, 37, AND 58 ABS Modulator-Control Unit (ABS), VSA Modulator-Control Unit (VSA)
59 RR DEF 20A UNDER-DASH FUSE/RELAY BOX - FUSES 54, 55, AND 59 Rear Window Defogger Relay without Power Mirror Defoggers
30A Power Mirror Defoggers
60 IG MAIN 50A IGNITION SWITCH AND UNDER-DASH FUSE/RELAY BOX - FUSE 44 AND MULTI-FUSE FUSE 60 Ignition Switch
OP MAIN 40A Not Used

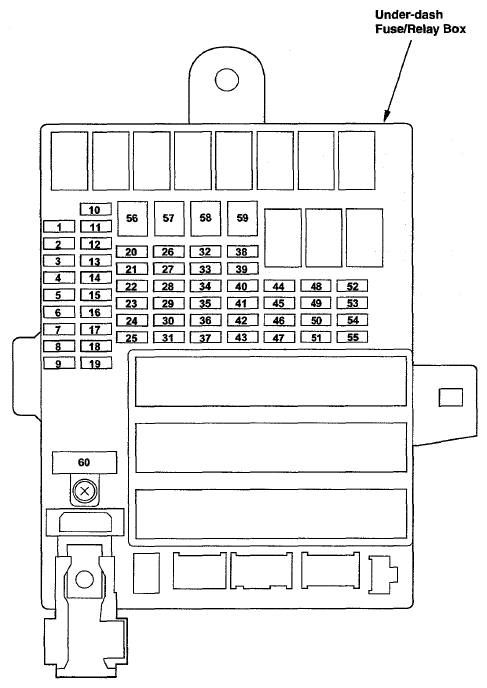

Fig 3: Under-Dash Fuse/Relay Box (6-5)
G07757526
