CKP Pulse Plate Replacement

  1. Remove the crankshaft (see CRANKSHAFT AND PISTON REMOVAL  ).
  2. Remove the crankshaft position (CKP) pulse plate (A).
    NOTE: Be careful not to damage the journals and the CKP pulse plate.

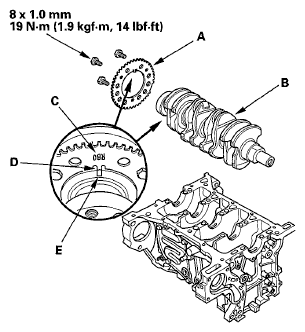

    Fig 1: Crankshaft Position (CKP) Pulse Plate, Crankshaft, Tab & Groove On Crankshaft With Torque Specifications
    G05952642Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the CKP pulse plate on the crankshaft (B): face the marked side (C) away from the crankshaft, and align the tab (D) on the CKP pulse plate with the groove (E) on the crankshaft.
  4. Install the crankshaft (see CRANKSHAFT INSTALLATION  ).
