DTC P0705: Transmission Range Switch (Multiple Shift-position Input): Notes

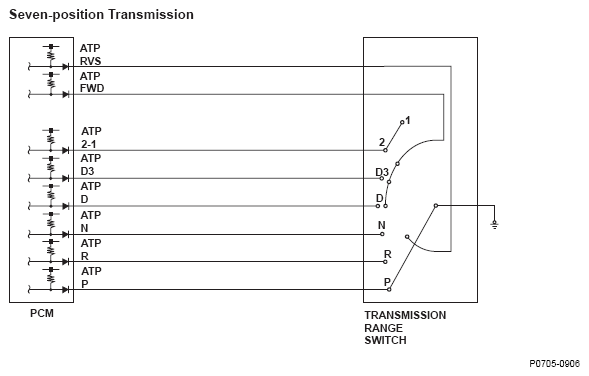

Fig 1: Transmission Range Switch - Circuit Diagram (Seven-Position Transmission)

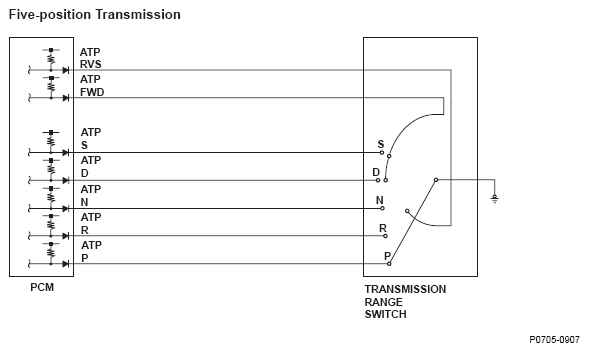

Fig 2: Transmission Range Switch - Circuit Diagram (Five-Position Transmission)

Transmission range switch contact point input matrix:

SEVEN-POSITION TRANSMISSION

Shift lever position	Input per switch
	ATPP	ATPR	ATP RVS	ATPN	ATPD	ATPD3	ATP2-1	ATP FWD
P	O	X	X	X	X	X	X	X
R	X	O	O	X	X	X	X	X
N	X	X	X	O	X	X	X	X
D	X	X	X	X	O	X	X	O
D3	X	X	X	X	X	O	X	O
2	X	X	X	X	X	X	O	O
1	X	X	X	X	X	X	O	X
O: Closed X: Open

FIVE-POSITION TRANSMISSION

Shift lever position	Input per switch
	ATPP	ATPR	ATPRVS	ATPN	ATPD	ATPS	ATPFWD
P	O	X	X	X	X	X	X
R	X	O	O	X	X	X	X
N	X	X	X	O	X	X	X
D	X	X	X	X	O	X	O
S	X	X	X	X	X	O	O
O: Closed X: Open
