DTC P1454: Fuel Tank Pressure (FTP) Sensor Range/Performance Problem: Notes

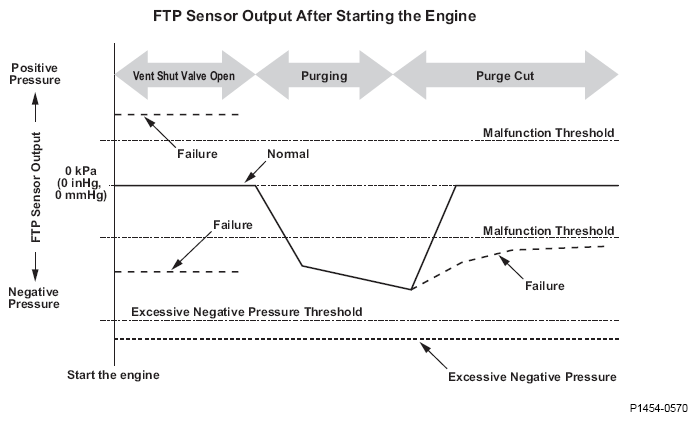

Fig 1: Overview Of Fuel Tank Pressure Sensor Range

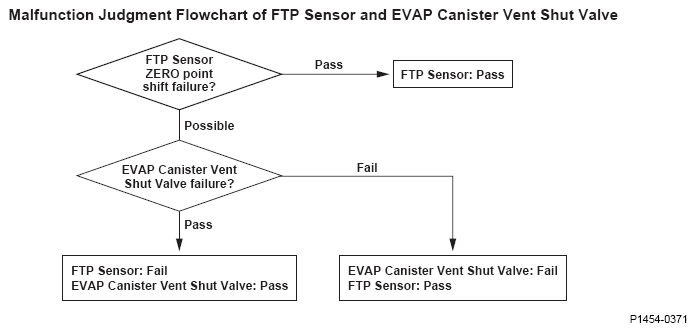

Fig 2: Flowchart Of FTP Sensor And EVAP Canister Vent Shut Valve (Malfunction Judgment)
