DTC P2118: Throttle Actuator Current Range/Performance Problem: Notes

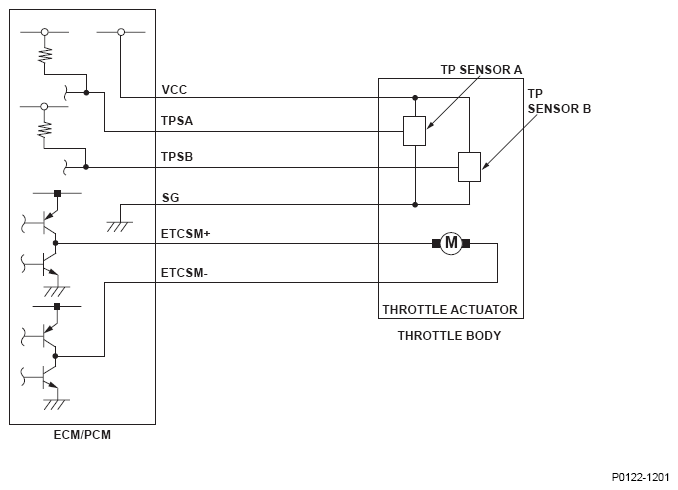

Fig 1: Throttle Position Sensor - Circuit Diagram

G08526040
