Fuel Gauge Sending Unit Test

NOTE: For the fuel gauge system circuit diagram, refer to the Gauges Circuit Diagram (see CIRCUIT DIAGRAM ).
  1. Check the No. 22 METER (7.5 A) fuse in the under-dash fuse/relay box before testing.
  2. Check for body electrical system DTCs.
    • If no problem is found, go to step  3.
    • If DTC B1175 or B1176 is indicated, go to the indicated DTC's troubleshooting.
  3. Turn the ignition switch to LOCK (0).
  4. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).

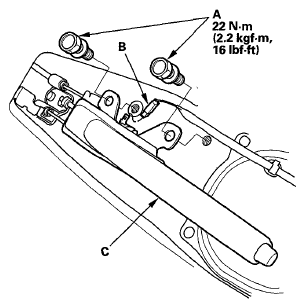

  5. Remove the bolts (A), and the wire (B), then remove the parking brake lever (C).
    Fig 1: Bolts, Wire & Parking Brake Lever With Torque Specifications
    G05953189Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the access panel (A) from the floor.
    Fig 2: Identifying Access Panel & Fuel Tank Unit 4P Connector
    G05953190Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Disconnect the fuel tank unit 4P connector (B).
  8. Measure the voltage between fuel tank unit 4P connector terminals No. 1 and No. 3 with the ignition switch turned to ON (II). There should be battery voltage.
    • If the voltage is OK, go to step  9.
    • If the voltage is not as specified, check for:
      • a short in the LT GRN wire to ground.
      • an open in the LT GRN or the BLK wire.
        Fig 3: Checking Voltage Between Fuel Tank Unit 4P Connector Terminals No. 1 & No. 3
        G05953191Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Turn the ignition switch to LOCK (0).
  10. Remove the fuel tank unit from the fuel tank (see FUEL TANK UNIT REMOVAL AND INSTALLATION  ).
  11. Measure the resistance between fuel tank unit 4P connector terminals No. 1 and No. 3 with the float at E (EMPTY), LOW (LOW FUEL INDICATOR), 1/2 (HALF FULL), and F (FULL) positions. If you do not get the following readings, replace the fuel gauge sending unit (see FUEL PUMP/FUEL GAUGE SENDING UNIT REPLACEMENT  ).
    FUEL PUMP/FUEL GAUGE SENDING UNIT REFERENCE TABLE

    Float Position F 4.87 in. (123.8 mm) 1/2 2.61 in. (66.4 mm) LOW 1.86 in. (27.5 mm) E 0.65 in. (16.5 mm)
    Resistance (Ω) 19 to 21 194 to 204 520.3 to 671.5 770 to 790

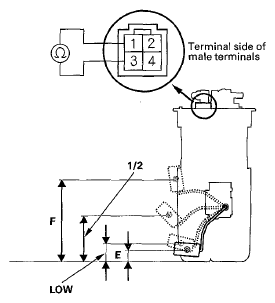

    Fig 4: Measuring Resistance Between Fuel Tank Unit 4P Connector Terminals No. 1 & 3
    G05953192Courtesy of AMERICAN HONDA MOTOR CO., INC.
  12. Reconnect the fuel tank unit 4P connector.
  13. Remove the No. 1 BACK UP (10 A) fuse from the under-dash fuse/relay box for at least 10 seconds, then reinstall it.
  14. Turn the ignition switch to ON (II).
  15. Check that the pointer of the fuel gauge indicates "F" with the float at F.
    • If the pointer of the fuel gauge does not indicate "F", replace the gauge control module. (See GAUGE CONTROL MODULE REPLACEMENT )
    • If the gauge is OK, the test is complete.
      NOTE:
      • The pointer of the fuel gauge returns to the bottom of the gauge dial when the ignition switch is to LOCK (0), regardless of the fuel level.
      • Remove the No. 1 BACK UP (10 A) fuse from the under-dash fuse/relay box for at least 10 seconds after completing troubleshooting, otherwise it may take up to 20 minutes for the fuel gauge to indicate the correct fuel level.
