Rocker Arm Oil Control Valve Removal/Installation

  1. Remove the harness holder (A).

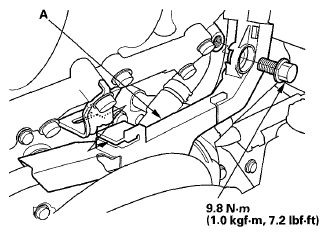

    Fig 1: Identifying Harness Holder
    G05953097Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the rocker arm oil control solenoid connector (A) and the rocker arm oil pressure switch connector (B).

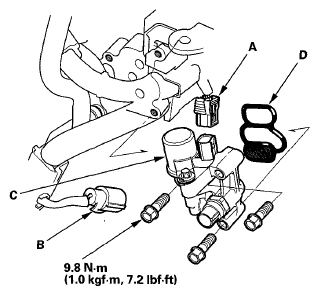

    Fig 2: Identifying Rocker Arm Oil Control Solenoid Connector & Rocker Arm Oil Pressure Switch Connector
    G05953098Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the rocker arm oil control valve assembly (C) and the rocker arm oil control valve filter (D).
  4. Install the parts in the reverse order of removal with a new rocker arm oil control valve filter.
