View 145 - Voice Control Switch Connector View (Navigation)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

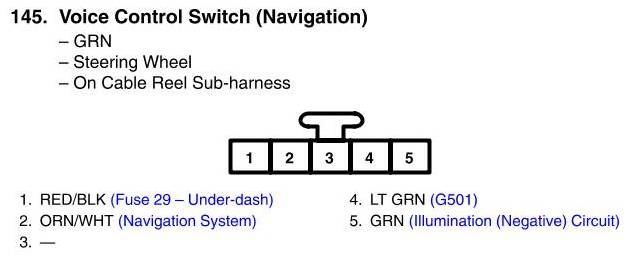

View 145 - Voice Control Switch Connector View (Navigation)
